Simple tower defense tutorial, part 7: Healthbars and first building graphics

After the refactoring in the last part, let's do something more visual again. It should still keep our overall goal in mind, so let's recap what we have so far:

Buildings & enemies
Enemies attacking buildings
Walls blocking enemies
Enemies getting damaged and removed
Buildings getting damaged and removed
Resources
Level system with enemy wave definitions
Simple UI to place buildings
Principle level loop: build, watch, repeat

Let's compare this with what we ultimately want:

Challenging levels:

More enemy types
More building types
Proper balancing of enemy and tower strengths and rewards

Looking at the first sub point, it's clear that we can't continue with cubes. Different enemies means that we need different graphics for each enemy type. And stronger enemies means that our towers need more than one shot to kill them. To signal this to the player, we need healthbars.

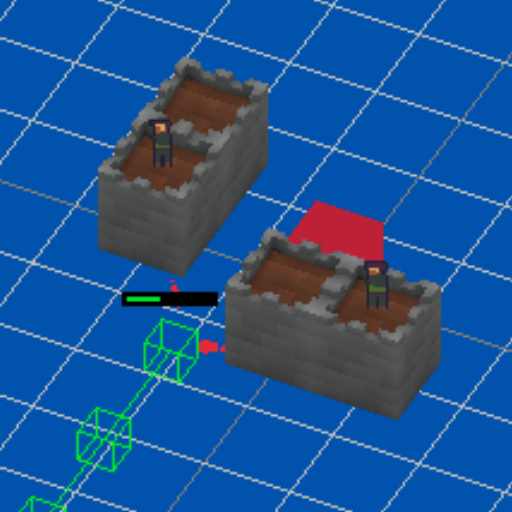

This is why graphics and healthbars are the topic of this part. Let's start with the healthbars.

From world to screen

When we want to display a healthbar, we need to know where to draw it. The healthbar should be drawn above the enemy (or building) that it belongs to. The healthbar is drawn in 2D screen space, so we need to convert the 3D world position of the entity to 2D screen space coordinates.

Coordinate conversions are a common task in game development and we already have used the reverse conversion in the last parts: When we placed a building, we converted the mouse position to a ray in the 3D world space. This time, we want to convert a 3D world position to a 2D screen position.

Luckily, raylib provides a function for this: GetWorldToScreen. This function takes a 3D world position and returns the 2D screen position. The function is quite simple to use, see enemy.c, line 509:

td-tut-42/td_main.c
td-tut-42/td_main.h
td-tut-42/enemy.c
td-tut-42/path_finding.c
td-tut-42/projectile_system.c
td-tut-42/particle_system.c
td-tut-42/tower_system.c
td-tut-42/preferred_size.c
td-tut-42/preferred_size.h
💾

  1 #include "td_main.h"
  2 #include <raymath.h>
  3 #include <stdlib.h>
  4 #include <math.h>
  5
  6 //# Variables
  7 GUIState guiState = {0};
  8 GameTime gameTime = {0};
  9
 10 Level levels[] = {
 11   [0] = {
 12     .state = LEVEL_STATE_BUILDING,
 13     .initialGold = 10,
 14     .waves[0] = {
 15       .enemyType = ENEMY_TYPE_MINION,
 16       .wave = 0,
 17       .count = 10,
 18       .interval = 2.5f,
 19       .delay = 1.0f,
 20       .spawnPosition = {0, 6},
 21     },
 22     .waves[1] = {
 23       .enemyType = ENEMY_TYPE_MINION,
 24       .wave = 1,
 25       .count = 20,
 26       .interval = 1.5f,
 27       .delay = 1.0f,
 28       .spawnPosition = {0, 6},
 29     },
 30     .waves[2] = {
 31       .enemyType = ENEMY_TYPE_MINION,
 32       .wave = 2,
 33       .count = 30,
 34       .interval = 1.2f,
 35       .delay = 1.0f,
 36       .spawnPosition = {0, 6},
 37     }
 38   },
 39 };
 40
 41 Level *currentLevel = levels;
 42
 43 //# Game
 44
 45 void InitLevel(Level *level)
 46 {
 47   TowerInit();
 48   EnemyInit();
 49   ProjectileInit();
 50   ParticleInit();
 51   TowerTryAdd(TOWER_TYPE_BASE, 0, 0);
 52
 53   level->placementMode = 0;
 54   level->state = LEVEL_STATE_BUILDING;
 55   level->nextState = LEVEL_STATE_NONE;
 56   level->playerGold = level->initialGold;
 57
 58   Camera *camera = &level->camera;
 59   camera->position = (Vector3){1.0f, 12.0f, 6.5f};
 60   camera->target = (Vector3){0.0f, 0.5f, 1.0f};
 61   camera->up = (Vector3){0.0f, 1.0f, 0.0f};
 62   camera->fovy = 45.0f;
 63   camera->projection = CAMERA_PERSPECTIVE;
 64 }
 65
 66 void DrawLevelHud(Level *level)
 67 {
 68   const char *text = TextFormat("Gold: %d", level->playerGold);
 69   Font font = GetFontDefault();
 70   DrawTextEx(font, text, (Vector2){GetScreenWidth() - 120, 10}, font.baseSize * 2.0f, 2.0f, BLACK);
 71   DrawTextEx(font, text, (Vector2){GetScreenWidth() - 122, 8}, font.baseSize * 2.0f, 2.0f, YELLOW);
 72 }
 73
 74 void DrawLevelReportLostWave(Level *level)
 75 {
 76   BeginMode3D(level->camera);
 77   DrawGrid(10, 1.0f);
 78   TowerDraw();
 79   EnemyDraw();
 80   ProjectileDraw();
 81   ParticleDraw();
 82   guiState.isBlocked = 0;
 83   EndMode3D();
 84
 85   const char *text = "Wave lost";
 86   int textWidth = MeasureText(text, 20);
 87   DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE);
 88
 89   if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0))
 90   {
 91     level->nextState = LEVEL_STATE_RESET;
 92   }
 93 }
 94
 95 int HasLevelNextWave(Level *level)
 96 {
 97   for (int i = 0; i < 10; i++)
 98   {
 99     EnemyWave *wave = &level->waves[i];
100     if (wave->wave == level->currentWave)
101     {
102       return 1;
103     }
104   }
105   return 0;
106 }
107
108 void DrawLevelReportWonWave(Level *level)
109 {
110   BeginMode3D(level->camera);
111   DrawGrid(10, 1.0f);
112   TowerDraw();
113   EnemyDraw();
114   ProjectileDraw();
115   ParticleDraw();
116   guiState.isBlocked = 0;
117   EndMode3D();
118
119   const char *text = "Wave won";
120   int textWidth = MeasureText(text, 20);
121   DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE);
122
123
124   if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0))
125   {
126     level->nextState = LEVEL_STATE_RESET;
127   }
128
129   if (HasLevelNextWave(level))
130   {
131     if (Button("Prepare for next wave", GetScreenWidth() - 300, GetScreenHeight() - 40, 300, 30, 0))
132     {
133       level->nextState = LEVEL_STATE_BUILDING;
134     }
135   }
136   else {
137     if (Button("Level won", GetScreenWidth() - 300, GetScreenHeight() - 40, 300, 30, 0))
138     {
139       level->nextState = LEVEL_STATE_WON_LEVEL;
140     }
141   }
142 }
143
144 void DrawBuildingBuildButton(Level *level, int x, int y, int width, int height, uint8_t towerType, const char *name)
145 {
146   static ButtonState buttonStates[8] = {0};
147   int cost = GetTowerCosts(towerType);
148   const char *text = TextFormat("%s: %d", name, cost);
149   buttonStates[towerType].isSelected = level->placementMode == towerType;
150   buttonStates[towerType].isDisabled = level->playerGold < cost;
151   if (Button(text, x, y, width, height, &buttonStates[towerType]))
152   {
153     level->placementMode = buttonStates[towerType].isSelected ? 0 : towerType;
154   }
155 }
156
157 void DrawLevelBuildingState(Level *level)
158 {
159   BeginMode3D(level->camera);
160   DrawGrid(10, 1.0f);
161   TowerDraw();
162   EnemyDraw();
163   ProjectileDraw();
164   ParticleDraw();
165
166   Ray ray = GetScreenToWorldRay(GetMousePosition(), level->camera);
167   float planeDistance = ray.position.y / -ray.direction.y;
168   float planeX = ray.direction.x * planeDistance + ray.position.x;
169   float planeY = ray.direction.z * planeDistance + ray.position.z;
170   int16_t mapX = (int16_t)floorf(planeX + 0.5f);
171   int16_t mapY = (int16_t)floorf(planeY + 0.5f);
172   if (level->placementMode && !guiState.isBlocked)
173   {
174     DrawCubeWires((Vector3){mapX, 0.2f, mapY}, 1.0f, 0.4f, 1.0f, RED);
175     if (IsMouseButtonPressed(MOUSE_LEFT_BUTTON))
176     {
177       if (TowerTryAdd(level->placementMode, mapX, mapY))
178       {
179         level->playerGold -= GetTowerCosts(level->placementMode);
180         level->placementMode = TOWER_TYPE_NONE;
181       }
182     }
183   }
184
185   guiState.isBlocked = 0;
186
187   EndMode3D();
188
189   static ButtonState buildWallButtonState = {0};
190   static ButtonState buildGunButtonState = {0};
191   buildWallButtonState.isSelected = level->placementMode == TOWER_TYPE_WALL;
192   buildGunButtonState.isSelected = level->placementMode == TOWER_TYPE_GUN;
193
194   DrawBuildingBuildButton(level, 10, 10, 80, 30, TOWER_TYPE_WALL, "Wall");
195   DrawBuildingBuildButton(level, 10, 50, 80, 30, TOWER_TYPE_GUN, "Gun");
196
197   if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0))
198   {
199     level->nextState = LEVEL_STATE_RESET;
200   }
201
202   if (Button("Begin waves", GetScreenWidth() - 160, GetScreenHeight() - 40, 160, 30, 0))
203   {
204     level->nextState = LEVEL_STATE_BATTLE;
205   }
206
207   const char *text = "Building phase";
208   int textWidth = MeasureText(text, 20);
209   DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE);
210 }
211
212 void InitBattleStateConditions(Level *level)
213 {
214   level->state = LEVEL_STATE_BATTLE;
215   level->nextState = LEVEL_STATE_NONE;
216   level->waveEndTimer = 0.0f;
217   for (int i = 0; i < 10; i++)
218   {
219     EnemyWave *wave = &level->waves[i];
220     wave->spawned = 0;
221     wave->timeToSpawnNext = wave->delay;
222   }
223 }
224
225 void DrawLevelBattleState(Level *level)
226 {
227   BeginMode3D(level->camera);
228   DrawGrid(10, 1.0f);
229   TowerDraw();
230   EnemyDraw();
231   ProjectileDraw();
232   ParticleDraw();
233   guiState.isBlocked = 0;
234   EndMode3D();
235
236   EnemyDrawHealthbars(level->camera);
237
238   if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0))
239   {
240     level->nextState = LEVEL_STATE_RESET;
241   }
242
243   int maxCount = 0;
244   int remainingCount = 0;
245   for (int i = 0; i < 10; i++)
246   {
247     EnemyWave *wave = &level->waves[i];
248     if (wave->wave != level->currentWave)
249     {
250       continue;
251     }
252     maxCount += wave->count;
253     remainingCount += wave->count - wave->spawned;
254   }
255   int aliveCount = EnemyCount();
256   remainingCount += aliveCount;
257
258   const char *text = TextFormat("Battle phase: %03d%%", 100 - remainingCount * 100 / maxCount);
259   int textWidth = MeasureText(text, 20);
260   DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE);
261 }
262
263 void DrawLevel(Level *level)
264 {
265   switch (level->state)
266   {
267     case LEVEL_STATE_BUILDING: DrawLevelBuildingState(level); break;
268     case LEVEL_STATE_BATTLE: DrawLevelBattleState(level); break;
269     case LEVEL_STATE_WON_WAVE: DrawLevelReportWonWave(level); break;
270     case LEVEL_STATE_LOST_WAVE: DrawLevelReportLostWave(level); break;
271     default: break;
272   }
273
274   DrawLevelHud(level);
275 }
276
277 void UpdateLevel(Level *level)
278 {
279   if (level->state == LEVEL_STATE_BATTLE)
280   {
281     int activeWaves = 0;
282     for (int i = 0; i < 10; i++)
283     {
284       EnemyWave *wave = &level->waves[i];
285       if (wave->spawned >= wave->count || wave->wave != level->currentWave)
286       {
287         continue;
288       }
289       activeWaves++;
290       wave->timeToSpawnNext -= gameTime.deltaTime;
291       if (wave->timeToSpawnNext <= 0.0f)
292       {
293         Enemy *enemy = EnemyTryAdd(wave->enemyType, wave->spawnPosition.x, wave->spawnPosition.y);
294         if (enemy)
295         {
296           wave->timeToSpawnNext = wave->interval;
297           wave->spawned++;
298         }
299       }
300     }
301     if (GetTowerByType(TOWER_TYPE_BASE) == 0) {
302       level->waveEndTimer += gameTime.deltaTime;
303       if (level->waveEndTimer >= 2.0f)
304       {
305         level->nextState = LEVEL_STATE_LOST_WAVE;
306       }
307     }
308     else if (activeWaves == 0 && EnemyCount() == 0)
309     {
310       level->waveEndTimer += gameTime.deltaTime;
311       if (level->waveEndTimer >= 2.0f)
312       {
313         level->nextState = LEVEL_STATE_WON_WAVE;
314       }
315     }
316   }
317
318   PathFindingMapUpdate();
319   EnemyUpdate();
320   TowerUpdate();
321   ProjectileUpdate();
322   ParticleUpdate();
323
324   if (level->nextState == LEVEL_STATE_RESET)
325   {
326     InitLevel(level);
327   }
328
329   if (level->nextState == LEVEL_STATE_BATTLE)
330   {
331     InitBattleStateConditions(level);
332   }
333
334   if (level->nextState == LEVEL_STATE_WON_WAVE)
335   {
336     level->currentWave++;
337     level->state = LEVEL_STATE_WON_WAVE;
338   }
339
340   if (level->nextState == LEVEL_STATE_LOST_WAVE)
341   {
342     level->state = LEVEL_STATE_LOST_WAVE;
343   }
344
345   if (level->nextState == LEVEL_STATE_BUILDING)
346   {
347     level->state = LEVEL_STATE_BUILDING;
348   }
349
350   if (level->nextState == LEVEL_STATE_WON_LEVEL)
351   {
352     // make something of this later
353     InitLevel(level);
354   }
355
356   level->nextState = LEVEL_STATE_NONE;
357 }
358
359 float nextSpawnTime = 0.0f;
360
361 void ResetGame()
362 {
363   InitLevel(currentLevel);
364 }
365
366 void InitGame()
367 {
368   TowerInit();
369   EnemyInit();
370   ProjectileInit();
371   ParticleInit();
372   PathfindingMapInit(20, 20, (Vector3){-10.0f, 0.0f, -10.0f}, 1.0f);
373
374   currentLevel = levels;
375   InitLevel(currentLevel);
376 }
377
378 //# Immediate GUI functions
379
380 int Button(const char *text, int x, int y, int width, int height, ButtonState *state)
381 {
382   Rectangle bounds = {x, y, width, height};
383   int isPressed = 0;
384   int isSelected = state && state->isSelected;
385   if (CheckCollisionPointRec(GetMousePosition(), bounds) && !guiState.isBlocked && !state->isDisabled)
386   {
387     Color color = isSelected ? DARKGRAY : GRAY;
388     DrawRectangle(x, y, width, height, color);
389     if (IsMouseButtonPressed(MOUSE_LEFT_BUTTON))
390     {
391       isPressed = 1;
392     }
393     guiState.isBlocked = 1;
394   }
395   else
396   {
397     Color color = isSelected ? WHITE : LIGHTGRAY;
398     DrawRectangle(x, y, width, height, color);
399   }
400   Font font = GetFontDefault();
401   Vector2 textSize = MeasureTextEx(font, text, font.baseSize * 2.0f, 1);
402   Color textColor = state->isDisabled ? GRAY : BLACK;
403   DrawTextEx(font, text, (Vector2){x + width / 2 - textSize.x / 2, y + height / 2 - textSize.y / 2}, font.baseSize * 2.0f, 1, textColor);
404   return isPressed;
405 }
406
407 //# Main game loop
408
409 void GameUpdate()
410 {
411   float dt = GetFrameTime();
412   // cap maximum delta time to 0.1 seconds to prevent large time steps
413   if (dt > 0.1f) dt = 0.1f;
414   gameTime.time += dt;
415   gameTime.deltaTime = dt;
416
417   UpdateLevel(currentLevel);
418 }
419
420 int main(void)
421 {
422   int screenWidth, screenHeight;
423   GetPreferredSize(&screenWidth, &screenHeight);
424   InitWindow(screenWidth, screenHeight, "Tower defense");
425   SetTargetFPS(30);
426
427   InitGame();
428
429   while (!WindowShouldClose())
430   {
431     if (IsPaused()) {
432       // canvas is not visible in browser - do nothing
433       continue;
434     }
435
436     BeginDrawing();
437     ClearBackground(DARKBLUE);
438
439     GameUpdate();
440     DrawLevel(currentLevel);
441
442     EndDrawing();
443   }
444
445   CloseWindow();
446
447   return 0;
448 }

  1 #ifndef TD_TUT_2_MAIN_H
  2 #define TD_TUT_2_MAIN_H
  3
  4 #include <inttypes.h>
  5
  6 #include "raylib.h"
  7 #include "preferred_size.h"
  8
  9 //# Declarations
 10
 11 #define ENEMY_MAX_PATH_COUNT 8
 12 #define ENEMY_MAX_COUNT 400
 13 #define ENEMY_TYPE_NONE 0
 14 #define ENEMY_TYPE_MINION 1
 15
 16 #define PARTICLE_MAX_COUNT 400
 17 #define PARTICLE_TYPE_NONE 0
 18 #define PARTICLE_TYPE_EXPLOSION 1
 19
 20 typedef struct Particle
 21 {
 22   uint8_t particleType;
 23   float spawnTime;
 24   float lifetime;
 25   Vector3 position;
 26   Vector3 velocity;
 27 } Particle;
 28
 29 #define TOWER_MAX_COUNT 400
 30 #define TOWER_TYPE_NONE 0
 31 #define TOWER_TYPE_BASE 1
 32 #define TOWER_TYPE_GUN 2
 33 #define TOWER_TYPE_WALL 3
 34
 35 typedef struct Tower
 36 {
 37   int16_t x, y;
 38   uint8_t towerType;
 39   float cooldown;
 40   float damage;
 41 } Tower;
 42
 43 typedef struct GameTime
 44 {
 45   float time;
 46   float deltaTime;
 47 } GameTime;
 48
 49 typedef struct ButtonState {
 50   char isSelected;
 51   char isDisabled;
 52 } ButtonState;
 53
 54 typedef struct GUIState {
 55   int isBlocked;
 56 } GUIState;
 57
 58 typedef enum LevelState
 59 {
 60   LEVEL_STATE_NONE,
 61   LEVEL_STATE_BUILDING,
 62   LEVEL_STATE_BATTLE,
 63   LEVEL_STATE_WON_WAVE,
 64   LEVEL_STATE_LOST_WAVE,
 65   LEVEL_STATE_WON_LEVEL,
 66   LEVEL_STATE_RESET,
 67 } LevelState;
 68
 69 typedef struct EnemyWave {
 70   uint8_t enemyType;
 71   uint8_t wave;
 72   uint16_t count;
 73   float interval;
 74   float delay;
 75   Vector2 spawnPosition;
 76
 77   uint16_t spawned;
 78   float timeToSpawnNext;
 79 } EnemyWave;
 80
 81 typedef struct Level
 82 {
 83   LevelState state;
 84   LevelState nextState;
 85   Camera3D camera;
 86   int placementMode;
 87
 88   int initialGold;
 89   int playerGold;
 90
 91   EnemyWave waves[10];
 92   int currentWave;
 93   float waveEndTimer;
 94 } Level;
 95
 96 typedef struct DeltaSrc
 97 {
 98   char x, y;
 99 } DeltaSrc;
100
101 typedef struct PathfindingMap
102 {
103   int width, height;
104   float scale;
105   float *distances;
106   long *towerIndex;
107   DeltaSrc *deltaSrc;
108   float maxDistance;
109   Matrix toMapSpace;
110   Matrix toWorldSpace;
111 } PathfindingMap;
112
113 // when we execute the pathfinding algorithm, we need to store the active nodes
114 // in a queue. Each node has a position, a distance from the start, and the
115 // position of the node that we came from.
116 typedef struct PathfindingNode
117 {
118   int16_t x, y, fromX, fromY;
119   float distance;
120 } PathfindingNode;
121
122 typedef struct EnemyId
123 {
124   uint16_t index;
125   uint16_t generation;
126 } EnemyId;
127
128 typedef struct EnemyClassConfig
129 {
130   float speed;
131   float health;
132   float radius;
133   float maxAcceleration;
134   float requiredContactTime;
135   float explosionDamage;
136   float explosionRange;
137   float explosionPushbackPower;
138   int goldValue;
139 } EnemyClassConfig;
140
141 typedef struct Enemy
142 {
143   int16_t currentX, currentY;
144   int16_t nextX, nextY;
145   Vector2 simPosition;
146   Vector2 simVelocity;
147   uint16_t generation;
148   float startMovingTime;
149   float damage, futureDamage;
150   float contactTime;
151   uint8_t enemyType;
152   uint8_t movePathCount;
153   Vector2 movePath[ENEMY_MAX_PATH_COUNT];
154 } Enemy;
155
156 #define PROJECTILE_MAX_COUNT 1200
157 #define PROJECTILE_TYPE_NONE 0
158 #define PROJECTILE_TYPE_BULLET 1
159
160 typedef struct Projectile
161 {
162   uint8_t projectileType;
163   float shootTime;
164   float arrivalTime;
165   float damage;
166   Vector2 position;
167   Vector2 target;
168   Vector2 directionNormal;
169   EnemyId targetEnemy;
170 } Projectile;
171
172 //# Function declarations
173 float TowerGetMaxHealth(Tower *tower);
174 int Button(const char *text, int x, int y, int width, int height, ButtonState *state);
175 int EnemyAddDamage(Enemy *enemy, float damage);
176
177 //# Enemy functions
178 void EnemyInit();
179 void EnemyDraw();
180 void EnemyTriggerExplode(Enemy *enemy, Tower *tower, Vector3 explosionSource);
181 void EnemyUpdate();
182 float EnemyGetCurrentMaxSpeed(Enemy *enemy);
183 float EnemyGetMaxHealth(Enemy *enemy);
184 int EnemyGetNextPosition(int16_t currentX, int16_t currentY, int16_t *nextX, int16_t *nextY);
185 Vector2 EnemyGetPosition(Enemy *enemy, float deltaT, Vector2 *velocity, int *waypointPassedCount);
186 EnemyId EnemyGetId(Enemy *enemy);
187 Enemy *EnemyTryResolve(EnemyId enemyId);
188 Enemy *EnemyTryAdd(uint8_t enemyType, int16_t currentX, int16_t currentY);
189 int EnemyAddDamage(Enemy *enemy, float damage);
190 Enemy* EnemyGetClosestToCastle(int16_t towerX, int16_t towerY, float range);
191 int EnemyCount();
192 void EnemyDrawHealthbars(Camera3D camera);
193
194 //# Tower functions
195 void TowerInit();
196 Tower *TowerGetAt(int16_t x, int16_t y);
197 Tower *TowerTryAdd(uint8_t towerType, int16_t x, int16_t y);
198 Tower *GetTowerByType(uint8_t towerType);
199 int GetTowerCosts(uint8_t towerType);
200 float TowerGetMaxHealth(Tower *tower);
201 void TowerDraw();
202 void TowerUpdate();
203
204 //# Particles
205 void ParticleInit();
206 void ParticleAdd(uint8_t particleType, Vector3 position, Vector3 velocity, float lifetime);
207 void ParticleUpdate();
208 void ParticleDraw();
209
210 //# Projectiles
211 void ProjectileInit();
212 void ProjectileDraw();
213 void ProjectileUpdate();
214 Projectile *ProjectileTryAdd(uint8_t projectileType, Enemy *enemy, Vector2 position, Vector2 target, float speed, float damage);
215
216 //# Pathfinding map
217 void PathfindingMapInit(int width, int height, Vector3 translate, float scale);
218 float PathFindingGetDistance(int mapX, int mapY);
219 Vector2 PathFindingGetGradient(Vector3 world);
220 int PathFindingFromWorldToMapPosition(Vector3 worldPosition, int16_t *mapX, int16_t *mapY);
221 void PathFindingMapUpdate();
222 void PathFindingMapDraw();
223
224 //# variables
225 extern Level *currentLevel;
226 extern Enemy enemies[ENEMY_MAX_COUNT];
227 extern int enemyCount;
228 extern EnemyClassConfig enemyClassConfigs[];
229
230 extern GUIState guiState;
231 extern GameTime gameTime;
232 extern Tower towers[TOWER_MAX_COUNT];
233 extern int towerCount;
234
235 #endif

  1 #include "td_main.h"
  2 #include <raymath.h>
  3 #include <stdlib.h>
  4 #include <math.h>
  5
  6 EnemyClassConfig enemyClassConfigs[] = {
  7     [ENEMY_TYPE_MINION] = {
  8       .health = 10.0f,
  9       .speed = 0.6f,
 10       .radius = 0.25f,
 11       .maxAcceleration = 1.0f,
 12       .explosionDamage = 1.0f,
 13       .requiredContactTime = 0.5f,
 14       .explosionRange = 1.0f,
 15       .explosionPushbackPower = 0.25f,
 16       .goldValue = 1,
 17     },
 18 };
 19
 20 Enemy enemies[ENEMY_MAX_COUNT];
 21 int enemyCount = 0;
 22
 23 void EnemyInit()
 24 {
 25   for (int i = 0; i < ENEMY_MAX_COUNT; i++)
 26   {
 27     enemies[i] = (Enemy){0};
 28   }
 29   enemyCount = 0;
 30 }
 31
 32 float EnemyGetCurrentMaxSpeed(Enemy *enemy)
 33 {
 34   return enemyClassConfigs[enemy->enemyType].speed;
 35 }
 36
 37 float EnemyGetMaxHealth(Enemy *enemy)
 38 {
 39   return enemyClassConfigs[enemy->enemyType].health;
 40 }
 41
 42 int EnemyGetNextPosition(int16_t currentX, int16_t currentY, int16_t *nextX, int16_t *nextY)
 43 {
 44   int16_t castleX = 0;
 45   int16_t castleY = 0;
 46   int16_t dx = castleX - currentX;
 47   int16_t dy = castleY - currentY;
 48   if (dx == 0 && dy == 0)
 49   {
 50     *nextX = currentX;
 51     *nextY = currentY;
 52     return 1;
 53   }
 54   Vector2 gradient = PathFindingGetGradient((Vector3){currentX, 0, currentY});
 55
 56   if (gradient.x == 0 && gradient.y == 0)
 57   {
 58     *nextX = currentX;
 59     *nextY = currentY;
 60     return 1;
 61   }
 62
 63   if (fabsf(gradient.x) > fabsf(gradient.y))
 64   {
 65     *nextX = currentX + (int16_t)(gradient.x > 0.0f ? 1 : -1);
 66     *nextY = currentY;
 67     return 0;
 68   }
 69   *nextX = currentX;
 70   *nextY = currentY + (int16_t)(gradient.y > 0.0f ? 1 : -1);
 71   return 0;
 72 }
 73
 74
 75 // this function predicts the movement of the unit for the next deltaT seconds
 76 Vector2 EnemyGetPosition(Enemy *enemy, float deltaT, Vector2 *velocity, int *waypointPassedCount)
 77 {
 78   const float pointReachedDistance = 0.25f;
 79   const float pointReachedDistance2 = pointReachedDistance * pointReachedDistance;
 80   const float maxSimStepTime = 0.015625f;
 81
 82   float maxAcceleration = enemyClassConfigs[enemy->enemyType].maxAcceleration;
 83   float maxSpeed = EnemyGetCurrentMaxSpeed(enemy);
 84   int16_t nextX = enemy->nextX;
 85   int16_t nextY = enemy->nextY;
 86   Vector2 position = enemy->simPosition;
 87   int passedCount = 0;
 88   for (float t = 0.0f; t < deltaT; t += maxSimStepTime)
 89   {
 90     float stepTime = fminf(deltaT - t, maxSimStepTime);
 91     Vector2 target = (Vector2){nextX, nextY};
 92     float speed = Vector2Length(*velocity);
 93     // draw the target position for debugging
 94     DrawCubeWires((Vector3){target.x, 0.2f, target.y}, 0.1f, 0.4f, 0.1f, RED);
 95     Vector2 lookForwardPos = Vector2Add(position, Vector2Scale(*velocity, speed));
 96     if (Vector2DistanceSqr(target, lookForwardPos) <= pointReachedDistance2)
 97     {
 98       // we reached the target position, let's move to the next waypoint
 99       EnemyGetNextPosition(nextX, nextY, &nextX, &nextY);
100       target = (Vector2){nextX, nextY};
101       // track how many waypoints we passed
102       passedCount++;
103     }
104
105     // acceleration towards the target
106     Vector2 unitDirection = Vector2Normalize(Vector2Subtract(target, lookForwardPos));
107     Vector2 acceleration = Vector2Scale(unitDirection, maxAcceleration * stepTime);
108     *velocity = Vector2Add(*velocity, acceleration);
109
110     // limit the speed to the maximum speed
111     if (speed > maxSpeed)
112     {
113       *velocity = Vector2Scale(*velocity, maxSpeed / speed);
114     }
115
116     // move the enemy
117     position = Vector2Add(position, Vector2Scale(*velocity, stepTime));
118   }
119
120   if (waypointPassedCount)
121   {
122     (*waypointPassedCount) = passedCount;
123   }
124
125   return position;
126 }
127
128 void EnemyDraw()
129 {
130   for (int i = 0; i < enemyCount; i++)
131   {
132     Enemy enemy = enemies[i];
133     if (enemy.enemyType == ENEMY_TYPE_NONE)
134     {
135       continue;
136     }
137
138     Vector2 position = EnemyGetPosition(&enemy, gameTime.time - enemy.startMovingTime, &enemy.simVelocity, 0);
139
140     if (enemy.movePathCount > 0)
141     {
142       Vector3 p = {enemy.movePath[0].x, 0.2f, enemy.movePath[0].y};
143       DrawLine3D(p, (Vector3){position.x, 0.2f, position.y}, GREEN);
144     }
145     for (int j = 1; j < enemy.movePathCount; j++)
146     {
147       Vector3 p = {enemy.movePath[j - 1].x, 0.2f, enemy.movePath[j - 1].y};
148       Vector3 q = {enemy.movePath[j].x, 0.2f, enemy.movePath[j].y};
149       DrawLine3D(p, q, GREEN);
150     }
151
152     switch (enemy.enemyType)
153     {
154     case ENEMY_TYPE_MINION:
155       DrawCubeWires((Vector3){position.x, 0.2f, position.y}, 0.4f, 0.4f, 0.4f, GREEN);
156       break;
157     }
158   }
159 }
160
161 void EnemyTriggerExplode(Enemy *enemy, Tower *tower, Vector3 explosionSource)
162 {
163   // damage the tower
164   float explosionDamge = enemyClassConfigs[enemy->enemyType].explosionDamage;
165   float explosionRange = enemyClassConfigs[enemy->enemyType].explosionRange;
166   float explosionPushbackPower = enemyClassConfigs[enemy->enemyType].explosionPushbackPower;
167   float explosionRange2 = explosionRange * explosionRange;
168   tower->damage += enemyClassConfigs[enemy->enemyType].explosionDamage;
169   // explode the enemy
170   if (tower->damage >= TowerGetMaxHealth(tower))
171   {
172     tower->towerType = TOWER_TYPE_NONE;
173   }
174
175   ParticleAdd(PARTICLE_TYPE_EXPLOSION,
176     explosionSource,
177     (Vector3){0, 0.1f, 0}, 1.0f);
178
179   enemy->enemyType = ENEMY_TYPE_NONE;
180
181   // push back enemies & dealing damage
182   for (int i = 0; i < enemyCount; i++)
183   {
184     Enemy *other = &enemies[i];
185     if (other->enemyType == ENEMY_TYPE_NONE)
186     {
187       continue;
188     }
189     float distanceSqr = Vector2DistanceSqr(enemy->simPosition, other->simPosition);
190     if (distanceSqr > 0 && distanceSqr < explosionRange2)
191     {
192       Vector2 direction = Vector2Normalize(Vector2Subtract(other->simPosition, enemy->simPosition));
193       other->simPosition = Vector2Add(other->simPosition, Vector2Scale(direction, explosionPushbackPower));
194       EnemyAddDamage(other, explosionDamge);
195     }
196   }
197 }
198
199 void EnemyUpdate()
200 {
201   const float castleX = 0;
202   const float castleY = 0;
203   const float maxPathDistance2 = 0.25f * 0.25f;
204
205   for (int i = 0; i < enemyCount; i++)
206   {
207     Enemy *enemy = &enemies[i];
208     if (enemy->enemyType == ENEMY_TYPE_NONE)
209     {
210       continue;
211     }
212
213     int waypointPassedCount = 0;
214     enemy->simPosition = EnemyGetPosition(enemy, gameTime.time - enemy->startMovingTime, &enemy->simVelocity, &waypointPassedCount);
215     enemy->startMovingTime = gameTime.time;
216     // track path of unit
217     if (enemy->movePathCount == 0 || Vector2DistanceSqr(enemy->simPosition, enemy->movePath[0]) > maxPathDistance2)
218     {
219       for (int j = ENEMY_MAX_PATH_COUNT - 1; j > 0; j--)
220       {
221         enemy->movePath[j] = enemy->movePath[j - 1];
222       }
223       enemy->movePath[0] = enemy->simPosition;
224       if (++enemy->movePathCount > ENEMY_MAX_PATH_COUNT)
225       {
226         enemy->movePathCount = ENEMY_MAX_PATH_COUNT;
227       }
228     }
229
230     if (waypointPassedCount > 0)
231     {
232       enemy->currentX = enemy->nextX;
233       enemy->currentY = enemy->nextY;
234       if (EnemyGetNextPosition(enemy->currentX, enemy->currentY, &enemy->nextX, &enemy->nextY) &&
235         Vector2DistanceSqr(enemy->simPosition, (Vector2){castleX, castleY}) <= 0.25f * 0.25f)
236       {
237         // enemy reached the castle; remove it
238         enemy->enemyType = ENEMY_TYPE_NONE;
239         continue;
240       }
241     }
242   }
243
244   // handle collisions between enemies
245   for (int i = 0; i < enemyCount - 1; i++)
246   {
247     Enemy *enemyA = &enemies[i];
248     if (enemyA->enemyType == ENEMY_TYPE_NONE)
249     {
250       continue;
251     }
252     for (int j = i + 1; j < enemyCount; j++)
253     {
254       Enemy *enemyB = &enemies[j];
255       if (enemyB->enemyType == ENEMY_TYPE_NONE)
256       {
257         continue;
258       }
259       float distanceSqr = Vector2DistanceSqr(enemyA->simPosition, enemyB->simPosition);
260       float radiusA = enemyClassConfigs[enemyA->enemyType].radius;
261       float radiusB = enemyClassConfigs[enemyB->enemyType].radius;
262       float radiusSum = radiusA + radiusB;
263       if (distanceSqr < radiusSum * radiusSum && distanceSqr > 0.001f)
264       {
265         // collision
266         float distance = sqrtf(distanceSqr);
267         float overlap = radiusSum - distance;
268         // move the enemies apart, but softly; if we have a clog of enemies,
269         // moving them perfectly apart can cause them to jitter
270         float positionCorrection = overlap / 5.0f;
271         Vector2 direction = (Vector2){
272             (enemyB->simPosition.x - enemyA->simPosition.x) / distance * positionCorrection,
273             (enemyB->simPosition.y - enemyA->simPosition.y) / distance * positionCorrection};
274         enemyA->simPosition = Vector2Subtract(enemyA->simPosition, direction);
275         enemyB->simPosition = Vector2Add(enemyB->simPosition, direction);
276       }
277     }
278   }
279
280   // handle collisions between enemies and towers
281   for (int i = 0; i < enemyCount; i++)
282   {
283     Enemy *enemy = &enemies[i];
284     if (enemy->enemyType == ENEMY_TYPE_NONE)
285     {
286       continue;
287     }
288     enemy->contactTime -= gameTime.deltaTime;
289     if (enemy->contactTime < 0.0f)
290     {
291       enemy->contactTime = 0.0f;
292     }
293
294     float enemyRadius = enemyClassConfigs[enemy->enemyType].radius;
295     // linear search over towers; could be optimized by using path finding tower map,
296     // but for now, we keep it simple
297     for (int j = 0; j < towerCount; j++)
298     {
299       Tower *tower = &towers[j];
300       if (tower->towerType == TOWER_TYPE_NONE)
301       {
302         continue;
303       }
304       float distanceSqr = Vector2DistanceSqr(enemy->simPosition, (Vector2){tower->x, tower->y});
305       float combinedRadius = enemyRadius + 0.708; // sqrt(0.5^2 + 0.5^2), corner-center distance of square with side length 1
306       if (distanceSqr > combinedRadius * combinedRadius)
307       {
308         continue;
309       }
310       // potential collision; square / circle intersection
311       float dx = tower->x - enemy->simPosition.x;
312       float dy = tower->y - enemy->simPosition.y;
313       float absDx = fabsf(dx);
314       float absDy = fabsf(dy);
315       Vector3 contactPoint = {0};
316       if (absDx <= 0.5f && absDx <= absDy) {
317         // vertical collision; push the enemy out horizontally
318         float overlap = enemyRadius + 0.5f - absDy;
319         if (overlap < 0.0f)
320         {
321           continue;
322         }
323         float direction = dy > 0.0f ? -1.0f : 1.0f;
324         enemy->simPosition.y += direction * overlap;
325         contactPoint = (Vector3){enemy->simPosition.x, 0.2f, tower->x + direction * 0.5f};
326       }
327       else if (absDy <= 0.5f && absDy <= absDx)
328       {
329         // horizontal collision; push the enemy out vertically
330         float overlap = enemyRadius + 0.5f - absDx;
331         if (overlap < 0.0f)
332         {
333           continue;
334         }
335         float direction = dx > 0.0f ? -1.0f : 1.0f;
336         enemy->simPosition.x += direction * overlap;
337         contactPoint = (Vector3){tower->x + direction * 0.5f, 0.2f, enemy->simPosition.y};
338       }
339       else
340       {
341         // possible collision with a corner
342         float cornerDX = dx > 0.0f ? -0.5f : 0.5f;
343         float cornerDY = dy > 0.0f ? -0.5f : 0.5f;
344         float cornerX = tower->x + cornerDX;
345         float cornerY = tower->y + cornerDY;
346         float cornerDistanceSqr = Vector2DistanceSqr(enemy->simPosition, (Vector2){cornerX, cornerY});
347         if (cornerDistanceSqr > enemyRadius * enemyRadius)
348         {
349           continue;
350         }
351         // push the enemy out along the diagonal
352         float cornerDistance = sqrtf(cornerDistanceSqr);
353         float overlap = enemyRadius - cornerDistance;
354         float directionX = cornerDistance > 0.0f ? (cornerX - enemy->simPosition.x) / cornerDistance : -cornerDX;
355         float directionY = cornerDistance > 0.0f ? (cornerY - enemy->simPosition.y) / cornerDistance : -cornerDY;
356         enemy->simPosition.x -= directionX * overlap;
357         enemy->simPosition.y -= directionY * overlap;
358         contactPoint = (Vector3){cornerX, 0.2f, cornerY};
359       }
360
361       if (enemyClassConfigs[enemy->enemyType].explosionDamage > 0.0f)
362       {
363         enemy->contactTime += gameTime.deltaTime * 2.0f; // * 2 to undo the subtraction above
364         if (enemy->contactTime >= enemyClassConfigs[enemy->enemyType].requiredContactTime)
365         {
366           EnemyTriggerExplode(enemy, tower, contactPoint);
367         }
368       }
369     }
370   }
371 }
372
373 EnemyId EnemyGetId(Enemy *enemy)
374 {
375   return (EnemyId){enemy - enemies, enemy->generation};
376 }
377
378 Enemy *EnemyTryResolve(EnemyId enemyId)
379 {
380   if (enemyId.index >= ENEMY_MAX_COUNT)
381   {
382     return 0;
383   }
384   Enemy *enemy = &enemies[enemyId.index];
385   if (enemy->generation != enemyId.generation || enemy->enemyType == ENEMY_TYPE_NONE)
386   {
387     return 0;
388   }
389   return enemy;
390 }
391
392 Enemy *EnemyTryAdd(uint8_t enemyType, int16_t currentX, int16_t currentY)
393 {
394   Enemy *spawn = 0;
395   for (int i = 0; i < enemyCount; i++)
396   {
397     Enemy *enemy = &enemies[i];
398     if (enemy->enemyType == ENEMY_TYPE_NONE)
399     {
400       spawn = enemy;
401       break;
402     }
403   }
404
405   if (enemyCount < ENEMY_MAX_COUNT && !spawn)
406   {
407     spawn = &enemies[enemyCount++];
408   }
409
410   if (spawn)
411   {
412     spawn->currentX = currentX;
413     spawn->currentY = currentY;
414     spawn->nextX = currentX;
415     spawn->nextY = currentY;
416     spawn->simPosition = (Vector2){currentX, currentY};
417     spawn->simVelocity = (Vector2){0, 0};
418     spawn->enemyType = enemyType;
419     spawn->startMovingTime = gameTime.time;
420     spawn->damage = 0.0f;
421     spawn->futureDamage = 0.0f;
422     spawn->generation++;
423     spawn->movePathCount = 0;
424   }
425
426   return spawn;
427 }
428
429 int EnemyAddDamage(Enemy *enemy, float damage)
430 {
431   enemy->damage += damage;
432   if (enemy->damage >= EnemyGetMaxHealth(enemy))
433   {
434     currentLevel->playerGold += enemyClassConfigs[enemy->enemyType].goldValue;
435     enemy->enemyType = ENEMY_TYPE_NONE;
436     return 1;
437   }
438
439   return 0;
440 }
441
442 Enemy* EnemyGetClosestToCastle(int16_t towerX, int16_t towerY, float range)
443 {
444   int16_t castleX = 0;
445   int16_t castleY = 0;
446   Enemy* closest = 0;
447   int16_t closestDistance = 0;
448   float range2 = range * range;
449   for (int i = 0; i < enemyCount; i++)
450   {
451     Enemy* enemy = &enemies[i];
452     if (enemy->enemyType == ENEMY_TYPE_NONE)
453     {
454       continue;
455     }
456     float maxHealth = EnemyGetMaxHealth(enemy);
457     if (enemy->futureDamage >= maxHealth)
458     {
459       // ignore enemies that will die soon
460       continue;
461     }
462     int16_t dx = castleX - enemy->currentX;
463     int16_t dy = castleY - enemy->currentY;
464     int16_t distance = abs(dx) + abs(dy);
465     if (!closest || distance < closestDistance)
466     {
467       float tdx = towerX - enemy->currentX;
468       float tdy = towerY - enemy->currentY;
469       float tdistance2 = tdx * tdx + tdy * tdy;
470       if (tdistance2 <= range2)
471       {
472         closest = enemy;
473         closestDistance = distance;
474       }
475     }
476   }
477   return closest;
478 }
479
480 int EnemyCount()
481 {
482   int count = 0;
483   for (int i = 0; i < enemyCount; i++)
484   {
485     if (enemies[i].enemyType != ENEMY_TYPE_NONE)
486     {
487       count++;
488     }
489   }
490   return count;
491 }
492
493 void EnemyDrawHealthbars(Camera3D camera)
494 {
495   const float healthBarWidth = 40.0f;
496   const float healthBarHeight = 6.0f;
497   const float healthBarOffset = 15.0f;
498   const float inset = 2.0f;
499   const float innerWidth = healthBarWidth - inset * 2;
500   const float innerHeight = healthBarHeight - inset * 2;
501   for (int i = 0; i < enemyCount; i++)
502   {
503     Enemy *enemy = &enemies[i];
504     if (enemy->enemyType == ENEMY_TYPE_NONE || enemy->damage == 0.0f)
505     {
506       continue;
507     }
508     Vector3 position = (Vector3){enemy->simPosition.x, 0.5f, enemy->simPosition.y};
509     Vector2 screenPos = GetWorldToScreen(position, camera);
510     float maxHealth = EnemyGetMaxHealth(enemy);
511     float health = maxHealth - enemy->damage;
512     float healthRatio = health / maxHealth;
513     float centerX = screenPos.x - healthBarWidth * 0.5f;
514     float topY = screenPos.y - healthBarOffset;
515     DrawRectangle(centerX, topY, healthBarWidth, healthBarHeight, BLACK);
516     float healthWidth = innerWidth * healthRatio;
517     DrawRectangle(centerX + inset, topY + inset, healthWidth, innerHeight, GREEN);
518   }
519 }

  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 // The queue is a simple array of nodes, we add nodes to the end and remove
  5 // nodes from the front. We keep the array around to avoid unnecessary allocations
  6 static PathfindingNode *pathfindingNodeQueue = 0;
  7 static int pathfindingNodeQueueCount = 0;
  8 static int pathfindingNodeQueueCapacity = 0;
  9
 10 // The pathfinding map stores the distances from the castle to each cell in the map.
 11 static PathfindingMap pathfindingMap = {0};
 12
 13 void PathfindingMapInit(int width, int height, Vector3 translate, float scale)
 14 {
 15   // transforming between map space and world space allows us to adapt
 16   // position and scale of the map without changing the pathfinding data
 17   pathfindingMap.toWorldSpace = MatrixTranslate(translate.x, translate.y, translate.z);
 18   pathfindingMap.toWorldSpace = MatrixMultiply(pathfindingMap.toWorldSpace, MatrixScale(scale, scale, scale));
 19   pathfindingMap.toMapSpace = MatrixInvert(pathfindingMap.toWorldSpace);
 20   pathfindingMap.width = width;
 21   pathfindingMap.height = height;
 22   pathfindingMap.scale = scale;
 23   pathfindingMap.distances = (float *)MemAlloc(width * height * sizeof(float));
 24   for (int i = 0; i < width * height; i++)
 25   {
 26     pathfindingMap.distances[i] = -1.0f;
 27   }
 28
 29   pathfindingMap.towerIndex = (long *)MemAlloc(width * height * sizeof(long));
 30   pathfindingMap.deltaSrc = (DeltaSrc *)MemAlloc(width * height * sizeof(DeltaSrc));
 31 }
 32
 33 static void PathFindingNodePush(int16_t x, int16_t y, int16_t fromX, int16_t fromY, float distance)
 34 {
 35   if (pathfindingNodeQueueCount >= pathfindingNodeQueueCapacity)
 36   {
 37     pathfindingNodeQueueCapacity = pathfindingNodeQueueCapacity == 0 ? 256 : pathfindingNodeQueueCapacity * 2;
 38     // we use MemAlloc/MemRealloc to allocate memory for the queue
 39     // I am not entirely sure if MemRealloc allows passing a null pointer
 40     // so we check if the pointer is null and use MemAlloc in that case
 41     if (pathfindingNodeQueue == 0)
 42     {
 43       pathfindingNodeQueue = (PathfindingNode *)MemAlloc(pathfindingNodeQueueCapacity * sizeof(PathfindingNode));
 44     }
 45     else
 46     {
 47       pathfindingNodeQueue = (PathfindingNode *)MemRealloc(pathfindingNodeQueue, pathfindingNodeQueueCapacity * sizeof(PathfindingNode));
 48     }
 49   }
 50
 51   PathfindingNode *node = &pathfindingNodeQueue[pathfindingNodeQueueCount++];
 52   node->x = x;
 53   node->y = y;
 54   node->fromX = fromX;
 55   node->fromY = fromY;
 56   node->distance = distance;
 57 }
 58
 59 static PathfindingNode *PathFindingNodePop()
 60 {
 61   if (pathfindingNodeQueueCount == 0)
 62   {
 63     return 0;
 64   }
 65   // we return the first node in the queue; we want to return a pointer to the node
 66   // so we can return 0 if the queue is empty.
 67   // We should _not_ return a pointer to the element in the list, because the list
 68   // may be reallocated and the pointer would become invalid. Or the
 69   // popped element is overwritten by the next push operation.
 70   // Using static here means that the variable is permanently allocated.
 71   static PathfindingNode node;
 72   node = pathfindingNodeQueue[0];
 73   // we shift all nodes one position to the front
 74   for (int i = 1; i < pathfindingNodeQueueCount; i++)
 75   {
 76     pathfindingNodeQueue[i - 1] = pathfindingNodeQueue[i];
 77   }
 78   --pathfindingNodeQueueCount;
 79   return &node;
 80 }
 81
 82 float PathFindingGetDistance(int mapX, int mapY)
 83 {
 84   if (mapX < 0 || mapX >= pathfindingMap.width || mapY < 0 || mapY >= pathfindingMap.height)
 85   {
 86     // when outside the map, we return the manhattan distance to the castle (0,0)
 87     return fabsf((float)mapX) + fabsf((float)mapY);
 88   }
 89
 90   return pathfindingMap.distances[mapY * pathfindingMap.width + mapX];
 91 }
 92
 93 // transform a world position to a map position in the array;
 94 // returns true if the position is inside the map
 95 int PathFindingFromWorldToMapPosition(Vector3 worldPosition, int16_t *mapX, int16_t *mapY)
 96 {
 97   Vector3 mapPosition = Vector3Transform(worldPosition, pathfindingMap.toMapSpace);
 98   *mapX = (int16_t)mapPosition.x;
 99   *mapY = (int16_t)mapPosition.z;
100   return *mapX >= 0 && *mapX < pathfindingMap.width && *mapY >= 0 && *mapY < pathfindingMap.height;
101 }
102
103 void PathFindingMapUpdate()
104 {
105   const int castleX = 0, castleY = 0;
106   int16_t castleMapX, castleMapY;
107   if (!PathFindingFromWorldToMapPosition((Vector3){castleX, 0.0f, castleY}, &castleMapX, &castleMapY))
108   {
109     return;
110   }
111   int width = pathfindingMap.width, height = pathfindingMap.height;
112
113   // reset the distances to -1
114   for (int i = 0; i < width * height; i++)
115   {
116     pathfindingMap.distances[i] = -1.0f;
117   }
118   // reset the tower indices
119   for (int i = 0; i < width * height; i++)
120   {
121     pathfindingMap.towerIndex[i] = -1;
122   }
123   // reset the delta src
124   for (int i = 0; i < width * height; i++)
125   {
126     pathfindingMap.deltaSrc[i].x = 0;
127     pathfindingMap.deltaSrc[i].y = 0;
128   }
129
130   for (int i = 0; i < towerCount; i++)
131   {
132     Tower *tower = &towers[i];
133     if (tower->towerType == TOWER_TYPE_NONE || tower->towerType == TOWER_TYPE_BASE)
134     {
135       continue;
136     }
137     int16_t mapX, mapY;
138     // technically, if the tower cell scale is not in sync with the pathfinding map scale,
139     // this would not work correctly and needs to be refined to allow towers covering multiple cells
140     // or having multiple towers in one cell; for simplicity, we assume that the tower covers exactly
141     // one cell. For now.
142     if (!PathFindingFromWorldToMapPosition((Vector3){tower->x, 0.0f, tower->y}, &mapX, &mapY))
143     {
144       continue;
145     }
146     int index = mapY * width + mapX;
147     pathfindingMap.towerIndex[index] = i;
148   }
149
150   // we start at the castle and add the castle to the queue
151   pathfindingMap.maxDistance = 0.0f;
152   pathfindingNodeQueueCount = 0;
153   PathFindingNodePush(castleMapX, castleMapY, castleMapX, castleMapY, 0.0f);
154   PathfindingNode *node = 0;
155   while ((node = PathFindingNodePop()))
156   {
157     if (node->x < 0 || node->x >= width || node->y < 0 || node->y >= height)
158     {
159       continue;
160     }
161     int index = node->y * width + node->x;
162     if (pathfindingMap.distances[index] >= 0 && pathfindingMap.distances[index] <= node->distance)
163     {
164       continue;
165     }
166
167     int deltaX = node->x - node->fromX;
168     int deltaY = node->y - node->fromY;
169     // even if the cell is blocked by a tower, we still may want to store the direction
170     // (though this might not be needed, IDK right now)
171     pathfindingMap.deltaSrc[index].x = (char) deltaX;
172     pathfindingMap.deltaSrc[index].y = (char) deltaY;
173
174     // we skip nodes that are blocked by towers
175     if (pathfindingMap.towerIndex[index] >= 0)
176     {
177       node->distance += 8.0f;
178     }
179     pathfindingMap.distances[index] = node->distance;
180     pathfindingMap.maxDistance = fmaxf(pathfindingMap.maxDistance, node->distance);
181     PathFindingNodePush(node->x, node->y + 1, node->x, node->y, node->distance + 1.0f);
182     PathFindingNodePush(node->x, node->y - 1, node->x, node->y, node->distance + 1.0f);
183     PathFindingNodePush(node->x + 1, node->y, node->x, node->y, node->distance + 1.0f);
184     PathFindingNodePush(node->x - 1, node->y, node->x, node->y, node->distance + 1.0f);
185   }
186 }
187
188 void PathFindingMapDraw()
189 {
190   float cellSize = pathfindingMap.scale * 0.9f;
191   float highlightDistance = fmodf(GetTime() * 4.0f, pathfindingMap.maxDistance);
192   for (int x = 0; x < pathfindingMap.width; x++)
193   {
194     for (int y = 0; y < pathfindingMap.height; y++)
195     {
196       float distance = pathfindingMap.distances[y * pathfindingMap.width + x];
197       float colorV = distance < 0 ? 0 : fminf(distance / pathfindingMap.maxDistance, 1.0f);
198       Color color = distance < 0 ? BLUE : (Color){fminf(colorV, 1.0f) * 255, 0, 0, 255};
199       Vector3 position = Vector3Transform((Vector3){x, -0.25f, y}, pathfindingMap.toWorldSpace);
200       // animate the distance "wave" to show how the pathfinding algorithm expands
201       // from the castle
202       if (distance + 0.5f > highlightDistance && distance - 0.5f < highlightDistance)
203       {
204         color = BLACK;
205       }
206       DrawCube(position, cellSize, 0.1f, cellSize, color);
207     }
208   }
209 }
210
211 Vector2 PathFindingGetGradient(Vector3 world)
212 {
213   int16_t mapX, mapY;
214   if (PathFindingFromWorldToMapPosition(world, &mapX, &mapY))
215   {
216     DeltaSrc delta = pathfindingMap.deltaSrc[mapY * pathfindingMap.width + mapX];
217     return (Vector2){(float)-delta.x, (float)-delta.y};
218   }
219   // fallback to a simple gradient calculation
220   float n = PathFindingGetDistance(mapX, mapY - 1);
221   float s = PathFindingGetDistance(mapX, mapY + 1);
222   float w = PathFindingGetDistance(mapX - 1, mapY);
223   float e = PathFindingGetDistance(mapX + 1, mapY);
224   return (Vector2){w - e + 0.25f, n - s + 0.125f};
225 }

  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 static Projectile projectiles[PROJECTILE_MAX_COUNT];
  5 static int projectileCount = 0;
  6
  7 void ProjectileInit()
  8 {
  9   for (int i = 0; i < PROJECTILE_MAX_COUNT; i++)
 10   {
 11     projectiles[i] = (Projectile){0};
 12   }
 13 }
 14
 15 void ProjectileDraw()
 16 {
 17   for (int i = 0; i < projectileCount; i++)
 18   {
 19     Projectile projectile = projectiles[i];
 20     if (projectile.projectileType == PROJECTILE_TYPE_NONE)
 21     {
 22       continue;
 23     }
 24     float transition = (gameTime.time - projectile.shootTime) / (projectile.arrivalTime - projectile.shootTime);
 25     if (transition >= 1.0f)
 26     {
 27       continue;
 28     }
 29     Vector2 position = Vector2Lerp(projectile.position, projectile.target, transition);
 30     float x = position.x;
 31     float y = position.y;
 32     float dx = projectile.directionNormal.x;
 33     float dy = projectile.directionNormal.y;
 34     for (float d = 1.0f; d > 0.0f; d -= 0.25f)
 35     {
 36       x -= dx * 0.1f;
 37       y -= dy * 0.1f;
 38       float size = 0.1f * d;
 39       DrawCube((Vector3){x, 0.2f, y}, size, size, size, RED);
 40     }
 41   }
 42 }
 43
 44 void ProjectileUpdate()
 45 {
 46   for (int i = 0; i < projectileCount; i++)
 47   {
 48     Projectile *projectile = &projectiles[i];
 49     if (projectile->projectileType == PROJECTILE_TYPE_NONE)
 50     {
 51       continue;
 52     }
 53     float transition = (gameTime.time - projectile->shootTime) / (projectile->arrivalTime - projectile->shootTime);
 54     if (transition >= 1.0f)
 55     {
 56       projectile->projectileType = PROJECTILE_TYPE_NONE;
 57       Enemy *enemy = EnemyTryResolve(projectile->targetEnemy);
 58       if (enemy)
 59       {
 60         EnemyAddDamage(enemy, projectile->damage);
 61       }
 62       continue;
 63     }
 64   }
 65 }
 66
 67 Projectile *ProjectileTryAdd(uint8_t projectileType, Enemy *enemy, Vector2 position, Vector2 target, float speed, float damage)
 68 {
 69   for (int i = 0; i < PROJECTILE_MAX_COUNT; i++)
 70   {
 71     Projectile *projectile = &projectiles[i];
 72     if (projectile->projectileType == PROJECTILE_TYPE_NONE)
 73     {
 74       projectile->projectileType = projectileType;
 75       projectile->shootTime = gameTime.time;
 76       projectile->arrivalTime = gameTime.time + Vector2Distance(position, target) / speed;
 77       projectile->damage = damage;
 78       projectile->position = position;
 79       projectile->target = target;
 80       projectile->directionNormal = Vector2Normalize(Vector2Subtract(target, position));
 81       projectile->targetEnemy = EnemyGetId(enemy);
 82       projectileCount = projectileCount <= i ? i + 1 : projectileCount;
 83       return projectile;
 84     }
 85   }
 86   return 0;
 87 }

  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 static Particle particles[PARTICLE_MAX_COUNT];
  5 static int particleCount = 0;
  6
  7 void ParticleInit()
  8 {
  9   for (int i = 0; i < PARTICLE_MAX_COUNT; i++)
 10   {
 11     particles[i] = (Particle){0};
 12   }
 13   particleCount = 0;
 14 }
 15
 16 static void DrawExplosionParticle(Particle *particle, float transition)
 17 {
 18   float size = 1.2f * (1.0f - transition);
 19   Color startColor = WHITE;
 20   Color endColor = RED;
 21   Color color = ColorLerp(startColor, endColor, transition);
 22   DrawCube(particle->position, size, size, size, color);
 23 }
 24
 25 void ParticleAdd(uint8_t particleType, Vector3 position, Vector3 velocity, float lifetime)
 26 {
 27   if (particleCount >= PARTICLE_MAX_COUNT)
 28   {
 29     return;
 30   }
 31
 32   int index = -1;
 33   for (int i = 0; i < particleCount; i++)
 34   {
 35     if (particles[i].particleType == PARTICLE_TYPE_NONE)
 36     {
 37       index = i;
 38       break;
 39     }
 40   }
 41
 42   if (index == -1)
 43   {
 44     index = particleCount++;
 45   }
 46
 47   Particle *particle = &particles[index];
 48   particle->particleType = particleType;
 49   particle->spawnTime = gameTime.time;
 50   particle->lifetime = lifetime;
 51   particle->position = position;
 52   particle->velocity = velocity;
 53 }
 54
 55 void ParticleUpdate()
 56 {
 57   for (int i = 0; i < particleCount; i++)
 58   {
 59     Particle *particle = &particles[i];
 60     if (particle->particleType == PARTICLE_TYPE_NONE)
 61     {
 62       continue;
 63     }
 64
 65     float age = gameTime.time - particle->spawnTime;
 66
 67     if (particle->lifetime > age)
 68     {
 69       particle->position = Vector3Add(particle->position, Vector3Scale(particle->velocity, gameTime.deltaTime));
 70     }
 71     else {
 72       particle->particleType = PARTICLE_TYPE_NONE;
 73     }
 74   }
 75 }
 76
 77 void ParticleDraw()
 78 {
 79   for (int i = 0; i < particleCount; i++)
 80   {
 81     Particle particle = particles[i];
 82     if (particle.particleType == PARTICLE_TYPE_NONE)
 83     {
 84       continue;
 85     }
 86
 87     float age = gameTime.time - particle.spawnTime;
 88     float transition = age / particle.lifetime;
 89     switch (particle.particleType)
 90     {
 91     case PARTICLE_TYPE_EXPLOSION:
 92       DrawExplosionParticle(&particle, transition);
 93       break;
 94     default:
 95       DrawCube(particle.position, 0.3f, 0.5f, 0.3f, RED);
 96       break;
 97     }
 98   }
 99 }

  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 Tower towers[TOWER_MAX_COUNT];
  5 int towerCount = 0;
  6
  7 void TowerInit()
  8 {
  9   for (int i = 0; i < TOWER_MAX_COUNT; i++)
 10   {
 11     towers[i] = (Tower){0};
 12   }
 13   towerCount = 0;
 14 }
 15
 16 static void TowerGunUpdate(Tower *tower)
 17 {
 18   if (tower->cooldown <= 0)
 19   {
 20     Enemy *enemy = EnemyGetClosestToCastle(tower->x, tower->y, 3.0f);
 21     if (enemy)
 22     {
 23       tower->cooldown = 0.5f;
 24       // shoot the enemy; determine future position of the enemy
 25       float bulletSpeed = 1.0f;
 26       float bulletDamage = 3.0f;
 27       Vector2 velocity = enemy->simVelocity;
 28       Vector2 futurePosition = EnemyGetPosition(enemy, gameTime.time - enemy->startMovingTime, &velocity, 0);
 29       Vector2 towerPosition = {tower->x, tower->y};
 30       float eta = Vector2Distance(towerPosition, futurePosition) / bulletSpeed;
 31       for (int i = 0; i < 8; i++) {
 32         velocity = enemy->simVelocity;
 33         futurePosition = EnemyGetPosition(enemy, gameTime.time - enemy->startMovingTime + eta, &velocity, 0);
 34         float distance = Vector2Distance(towerPosition, futurePosition);
 35         float eta2 = distance / bulletSpeed;
 36         if (fabs(eta - eta2) < 0.01f) {
 37           break;
 38         }
 39         eta = (eta2 + eta) * 0.5f;
 40       }
 41       ProjectileTryAdd(PROJECTILE_TYPE_BULLET, enemy, towerPosition, futurePosition,
 42         bulletSpeed, bulletDamage);
 43       enemy->futureDamage += bulletDamage;
 44     }
 45   }
 46   else
 47   {
 48     tower->cooldown -= gameTime.deltaTime;
 49   }
 50 }
 51
 52 Tower *TowerGetAt(int16_t x, int16_t y)
 53 {
 54   for (int i = 0; i < towerCount; i++)
 55   {
 56     if (towers[i].x == x && towers[i].y == y)
 57     {
 58       return &towers[i];
 59     }
 60   }
 61   return 0;
 62 }
 63
 64 Tower *TowerTryAdd(uint8_t towerType, int16_t x, int16_t y)
 65 {
 66   if (towerCount >= TOWER_MAX_COUNT)
 67   {
 68     return 0;
 69   }
 70
 71   Tower *tower = TowerGetAt(x, y);
 72   if (tower)
 73   {
 74     return 0;
 75   }
 76
 77   tower = &towers[towerCount++];
 78   tower->x = x;
 79   tower->y = y;
 80   tower->towerType = towerType;
 81   tower->cooldown = 0.0f;
 82   tower->damage = 0.0f;
 83   return tower;
 84 }
 85
 86 Tower *GetTowerByType(uint8_t towerType)
 87 {
 88   for (int i = 0; i < towerCount; i++)
 89   {
 90     if (towers[i].towerType == towerType)
 91     {
 92       return &towers[i];
 93     }
 94   }
 95   return 0;
 96 }
 97
 98 int GetTowerCosts(uint8_t towerType)
 99 {
100   switch (towerType)
101   {
102   case TOWER_TYPE_BASE:
103     return 0;
104   case TOWER_TYPE_GUN:
105     return 6;
106   case TOWER_TYPE_WALL:
107     return 2;
108   }
109   return 0;
110 }
111
112 float TowerGetMaxHealth(Tower *tower)
113 {
114   switch (tower->towerType)
115   {
116   case TOWER_TYPE_BASE:
117     return 10.0f;
118   case TOWER_TYPE_GUN:
119     return 3.0f;
120   case TOWER_TYPE_WALL:
121     return 5.0f;
122   }
123   return 0.0f;
124 }
125
126 void TowerDraw()
127 {
128   for (int i = 0; i < towerCount; i++)
129   {
130     Tower tower = towers[i];
131     DrawCube((Vector3){tower.x, 0.125f, tower.y}, 1.0f, 0.25f, 1.0f, GRAY);
132     switch (tower.towerType)
133     {
134     case TOWER_TYPE_BASE:
135       DrawCube((Vector3){tower.x, 0.4f, tower.y}, 0.8f, 0.8f, 0.8f, MAROON);
136       break;
137     case TOWER_TYPE_GUN:
138       DrawCube((Vector3){tower.x, 0.2f, tower.y}, 0.8f, 0.4f, 0.8f, DARKPURPLE);
139       break;
140     case TOWER_TYPE_WALL:
141       DrawCube((Vector3){tower.x, 0.5f, tower.y}, 1.0f, 1.0f, 1.0f, LIGHTGRAY);
142       break;
143     }
144   }
145 }
146
147 void TowerUpdate()
148 {
149   for (int i = 0; i < towerCount; i++)
150   {
151     Tower *tower = &towers[i];
152     switch (tower->towerType)
153     {
154     case TOWER_TYPE_GUN:
155       TowerGunUpdate(tower);
156       break;
157     }
158   }
159 }

  1 #include "raylib.h"
  2 #include "preferred_size.h"
  3
  4 // Since the canvas size is not known at compile time, we need to query it at runtime;
  5 // the following platform specific code obtains the canvas size and we will use this
  6 // size as the preferred size for the window at init time. We're ignoring here the
  7 // possibility of the canvas size changing during runtime - this would require to
  8 // poll the canvas size in the game loop or establishing a callback to be notified
  9
 10 #ifdef PLATFORM_WEB
 11 #include <emscripten.h>
 12 EMSCRIPTEN_RESULT emscripten_get_element_css_size(const char *target, double *width, double *height);
 13
 14 void GetPreferredSize(int *screenWidth, int *screenHeight)
 15 {
 16   double canvasWidth, canvasHeight;
 17   emscripten_get_element_css_size("#" CANVAS_NAME, &canvasWidth, &canvasHeight);
 18   *screenWidth = (int)canvasWidth;
 19   *screenHeight = (int)canvasHeight;
 20   TraceLog(LOG_INFO, "preferred size for %s: %d %d", CANVAS_NAME, *screenWidth, *screenHeight);
 21 }
 22
 23 int IsPaused()
 24 {
 25   const char *js = "(function(){\n"
 26   "  var canvas = document.getElementById(\"" CANVAS_NAME "\");\n"
 27   "  var rect = canvas.getBoundingClientRect();\n"
 28   "  var isVisible = (\n"
 29   "    rect.top >= 0 &&\n"
 30   "    rect.left >= 0 &&\n"
 31   "    rect.bottom <= (window.innerHeight || document.documentElement.clientHeight) &&\n"
 32   "    rect.right <= (window.innerWidth || document.documentElement.clientWidth)\n"
 33   "  );\n"
 34   "  return isVisible ? 0 : 1;\n"
 35   "})()";
 36   return emscripten_run_script_int(js);
 37 }
 38
 39 #else
 40 void GetPreferredSize(int *screenWidth, int *screenHeight)
 41 {
 42   *screenWidth = 600;
 43   *screenHeight = 240;
 44 }
 45 int IsPaused()
 46 {
 47   return 0;
 48 }
 49 #endif

  1 #ifndef PREFERRED_SIZE_H
  2 #define PREFERRED_SIZE_H
  3
  4 void GetPreferredSize(int *screenWidth, int *screenHeight);
  5 int IsPaused();
  6
  7 #endif

When placing a tower and starting the wave, once the tower hits an enemy, the enemy's healthbar appears above the enemy:

Healthbars of damaged enemies being shown above them.

To highlight once more the code that does this, here is the relevant part:

  1 Vector3 position = (Vector3){enemy->simPosition.x, 0.5f, enemy->simPosition.y};
  2 Vector2 screenPos = GetWorldToScreen(position, camera);
  3 float maxHealth = EnemyGetMaxHealth(enemy);
  4 float health = maxHealth - enemy->damage;
  5 float healthRatio = health / maxHealth;
  6 float centerX = screenPos.x - healthBarWidth * 0.5f;
  7 float topY = screenPos.y - healthBarOffset;
  8 DrawRectangle(centerX, topY, healthBarWidth, healthBarHeight, BLACK);
  9 float healthWidth = innerWidth * healthRatio;
 10 DrawRectangle(centerX + inset, topY + inset, healthWidth, innerHeight, GREEN);

This is pretty straight forward: We get the screen position of the enemy, calculate the health ratio and draw two rectangles: One black rectangle as the background and one green rectangle as the health bar itself. The green rectangle is scaled according to the health ratio.

Note: It is important that we use the correct camera and position of the object we want to draw the overlay for. A typical problem for this kind of task is that the UI is not synchronized with the game world's position. E.g. if we move the camera between drawing the game world and the UI, the healthbar would be drawn at the wrong position. Getting the order of drawing and updating the game world and camera right is crucial.

Now we want to add a healthbar for the buildings as well. We could copy paste the code above and adapt it for the buildings, but we could also extract the logic for rendering the healthbar into a separate function. This way, we can reuse the code for both enemies and buildings, though we might need to adapt it slightly for each case. Let's do this:

td-tut-43/td_main.c
td-tut-43/td_main.h
td-tut-43/enemy.c
td-tut-43/path_finding.c
td-tut-43/projectile_system.c
td-tut-43/particle_system.c
td-tut-43/tower_system.c
td-tut-43/preferred_size.c
td-tut-43/preferred_size.h
💾

  1 #include "td_main.h"
  2 #include <raymath.h>
  3 #include <stdlib.h>
  4 #include <math.h>
  5
  6 //# Variables
  7 GUIState guiState = {0};
  8 GameTime gameTime = {0};
  9
 10 Level levels[] = {
 11   [0] = {
 12     .state = LEVEL_STATE_BUILDING,
 13     .initialGold = 20,
 14     .waves[0] = {
 15       .enemyType = ENEMY_TYPE_MINION,
 16       .wave = 0,
 17       .count = 10,
 18       .interval = 2.5f,
 19       .delay = 1.0f,
 20       .spawnPosition = {0, 6},
 21     },
 22     .waves[1] = {
 23       .enemyType = ENEMY_TYPE_MINION,
 24       .wave = 1,
 25       .count = 20,
 26       .interval = 1.5f,
 27       .delay = 1.0f,
 28       .spawnPosition = {0, 6},
 29     },
 30     .waves[2] = {
 31       .enemyType = ENEMY_TYPE_MINION,
 32       .wave = 2,
 33       .count = 30,
 34       .interval = 1.2f,
 35       .delay = 1.0f,
 36       .spawnPosition = {0, 6},
 37     }
 38   },
 39 };
 40
 41 Level *currentLevel = levels;
 42
 43 //# Game
 44
 45 void InitLevel(Level *level)
 46 {
 47   TowerInit();
 48   EnemyInit();
 49   ProjectileInit();
 50   ParticleInit();
 51   TowerTryAdd(TOWER_TYPE_BASE, 0, 0);
 52
 53   level->placementMode = 0;
 54   level->state = LEVEL_STATE_BUILDING;
 55   level->nextState = LEVEL_STATE_NONE;
 56   level->playerGold = level->initialGold;
 57
 58   Camera *camera = &level->camera;
 59   camera->position = (Vector3){1.0f, 12.0f, 6.5f};
 60   camera->target = (Vector3){0.0f, 0.5f, 1.0f};
 61   camera->up = (Vector3){0.0f, 1.0f, 0.0f};
 62   camera->fovy = 45.0f;
 63   camera->projection = CAMERA_PERSPECTIVE;
 64 }
 65
 66 void DrawLevelHud(Level *level)
 67 {
 68   const char *text = TextFormat("Gold: %d", level->playerGold);
 69   Font font = GetFontDefault();
 70   DrawTextEx(font, text, (Vector2){GetScreenWidth() - 120, 10}, font.baseSize * 2.0f, 2.0f, BLACK);
 71   DrawTextEx(font, text, (Vector2){GetScreenWidth() - 122, 8}, font.baseSize * 2.0f, 2.0f, YELLOW);
 72 }
 73
 74 void DrawLevelReportLostWave(Level *level)
 75 {
 76   BeginMode3D(level->camera);
 77   DrawGrid(10, 1.0f);
 78   TowerDraw();
 79   EnemyDraw();
 80   ProjectileDraw();
 81   ParticleDraw();
 82   guiState.isBlocked = 0;
 83   EndMode3D();
 84
 85   TowerDrawHealthBars(level->camera);
 86
 87   const char *text = "Wave lost";
 88   int textWidth = MeasureText(text, 20);
 89   DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE);
 90
 91   if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0))
 92   {
 93     level->nextState = LEVEL_STATE_RESET;
 94   }
 95 }
 96
 97 int HasLevelNextWave(Level *level)
 98 {
 99   for (int i = 0; i < 10; i++)
100   {
101     EnemyWave *wave = &level->waves[i];
102     if (wave->wave == level->currentWave)
103     {
104       return 1;
105     }
106   }
107   return 0;
108 }
109
110 void DrawLevelReportWonWave(Level *level)
111 {
112   BeginMode3D(level->camera);
113   DrawGrid(10, 1.0f);
114   TowerDraw();
115   EnemyDraw();
116   ProjectileDraw();
117   ParticleDraw();
118   guiState.isBlocked = 0;
119   EndMode3D();
120
121   TowerDrawHealthBars(level->camera);
122
123   const char *text = "Wave won";
124   int textWidth = MeasureText(text, 20);
125   DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE);
126
127
128   if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0))
129   {
130     level->nextState = LEVEL_STATE_RESET;
131   }
132
133   if (HasLevelNextWave(level))
134   {
135     if (Button("Prepare for next wave", GetScreenWidth() - 300, GetScreenHeight() - 40, 300, 30, 0))
136     {
137       level->nextState = LEVEL_STATE_BUILDING;
138     }
139   }
140   else {
141     if (Button("Level won", GetScreenWidth() - 300, GetScreenHeight() - 40, 300, 30, 0))
142     {
143       level->nextState = LEVEL_STATE_WON_LEVEL;
144     }
145   }
146 }
147
148 void DrawBuildingBuildButton(Level *level, int x, int y, int width, int height, uint8_t towerType, const char *name)
149 {
150   static ButtonState buttonStates[8] = {0};
151   int cost = GetTowerCosts(towerType);
152   const char *text = TextFormat("%s: %d", name, cost);
153   buttonStates[towerType].isSelected = level->placementMode == towerType;
154   buttonStates[towerType].isDisabled = level->playerGold < cost;
155   if (Button(text, x, y, width, height, &buttonStates[towerType]))
156   {
157     level->placementMode = buttonStates[towerType].isSelected ? 0 : towerType;
158   }
159 }
160
161 void DrawLevelBuildingState(Level *level)
162 {
163   BeginMode3D(level->camera);
164   DrawGrid(10, 1.0f);
165   TowerDraw();
166   EnemyDraw();
167   ProjectileDraw();
168   ParticleDraw();
169
170   Ray ray = GetScreenToWorldRay(GetMousePosition(), level->camera);
171   float planeDistance = ray.position.y / -ray.direction.y;
172   float planeX = ray.direction.x * planeDistance + ray.position.x;
173   float planeY = ray.direction.z * planeDistance + ray.position.z;
174   int16_t mapX = (int16_t)floorf(planeX + 0.5f);
175   int16_t mapY = (int16_t)floorf(planeY + 0.5f);
176   if (level->placementMode && !guiState.isBlocked)
177   {
178     DrawCubeWires((Vector3){mapX, 0.2f, mapY}, 1.0f, 0.4f, 1.0f, RED);
179     if (IsMouseButtonPressed(MOUSE_LEFT_BUTTON))
180     {
181       if (TowerTryAdd(level->placementMode, mapX, mapY))
182       {
183         level->playerGold -= GetTowerCosts(level->placementMode);
184         level->placementMode = TOWER_TYPE_NONE;
185       }
186     }
187   }
188
189   guiState.isBlocked = 0;
190
191   EndMode3D();
192
193   TowerDrawHealthBars(level->camera);
194
195   static ButtonState buildWallButtonState = {0};
196   static ButtonState buildGunButtonState = {0};
197   buildWallButtonState.isSelected = level->placementMode == TOWER_TYPE_WALL;
198   buildGunButtonState.isSelected = level->placementMode == TOWER_TYPE_GUN;
199
200   DrawBuildingBuildButton(level, 10, 10, 80, 30, TOWER_TYPE_WALL, "Wall");
201   DrawBuildingBuildButton(level, 10, 50, 80, 30, TOWER_TYPE_GUN, "Gun");
202
203   if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0))
204   {
205     level->nextState = LEVEL_STATE_RESET;
206   }
207
208   if (Button("Begin waves", GetScreenWidth() - 160, GetScreenHeight() - 40, 160, 30, 0))
209   {
210     level->nextState = LEVEL_STATE_BATTLE;
211   }
212
213   const char *text = "Building phase";
214   int textWidth = MeasureText(text, 20);
215   DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE);
216 }
217
218 void InitBattleStateConditions(Level *level)
219 {
220   level->state = LEVEL_STATE_BATTLE;
221   level->nextState = LEVEL_STATE_NONE;
222   level->waveEndTimer = 0.0f;
223   for (int i = 0; i < 10; i++)
224   {
225     EnemyWave *wave = &level->waves[i];
226     wave->spawned = 0;
227     wave->timeToSpawnNext = wave->delay;
228   }
229 }
230
231 void DrawLevelBattleState(Level *level)
232 {
233   BeginMode3D(level->camera);
234   DrawGrid(10, 1.0f);
235   TowerDraw();
236   EnemyDraw();
237   ProjectileDraw();
238   ParticleDraw();
239   guiState.isBlocked = 0;
240   EndMode3D();
241
242   EnemyDrawHealthbars(level->camera);
243   TowerDrawHealthBars(level->camera);
244
245   if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0))
246   {
247     level->nextState = LEVEL_STATE_RESET;
248   }
249
250   int maxCount = 0;
251   int remainingCount = 0;
252   for (int i = 0; i < 10; i++)
253   {
254     EnemyWave *wave = &level->waves[i];
255     if (wave->wave != level->currentWave)
256     {
257       continue;
258     }
259     maxCount += wave->count;
260     remainingCount += wave->count - wave->spawned;
261   }
262   int aliveCount = EnemyCount();
263   remainingCount += aliveCount;
264
265   const char *text = TextFormat("Battle phase: %03d%%", 100 - remainingCount * 100 / maxCount);
266   int textWidth = MeasureText(text, 20);
267   DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE);
268 }
269
270 void DrawLevel(Level *level)
271 {
272   switch (level->state)
273   {
274     case LEVEL_STATE_BUILDING: DrawLevelBuildingState(level); break;
275     case LEVEL_STATE_BATTLE: DrawLevelBattleState(level); break;
276     case LEVEL_STATE_WON_WAVE: DrawLevelReportWonWave(level); break;
277     case LEVEL_STATE_LOST_WAVE: DrawLevelReportLostWave(level); break;
278     default: break;
279   }
280
281   DrawLevelHud(level);
282 }
283
284 void UpdateLevel(Level *level)
285 {
286   if (level->state == LEVEL_STATE_BATTLE)
287   {
288     int activeWaves = 0;
289     for (int i = 0; i < 10; i++)
290     {
291       EnemyWave *wave = &level->waves[i];
292       if (wave->spawned >= wave->count || wave->wave != level->currentWave)
293       {
294         continue;
295       }
296       activeWaves++;
297       wave->timeToSpawnNext -= gameTime.deltaTime;
298       if (wave->timeToSpawnNext <= 0.0f)
299       {
300         Enemy *enemy = EnemyTryAdd(wave->enemyType, wave->spawnPosition.x, wave->spawnPosition.y);
301         if (enemy)
302         {
303           wave->timeToSpawnNext = wave->interval;
304           wave->spawned++;
305         }
306       }
307     }
308     if (GetTowerByType(TOWER_TYPE_BASE) == 0) {
309       level->waveEndTimer += gameTime.deltaTime;
310       if (level->waveEndTimer >= 2.0f)
311       {
312         level->nextState = LEVEL_STATE_LOST_WAVE;
313       }
314     }
315     else if (activeWaves == 0 && EnemyCount() == 0)
316     {
317       level->waveEndTimer += gameTime.deltaTime;
318       if (level->waveEndTimer >= 2.0f)
319       {
320         level->nextState = LEVEL_STATE_WON_WAVE;
321       }
322     }
323   }
324
325   PathFindingMapUpdate();
326   EnemyUpdate();
327   TowerUpdate();
328   ProjectileUpdate();
329   ParticleUpdate();
330
331   if (level->nextState == LEVEL_STATE_RESET)
332   {
333     InitLevel(level);
334   }
335
336   if (level->nextState == LEVEL_STATE_BATTLE)
337   {
338     InitBattleStateConditions(level);
339   }
340
341   if (level->nextState == LEVEL_STATE_WON_WAVE)
342   {
343     level->currentWave++;
344     level->state = LEVEL_STATE_WON_WAVE;
345   }
346
347   if (level->nextState == LEVEL_STATE_LOST_WAVE)
348   {
349     level->state = LEVEL_STATE_LOST_WAVE;
350   }
351
352   if (level->nextState == LEVEL_STATE_BUILDING)
353   {
354     level->state = LEVEL_STATE_BUILDING;
355   }
356
357   if (level->nextState == LEVEL_STATE_WON_LEVEL)
358   {
359     // make something of this later
360     InitLevel(level);
361   }
362
363   level->nextState = LEVEL_STATE_NONE;
364 }
365
366 float nextSpawnTime = 0.0f;
367
368 void ResetGame()
369 {
370   InitLevel(currentLevel);
371 }
372
373 void InitGame()
374 {
375   TowerInit();
376   EnemyInit();
377   ProjectileInit();
378   ParticleInit();
379   PathfindingMapInit(20, 20, (Vector3){-10.0f, 0.0f, -10.0f}, 1.0f);
380
381   currentLevel = levels;
382   InitLevel(currentLevel);
383 }
384
385 //# Immediate GUI functions
386
387 void DrawHealthBar(Camera3D camera, Vector3 position, float healthRatio, Color barColor)
388 {
389   const float healthBarWidth = 40.0f;
390   const float healthBarHeight = 6.0f;
391   const float healthBarOffset = 15.0f;
392   const float inset = 2.0f;
393   const float innerWidth = healthBarWidth - inset * 2;
394   const float innerHeight = healthBarHeight - inset * 2;
395
396   Vector2 screenPos = GetWorldToScreen(position, camera);
397   float centerX = screenPos.x - healthBarWidth * 0.5f;
398   float topY = screenPos.y - healthBarOffset;
399   DrawRectangle(centerX, topY, healthBarWidth, healthBarHeight, BLACK);
400   float healthWidth = innerWidth * healthRatio;
401   DrawRectangle(centerX + inset, topY + inset, healthWidth, innerHeight, barColor);
402 }
403
404 int Button(const char *text, int x, int y, int width, int height, ButtonState *state)
405 {
406   Rectangle bounds = {x, y, width, height};
407   int isPressed = 0;
408   int isSelected = state && state->isSelected;
409   if (CheckCollisionPointRec(GetMousePosition(), bounds) && !guiState.isBlocked && !state->isDisabled)
410   {
411     Color color = isSelected ? DARKGRAY : GRAY;
412     DrawRectangle(x, y, width, height, color);
413     if (IsMouseButtonPressed(MOUSE_LEFT_BUTTON))
414     {
415       isPressed = 1;
416     }
417     guiState.isBlocked = 1;
418   }
419   else
420   {
421     Color color = isSelected ? WHITE : LIGHTGRAY;
422     DrawRectangle(x, y, width, height, color);
423   }
424   Font font = GetFontDefault();
425   Vector2 textSize = MeasureTextEx(font, text, font.baseSize * 2.0f, 1);
426   Color textColor = state->isDisabled ? GRAY : BLACK;
427   DrawTextEx(font, text, (Vector2){x + width / 2 - textSize.x / 2, y + height / 2 - textSize.y / 2}, font.baseSize * 2.0f, 1, textColor);
428   return isPressed;
429 }
430
431 //# Main game loop
432
433 void GameUpdate()
434 {
435   float dt = GetFrameTime();
436   // cap maximum delta time to 0.1 seconds to prevent large time steps
437   if (dt > 0.1f) dt = 0.1f;
438   gameTime.time += dt;
439   gameTime.deltaTime = dt;
440
441   UpdateLevel(currentLevel);
442 }
443
444 int main(void)
445 {
446   int screenWidth, screenHeight;
447   GetPreferredSize(&screenWidth, &screenHeight);
448   InitWindow(screenWidth, screenHeight, "Tower defense");
449   SetTargetFPS(30);
450
451   InitGame();
452
453   while (!WindowShouldClose())
454   {
455     if (IsPaused()) {
456       // canvas is not visible in browser - do nothing
457       continue;
458     }
459
460     BeginDrawing();
461     ClearBackground(DARKBLUE);
462
463     GameUpdate();
464     DrawLevel(currentLevel);
465
466     EndDrawing();
467   }
468
469   CloseWindow();
470
471   return 0;
472 }

  1 #ifndef TD_TUT_2_MAIN_H
  2 #define TD_TUT_2_MAIN_H
  3
  4 #include <inttypes.h>
  5
  6 #include "raylib.h"
  7 #include "preferred_size.h"
  8
  9 //# Declarations
 10
 11 #define ENEMY_MAX_PATH_COUNT 8
 12 #define ENEMY_MAX_COUNT 400
 13 #define ENEMY_TYPE_NONE 0
 14 #define ENEMY_TYPE_MINION 1
 15
 16 #define PARTICLE_MAX_COUNT 400
 17 #define PARTICLE_TYPE_NONE 0
 18 #define PARTICLE_TYPE_EXPLOSION 1
 19
 20 typedef struct Particle
 21 {
 22   uint8_t particleType;
 23   float spawnTime;
 24   float lifetime;
 25   Vector3 position;
 26   Vector3 velocity;
 27 } Particle;
 28
 29 #define TOWER_MAX_COUNT 400
 30 #define TOWER_TYPE_NONE 0
 31 #define TOWER_TYPE_BASE 1
 32 #define TOWER_TYPE_GUN 2
 33 #define TOWER_TYPE_WALL 3
 34
 35 typedef struct Tower
 36 {
 37   int16_t x, y;
 38   uint8_t towerType;
 39   float cooldown;
 40   float damage;
 41 } Tower;
 42
 43 typedef struct GameTime
 44 {
 45   float time;
 46   float deltaTime;
 47 } GameTime;
 48
 49 typedef struct ButtonState {
 50   char isSelected;
 51   char isDisabled;
 52 } ButtonState;
 53
 54 typedef struct GUIState {
 55   int isBlocked;
 56 } GUIState;
 57
 58 typedef enum LevelState
 59 {
 60   LEVEL_STATE_NONE,
 61   LEVEL_STATE_BUILDING,
 62   LEVEL_STATE_BATTLE,
 63   LEVEL_STATE_WON_WAVE,
 64   LEVEL_STATE_LOST_WAVE,
 65   LEVEL_STATE_WON_LEVEL,
 66   LEVEL_STATE_RESET,
 67 } LevelState;
 68
 69 typedef struct EnemyWave {
 70   uint8_t enemyType;
 71   uint8_t wave;
 72   uint16_t count;
 73   float interval;
 74   float delay;
 75   Vector2 spawnPosition;
 76
 77   uint16_t spawned;
 78   float timeToSpawnNext;
 79 } EnemyWave;
 80
 81 typedef struct Level
 82 {
 83   LevelState state;
 84   LevelState nextState;
 85   Camera3D camera;
 86   int placementMode;
 87
 88   int initialGold;
 89   int playerGold;
 90
 91   EnemyWave waves[10];
 92   int currentWave;
 93   float waveEndTimer;
 94 } Level;
 95
 96 typedef struct DeltaSrc
 97 {
 98   char x, y;
 99 } DeltaSrc;
100
101 typedef struct PathfindingMap
102 {
103   int width, height;
104   float scale;
105   float *distances;
106   long *towerIndex;
107   DeltaSrc *deltaSrc;
108   float maxDistance;
109   Matrix toMapSpace;
110   Matrix toWorldSpace;
111 } PathfindingMap;
112
113 // when we execute the pathfinding algorithm, we need to store the active nodes
114 // in a queue. Each node has a position, a distance from the start, and the
115 // position of the node that we came from.
116 typedef struct PathfindingNode
117 {
118   int16_t x, y, fromX, fromY;
119   float distance;
120 } PathfindingNode;
121
122 typedef struct EnemyId
123 {
124   uint16_t index;
125   uint16_t generation;
126 } EnemyId;
127
128 typedef struct EnemyClassConfig
129 {
130   float speed;
131   float health;
132   float radius;
133   float maxAcceleration;
134   float requiredContactTime;
135   float explosionDamage;
136   float explosionRange;
137   float explosionPushbackPower;
138   int goldValue;
139 } EnemyClassConfig;
140
141 typedef struct Enemy
142 {
143   int16_t currentX, currentY;
144   int16_t nextX, nextY;
145   Vector2 simPosition;
146   Vector2 simVelocity;
147   uint16_t generation;
148   float startMovingTime;
149   float damage, futureDamage;
150   float contactTime;
151   uint8_t enemyType;
152   uint8_t movePathCount;
153   Vector2 movePath[ENEMY_MAX_PATH_COUNT];
154 } Enemy;
155
156 #define PROJECTILE_MAX_COUNT 1200
157 #define PROJECTILE_TYPE_NONE 0
158 #define PROJECTILE_TYPE_BULLET 1
159
160 typedef struct Projectile
161 {
162   uint8_t projectileType;
163   float shootTime;
164   float arrivalTime;
165   float damage;
166   Vector2 position;
167   Vector2 target;
168   Vector2 directionNormal;
169   EnemyId targetEnemy;
170 } Projectile;
171
172 //# Function declarations
173 float TowerGetMaxHealth(Tower *tower);
174 int Button(const char *text, int x, int y, int width, int height, ButtonState *state);
175 int EnemyAddDamage(Enemy *enemy, float damage);
176
177 //# Enemy functions
178 void EnemyInit();
179 void EnemyDraw();
180 void EnemyTriggerExplode(Enemy *enemy, Tower *tower, Vector3 explosionSource);
181 void EnemyUpdate();
182 float EnemyGetCurrentMaxSpeed(Enemy *enemy);
183 float EnemyGetMaxHealth(Enemy *enemy);
184 int EnemyGetNextPosition(int16_t currentX, int16_t currentY, int16_t *nextX, int16_t *nextY);
185 Vector2 EnemyGetPosition(Enemy *enemy, float deltaT, Vector2 *velocity, int *waypointPassedCount);
186 EnemyId EnemyGetId(Enemy *enemy);
187 Enemy *EnemyTryResolve(EnemyId enemyId);
188 Enemy *EnemyTryAdd(uint8_t enemyType, int16_t currentX, int16_t currentY);
189 int EnemyAddDamage(Enemy *enemy, float damage);
190 Enemy* EnemyGetClosestToCastle(int16_t towerX, int16_t towerY, float range);
191 int EnemyCount();
192 void EnemyDrawHealthbars(Camera3D camera);
193
194 //# Tower functions
195 void TowerInit();
196 Tower *TowerGetAt(int16_t x, int16_t y);
197 Tower *TowerTryAdd(uint8_t towerType, int16_t x, int16_t y);
198 Tower *GetTowerByType(uint8_t towerType);
199 int GetTowerCosts(uint8_t towerType);
200 float TowerGetMaxHealth(Tower *tower);
201 void TowerDraw();
202 void TowerUpdate();
203 void TowerDrawHealthBars(Camera3D camera);
204
205 //# Particles
206 void ParticleInit();
207 void ParticleAdd(uint8_t particleType, Vector3 position, Vector3 velocity, float lifetime);
208 void ParticleUpdate();
209 void ParticleDraw();
210
211 //# Projectiles
212 void ProjectileInit();
213 void ProjectileDraw();
214 void ProjectileUpdate();
215 Projectile *ProjectileTryAdd(uint8_t projectileType, Enemy *enemy, Vector2 position, Vector2 target, float speed, float damage);
216
217 //# Pathfinding map
218 void PathfindingMapInit(int width, int height, Vector3 translate, float scale);
219 float PathFindingGetDistance(int mapX, int mapY);
220 Vector2 PathFindingGetGradient(Vector3 world);
221 int PathFindingFromWorldToMapPosition(Vector3 worldPosition, int16_t *mapX, int16_t *mapY);
222 void PathFindingMapUpdate();
223 void PathFindingMapDraw();
224
225 //# UI
226 void DrawHealthBar(Camera3D camera, Vector3 position, float healthRatio, Color barColor);
227
228 //# variables
229 extern Level *currentLevel;
230 extern Enemy enemies[ENEMY_MAX_COUNT];
231 extern int enemyCount;
232 extern EnemyClassConfig enemyClassConfigs[];
233
234 extern GUIState guiState;
235 extern GameTime gameTime;
236 extern Tower towers[TOWER_MAX_COUNT];
237 extern int towerCount;
238
239 #endif

  1 #include "td_main.h"
  2 #include <raymath.h>
  3 #include <stdlib.h>
  4 #include <math.h>
  5
  6 EnemyClassConfig enemyClassConfigs[] = {
  7     [ENEMY_TYPE_MINION] = {
  8       .health = 10.0f,
  9       .speed = 0.6f,
 10       .radius = 0.25f,
 11       .maxAcceleration = 1.0f,
 12       .explosionDamage = 1.0f,
 13       .requiredContactTime = 0.5f,
 14       .explosionRange = 1.0f,
 15       .explosionPushbackPower = 0.25f,
 16       .goldValue = 1,
 17     },
 18 };
 19
 20 Enemy enemies[ENEMY_MAX_COUNT];
 21 int enemyCount = 0;
 22
 23 void EnemyInit()
 24 {
 25   for (int i = 0; i < ENEMY_MAX_COUNT; i++)
 26   {
 27     enemies[i] = (Enemy){0};
 28   }
 29   enemyCount = 0;
 30 }
 31
 32 float EnemyGetCurrentMaxSpeed(Enemy *enemy)
 33 {
 34   return enemyClassConfigs[enemy->enemyType].speed;
 35 }
 36
 37 float EnemyGetMaxHealth(Enemy *enemy)
 38 {
 39   return enemyClassConfigs[enemy->enemyType].health;
 40 }
 41
 42 int EnemyGetNextPosition(int16_t currentX, int16_t currentY, int16_t *nextX, int16_t *nextY)
 43 {
 44   int16_t castleX = 0;
 45   int16_t castleY = 0;
 46   int16_t dx = castleX - currentX;
 47   int16_t dy = castleY - currentY;
 48   if (dx == 0 && dy == 0)
 49   {
 50     *nextX = currentX;
 51     *nextY = currentY;
 52     return 1;
 53   }
 54   Vector2 gradient = PathFindingGetGradient((Vector3){currentX, 0, currentY});
 55
 56   if (gradient.x == 0 && gradient.y == 0)
 57   {
 58     *nextX = currentX;
 59     *nextY = currentY;
 60     return 1;
 61   }
 62
 63   if (fabsf(gradient.x) > fabsf(gradient.y))
 64   {
 65     *nextX = currentX + (int16_t)(gradient.x > 0.0f ? 1 : -1);
 66     *nextY = currentY;
 67     return 0;
 68   }
 69   *nextX = currentX;
 70   *nextY = currentY + (int16_t)(gradient.y > 0.0f ? 1 : -1);
 71   return 0;
 72 }
 73
 74
 75 // this function predicts the movement of the unit for the next deltaT seconds
 76 Vector2 EnemyGetPosition(Enemy *enemy, float deltaT, Vector2 *velocity, int *waypointPassedCount)
 77 {
 78   const float pointReachedDistance = 0.25f;
 79   const float pointReachedDistance2 = pointReachedDistance * pointReachedDistance;
 80   const float maxSimStepTime = 0.015625f;
 81
 82   float maxAcceleration = enemyClassConfigs[enemy->enemyType].maxAcceleration;
 83   float maxSpeed = EnemyGetCurrentMaxSpeed(enemy);
 84   int16_t nextX = enemy->nextX;
 85   int16_t nextY = enemy->nextY;
 86   Vector2 position = enemy->simPosition;
 87   int passedCount = 0;
 88   for (float t = 0.0f; t < deltaT; t += maxSimStepTime)
 89   {
 90     float stepTime = fminf(deltaT - t, maxSimStepTime);
 91     Vector2 target = (Vector2){nextX, nextY};
 92     float speed = Vector2Length(*velocity);
 93     // draw the target position for debugging
 94     DrawCubeWires((Vector3){target.x, 0.2f, target.y}, 0.1f, 0.4f, 0.1f, RED);
 95     Vector2 lookForwardPos = Vector2Add(position, Vector2Scale(*velocity, speed));
 96     if (Vector2DistanceSqr(target, lookForwardPos) <= pointReachedDistance2)
 97     {
 98       // we reached the target position, let's move to the next waypoint
 99       EnemyGetNextPosition(nextX, nextY, &nextX, &nextY);
100       target = (Vector2){nextX, nextY};
101       // track how many waypoints we passed
102       passedCount++;
103     }
104
105     // acceleration towards the target
106     Vector2 unitDirection = Vector2Normalize(Vector2Subtract(target, lookForwardPos));
107     Vector2 acceleration = Vector2Scale(unitDirection, maxAcceleration * stepTime);
108     *velocity = Vector2Add(*velocity, acceleration);
109
110     // limit the speed to the maximum speed
111     if (speed > maxSpeed)
112     {
113       *velocity = Vector2Scale(*velocity, maxSpeed / speed);
114     }
115
116     // move the enemy
117     position = Vector2Add(position, Vector2Scale(*velocity, stepTime));
118   }
119
120   if (waypointPassedCount)
121   {
122     (*waypointPassedCount) = passedCount;
123   }
124
125   return position;
126 }
127
128 void EnemyDraw()
129 {
130   for (int i = 0; i < enemyCount; i++)
131   {
132     Enemy enemy = enemies[i];
133     if (enemy.enemyType == ENEMY_TYPE_NONE)
134     {
135       continue;
136     }
137
138     Vector2 position = EnemyGetPosition(&enemy, gameTime.time - enemy.startMovingTime, &enemy.simVelocity, 0);
139
140     if (enemy.movePathCount > 0)
141     {
142       Vector3 p = {enemy.movePath[0].x, 0.2f, enemy.movePath[0].y};
143       DrawLine3D(p, (Vector3){position.x, 0.2f, position.y}, GREEN);
144     }
145     for (int j = 1; j < enemy.movePathCount; j++)
146     {
147       Vector3 p = {enemy.movePath[j - 1].x, 0.2f, enemy.movePath[j - 1].y};
148       Vector3 q = {enemy.movePath[j].x, 0.2f, enemy.movePath[j].y};
149       DrawLine3D(p, q, GREEN);
150     }
151
152     switch (enemy.enemyType)
153     {
154     case ENEMY_TYPE_MINION:
155       DrawCubeWires((Vector3){position.x, 0.2f, position.y}, 0.4f, 0.4f, 0.4f, GREEN);
156       break;
157     }
158   }
159 }
160
161 void EnemyTriggerExplode(Enemy *enemy, Tower *tower, Vector3 explosionSource)
162 {
163   // damage the tower
164   float explosionDamge = enemyClassConfigs[enemy->enemyType].explosionDamage;
165   float explosionRange = enemyClassConfigs[enemy->enemyType].explosionRange;
166   float explosionPushbackPower = enemyClassConfigs[enemy->enemyType].explosionPushbackPower;
167   float explosionRange2 = explosionRange * explosionRange;
168   tower->damage += enemyClassConfigs[enemy->enemyType].explosionDamage;
169   // explode the enemy
170   if (tower->damage >= TowerGetMaxHealth(tower))
171   {
172     tower->towerType = TOWER_TYPE_NONE;
173   }
174
175   ParticleAdd(PARTICLE_TYPE_EXPLOSION,
176     explosionSource,
177     (Vector3){0, 0.1f, 0}, 1.0f);
178
179   enemy->enemyType = ENEMY_TYPE_NONE;
180
181   // push back enemies & dealing damage
182   for (int i = 0; i < enemyCount; i++)
183   {
184     Enemy *other = &enemies[i];
185     if (other->enemyType == ENEMY_TYPE_NONE)
186     {
187       continue;
188     }
189     float distanceSqr = Vector2DistanceSqr(enemy->simPosition, other->simPosition);
190     if (distanceSqr > 0 && distanceSqr < explosionRange2)
191     {
192       Vector2 direction = Vector2Normalize(Vector2Subtract(other->simPosition, enemy->simPosition));
193       other->simPosition = Vector2Add(other->simPosition, Vector2Scale(direction, explosionPushbackPower));
194       EnemyAddDamage(other, explosionDamge);
195     }
196   }
197 }
198
199 void EnemyUpdate()
200 {
201   const float castleX = 0;
202   const float castleY = 0;
203   const float maxPathDistance2 = 0.25f * 0.25f;
204
205   for (int i = 0; i < enemyCount; i++)
206   {
207     Enemy *enemy = &enemies[i];
208     if (enemy->enemyType == ENEMY_TYPE_NONE)
209     {
210       continue;
211     }
212
213     int waypointPassedCount = 0;
214     enemy->simPosition = EnemyGetPosition(enemy, gameTime.time - enemy->startMovingTime, &enemy->simVelocity, &waypointPassedCount);
215     enemy->startMovingTime = gameTime.time;
216     // track path of unit
217     if (enemy->movePathCount == 0 || Vector2DistanceSqr(enemy->simPosition, enemy->movePath[0]) > maxPathDistance2)
218     {
219       for (int j = ENEMY_MAX_PATH_COUNT - 1; j > 0; j--)
220       {
221         enemy->movePath[j] = enemy->movePath[j - 1];
222       }
223       enemy->movePath[0] = enemy->simPosition;
224       if (++enemy->movePathCount > ENEMY_MAX_PATH_COUNT)
225       {
226         enemy->movePathCount = ENEMY_MAX_PATH_COUNT;
227       }
228     }
229
230     if (waypointPassedCount > 0)
231     {
232       enemy->currentX = enemy->nextX;
233       enemy->currentY = enemy->nextY;
234       if (EnemyGetNextPosition(enemy->currentX, enemy->currentY, &enemy->nextX, &enemy->nextY) &&
235         Vector2DistanceSqr(enemy->simPosition, (Vector2){castleX, castleY}) <= 0.25f * 0.25f)
236       {
237         // enemy reached the castle; remove it
238         enemy->enemyType = ENEMY_TYPE_NONE;
239         continue;
240       }
241     }
242   }
243
244   // handle collisions between enemies
245   for (int i = 0; i < enemyCount - 1; i++)
246   {
247     Enemy *enemyA = &enemies[i];
248     if (enemyA->enemyType == ENEMY_TYPE_NONE)
249     {
250       continue;
251     }
252     for (int j = i + 1; j < enemyCount; j++)
253     {
254       Enemy *enemyB = &enemies[j];
255       if (enemyB->enemyType == ENEMY_TYPE_NONE)
256       {
257         continue;
258       }
259       float distanceSqr = Vector2DistanceSqr(enemyA->simPosition, enemyB->simPosition);
260       float radiusA = enemyClassConfigs[enemyA->enemyType].radius;
261       float radiusB = enemyClassConfigs[enemyB->enemyType].radius;
262       float radiusSum = radiusA + radiusB;
263       if (distanceSqr < radiusSum * radiusSum && distanceSqr > 0.001f)
264       {
265         // collision
266         float distance = sqrtf(distanceSqr);
267         float overlap = radiusSum - distance;
268         // move the enemies apart, but softly; if we have a clog of enemies,
269         // moving them perfectly apart can cause them to jitter
270         float positionCorrection = overlap / 5.0f;
271         Vector2 direction = (Vector2){
272             (enemyB->simPosition.x - enemyA->simPosition.x) / distance * positionCorrection,
273             (enemyB->simPosition.y - enemyA->simPosition.y) / distance * positionCorrection};
274         enemyA->simPosition = Vector2Subtract(enemyA->simPosition, direction);
275         enemyB->simPosition = Vector2Add(enemyB->simPosition, direction);
276       }
277     }
278   }
279
280   // handle collisions between enemies and towers
281   for (int i = 0; i < enemyCount; i++)
282   {
283     Enemy *enemy = &enemies[i];
284     if (enemy->enemyType == ENEMY_TYPE_NONE)
285     {
286       continue;
287     }
288     enemy->contactTime -= gameTime.deltaTime;
289     if (enemy->contactTime < 0.0f)
290     {
291       enemy->contactTime = 0.0f;
292     }
293
294     float enemyRadius = enemyClassConfigs[enemy->enemyType].radius;
295     // linear search over towers; could be optimized by using path finding tower map,
296     // but for now, we keep it simple
297     for (int j = 0; j < towerCount; j++)
298     {
299       Tower *tower = &towers[j];
300       if (tower->towerType == TOWER_TYPE_NONE)
301       {
302         continue;
303       }
304       float distanceSqr = Vector2DistanceSqr(enemy->simPosition, (Vector2){tower->x, tower->y});
305       float combinedRadius = enemyRadius + 0.708; // sqrt(0.5^2 + 0.5^2), corner-center distance of square with side length 1
306       if (distanceSqr > combinedRadius * combinedRadius)
307       {
308         continue;
309       }
310       // potential collision; square / circle intersection
311       float dx = tower->x - enemy->simPosition.x;
312       float dy = tower->y - enemy->simPosition.y;
313       float absDx = fabsf(dx);
314       float absDy = fabsf(dy);
315       Vector3 contactPoint = {0};
316       if (absDx <= 0.5f && absDx <= absDy) {
317         // vertical collision; push the enemy out horizontally
318         float overlap = enemyRadius + 0.5f - absDy;
319         if (overlap < 0.0f)
320         {
321           continue;
322         }
323         float direction = dy > 0.0f ? -1.0f : 1.0f;
324         enemy->simPosition.y += direction * overlap;
325         contactPoint = (Vector3){enemy->simPosition.x, 0.2f, tower->y + direction * 0.5f};
326       }
327       else if (absDy <= 0.5f && absDy <= absDx)
328       {
329         // horizontal collision; push the enemy out vertically
330         float overlap = enemyRadius + 0.5f - absDx;
331         if (overlap < 0.0f)
332         {
333           continue;
334         }
335         float direction = dx > 0.0f ? -1.0f : 1.0f;
336         enemy->simPosition.x += direction * overlap;
337         contactPoint = (Vector3){tower->x + direction * 0.5f, 0.2f, enemy->simPosition.y};
338       }
339       else
340       {
341         // possible collision with a corner
342         float cornerDX = dx > 0.0f ? -0.5f : 0.5f;
343         float cornerDY = dy > 0.0f ? -0.5f : 0.5f;
344         float cornerX = tower->x + cornerDX;
345         float cornerY = tower->y + cornerDY;
346         float cornerDistanceSqr = Vector2DistanceSqr(enemy->simPosition, (Vector2){cornerX, cornerY});
347         if (cornerDistanceSqr > enemyRadius * enemyRadius)
348         {
349           continue;
350         }
351         // push the enemy out along the diagonal
352         float cornerDistance = sqrtf(cornerDistanceSqr);
353         float overlap = enemyRadius - cornerDistance;
354         float directionX = cornerDistance > 0.0f ? (cornerX - enemy->simPosition.x) / cornerDistance : -cornerDX;
355         float directionY = cornerDistance > 0.0f ? (cornerY - enemy->simPosition.y) / cornerDistance : -cornerDY;
356         enemy->simPosition.x -= directionX * overlap;
357         enemy->simPosition.y -= directionY * overlap;
358         contactPoint = (Vector3){cornerX, 0.2f, cornerY};
359       }
360
361       if (enemyClassConfigs[enemy->enemyType].explosionDamage > 0.0f)
362       {
363         enemy->contactTime += gameTime.deltaTime * 2.0f; // * 2 to undo the subtraction above
364         if (enemy->contactTime >= enemyClassConfigs[enemy->enemyType].requiredContactTime)
365         {
366           EnemyTriggerExplode(enemy, tower, contactPoint);
367         }
368       }
369     }
370   }
371 }
372
373 EnemyId EnemyGetId(Enemy *enemy)
374 {
375   return (EnemyId){enemy - enemies, enemy->generation};
376 }
377
378 Enemy *EnemyTryResolve(EnemyId enemyId)
379 {
380   if (enemyId.index >= ENEMY_MAX_COUNT)
381   {
382     return 0;
383   }
384   Enemy *enemy = &enemies[enemyId.index];
385   if (enemy->generation != enemyId.generation || enemy->enemyType == ENEMY_TYPE_NONE)
386   {
387     return 0;
388   }
389   return enemy;
390 }
391
392 Enemy *EnemyTryAdd(uint8_t enemyType, int16_t currentX, int16_t currentY)
393 {
394   Enemy *spawn = 0;
395   for (int i = 0; i < enemyCount; i++)
396   {
397     Enemy *enemy = &enemies[i];
398     if (enemy->enemyType == ENEMY_TYPE_NONE)
399     {
400       spawn = enemy;
401       break;
402     }
403   }
404
405   if (enemyCount < ENEMY_MAX_COUNT && !spawn)
406   {
407     spawn = &enemies[enemyCount++];
408   }
409
410   if (spawn)
411   {
412     spawn->currentX = currentX;
413     spawn->currentY = currentY;
414     spawn->nextX = currentX;
415     spawn->nextY = currentY;
416     spawn->simPosition = (Vector2){currentX, currentY};
417     spawn->simVelocity = (Vector2){0, 0};
418     spawn->enemyType = enemyType;
419     spawn->startMovingTime = gameTime.time;
420     spawn->damage = 0.0f;
421     spawn->futureDamage = 0.0f;
422     spawn->generation++;
423     spawn->movePathCount = 0;
424   }
425
426   return spawn;
427 }
428
429 int EnemyAddDamage(Enemy *enemy, float damage)
430 {
431   enemy->damage += damage;
432   if (enemy->damage >= EnemyGetMaxHealth(enemy))
433   {
434     currentLevel->playerGold += enemyClassConfigs[enemy->enemyType].goldValue;
435     enemy->enemyType = ENEMY_TYPE_NONE;
436     return 1;
437   }
438
439   return 0;
440 }
441
442 Enemy* EnemyGetClosestToCastle(int16_t towerX, int16_t towerY, float range)
443 {
444   int16_t castleX = 0;
445   int16_t castleY = 0;
446   Enemy* closest = 0;
447   int16_t closestDistance = 0;
448   float range2 = range * range;
449   for (int i = 0; i < enemyCount; i++)
450   {
451     Enemy* enemy = &enemies[i];
452     if (enemy->enemyType == ENEMY_TYPE_NONE)
453     {
454       continue;
455     }
456     float maxHealth = EnemyGetMaxHealth(enemy);
457     if (enemy->futureDamage >= maxHealth)
458     {
459       // ignore enemies that will die soon
460       continue;
461     }
462     int16_t dx = castleX - enemy->currentX;
463     int16_t dy = castleY - enemy->currentY;
464     int16_t distance = abs(dx) + abs(dy);
465     if (!closest || distance < closestDistance)
466     {
467       float tdx = towerX - enemy->currentX;
468       float tdy = towerY - enemy->currentY;
469       float tdistance2 = tdx * tdx + tdy * tdy;
470       if (tdistance2 <= range2)
471       {
472         closest = enemy;
473         closestDistance = distance;
474       }
475     }
476   }
477   return closest;
478 }
479
480 int EnemyCount()
481 {
482   int count = 0;
483   for (int i = 0; i < enemyCount; i++)
484   {
485     if (enemies[i].enemyType != ENEMY_TYPE_NONE)
486     {
487       count++;
488     }
489   }
490   return count;
491 }
492
493 void EnemyDrawHealthbars(Camera3D camera)
494 {
495   for (int i = 0; i < enemyCount; i++)
496   {
497     Enemy *enemy = &enemies[i];
498     if (enemy->enemyType == ENEMY_TYPE_NONE || enemy->damage == 0.0f)
499     {
500       continue;
501     }
502     Vector3 position = (Vector3){enemy->simPosition.x, 0.5f, enemy->simPosition.y};
503     float maxHealth = EnemyGetMaxHealth(enemy);
504     float health = maxHealth - enemy->damage;
505     float healthRatio = health / maxHealth;
506
507     DrawHealthBar(camera, position, healthRatio, GREEN);
508   }
509 }

  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 // The queue is a simple array of nodes, we add nodes to the end and remove
  5 // nodes from the front. We keep the array around to avoid unnecessary allocations
  6 static PathfindingNode *pathfindingNodeQueue = 0;
  7 static int pathfindingNodeQueueCount = 0;
  8 static int pathfindingNodeQueueCapacity = 0;
  9
 10 // The pathfinding map stores the distances from the castle to each cell in the map.
 11 static PathfindingMap pathfindingMap = {0};
 12
 13 void PathfindingMapInit(int width, int height, Vector3 translate, float scale)
 14 {
 15   // transforming between map space and world space allows us to adapt
 16   // position and scale of the map without changing the pathfinding data
 17   pathfindingMap.toWorldSpace = MatrixTranslate(translate.x, translate.y, translate.z);
 18   pathfindingMap.toWorldSpace = MatrixMultiply(pathfindingMap.toWorldSpace, MatrixScale(scale, scale, scale));
 19   pathfindingMap.toMapSpace = MatrixInvert(pathfindingMap.toWorldSpace);
 20   pathfindingMap.width = width;
 21   pathfindingMap.height = height;
 22   pathfindingMap.scale = scale;
 23   pathfindingMap.distances = (float *)MemAlloc(width * height * sizeof(float));
 24   for (int i = 0; i < width * height; i++)
 25   {
 26     pathfindingMap.distances[i] = -1.0f;
 27   }
 28
 29   pathfindingMap.towerIndex = (long *)MemAlloc(width * height * sizeof(long));
 30   pathfindingMap.deltaSrc = (DeltaSrc *)MemAlloc(width * height * sizeof(DeltaSrc));
 31 }
 32
 33 static void PathFindingNodePush(int16_t x, int16_t y, int16_t fromX, int16_t fromY, float distance)
 34 {
 35   if (pathfindingNodeQueueCount >= pathfindingNodeQueueCapacity)
 36   {
 37     pathfindingNodeQueueCapacity = pathfindingNodeQueueCapacity == 0 ? 256 : pathfindingNodeQueueCapacity * 2;
 38     // we use MemAlloc/MemRealloc to allocate memory for the queue
 39     // I am not entirely sure if MemRealloc allows passing a null pointer
 40     // so we check if the pointer is null and use MemAlloc in that case
 41     if (pathfindingNodeQueue == 0)
 42     {
 43       pathfindingNodeQueue = (PathfindingNode *)MemAlloc(pathfindingNodeQueueCapacity * sizeof(PathfindingNode));
 44     }
 45     else
 46     {
 47       pathfindingNodeQueue = (PathfindingNode *)MemRealloc(pathfindingNodeQueue, pathfindingNodeQueueCapacity * sizeof(PathfindingNode));
 48     }
 49   }
 50
 51   PathfindingNode *node = &pathfindingNodeQueue[pathfindingNodeQueueCount++];
 52   node->x = x;
 53   node->y = y;
 54   node->fromX = fromX;
 55   node->fromY = fromY;
 56   node->distance = distance;
 57 }
 58
 59 static PathfindingNode *PathFindingNodePop()
 60 {
 61   if (pathfindingNodeQueueCount == 0)
 62   {
 63     return 0;
 64   }
 65   // we return the first node in the queue; we want to return a pointer to the node
 66   // so we can return 0 if the queue is empty.
 67   // We should _not_ return a pointer to the element in the list, because the list
 68   // may be reallocated and the pointer would become invalid. Or the
 69   // popped element is overwritten by the next push operation.
 70   // Using static here means that the variable is permanently allocated.
 71   static PathfindingNode node;
 72   node = pathfindingNodeQueue[0];
 73   // we shift all nodes one position to the front
 74   for (int i = 1; i < pathfindingNodeQueueCount; i++)
 75   {
 76     pathfindingNodeQueue[i - 1] = pathfindingNodeQueue[i];
 77   }
 78   --pathfindingNodeQueueCount;
 79   return &node;
 80 }
 81
 82 float PathFindingGetDistance(int mapX, int mapY)
 83 {
 84   if (mapX < 0 || mapX >= pathfindingMap.width || mapY < 0 || mapY >= pathfindingMap.height)
 85   {
 86     // when outside the map, we return the manhattan distance to the castle (0,0)
 87     return fabsf((float)mapX) + fabsf((float)mapY);
 88   }
 89
 90   return pathfindingMap.distances[mapY * pathfindingMap.width + mapX];
 91 }
 92
 93 // transform a world position to a map position in the array;
 94 // returns true if the position is inside the map
 95 int PathFindingFromWorldToMapPosition(Vector3 worldPosition, int16_t *mapX, int16_t *mapY)
 96 {
 97   Vector3 mapPosition = Vector3Transform(worldPosition, pathfindingMap.toMapSpace);
 98   *mapX = (int16_t)mapPosition.x;
 99   *mapY = (int16_t)mapPosition.z;
100   return *mapX >= 0 && *mapX < pathfindingMap.width && *mapY >= 0 && *mapY < pathfindingMap.height;
101 }
102
103 void PathFindingMapUpdate()
104 {
105   const int castleX = 0, castleY = 0;
106   int16_t castleMapX, castleMapY;
107   if (!PathFindingFromWorldToMapPosition((Vector3){castleX, 0.0f, castleY}, &castleMapX, &castleMapY))
108   {
109     return;
110   }
111   int width = pathfindingMap.width, height = pathfindingMap.height;
112
113   // reset the distances to -1
114   for (int i = 0; i < width * height; i++)
115   {
116     pathfindingMap.distances[i] = -1.0f;
117   }
118   // reset the tower indices
119   for (int i = 0; i < width * height; i++)
120   {
121     pathfindingMap.towerIndex[i] = -1;
122   }
123   // reset the delta src
124   for (int i = 0; i < width * height; i++)
125   {
126     pathfindingMap.deltaSrc[i].x = 0;
127     pathfindingMap.deltaSrc[i].y = 0;
128   }
129
130   for (int i = 0; i < towerCount; i++)
131   {
132     Tower *tower = &towers[i];
133     if (tower->towerType == TOWER_TYPE_NONE || tower->towerType == TOWER_TYPE_BASE)
134     {
135       continue;
136     }
137     int16_t mapX, mapY;
138     // technically, if the tower cell scale is not in sync with the pathfinding map scale,
139     // this would not work correctly and needs to be refined to allow towers covering multiple cells
140     // or having multiple towers in one cell; for simplicity, we assume that the tower covers exactly
141     // one cell. For now.
142     if (!PathFindingFromWorldToMapPosition((Vector3){tower->x, 0.0f, tower->y}, &mapX, &mapY))
143     {
144       continue;
145     }
146     int index = mapY * width + mapX;
147     pathfindingMap.towerIndex[index] = i;
148   }
149
150   // we start at the castle and add the castle to the queue
151   pathfindingMap.maxDistance = 0.0f;
152   pathfindingNodeQueueCount = 0;
153   PathFindingNodePush(castleMapX, castleMapY, castleMapX, castleMapY, 0.0f);
154   PathfindingNode *node = 0;
155   while ((node = PathFindingNodePop()))
156   {
157     if (node->x < 0 || node->x >= width || node->y < 0 || node->y >= height)
158     {
159       continue;
160     }
161     int index = node->y * width + node->x;
162     if (pathfindingMap.distances[index] >= 0 && pathfindingMap.distances[index] <= node->distance)
163     {
164       continue;
165     }
166
167     int deltaX = node->x - node->fromX;
168     int deltaY = node->y - node->fromY;
169     // even if the cell is blocked by a tower, we still may want to store the direction
170     // (though this might not be needed, IDK right now)
171     pathfindingMap.deltaSrc[index].x = (char) deltaX;
172     pathfindingMap.deltaSrc[index].y = (char) deltaY;
173
174     // we skip nodes that are blocked by towers
175     if (pathfindingMap.towerIndex[index] >= 0)
176     {
177       node->distance += 8.0f;
178     }
179     pathfindingMap.distances[index] = node->distance;
180     pathfindingMap.maxDistance = fmaxf(pathfindingMap.maxDistance, node->distance);
181     PathFindingNodePush(node->x, node->y + 1, node->x, node->y, node->distance + 1.0f);
182     PathFindingNodePush(node->x, node->y - 1, node->x, node->y, node->distance + 1.0f);
183     PathFindingNodePush(node->x + 1, node->y, node->x, node->y, node->distance + 1.0f);
184     PathFindingNodePush(node->x - 1, node->y, node->x, node->y, node->distance + 1.0f);
185   }
186 }
187
188 void PathFindingMapDraw()
189 {
190   float cellSize = pathfindingMap.scale * 0.9f;
191   float highlightDistance = fmodf(GetTime() * 4.0f, pathfindingMap.maxDistance);
192   for (int x = 0; x < pathfindingMap.width; x++)
193   {
194     for (int y = 0; y < pathfindingMap.height; y++)
195     {
196       float distance = pathfindingMap.distances[y * pathfindingMap.width + x];
197       float colorV = distance < 0 ? 0 : fminf(distance / pathfindingMap.maxDistance, 1.0f);
198       Color color = distance < 0 ? BLUE : (Color){fminf(colorV, 1.0f) * 255, 0, 0, 255};
199       Vector3 position = Vector3Transform((Vector3){x, -0.25f, y}, pathfindingMap.toWorldSpace);
200       // animate the distance "wave" to show how the pathfinding algorithm expands
201       // from the castle
202       if (distance + 0.5f > highlightDistance && distance - 0.5f < highlightDistance)
203       {
204         color = BLACK;
205       }
206       DrawCube(position, cellSize, 0.1f, cellSize, color);
207     }
208   }
209 }
210
211 Vector2 PathFindingGetGradient(Vector3 world)
212 {
213   int16_t mapX, mapY;
214   if (PathFindingFromWorldToMapPosition(world, &mapX, &mapY))
215   {
216     DeltaSrc delta = pathfindingMap.deltaSrc[mapY * pathfindingMap.width + mapX];
217     return (Vector2){(float)-delta.x, (float)-delta.y};
218   }
219   // fallback to a simple gradient calculation
220   float n = PathFindingGetDistance(mapX, mapY - 1);
221   float s = PathFindingGetDistance(mapX, mapY + 1);
222   float w = PathFindingGetDistance(mapX - 1, mapY);
223   float e = PathFindingGetDistance(mapX + 1, mapY);
224   return (Vector2){w - e + 0.25f, n - s + 0.125f};
225 }

  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 static Projectile projectiles[PROJECTILE_MAX_COUNT];
  5 static int projectileCount = 0;
  6
  7 void ProjectileInit()
  8 {
  9   for (int i = 0; i < PROJECTILE_MAX_COUNT; i++)
 10   {
 11     projectiles[i] = (Projectile){0};
 12   }
 13 }
 14
 15 void ProjectileDraw()
 16 {
 17   for (int i = 0; i < projectileCount; i++)
 18   {
 19     Projectile projectile = projectiles[i];
 20     if (projectile.projectileType == PROJECTILE_TYPE_NONE)
 21     {
 22       continue;
 23     }
 24     float transition = (gameTime.time - projectile.shootTime) / (projectile.arrivalTime - projectile.shootTime);
 25     if (transition >= 1.0f)
 26     {
 27       continue;
 28     }
 29     Vector2 position = Vector2Lerp(projectile.position, projectile.target, transition);
 30     float x = position.x;
 31     float y = position.y;
 32     float dx = projectile.directionNormal.x;
 33     float dy = projectile.directionNormal.y;
 34     for (float d = 1.0f; d > 0.0f; d -= 0.25f)
 35     {
 36       x -= dx * 0.1f;
 37       y -= dy * 0.1f;
 38       float size = 0.1f * d;
 39       DrawCube((Vector3){x, 0.2f, y}, size, size, size, RED);
 40     }
 41   }
 42 }
 43
 44 void ProjectileUpdate()
 45 {
 46   for (int i = 0; i < projectileCount; i++)
 47   {
 48     Projectile *projectile = &projectiles[i];
 49     if (projectile->projectileType == PROJECTILE_TYPE_NONE)
 50     {
 51       continue;
 52     }
 53     float transition = (gameTime.time - projectile->shootTime) / (projectile->arrivalTime - projectile->shootTime);
 54     if (transition >= 1.0f)
 55     {
 56       projectile->projectileType = PROJECTILE_TYPE_NONE;
 57       Enemy *enemy = EnemyTryResolve(projectile->targetEnemy);
 58       if (enemy)
 59       {
 60         EnemyAddDamage(enemy, projectile->damage);
 61       }
 62       continue;
 63     }
 64   }
 65 }
 66
 67 Projectile *ProjectileTryAdd(uint8_t projectileType, Enemy *enemy, Vector2 position, Vector2 target, float speed, float damage)
 68 {
 69   for (int i = 0; i < PROJECTILE_MAX_COUNT; i++)
 70   {
 71     Projectile *projectile = &projectiles[i];
 72     if (projectile->projectileType == PROJECTILE_TYPE_NONE)
 73     {
 74       projectile->projectileType = projectileType;
 75       projectile->shootTime = gameTime.time;
 76       projectile->arrivalTime = gameTime.time + Vector2Distance(position, target) / speed;
 77       projectile->damage = damage;
 78       projectile->position = position;
 79       projectile->target = target;
 80       projectile->directionNormal = Vector2Normalize(Vector2Subtract(target, position));
 81       projectile->targetEnemy = EnemyGetId(enemy);
 82       projectileCount = projectileCount <= i ? i + 1 : projectileCount;
 83       return projectile;
 84     }
 85   }
 86   return 0;
 87 }

  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 static Particle particles[PARTICLE_MAX_COUNT];
  5 static int particleCount = 0;
  6
  7 void ParticleInit()
  8 {
  9   for (int i = 0; i < PARTICLE_MAX_COUNT; i++)
 10   {
 11     particles[i] = (Particle){0};
 12   }
 13   particleCount = 0;
 14 }
 15
 16 static void DrawExplosionParticle(Particle *particle, float transition)
 17 {
 18   float size = 1.2f * (1.0f - transition);
 19   Color startColor = WHITE;
 20   Color endColor = RED;
 21   Color color = ColorLerp(startColor, endColor, transition);
 22   DrawCube(particle->position, size, size, size, color);
 23 }
 24
 25 void ParticleAdd(uint8_t particleType, Vector3 position, Vector3 velocity, float lifetime)
 26 {
 27   if (particleCount >= PARTICLE_MAX_COUNT)
 28   {
 29     return;
 30   }
 31
 32   int index = -1;
 33   for (int i = 0; i < particleCount; i++)
 34   {
 35     if (particles[i].particleType == PARTICLE_TYPE_NONE)
 36     {
 37       index = i;
 38       break;
 39     }
 40   }
 41
 42   if (index == -1)
 43   {
 44     index = particleCount++;
 45   }
 46
 47   Particle *particle = &particles[index];
 48   particle->particleType = particleType;
 49   particle->spawnTime = gameTime.time;
 50   particle->lifetime = lifetime;
 51   particle->position = position;
 52   particle->velocity = velocity;
 53 }
 54
 55 void ParticleUpdate()
 56 {
 57   for (int i = 0; i < particleCount; i++)
 58   {
 59     Particle *particle = &particles[i];
 60     if (particle->particleType == PARTICLE_TYPE_NONE)
 61     {
 62       continue;
 63     }
 64
 65     float age = gameTime.time - particle->spawnTime;
 66
 67     if (particle->lifetime > age)
 68     {
 69       particle->position = Vector3Add(particle->position, Vector3Scale(particle->velocity, gameTime.deltaTime));
 70     }
 71     else {
 72       particle->particleType = PARTICLE_TYPE_NONE;
 73     }
 74   }
 75 }
 76
 77 void ParticleDraw()
 78 {
 79   for (int i = 0; i < particleCount; i++)
 80   {
 81     Particle particle = particles[i];
 82     if (particle.particleType == PARTICLE_TYPE_NONE)
 83     {
 84       continue;
 85     }
 86
 87     float age = gameTime.time - particle.spawnTime;
 88     float transition = age / particle.lifetime;
 89     switch (particle.particleType)
 90     {
 91     case PARTICLE_TYPE_EXPLOSION:
 92       DrawExplosionParticle(&particle, transition);
 93       break;
 94     default:
 95       DrawCube(particle.position, 0.3f, 0.5f, 0.3f, RED);
 96       break;
 97     }
 98   }
 99 }

  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 Tower towers[TOWER_MAX_COUNT];
  5 int towerCount = 0;
  6
  7 void TowerInit()
  8 {
  9   for (int i = 0; i < TOWER_MAX_COUNT; i++)
 10   {
 11     towers[i] = (Tower){0};
 12   }
 13   towerCount = 0;
 14 }
 15
 16 static void TowerGunUpdate(Tower *tower)
 17 {
 18   if (tower->cooldown <= 0)
 19   {
 20     Enemy *enemy = EnemyGetClosestToCastle(tower->x, tower->y, 3.0f);
 21     if (enemy)
 22     {
 23       tower->cooldown = 0.5f;
 24       // shoot the enemy; determine future position of the enemy
 25       float bulletSpeed = 1.0f;
 26       float bulletDamage = 3.0f;
 27       Vector2 velocity = enemy->simVelocity;
 28       Vector2 futurePosition = EnemyGetPosition(enemy, gameTime.time - enemy->startMovingTime, &velocity, 0);
 29       Vector2 towerPosition = {tower->x, tower->y};
 30       float eta = Vector2Distance(towerPosition, futurePosition) / bulletSpeed;
 31       for (int i = 0; i < 8; i++) {
 32         velocity = enemy->simVelocity;
 33         futurePosition = EnemyGetPosition(enemy, gameTime.time - enemy->startMovingTime + eta, &velocity, 0);
 34         float distance = Vector2Distance(towerPosition, futurePosition);
 35         float eta2 = distance / bulletSpeed;
 36         if (fabs(eta - eta2) < 0.01f) {
 37           break;
 38         }
 39         eta = (eta2 + eta) * 0.5f;
 40       }
 41       ProjectileTryAdd(PROJECTILE_TYPE_BULLET, enemy, towerPosition, futurePosition,
 42         bulletSpeed, bulletDamage);
 43       enemy->futureDamage += bulletDamage;
 44     }
 45   }
 46   else
 47   {
 48     tower->cooldown -= gameTime.deltaTime;
 49   }
 50 }
 51
 52 Tower *TowerGetAt(int16_t x, int16_t y)
 53 {
 54   for (int i = 0; i < towerCount; i++)
 55   {
 56     if (towers[i].x == x && towers[i].y == y)
 57     {
 58       return &towers[i];
 59     }
 60   }
 61   return 0;
 62 }
 63
 64 Tower *TowerTryAdd(uint8_t towerType, int16_t x, int16_t y)
 65 {
 66   if (towerCount >= TOWER_MAX_COUNT)
 67   {
 68     return 0;
 69   }
 70
 71   Tower *tower = TowerGetAt(x, y);
 72   if (tower)
 73   {
 74     return 0;
 75   }
 76
 77   tower = &towers[towerCount++];
 78   tower->x = x;
 79   tower->y = y;
 80   tower->towerType = towerType;
 81   tower->cooldown = 0.0f;
 82   tower->damage = 0.0f;
 83   return tower;
 84 }
 85
 86 Tower *GetTowerByType(uint8_t towerType)
 87 {
 88   for (int i = 0; i < towerCount; i++)
 89   {
 90     if (towers[i].towerType == towerType)
 91     {
 92       return &towers[i];
 93     }
 94   }
 95   return 0;
 96 }
 97
 98 int GetTowerCosts(uint8_t towerType)
 99 {
100   switch (towerType)
101   {
102   case TOWER_TYPE_BASE:
103     return 0;
104   case TOWER_TYPE_GUN:
105     return 6;
106   case TOWER_TYPE_WALL:
107     return 2;
108   }
109   return 0;
110 }
111
112 float TowerGetMaxHealth(Tower *tower)
113 {
114   switch (tower->towerType)
115   {
116   case TOWER_TYPE_BASE:
117     return 10.0f;
118   case TOWER_TYPE_GUN:
119     return 3.0f;
120   case TOWER_TYPE_WALL:
121     return 5.0f;
122   }
123   return 0.0f;
124 }
125
126 void TowerDraw()
127 {
128   for (int i = 0; i < towerCount; i++)
129   {
130     Tower tower = towers[i];
131     DrawCube((Vector3){tower.x, 0.125f, tower.y}, 1.0f, 0.25f, 1.0f, GRAY);
132     switch (tower.towerType)
133     {
134     case TOWER_TYPE_BASE:
135       DrawCube((Vector3){tower.x, 0.4f, tower.y}, 0.8f, 0.8f, 0.8f, MAROON);
136       break;
137     case TOWER_TYPE_GUN:
138       DrawCube((Vector3){tower.x, 0.2f, tower.y}, 0.8f, 0.4f, 0.8f, DARKPURPLE);
139       break;
140     case TOWER_TYPE_WALL:
141       DrawCube((Vector3){tower.x, 0.5f, tower.y}, 1.0f, 1.0f, 1.0f, LIGHTGRAY);
142       break;
143     }
144   }
145 }
146
147 void TowerUpdate()
148 {
149   for (int i = 0; i < towerCount; i++)
150   {
151     Tower *tower = &towers[i];
152     switch (tower->towerType)
153     {
154     case TOWER_TYPE_GUN:
155       TowerGunUpdate(tower);
156       break;
157     }
158   }
159 }
160
161 void TowerDrawHealthBars(Camera3D camera)
162 {
163   for (int i = 0; i < towerCount; i++)
164   {
165     Tower *tower = &towers[i];
166     if (tower->towerType == TOWER_TYPE_NONE || tower->damage <= 0.0f)
167     {
168       continue;
169     }
170
171     Vector3 position = (Vector3){tower->x, 0.5f, tower->y};
172     float maxHealth = TowerGetMaxHealth(tower);
173     float health = maxHealth - tower->damage;
174     float healthRatio = health / maxHealth;
175
176     DrawHealthBar(camera, position, healthRatio, GREEN);
177   }
178 }

  1 #include "raylib.h"
  2 #include "preferred_size.h"
  3
  4 // Since the canvas size is not known at compile time, we need to query it at runtime;
  5 // the following platform specific code obtains the canvas size and we will use this
  6 // size as the preferred size for the window at init time. We're ignoring here the
  7 // possibility of the canvas size changing during runtime - this would require to
  8 // poll the canvas size in the game loop or establishing a callback to be notified
  9
 10 #ifdef PLATFORM_WEB
 11 #include <emscripten.h>
 12 EMSCRIPTEN_RESULT emscripten_get_element_css_size(const char *target, double *width, double *height);
 13
 14 void GetPreferredSize(int *screenWidth, int *screenHeight)
 15 {
 16   double canvasWidth, canvasHeight;
 17   emscripten_get_element_css_size("#" CANVAS_NAME, &canvasWidth, &canvasHeight);
 18   *screenWidth = (int)canvasWidth;
 19   *screenHeight = (int)canvasHeight;
 20   TraceLog(LOG_INFO, "preferred size for %s: %d %d", CANVAS_NAME, *screenWidth, *screenHeight);
 21 }
 22
 23 int IsPaused()
 24 {
 25   const char *js = "(function(){\n"
 26   "  var canvas = document.getElementById(\"" CANVAS_NAME "\");\n"
 27   "  var rect = canvas.getBoundingClientRect();\n"
 28   "  var isVisible = (\n"
 29   "    rect.top >= 0 &&\n"
 30   "    rect.left >= 0 &&\n"
 31   "    rect.bottom <= (window.innerHeight || document.documentElement.clientHeight) &&\n"
 32   "    rect.right <= (window.innerWidth || document.documentElement.clientWidth)\n"
 33   "  );\n"
 34   "  return isVisible ? 0 : 1;\n"
 35   "})()";
 36   return emscripten_run_script_int(js);
 37 }
 38
 39 #else
 40 void GetPreferredSize(int *screenWidth, int *screenHeight)
 41 {
 42   *screenWidth = 600;
 43   *screenHeight = 240;
 44 }
 45 int IsPaused()
 46 {
 47   return 0;
 48 }
 49 #endif

  1 #ifndef PREFERRED_SIZE_H
  2 #define PREFERRED_SIZE_H
  3
  4 void GetPreferredSize(int *screenWidth, int *screenHeight);
  5 int IsPaused();
  6
  7 #endif

This test revealed a bug where the explosions of enemies appeared in the wrong place. Turns out the contact point calculation was wrong. It was introduced on the post of the 6th December. The bugfix can be found in the enemy.c file, line 325. These kind of errors happen quite easily (at least to me) - identifying and fixing them is one of the most prominent aspects when working on software.

Here's how it looks like when you put it up to a test:

Healthbars of damaged buildings being shown above them.

This wasn't difficult at all! Seeing how damaged your buildings are provides a lot of insights, especially since it shows that the damage remains even after the wave is over:

... which leads up to a question: Can the player repair buildings? How and when? I am not a game designer and I know that an important aspect of this profession is to think about these kind of questions before implementing the game. But one can't think of everything in advance and very often you only realize something when actually seeing it in action. I find this part of game development to be one of the most interesting ones: Once you start to see your game in action, you get a lot of ideas on how to improve it. You "just" have to start this journey. It's really the most important thing you can do: Start doing it!

Graphics

Speaking of seeing stuff in action: We need to replace the enemy and tower cubes with some graphics for the purpose of being able to distinguish between different enemy types and towers. Anything simple will do for now, so let's just use some billboard sprites for the enemies and simple 3d meshes for the towers.

In this tutorial, I won't go into detail how to create 3D models or sprites and will focus on how to integrate them into the game. You can use the graphics I provide (they are contained in the ZIP files below), search for assets on the internet or create your own.

What type of graphic style and quality you choose is up to you. You can get an asset pack from sites like Kenney.nl or OpenGameArt or you can create your own. For prototype game development, simpler graphics are usually better, as they are faster to create and don't distract from gameplay evaluation. A consistent style and sensible use of colors is still important, though.

Chosing a premade colorpalette can help a great deal to use colors that fit together. The Lospec Palette List is a great resource for this. My favorite 32 color palette is the Dawnbringer 32 palette.

I love graphical details, so I usually spend more time on this than I should, but for me it is also important to have fun while developing (remember, free time project, not work!). I am not a professional artist, but I have come up with some ways to create simple graphics that still have a certain charm and that I can create in quite a short time.

Here's an overview of the 3d models that I will use:

As you can see, the models are quite simple and look fairly low poly, though the tesselation is still high due to not using textures but only a gradient texture, which looks like this:

128x128 Gradient texture for the 3D models.

While this technique may look a little strange at first, it has a few advantages:

A single texture for all objects
No texture resolution to worry about
No complex UV unwrapping & texture painting
Can integrate lighting so it looks good even without lighting
Quick modelling due to choosing simplicity over details
Consistent style: Having a color palette texture makes it easy to pick fitting colors
Low memory usage: The texture is usually fairly small.
Easy to change colors: Creating a color variation of an object requires only moving a few UVs around. It's almost magical!

To illustrate the last point, here's in real time how I change the color of the tree model:

Color variations of the tree model.

And if you're curious how the modelling looks like, here's a video on how I model a simple low poly rock in Blender (also real time):

Apparently, this isn't the first time I've done this, so this one went quite fast. It takes more time when creating something new, but in general, all objects I created for this tutorial were done within a few hours.

As for the sprites, I am using a texture atlas with sprites for the enemies and I use the same color palette as for the 3D models (albeit limited to the 32 colors, the color palette is btw. the Dawnbringer 32 palette).

Here's a part of the texture atlas that I worked out in Aseprite:

The sprites are each around 16x16, so fairly small. That makes it easier and fast to create.

All the models and sprites are available in the ZIP files that you can download from the respective parts of this tutorial. Feel free to use them for your own projects: I release them under the CC0 license, so you can use them as you like.

Replacing the cubes

Let's start with placing actual walls. We load the 3D and draw it in place of the cube we used before:

td-tut-44/td_main.c
td-tut-44/td_main.h
td-tut-44/enemy.c
td-tut-44/path_finding.c
td-tut-44/projectile_system.c
td-tut-44/particle_system.c
td-tut-44/tower_system.c
td-tut-44/preferred_size.c
td-tut-44/preferred_size.h
💾

  1 #include "td_main.h"
  2 #include <raymath.h>
  3 #include <stdlib.h>
  4 #include <math.h>
  5
  6 //# Variables
  7 GUIState guiState = {0};
  8 GameTime gameTime = {0};
  9
 10 Level levels[] = {
 11   [0] = {
 12     .state = LEVEL_STATE_BUILDING,
 13     .initialGold = 20,
 14     .waves[0] = {
 15       .enemyType = ENEMY_TYPE_MINION,
 16       .wave = 0,
 17       .count = 10,
 18       .interval = 2.5f,
 19       .delay = 1.0f,
 20       .spawnPosition = {0, 6},
 21     },
 22     .waves[1] = {
 23       .enemyType = ENEMY_TYPE_MINION,
 24       .wave = 1,
 25       .count = 20,
 26       .interval = 1.5f,
 27       .delay = 1.0f,
 28       .spawnPosition = {0, 6},
 29     },
 30     .waves[2] = {
 31       .enemyType = ENEMY_TYPE_MINION,
 32       .wave = 2,
 33       .count = 30,
 34       .interval = 1.2f,
 35       .delay = 1.0f,
 36       .spawnPosition = {0, 6},
 37     }
 38   },
 39 };
 40
 41 Level *currentLevel = levels;
 42
 43 //# Game
 44
 45 void InitLevel(Level *level)
 46 {
 47   TowerInit();
 48   EnemyInit();
 49   ProjectileInit();
 50   ParticleInit();
 51   TowerTryAdd(TOWER_TYPE_BASE, 0, 0);
 52
 53   level->placementMode = 0;
 54   level->state = LEVEL_STATE_BUILDING;
 55   level->nextState = LEVEL_STATE_NONE;
 56   level->playerGold = level->initialGold;
 57
 58   Camera *camera = &level->camera;
 59   camera->position = (Vector3){1.0f, 12.0f, 6.5f};
 60   camera->target = (Vector3){0.0f, 0.5f, 1.0f};
 61   camera->up = (Vector3){0.0f, 1.0f, 0.0f};
 62   camera->fovy = 45.0f;
 63   camera->projection = CAMERA_PERSPECTIVE;
 64 }
 65
 66 void DrawLevelHud(Level *level)
 67 {
 68   const char *text = TextFormat("Gold: %d", level->playerGold);
 69   Font font = GetFontDefault();
 70   DrawTextEx(font, text, (Vector2){GetScreenWidth() - 120, 10}, font.baseSize * 2.0f, 2.0f, BLACK);
 71   DrawTextEx(font, text, (Vector2){GetScreenWidth() - 122, 8}, font.baseSize * 2.0f, 2.0f, YELLOW);
 72 }
 73
 74 void DrawLevelReportLostWave(Level *level)
 75 {
 76   BeginMode3D(level->camera);
 77   DrawGrid(10, 1.0f);
 78   TowerDraw();
 79   EnemyDraw();
 80   ProjectileDraw();
 81   ParticleDraw();
 82   guiState.isBlocked = 0;
 83   EndMode3D();
 84
 85   TowerDrawHealthBars(level->camera);
 86
 87   const char *text = "Wave lost";
 88   int textWidth = MeasureText(text, 20);
 89   DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE);
 90
 91   if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0))
 92   {
 93     level->nextState = LEVEL_STATE_RESET;
 94   }
 95 }
 96
 97 int HasLevelNextWave(Level *level)
 98 {
 99   for (int i = 0; i < 10; i++)
100   {
101     EnemyWave *wave = &level->waves[i];
102     if (wave->wave == level->currentWave)
103     {
104       return 1;
105     }
106   }
107   return 0;
108 }
109
110 void DrawLevelReportWonWave(Level *level)
111 {
112   BeginMode3D(level->camera);
113   DrawGrid(10, 1.0f);
114   TowerDraw();
115   EnemyDraw();
116   ProjectileDraw();
117   ParticleDraw();
118   guiState.isBlocked = 0;
119   EndMode3D();
120
121   TowerDrawHealthBars(level->camera);
122
123   const char *text = "Wave won";
124   int textWidth = MeasureText(text, 20);
125   DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE);
126
127
128   if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0))
129   {
130     level->nextState = LEVEL_STATE_RESET;
131   }
132
133   if (HasLevelNextWave(level))
134   {
135     if (Button("Prepare for next wave", GetScreenWidth() - 300, GetScreenHeight() - 40, 300, 30, 0))
136     {
137       level->nextState = LEVEL_STATE_BUILDING;
138     }
139   }
140   else {
141     if (Button("Level won", GetScreenWidth() - 300, GetScreenHeight() - 40, 300, 30, 0))
142     {
143       level->nextState = LEVEL_STATE_WON_LEVEL;
144     }
145   }
146 }
147
148 void DrawBuildingBuildButton(Level *level, int x, int y, int width, int height, uint8_t towerType, const char *name)
149 {
150   static ButtonState buttonStates[8] = {0};
151   int cost = GetTowerCosts(towerType);
152   const char *text = TextFormat("%s: %d", name, cost);
153   buttonStates[towerType].isSelected = level->placementMode == towerType;
154   buttonStates[towerType].isDisabled = level->playerGold < cost;
155   if (Button(text, x, y, width, height, &buttonStates[towerType]))
156   {
157     level->placementMode = buttonStates[towerType].isSelected ? 0 : towerType;
158   }
159 }
160
161 void DrawLevelBuildingState(Level *level)
162 {
163   BeginMode3D(level->camera);
164   DrawGrid(10, 1.0f);
165   TowerDraw();
166   EnemyDraw();
167   ProjectileDraw();
168   ParticleDraw();
169
170   Ray ray = GetScreenToWorldRay(GetMousePosition(), level->camera);
171   float planeDistance = ray.position.y / -ray.direction.y;
172   float planeX = ray.direction.x * planeDistance + ray.position.x;
173   float planeY = ray.direction.z * planeDistance + ray.position.z;
174   int16_t mapX = (int16_t)floorf(planeX + 0.5f);
175   int16_t mapY = (int16_t)floorf(planeY + 0.5f);
176   if (level->placementMode && !guiState.isBlocked)
177   {
178     DrawCubeWires((Vector3){mapX, 0.2f, mapY}, 1.0f, 0.4f, 1.0f, RED);
179     if (IsMouseButtonPressed(MOUSE_LEFT_BUTTON))
180     {
181       if (TowerTryAdd(level->placementMode, mapX, mapY))
182       {
183         level->playerGold -= GetTowerCosts(level->placementMode);
184         level->placementMode = TOWER_TYPE_NONE;
185       }
186     }
187   }
188
189   guiState.isBlocked = 0;
190
191   EndMode3D();
192
193   TowerDrawHealthBars(level->camera);
194
195   static ButtonState buildWallButtonState = {0};
196   static ButtonState buildGunButtonState = {0};
197   buildWallButtonState.isSelected = level->placementMode == TOWER_TYPE_WALL;
198   buildGunButtonState.isSelected = level->placementMode == TOWER_TYPE_GUN;
199
200   DrawBuildingBuildButton(level, 10, 10, 80, 30, TOWER_TYPE_WALL, "Wall");
201   DrawBuildingBuildButton(level, 10, 50, 80, 30, TOWER_TYPE_GUN, "Gun");
202
203   if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0))
204   {
205     level->nextState = LEVEL_STATE_RESET;
206   }
207
208   if (Button("Begin waves", GetScreenWidth() - 160, GetScreenHeight() - 40, 160, 30, 0))
209   {
210     level->nextState = LEVEL_STATE_BATTLE;
211   }
212
213   const char *text = "Building phase";
214   int textWidth = MeasureText(text, 20);
215   DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE);
216 }
217
218 void InitBattleStateConditions(Level *level)
219 {
220   level->state = LEVEL_STATE_BATTLE;
221   level->nextState = LEVEL_STATE_NONE;
222   level->waveEndTimer = 0.0f;
223   for (int i = 0; i < 10; i++)
224   {
225     EnemyWave *wave = &level->waves[i];
226     wave->spawned = 0;
227     wave->timeToSpawnNext = wave->delay;
228   }
229 }
230
231 void DrawLevelBattleState(Level *level)
232 {
233   BeginMode3D(level->camera);
234   DrawGrid(10, 1.0f);
235   TowerDraw();
236   EnemyDraw();
237   ProjectileDraw();
238   ParticleDraw();
239   guiState.isBlocked = 0;
240   EndMode3D();
241
242   EnemyDrawHealthbars(level->camera);
243   TowerDrawHealthBars(level->camera);
244
245   if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0))
246   {
247     level->nextState = LEVEL_STATE_RESET;
248   }
249
250   int maxCount = 0;
251   int remainingCount = 0;
252   for (int i = 0; i < 10; i++)
253   {
254     EnemyWave *wave = &level->waves[i];
255     if (wave->wave != level->currentWave)
256     {
257       continue;
258     }
259     maxCount += wave->count;
260     remainingCount += wave->count - wave->spawned;
261   }
262   int aliveCount = EnemyCount();
263   remainingCount += aliveCount;
264
265   const char *text = TextFormat("Battle phase: %03d%%", 100 - remainingCount * 100 / maxCount);
266   int textWidth = MeasureText(text, 20);
267   DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE);
268 }
269
270 void DrawLevel(Level *level)
271 {
272   switch (level->state)
273   {
274     case LEVEL_STATE_BUILDING: DrawLevelBuildingState(level); break;
275     case LEVEL_STATE_BATTLE: DrawLevelBattleState(level); break;
276     case LEVEL_STATE_WON_WAVE: DrawLevelReportWonWave(level); break;
277     case LEVEL_STATE_LOST_WAVE: DrawLevelReportLostWave(level); break;
278     default: break;
279   }
280
281   DrawLevelHud(level);
282 }
283
284 void UpdateLevel(Level *level)
285 {
286   if (level->state == LEVEL_STATE_BATTLE)
287   {
288     int activeWaves = 0;
289     for (int i = 0; i < 10; i++)
290     {
291       EnemyWave *wave = &level->waves[i];
292       if (wave->spawned >= wave->count || wave->wave != level->currentWave)
293       {
294         continue;
295       }
296       activeWaves++;
297       wave->timeToSpawnNext -= gameTime.deltaTime;
298       if (wave->timeToSpawnNext <= 0.0f)
299       {
300         Enemy *enemy = EnemyTryAdd(wave->enemyType, wave->spawnPosition.x, wave->spawnPosition.y);
301         if (enemy)
302         {
303           wave->timeToSpawnNext = wave->interval;
304           wave->spawned++;
305         }
306       }
307     }
308     if (GetTowerByType(TOWER_TYPE_BASE) == 0) {
309       level->waveEndTimer += gameTime.deltaTime;
310       if (level->waveEndTimer >= 2.0f)
311       {
312         level->nextState = LEVEL_STATE_LOST_WAVE;
313       }
314     }
315     else if (activeWaves == 0 && EnemyCount() == 0)
316     {
317       level->waveEndTimer += gameTime.deltaTime;
318       if (level->waveEndTimer >= 2.0f)
319       {
320         level->nextState = LEVEL_STATE_WON_WAVE;
321       }
322     }
323   }
324
325   PathFindingMapUpdate();
326   EnemyUpdate();
327   TowerUpdate();
328   ProjectileUpdate();
329   ParticleUpdate();
330
331   if (level->nextState == LEVEL_STATE_RESET)
332   {
333     InitLevel(level);
334   }
335
336   if (level->nextState == LEVEL_STATE_BATTLE)
337   {
338     InitBattleStateConditions(level);
339   }
340
341   if (level->nextState == LEVEL_STATE_WON_WAVE)
342   {
343     level->currentWave++;
344     level->state = LEVEL_STATE_WON_WAVE;
345   }
346
347   if (level->nextState == LEVEL_STATE_LOST_WAVE)
348   {
349     level->state = LEVEL_STATE_LOST_WAVE;
350   }
351
352   if (level->nextState == LEVEL_STATE_BUILDING)
353   {
354     level->state = LEVEL_STATE_BUILDING;
355   }
356
357   if (level->nextState == LEVEL_STATE_WON_LEVEL)
358   {
359     // make something of this later
360     InitLevel(level);
361   }
362
363   level->nextState = LEVEL_STATE_NONE;
364 }
365
366 float nextSpawnTime = 0.0f;
367
368 void ResetGame()
369 {
370   InitLevel(currentLevel);
371 }
372
373 void InitGame()
374 {
375   TowerInit();
376   EnemyInit();
377   ProjectileInit();
378   ParticleInit();
379   PathfindingMapInit(20, 20, (Vector3){-10.0f, 0.0f, -10.0f}, 1.0f);
380
381   currentLevel = levels;
382   InitLevel(currentLevel);
383 }
384
385 //# Immediate GUI functions
386
387 void DrawHealthBar(Camera3D camera, Vector3 position, float healthRatio, Color barColor)
388 {
389   const float healthBarWidth = 40.0f;
390   const float healthBarHeight = 6.0f;
391   const float healthBarOffset = 15.0f;
392   const float inset = 2.0f;
393   const float innerWidth = healthBarWidth - inset * 2;
394   const float innerHeight = healthBarHeight - inset * 2;
395
396   Vector2 screenPos = GetWorldToScreen(position, camera);
397   float centerX = screenPos.x - healthBarWidth * 0.5f;
398   float topY = screenPos.y - healthBarOffset;
399   DrawRectangle(centerX, topY, healthBarWidth, healthBarHeight, BLACK);
400   float healthWidth = innerWidth * healthRatio;
401   DrawRectangle(centerX + inset, topY + inset, healthWidth, innerHeight, barColor);
402 }
403
404 int Button(const char *text, int x, int y, int width, int height, ButtonState *state)
405 {
406   Rectangle bounds = {x, y, width, height};
407   int isPressed = 0;
408   int isSelected = state && state->isSelected;
409   if (CheckCollisionPointRec(GetMousePosition(), bounds) && !guiState.isBlocked && !state->isDisabled)
410   {
411     Color color = isSelected ? DARKGRAY : GRAY;
412     DrawRectangle(x, y, width, height, color);
413     if (IsMouseButtonPressed(MOUSE_LEFT_BUTTON))
414     {
415       isPressed = 1;
416     }
417     guiState.isBlocked = 1;
418   }
419   else
420   {
421     Color color = isSelected ? WHITE : LIGHTGRAY;
422     DrawRectangle(x, y, width, height, color);
423   }
424   Font font = GetFontDefault();
425   Vector2 textSize = MeasureTextEx(font, text, font.baseSize * 2.0f, 1);
426   Color textColor = state->isDisabled ? GRAY : BLACK;
427   DrawTextEx(font, text, (Vector2){x + width / 2 - textSize.x / 2, y + height / 2 - textSize.y / 2}, font.baseSize * 2.0f, 1, textColor);
428   return isPressed;
429 }
430
431 //# Main game loop
432
433 void GameUpdate()
434 {
435   float dt = GetFrameTime();
436   // cap maximum delta time to 0.1 seconds to prevent large time steps
437   if (dt > 0.1f) dt = 0.1f;
438   gameTime.time += dt;
439   gameTime.deltaTime = dt;
440
441   UpdateLevel(currentLevel);
442 }
443
444 int main(void)
445 {
446   int screenWidth, screenHeight;
447   GetPreferredSize(&screenWidth, &screenHeight);
448   InitWindow(screenWidth, screenHeight, "Tower defense");
449   SetTargetFPS(30);
450
451   InitGame();
452
453   while (!WindowShouldClose())
454   {
455     if (IsPaused()) {
456       // canvas is not visible in browser - do nothing
457       continue;
458     }
459
460     BeginDrawing();
461     ClearBackground(DARKBLUE);
462
463     GameUpdate();
464     DrawLevel(currentLevel);
465
466     EndDrawing();
467   }
468
469   CloseWindow();
470
471   return 0;
472 }

  1 #ifndef TD_TUT_2_MAIN_H
  2 #define TD_TUT_2_MAIN_H
  3
  4 #include <inttypes.h>
  5
  6 #include "raylib.h"
  7 #include "preferred_size.h"
  8
  9 //# Declarations
 10
 11 #define ENEMY_MAX_PATH_COUNT 8
 12 #define ENEMY_MAX_COUNT 400
 13 #define ENEMY_TYPE_NONE 0
 14 #define ENEMY_TYPE_MINION 1
 15
 16 #define PARTICLE_MAX_COUNT 400
 17 #define PARTICLE_TYPE_NONE 0
 18 #define PARTICLE_TYPE_EXPLOSION 1
 19
 20 typedef struct Particle
 21 {
 22   uint8_t particleType;
 23   float spawnTime;
 24   float lifetime;
 25   Vector3 position;
 26   Vector3 velocity;
 27 } Particle;
 28
 29 #define TOWER_MAX_COUNT 400
 30 #define TOWER_TYPE_NONE 0
 31 #define TOWER_TYPE_BASE 1
 32 #define TOWER_TYPE_GUN 2
 33 #define TOWER_TYPE_WALL 3
 34 #define TOWER_TYPE_COUNT 4
 35
 36 typedef struct Tower
 37 {
 38   int16_t x, y;
 39   uint8_t towerType;
 40   float cooldown;
 41   float damage;
 42 } Tower;
 43
 44 typedef struct GameTime
 45 {
 46   float time;
 47   float deltaTime;
 48 } GameTime;
 49
 50 typedef struct ButtonState {
 51   char isSelected;
 52   char isDisabled;
 53 } ButtonState;
 54
 55 typedef struct GUIState {
 56   int isBlocked;
 57 } GUIState;
 58
 59 typedef enum LevelState
 60 {
 61   LEVEL_STATE_NONE,
 62   LEVEL_STATE_BUILDING,
 63   LEVEL_STATE_BATTLE,
 64   LEVEL_STATE_WON_WAVE,
 65   LEVEL_STATE_LOST_WAVE,
 66   LEVEL_STATE_WON_LEVEL,
 67   LEVEL_STATE_RESET,
 68 } LevelState;
 69
 70 typedef struct EnemyWave {
 71   uint8_t enemyType;
 72   uint8_t wave;
 73   uint16_t count;
 74   float interval;
 75   float delay;
 76   Vector2 spawnPosition;
 77
 78   uint16_t spawned;
 79   float timeToSpawnNext;
 80 } EnemyWave;
 81
 82 typedef struct Level
 83 {
 84   LevelState state;
 85   LevelState nextState;
 86   Camera3D camera;
 87   int placementMode;
 88
 89   int initialGold;
 90   int playerGold;
 91
 92   EnemyWave waves[10];
 93   int currentWave;
 94   float waveEndTimer;
 95 } Level;
 96
 97 typedef struct DeltaSrc
 98 {
 99   char x, y;
100 } DeltaSrc;
101
102 typedef struct PathfindingMap
103 {
104   int width, height;
105   float scale;
106   float *distances;
107   long *towerIndex;
108   DeltaSrc *deltaSrc;
109   float maxDistance;
110   Matrix toMapSpace;
111   Matrix toWorldSpace;
112 } PathfindingMap;
113
114 // when we execute the pathfinding algorithm, we need to store the active nodes
115 // in a queue. Each node has a position, a distance from the start, and the
116 // position of the node that we came from.
117 typedef struct PathfindingNode
118 {
119   int16_t x, y, fromX, fromY;
120   float distance;
121 } PathfindingNode;
122
123 typedef struct EnemyId
124 {
125   uint16_t index;
126   uint16_t generation;
127 } EnemyId;
128
129 typedef struct EnemyClassConfig
130 {
131   float speed;
132   float health;
133   float radius;
134   float maxAcceleration;
135   float requiredContactTime;
136   float explosionDamage;
137   float explosionRange;
138   float explosionPushbackPower;
139   int goldValue;
140 } EnemyClassConfig;
141
142 typedef struct Enemy
143 {
144   int16_t currentX, currentY;
145   int16_t nextX, nextY;
146   Vector2 simPosition;
147   Vector2 simVelocity;
148   uint16_t generation;
149   float startMovingTime;
150   float damage, futureDamage;
151   float contactTime;
152   uint8_t enemyType;
153   uint8_t movePathCount;
154   Vector2 movePath[ENEMY_MAX_PATH_COUNT];
155 } Enemy;
156
157 #define PROJECTILE_MAX_COUNT 1200
158 #define PROJECTILE_TYPE_NONE 0
159 #define PROJECTILE_TYPE_BULLET 1
160
161 typedef struct Projectile
162 {
163   uint8_t projectileType;
164   float shootTime;
165   float arrivalTime;
166   float damage;
167   Vector2 position;
168   Vector2 target;
169   Vector2 directionNormal;
170   EnemyId targetEnemy;
171 } Projectile;
172
173 //# Function declarations
174 float TowerGetMaxHealth(Tower *tower);
175 int Button(const char *text, int x, int y, int width, int height, ButtonState *state);
176 int EnemyAddDamage(Enemy *enemy, float damage);
177
178 //# Enemy functions
179 void EnemyInit();
180 void EnemyDraw();
181 void EnemyTriggerExplode(Enemy *enemy, Tower *tower, Vector3 explosionSource);
182 void EnemyUpdate();
183 float EnemyGetCurrentMaxSpeed(Enemy *enemy);
184 float EnemyGetMaxHealth(Enemy *enemy);
185 int EnemyGetNextPosition(int16_t currentX, int16_t currentY, int16_t *nextX, int16_t *nextY);
186 Vector2 EnemyGetPosition(Enemy *enemy, float deltaT, Vector2 *velocity, int *waypointPassedCount);
187 EnemyId EnemyGetId(Enemy *enemy);
188 Enemy *EnemyTryResolve(EnemyId enemyId);
189 Enemy *EnemyTryAdd(uint8_t enemyType, int16_t currentX, int16_t currentY);
190 int EnemyAddDamage(Enemy *enemy, float damage);
191 Enemy* EnemyGetClosestToCastle(int16_t towerX, int16_t towerY, float range);
192 int EnemyCount();
193 void EnemyDrawHealthbars(Camera3D camera);
194
195 //# Tower functions
196 void TowerInit();
197 Tower *TowerGetAt(int16_t x, int16_t y);
198 Tower *TowerTryAdd(uint8_t towerType, int16_t x, int16_t y);
199 Tower *GetTowerByType(uint8_t towerType);
200 int GetTowerCosts(uint8_t towerType);
201 float TowerGetMaxHealth(Tower *tower);
202 void TowerDraw();
203 void TowerUpdate();
204 void TowerDrawHealthBars(Camera3D camera);
205
206 //# Particles
207 void ParticleInit();
208 void ParticleAdd(uint8_t particleType, Vector3 position, Vector3 velocity, float lifetime);
209 void ParticleUpdate();
210 void ParticleDraw();
211
212 //# Projectiles
213 void ProjectileInit();
214 void ProjectileDraw();
215 void ProjectileUpdate();
216 Projectile *ProjectileTryAdd(uint8_t projectileType, Enemy *enemy, Vector2 position, Vector2 target, float speed, float damage);
217
218 //# Pathfinding map
219 void PathfindingMapInit(int width, int height, Vector3 translate, float scale);
220 float PathFindingGetDistance(int mapX, int mapY);
221 Vector2 PathFindingGetGradient(Vector3 world);
222 int PathFindingFromWorldToMapPosition(Vector3 worldPosition, int16_t *mapX, int16_t *mapY);
223 void PathFindingMapUpdate();
224 void PathFindingMapDraw();
225
226 //# UI
227 void DrawHealthBar(Camera3D camera, Vector3 position, float healthRatio, Color barColor);
228
229 //# variables
230 extern Level *currentLevel;
231 extern Enemy enemies[ENEMY_MAX_COUNT];
232 extern int enemyCount;
233 extern EnemyClassConfig enemyClassConfigs[];
234
235 extern GUIState guiState;
236 extern GameTime gameTime;
237 extern Tower towers[TOWER_MAX_COUNT];
238 extern int towerCount;
239
240 #endif

  1 #include "td_main.h"
  2 #include <raymath.h>
  3 #include <stdlib.h>
  4 #include <math.h>
  5
  6 EnemyClassConfig enemyClassConfigs[] = {
  7     [ENEMY_TYPE_MINION] = {
  8       .health = 10.0f,
  9       .speed = 0.6f,
 10       .radius = 0.25f,
 11       .maxAcceleration = 1.0f,
 12       .explosionDamage = 1.0f,
 13       .requiredContactTime = 0.5f,
 14       .explosionRange = 1.0f,
 15       .explosionPushbackPower = 0.25f,
 16       .goldValue = 1,
 17     },
 18 };
 19
 20 Enemy enemies[ENEMY_MAX_COUNT];
 21 int enemyCount = 0;
 22
 23 void EnemyInit()
 24 {
 25   for (int i = 0; i < ENEMY_MAX_COUNT; i++)
 26   {
 27     enemies[i] = (Enemy){0};
 28   }
 29   enemyCount = 0;
 30 }
 31
 32 float EnemyGetCurrentMaxSpeed(Enemy *enemy)
 33 {
 34   return enemyClassConfigs[enemy->enemyType].speed;
 35 }
 36
 37 float EnemyGetMaxHealth(Enemy *enemy)
 38 {
 39   return enemyClassConfigs[enemy->enemyType].health;
 40 }
 41
 42 int EnemyGetNextPosition(int16_t currentX, int16_t currentY, int16_t *nextX, int16_t *nextY)
 43 {
 44   int16_t castleX = 0;
 45   int16_t castleY = 0;
 46   int16_t dx = castleX - currentX;
 47   int16_t dy = castleY - currentY;
 48   if (dx == 0 && dy == 0)
 49   {
 50     *nextX = currentX;
 51     *nextY = currentY;
 52     return 1;
 53   }
 54   Vector2 gradient = PathFindingGetGradient((Vector3){currentX, 0, currentY});
 55
 56   if (gradient.x == 0 && gradient.y == 0)
 57   {
 58     *nextX = currentX;
 59     *nextY = currentY;
 60     return 1;
 61   }
 62
 63   if (fabsf(gradient.x) > fabsf(gradient.y))
 64   {
 65     *nextX = currentX + (int16_t)(gradient.x > 0.0f ? 1 : -1);
 66     *nextY = currentY;
 67     return 0;
 68   }
 69   *nextX = currentX;
 70   *nextY = currentY + (int16_t)(gradient.y > 0.0f ? 1 : -1);
 71   return 0;
 72 }
 73
 74
 75 // this function predicts the movement of the unit for the next deltaT seconds
 76 Vector2 EnemyGetPosition(Enemy *enemy, float deltaT, Vector2 *velocity, int *waypointPassedCount)
 77 {
 78   const float pointReachedDistance = 0.25f;
 79   const float pointReachedDistance2 = pointReachedDistance * pointReachedDistance;
 80   const float maxSimStepTime = 0.015625f;
 81
 82   float maxAcceleration = enemyClassConfigs[enemy->enemyType].maxAcceleration;
 83   float maxSpeed = EnemyGetCurrentMaxSpeed(enemy);
 84   int16_t nextX = enemy->nextX;
 85   int16_t nextY = enemy->nextY;
 86   Vector2 position = enemy->simPosition;
 87   int passedCount = 0;
 88   for (float t = 0.0f; t < deltaT; t += maxSimStepTime)
 89   {
 90     float stepTime = fminf(deltaT - t, maxSimStepTime);
 91     Vector2 target = (Vector2){nextX, nextY};
 92     float speed = Vector2Length(*velocity);
 93     // draw the target position for debugging
 94     DrawCubeWires((Vector3){target.x, 0.2f, target.y}, 0.1f, 0.4f, 0.1f, RED);
 95     Vector2 lookForwardPos = Vector2Add(position, Vector2Scale(*velocity, speed));
 96     if (Vector2DistanceSqr(target, lookForwardPos) <= pointReachedDistance2)
 97     {
 98       // we reached the target position, let's move to the next waypoint
 99       EnemyGetNextPosition(nextX, nextY, &nextX, &nextY);
100       target = (Vector2){nextX, nextY};
101       // track how many waypoints we passed
102       passedCount++;
103     }
104
105     // acceleration towards the target
106     Vector2 unitDirection = Vector2Normalize(Vector2Subtract(target, lookForwardPos));
107     Vector2 acceleration = Vector2Scale(unitDirection, maxAcceleration * stepTime);
108     *velocity = Vector2Add(*velocity, acceleration);
109
110     // limit the speed to the maximum speed
111     if (speed > maxSpeed)
112     {
113       *velocity = Vector2Scale(*velocity, maxSpeed / speed);
114     }
115
116     // move the enemy
117     position = Vector2Add(position, Vector2Scale(*velocity, stepTime));
118   }
119
120   if (waypointPassedCount)
121   {
122     (*waypointPassedCount) = passedCount;
123   }
124
125   return position;
126 }
127
128 void EnemyDraw()
129 {
130   for (int i = 0; i < enemyCount; i++)
131   {
132     Enemy enemy = enemies[i];
133     if (enemy.enemyType == ENEMY_TYPE_NONE)
134     {
135       continue;
136     }
137
138     Vector2 position = EnemyGetPosition(&enemy, gameTime.time - enemy.startMovingTime, &enemy.simVelocity, 0);
139
140     if (enemy.movePathCount > 0)
141     {
142       Vector3 p = {enemy.movePath[0].x, 0.2f, enemy.movePath[0].y};
143       DrawLine3D(p, (Vector3){position.x, 0.2f, position.y}, GREEN);
144     }
145     for (int j = 1; j < enemy.movePathCount; j++)
146     {
147       Vector3 p = {enemy.movePath[j - 1].x, 0.2f, enemy.movePath[j - 1].y};
148       Vector3 q = {enemy.movePath[j].x, 0.2f, enemy.movePath[j].y};
149       DrawLine3D(p, q, GREEN);
150     }
151
152     switch (enemy.enemyType)
153     {
154     case ENEMY_TYPE_MINION:
155       DrawCubeWires((Vector3){position.x, 0.2f, position.y}, 0.4f, 0.4f, 0.4f, GREEN);
156       break;
157     }
158   }
159 }
160
161 void EnemyTriggerExplode(Enemy *enemy, Tower *tower, Vector3 explosionSource)
162 {
163   // damage the tower
164   float explosionDamge = enemyClassConfigs[enemy->enemyType].explosionDamage;
165   float explosionRange = enemyClassConfigs[enemy->enemyType].explosionRange;
166   float explosionPushbackPower = enemyClassConfigs[enemy->enemyType].explosionPushbackPower;
167   float explosionRange2 = explosionRange * explosionRange;
168   tower->damage += enemyClassConfigs[enemy->enemyType].explosionDamage;
169   // explode the enemy
170   if (tower->damage >= TowerGetMaxHealth(tower))
171   {
172     tower->towerType = TOWER_TYPE_NONE;
173   }
174
175   ParticleAdd(PARTICLE_TYPE_EXPLOSION,
176     explosionSource,
177     (Vector3){0, 0.1f, 0}, 1.0f);
178
179   enemy->enemyType = ENEMY_TYPE_NONE;
180
181   // push back enemies & dealing damage
182   for (int i = 0; i < enemyCount; i++)
183   {
184     Enemy *other = &enemies[i];
185     if (other->enemyType == ENEMY_TYPE_NONE)
186     {
187       continue;
188     }
189     float distanceSqr = Vector2DistanceSqr(enemy->simPosition, other->simPosition);
190     if (distanceSqr > 0 && distanceSqr < explosionRange2)
191     {
192       Vector2 direction = Vector2Normalize(Vector2Subtract(other->simPosition, enemy->simPosition));
193       other->simPosition = Vector2Add(other->simPosition, Vector2Scale(direction, explosionPushbackPower));
194       EnemyAddDamage(other, explosionDamge);
195     }
196   }
197 }
198
199 void EnemyUpdate()
200 {
201   const float castleX = 0;
202   const float castleY = 0;
203   const float maxPathDistance2 = 0.25f * 0.25f;
204
205   for (int i = 0; i < enemyCount; i++)
206   {
207     Enemy *enemy = &enemies[i];
208     if (enemy->enemyType == ENEMY_TYPE_NONE)
209     {
210       continue;
211     }
212
213     int waypointPassedCount = 0;
214     enemy->simPosition = EnemyGetPosition(enemy, gameTime.time - enemy->startMovingTime, &enemy->simVelocity, &waypointPassedCount);
215     enemy->startMovingTime = gameTime.time;
216     // track path of unit
217     if (enemy->movePathCount == 0 || Vector2DistanceSqr(enemy->simPosition, enemy->movePath[0]) > maxPathDistance2)
218     {
219       for (int j = ENEMY_MAX_PATH_COUNT - 1; j > 0; j--)
220       {
221         enemy->movePath[j] = enemy->movePath[j - 1];
222       }
223       enemy->movePath[0] = enemy->simPosition;
224       if (++enemy->movePathCount > ENEMY_MAX_PATH_COUNT)
225       {
226         enemy->movePathCount = ENEMY_MAX_PATH_COUNT;
227       }
228     }
229
230     if (waypointPassedCount > 0)
231     {
232       enemy->currentX = enemy->nextX;
233       enemy->currentY = enemy->nextY;
234       if (EnemyGetNextPosition(enemy->currentX, enemy->currentY, &enemy->nextX, &enemy->nextY) &&
235         Vector2DistanceSqr(enemy->simPosition, (Vector2){castleX, castleY}) <= 0.25f * 0.25f)
236       {
237         // enemy reached the castle; remove it
238         enemy->enemyType = ENEMY_TYPE_NONE;
239         continue;
240       }
241     }
242   }
243
244   // handle collisions between enemies
245   for (int i = 0; i < enemyCount - 1; i++)
246   {
247     Enemy *enemyA = &enemies[i];
248     if (enemyA->enemyType == ENEMY_TYPE_NONE)
249     {
250       continue;
251     }
252     for (int j = i + 1; j < enemyCount; j++)
253     {
254       Enemy *enemyB = &enemies[j];
255       if (enemyB->enemyType == ENEMY_TYPE_NONE)
256       {
257         continue;
258       }
259       float distanceSqr = Vector2DistanceSqr(enemyA->simPosition, enemyB->simPosition);
260       float radiusA = enemyClassConfigs[enemyA->enemyType].radius;
261       float radiusB = enemyClassConfigs[enemyB->enemyType].radius;
262       float radiusSum = radiusA + radiusB;
263       if (distanceSqr < radiusSum * radiusSum && distanceSqr > 0.001f)
264       {
265         // collision
266         float distance = sqrtf(distanceSqr);
267         float overlap = radiusSum - distance;
268         // move the enemies apart, but softly; if we have a clog of enemies,
269         // moving them perfectly apart can cause them to jitter
270         float positionCorrection = overlap / 5.0f;
271         Vector2 direction = (Vector2){
272             (enemyB->simPosition.x - enemyA->simPosition.x) / distance * positionCorrection,
273             (enemyB->simPosition.y - enemyA->simPosition.y) / distance * positionCorrection};
274         enemyA->simPosition = Vector2Subtract(enemyA->simPosition, direction);
275         enemyB->simPosition = Vector2Add(enemyB->simPosition, direction);
276       }
277     }
278   }
279
280   // handle collisions between enemies and towers
281   for (int i = 0; i < enemyCount; i++)
282   {
283     Enemy *enemy = &enemies[i];
284     if (enemy->enemyType == ENEMY_TYPE_NONE)
285     {
286       continue;
287     }
288     enemy->contactTime -= gameTime.deltaTime;
289     if (enemy->contactTime < 0.0f)
290     {
291       enemy->contactTime = 0.0f;
292     }
293
294     float enemyRadius = enemyClassConfigs[enemy->enemyType].radius;
295     // linear search over towers; could be optimized by using path finding tower map,
296     // but for now, we keep it simple
297     for (int j = 0; j < towerCount; j++)
298     {
299       Tower *tower = &towers[j];
300       if (tower->towerType == TOWER_TYPE_NONE)
301       {
302         continue;
303       }
304       float distanceSqr = Vector2DistanceSqr(enemy->simPosition, (Vector2){tower->x, tower->y});
305       float combinedRadius = enemyRadius + 0.708; // sqrt(0.5^2 + 0.5^2), corner-center distance of square with side length 1
306       if (distanceSqr > combinedRadius * combinedRadius)
307       {
308         continue;
309       }
310       // potential collision; square / circle intersection
311       float dx = tower->x - enemy->simPosition.x;
312       float dy = tower->y - enemy->simPosition.y;
313       float absDx = fabsf(dx);
314       float absDy = fabsf(dy);
315       Vector3 contactPoint = {0};
316       if (absDx <= 0.5f && absDx <= absDy) {
317         // vertical collision; push the enemy out horizontally
318         float overlap = enemyRadius + 0.5f - absDy;
319         if (overlap < 0.0f)
320         {
321           continue;
322         }
323         float direction = dy > 0.0f ? -1.0f : 1.0f;
324         enemy->simPosition.y += direction * overlap;
325         contactPoint = (Vector3){enemy->simPosition.x, 0.2f, tower->y + direction * 0.5f};
326       }
327       else if (absDy <= 0.5f && absDy <= absDx)
328       {
329         // horizontal collision; push the enemy out vertically
330         float overlap = enemyRadius + 0.5f - absDx;
331         if (overlap < 0.0f)
332         {
333           continue;
334         }
335         float direction = dx > 0.0f ? -1.0f : 1.0f;
336         enemy->simPosition.x += direction * overlap;
337         contactPoint = (Vector3){tower->x + direction * 0.5f, 0.2f, enemy->simPosition.y};
338       }
339       else
340       {
341         // possible collision with a corner
342         float cornerDX = dx > 0.0f ? -0.5f : 0.5f;
343         float cornerDY = dy > 0.0f ? -0.5f : 0.5f;
344         float cornerX = tower->x + cornerDX;
345         float cornerY = tower->y + cornerDY;
346         float cornerDistanceSqr = Vector2DistanceSqr(enemy->simPosition, (Vector2){cornerX, cornerY});
347         if (cornerDistanceSqr > enemyRadius * enemyRadius)
348         {
349           continue;
350         }
351         // push the enemy out along the diagonal
352         float cornerDistance = sqrtf(cornerDistanceSqr);
353         float overlap = enemyRadius - cornerDistance;
354         float directionX = cornerDistance > 0.0f ? (cornerX - enemy->simPosition.x) / cornerDistance : -cornerDX;
355         float directionY = cornerDistance > 0.0f ? (cornerY - enemy->simPosition.y) / cornerDistance : -cornerDY;
356         enemy->simPosition.x -= directionX * overlap;
357         enemy->simPosition.y -= directionY * overlap;
358         contactPoint = (Vector3){cornerX, 0.2f, cornerY};
359       }
360
361       if (enemyClassConfigs[enemy->enemyType].explosionDamage > 0.0f)
362       {
363         enemy->contactTime += gameTime.deltaTime * 2.0f; // * 2 to undo the subtraction above
364         if (enemy->contactTime >= enemyClassConfigs[enemy->enemyType].requiredContactTime)
365         {
366           EnemyTriggerExplode(enemy, tower, contactPoint);
367         }
368       }
369     }
370   }
371 }
372
373 EnemyId EnemyGetId(Enemy *enemy)
374 {
375   return (EnemyId){enemy - enemies, enemy->generation};
376 }
377
378 Enemy *EnemyTryResolve(EnemyId enemyId)
379 {
380   if (enemyId.index >= ENEMY_MAX_COUNT)
381   {
382     return 0;
383   }
384   Enemy *enemy = &enemies[enemyId.index];
385   if (enemy->generation != enemyId.generation || enemy->enemyType == ENEMY_TYPE_NONE)
386   {
387     return 0;
388   }
389   return enemy;
390 }
391
392 Enemy *EnemyTryAdd(uint8_t enemyType, int16_t currentX, int16_t currentY)
393 {
394   Enemy *spawn = 0;
395   for (int i = 0; i < enemyCount; i++)
396   {
397     Enemy *enemy = &enemies[i];
398     if (enemy->enemyType == ENEMY_TYPE_NONE)
399     {
400       spawn = enemy;
401       break;
402     }
403   }
404
405   if (enemyCount < ENEMY_MAX_COUNT && !spawn)
406   {
407     spawn = &enemies[enemyCount++];
408   }
409
410   if (spawn)
411   {
412     spawn->currentX = currentX;
413     spawn->currentY = currentY;
414     spawn->nextX = currentX;
415     spawn->nextY = currentY;
416     spawn->simPosition = (Vector2){currentX, currentY};
417     spawn->simVelocity = (Vector2){0, 0};
418     spawn->enemyType = enemyType;
419     spawn->startMovingTime = gameTime.time;
420     spawn->damage = 0.0f;
421     spawn->futureDamage = 0.0f;
422     spawn->generation++;
423     spawn->movePathCount = 0;
424   }
425
426   return spawn;
427 }
428
429 int EnemyAddDamage(Enemy *enemy, float damage)
430 {
431   enemy->damage += damage;
432   if (enemy->damage >= EnemyGetMaxHealth(enemy))
433   {
434     currentLevel->playerGold += enemyClassConfigs[enemy->enemyType].goldValue;
435     enemy->enemyType = ENEMY_TYPE_NONE;
436     return 1;
437   }
438
439   return 0;
440 }
441
442 Enemy* EnemyGetClosestToCastle(int16_t towerX, int16_t towerY, float range)
443 {
444   int16_t castleX = 0;
445   int16_t castleY = 0;
446   Enemy* closest = 0;
447   int16_t closestDistance = 0;
448   float range2 = range * range;
449   for (int i = 0; i < enemyCount; i++)
450   {
451     Enemy* enemy = &enemies[i];
452     if (enemy->enemyType == ENEMY_TYPE_NONE)
453     {
454       continue;
455     }
456     float maxHealth = EnemyGetMaxHealth(enemy);
457     if (enemy->futureDamage >= maxHealth)
458     {
459       // ignore enemies that will die soon
460       continue;
461     }
462     int16_t dx = castleX - enemy->currentX;
463     int16_t dy = castleY - enemy->currentY;
464     int16_t distance = abs(dx) + abs(dy);
465     if (!closest || distance < closestDistance)
466     {
467       float tdx = towerX - enemy->currentX;
468       float tdy = towerY - enemy->currentY;
469       float tdistance2 = tdx * tdx + tdy * tdy;
470       if (tdistance2 <= range2)
471       {
472         closest = enemy;
473         closestDistance = distance;
474       }
475     }
476   }
477   return closest;
478 }
479
480 int EnemyCount()
481 {
482   int count = 0;
483   for (int i = 0; i < enemyCount; i++)
484   {
485     if (enemies[i].enemyType != ENEMY_TYPE_NONE)
486     {
487       count++;
488     }
489   }
490   return count;
491 }
492
493 void EnemyDrawHealthbars(Camera3D camera)
494 {
495   for (int i = 0; i < enemyCount; i++)
496   {
497     Enemy *enemy = &enemies[i];
498     if (enemy->enemyType == ENEMY_TYPE_NONE || enemy->damage == 0.0f)
499     {
500       continue;
501     }
502     Vector3 position = (Vector3){enemy->simPosition.x, 0.5f, enemy->simPosition.y};
503     float maxHealth = EnemyGetMaxHealth(enemy);
504     float health = maxHealth - enemy->damage;
505     float healthRatio = health / maxHealth;
506
507     DrawHealthBar(camera, position, healthRatio, GREEN);
508   }
509 }

  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 // The queue is a simple array of nodes, we add nodes to the end and remove
  5 // nodes from the front. We keep the array around to avoid unnecessary allocations
  6 static PathfindingNode *pathfindingNodeQueue = 0;
  7 static int pathfindingNodeQueueCount = 0;
  8 static int pathfindingNodeQueueCapacity = 0;
  9
 10 // The pathfinding map stores the distances from the castle to each cell in the map.
 11 static PathfindingMap pathfindingMap = {0};
 12
 13 void PathfindingMapInit(int width, int height, Vector3 translate, float scale)
 14 {
 15   // transforming between map space and world space allows us to adapt
 16   // position and scale of the map without changing the pathfinding data
 17   pathfindingMap.toWorldSpace = MatrixTranslate(translate.x, translate.y, translate.z);
 18   pathfindingMap.toWorldSpace = MatrixMultiply(pathfindingMap.toWorldSpace, MatrixScale(scale, scale, scale));
 19   pathfindingMap.toMapSpace = MatrixInvert(pathfindingMap.toWorldSpace);
 20   pathfindingMap.width = width;
 21   pathfindingMap.height = height;
 22   pathfindingMap.scale = scale;
 23   pathfindingMap.distances = (float *)MemAlloc(width * height * sizeof(float));
 24   for (int i = 0; i < width * height; i++)
 25   {
 26     pathfindingMap.distances[i] = -1.0f;
 27   }
 28
 29   pathfindingMap.towerIndex = (long *)MemAlloc(width * height * sizeof(long));
 30   pathfindingMap.deltaSrc = (DeltaSrc *)MemAlloc(width * height * sizeof(DeltaSrc));
 31 }
 32
 33 static void PathFindingNodePush(int16_t x, int16_t y, int16_t fromX, int16_t fromY, float distance)
 34 {
 35   if (pathfindingNodeQueueCount >= pathfindingNodeQueueCapacity)
 36   {
 37     pathfindingNodeQueueCapacity = pathfindingNodeQueueCapacity == 0 ? 256 : pathfindingNodeQueueCapacity * 2;
 38     // we use MemAlloc/MemRealloc to allocate memory for the queue
 39     // I am not entirely sure if MemRealloc allows passing a null pointer
 40     // so we check if the pointer is null and use MemAlloc in that case
 41     if (pathfindingNodeQueue == 0)
 42     {
 43       pathfindingNodeQueue = (PathfindingNode *)MemAlloc(pathfindingNodeQueueCapacity * sizeof(PathfindingNode));
 44     }
 45     else
 46     {
 47       pathfindingNodeQueue = (PathfindingNode *)MemRealloc(pathfindingNodeQueue, pathfindingNodeQueueCapacity * sizeof(PathfindingNode));
 48     }
 49   }
 50
 51   PathfindingNode *node = &pathfindingNodeQueue[pathfindingNodeQueueCount++];
 52   node->x = x;
 53   node->y = y;
 54   node->fromX = fromX;
 55   node->fromY = fromY;
 56   node->distance = distance;
 57 }
 58
 59 static PathfindingNode *PathFindingNodePop()
 60 {
 61   if (pathfindingNodeQueueCount == 0)
 62   {
 63     return 0;
 64   }
 65   // we return the first node in the queue; we want to return a pointer to the node
 66   // so we can return 0 if the queue is empty.
 67   // We should _not_ return a pointer to the element in the list, because the list
 68   // may be reallocated and the pointer would become invalid. Or the
 69   // popped element is overwritten by the next push operation.
 70   // Using static here means that the variable is permanently allocated.
 71   static PathfindingNode node;
 72   node = pathfindingNodeQueue[0];
 73   // we shift all nodes one position to the front
 74   for (int i = 1; i < pathfindingNodeQueueCount; i++)
 75   {
 76     pathfindingNodeQueue[i - 1] = pathfindingNodeQueue[i];
 77   }
 78   --pathfindingNodeQueueCount;
 79   return &node;
 80 }
 81
 82 float PathFindingGetDistance(int mapX, int mapY)
 83 {
 84   if (mapX < 0 || mapX >= pathfindingMap.width || mapY < 0 || mapY >= pathfindingMap.height)
 85   {
 86     // when outside the map, we return the manhattan distance to the castle (0,0)
 87     return fabsf((float)mapX) + fabsf((float)mapY);
 88   }
 89
 90   return pathfindingMap.distances[mapY * pathfindingMap.width + mapX];
 91 }
 92
 93 // transform a world position to a map position in the array;
 94 // returns true if the position is inside the map
 95 int PathFindingFromWorldToMapPosition(Vector3 worldPosition, int16_t *mapX, int16_t *mapY)
 96 {
 97   Vector3 mapPosition = Vector3Transform(worldPosition, pathfindingMap.toMapSpace);
 98   *mapX = (int16_t)mapPosition.x;
 99   *mapY = (int16_t)mapPosition.z;
100   return *mapX >= 0 && *mapX < pathfindingMap.width && *mapY >= 0 && *mapY < pathfindingMap.height;
101 }
102
103 void PathFindingMapUpdate()
104 {
105   const int castleX = 0, castleY = 0;
106   int16_t castleMapX, castleMapY;
107   if (!PathFindingFromWorldToMapPosition((Vector3){castleX, 0.0f, castleY}, &castleMapX, &castleMapY))
108   {
109     return;
110   }
111   int width = pathfindingMap.width, height = pathfindingMap.height;
112
113   // reset the distances to -1
114   for (int i = 0; i < width * height; i++)
115   {
116     pathfindingMap.distances[i] = -1.0f;
117   }
118   // reset the tower indices
119   for (int i = 0; i < width * height; i++)
120   {
121     pathfindingMap.towerIndex[i] = -1;
122   }
123   // reset the delta src
124   for (int i = 0; i < width * height; i++)
125   {
126     pathfindingMap.deltaSrc[i].x = 0;
127     pathfindingMap.deltaSrc[i].y = 0;
128   }
129
130   for (int i = 0; i < towerCount; i++)
131   {
132     Tower *tower = &towers[i];
133     if (tower->towerType == TOWER_TYPE_NONE || tower->towerType == TOWER_TYPE_BASE)
134     {
135       continue;
136     }
137     int16_t mapX, mapY;
138     // technically, if the tower cell scale is not in sync with the pathfinding map scale,
139     // this would not work correctly and needs to be refined to allow towers covering multiple cells
140     // or having multiple towers in one cell; for simplicity, we assume that the tower covers exactly
141     // one cell. For now.
142     if (!PathFindingFromWorldToMapPosition((Vector3){tower->x, 0.0f, tower->y}, &mapX, &mapY))
143     {
144       continue;
145     }
146     int index = mapY * width + mapX;
147     pathfindingMap.towerIndex[index] = i;
148   }
149
150   // we start at the castle and add the castle to the queue
151   pathfindingMap.maxDistance = 0.0f;
152   pathfindingNodeQueueCount = 0;
153   PathFindingNodePush(castleMapX, castleMapY, castleMapX, castleMapY, 0.0f);
154   PathfindingNode *node = 0;
155   while ((node = PathFindingNodePop()))
156   {
157     if (node->x < 0 || node->x >= width || node->y < 0 || node->y >= height)
158     {
159       continue;
160     }
161     int index = node->y * width + node->x;
162     if (pathfindingMap.distances[index] >= 0 && pathfindingMap.distances[index] <= node->distance)
163     {
164       continue;
165     }
166
167     int deltaX = node->x - node->fromX;
168     int deltaY = node->y - node->fromY;
169     // even if the cell is blocked by a tower, we still may want to store the direction
170     // (though this might not be needed, IDK right now)
171     pathfindingMap.deltaSrc[index].x = (char) deltaX;
172     pathfindingMap.deltaSrc[index].y = (char) deltaY;
173
174     // we skip nodes that are blocked by towers
175     if (pathfindingMap.towerIndex[index] >= 0)
176     {
177       node->distance += 8.0f;
178     }
179     pathfindingMap.distances[index] = node->distance;
180     pathfindingMap.maxDistance = fmaxf(pathfindingMap.maxDistance, node->distance);
181     PathFindingNodePush(node->x, node->y + 1, node->x, node->y, node->distance + 1.0f);
182     PathFindingNodePush(node->x, node->y - 1, node->x, node->y, node->distance + 1.0f);
183     PathFindingNodePush(node->x + 1, node->y, node->x, node->y, node->distance + 1.0f);
184     PathFindingNodePush(node->x - 1, node->y, node->x, node->y, node->distance + 1.0f);
185   }
186 }
187
188 void PathFindingMapDraw()
189 {
190   float cellSize = pathfindingMap.scale * 0.9f;
191   float highlightDistance = fmodf(GetTime() * 4.0f, pathfindingMap.maxDistance);
192   for (int x = 0; x < pathfindingMap.width; x++)
193   {
194     for (int y = 0; y < pathfindingMap.height; y++)
195     {
196       float distance = pathfindingMap.distances[y * pathfindingMap.width + x];
197       float colorV = distance < 0 ? 0 : fminf(distance / pathfindingMap.maxDistance, 1.0f);
198       Color color = distance < 0 ? BLUE : (Color){fminf(colorV, 1.0f) * 255, 0, 0, 255};
199       Vector3 position = Vector3Transform((Vector3){x, -0.25f, y}, pathfindingMap.toWorldSpace);
200       // animate the distance "wave" to show how the pathfinding algorithm expands
201       // from the castle
202       if (distance + 0.5f > highlightDistance && distance - 0.5f < highlightDistance)
203       {
204         color = BLACK;
205       }
206       DrawCube(position, cellSize, 0.1f, cellSize, color);
207     }
208   }
209 }
210
211 Vector2 PathFindingGetGradient(Vector3 world)
212 {
213   int16_t mapX, mapY;
214   if (PathFindingFromWorldToMapPosition(world, &mapX, &mapY))
215   {
216     DeltaSrc delta = pathfindingMap.deltaSrc[mapY * pathfindingMap.width + mapX];
217     return (Vector2){(float)-delta.x, (float)-delta.y};
218   }
219   // fallback to a simple gradient calculation
220   float n = PathFindingGetDistance(mapX, mapY - 1);
221   float s = PathFindingGetDistance(mapX, mapY + 1);
222   float w = PathFindingGetDistance(mapX - 1, mapY);
223   float e = PathFindingGetDistance(mapX + 1, mapY);
224   return (Vector2){w - e + 0.25f, n - s + 0.125f};
225 }

  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 static Projectile projectiles[PROJECTILE_MAX_COUNT];
  5 static int projectileCount = 0;
  6
  7 void ProjectileInit()
  8 {
  9   for (int i = 0; i < PROJECTILE_MAX_COUNT; i++)
 10   {
 11     projectiles[i] = (Projectile){0};
 12   }
 13 }
 14
 15 void ProjectileDraw()
 16 {
 17   for (int i = 0; i < projectileCount; i++)
 18   {
 19     Projectile projectile = projectiles[i];
 20     if (projectile.projectileType == PROJECTILE_TYPE_NONE)
 21     {
 22       continue;
 23     }
 24     float transition = (gameTime.time - projectile.shootTime) / (projectile.arrivalTime - projectile.shootTime);
 25     if (transition >= 1.0f)
 26     {
 27       continue;
 28     }
 29     Vector2 position = Vector2Lerp(projectile.position, projectile.target, transition);
 30     float x = position.x;
 31     float y = position.y;
 32     float dx = projectile.directionNormal.x;
 33     float dy = projectile.directionNormal.y;
 34     for (float d = 1.0f; d > 0.0f; d -= 0.25f)
 35     {
 36       x -= dx * 0.1f;
 37       y -= dy * 0.1f;
 38       float size = 0.1f * d;
 39       DrawCube((Vector3){x, 0.2f, y}, size, size, size, RED);
 40     }
 41   }
 42 }
 43
 44 void ProjectileUpdate()
 45 {
 46   for (int i = 0; i < projectileCount; i++)
 47   {
 48     Projectile *projectile = &projectiles[i];
 49     if (projectile->projectileType == PROJECTILE_TYPE_NONE)
 50     {
 51       continue;
 52     }
 53     float transition = (gameTime.time - projectile->shootTime) / (projectile->arrivalTime - projectile->shootTime);
 54     if (transition >= 1.0f)
 55     {
 56       projectile->projectileType = PROJECTILE_TYPE_NONE;
 57       Enemy *enemy = EnemyTryResolve(projectile->targetEnemy);
 58       if (enemy)
 59       {
 60         EnemyAddDamage(enemy, projectile->damage);
 61       }
 62       continue;
 63     }
 64   }
 65 }
 66
 67 Projectile *ProjectileTryAdd(uint8_t projectileType, Enemy *enemy, Vector2 position, Vector2 target, float speed, float damage)
 68 {
 69   for (int i = 0; i < PROJECTILE_MAX_COUNT; i++)
 70   {
 71     Projectile *projectile = &projectiles[i];
 72     if (projectile->projectileType == PROJECTILE_TYPE_NONE)
 73     {
 74       projectile->projectileType = projectileType;
 75       projectile->shootTime = gameTime.time;
 76       projectile->arrivalTime = gameTime.time + Vector2Distance(position, target) / speed;
 77       projectile->damage = damage;
 78       projectile->position = position;
 79       projectile->target = target;
 80       projectile->directionNormal = Vector2Normalize(Vector2Subtract(target, position));
 81       projectile->targetEnemy = EnemyGetId(enemy);
 82       projectileCount = projectileCount <= i ? i + 1 : projectileCount;
 83       return projectile;
 84     }
 85   }
 86   return 0;
 87 }

  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 static Particle particles[PARTICLE_MAX_COUNT];
  5 static int particleCount = 0;
  6
  7 void ParticleInit()
  8 {
  9   for (int i = 0; i < PARTICLE_MAX_COUNT; i++)
 10   {
 11     particles[i] = (Particle){0};
 12   }
 13   particleCount = 0;
 14 }
 15
 16 static void DrawExplosionParticle(Particle *particle, float transition)
 17 {
 18   float size = 1.2f * (1.0f - transition);
 19   Color startColor = WHITE;
 20   Color endColor = RED;
 21   Color color = ColorLerp(startColor, endColor, transition);
 22   DrawCube(particle->position, size, size, size, color);
 23 }
 24
 25 void ParticleAdd(uint8_t particleType, Vector3 position, Vector3 velocity, float lifetime)
 26 {
 27   if (particleCount >= PARTICLE_MAX_COUNT)
 28   {
 29     return;
 30   }
 31
 32   int index = -1;
 33   for (int i = 0; i < particleCount; i++)
 34   {
 35     if (particles[i].particleType == PARTICLE_TYPE_NONE)
 36     {
 37       index = i;
 38       break;
 39     }
 40   }
 41
 42   if (index == -1)
 43   {
 44     index = particleCount++;
 45   }
 46
 47   Particle *particle = &particles[index];
 48   particle->particleType = particleType;
 49   particle->spawnTime = gameTime.time;
 50   particle->lifetime = lifetime;
 51   particle->position = position;
 52   particle->velocity = velocity;
 53 }
 54
 55 void ParticleUpdate()
 56 {
 57   for (int i = 0; i < particleCount; i++)
 58   {
 59     Particle *particle = &particles[i];
 60     if (particle->particleType == PARTICLE_TYPE_NONE)
 61     {
 62       continue;
 63     }
 64
 65     float age = gameTime.time - particle->spawnTime;
 66
 67     if (particle->lifetime > age)
 68     {
 69       particle->position = Vector3Add(particle->position, Vector3Scale(particle->velocity, gameTime.deltaTime));
 70     }
 71     else {
 72       particle->particleType = PARTICLE_TYPE_NONE;
 73     }
 74   }
 75 }
 76
 77 void ParticleDraw()
 78 {
 79   for (int i = 0; i < particleCount; i++)
 80   {
 81     Particle particle = particles[i];
 82     if (particle.particleType == PARTICLE_TYPE_NONE)
 83     {
 84       continue;
 85     }
 86
 87     float age = gameTime.time - particle.spawnTime;
 88     float transition = age / particle.lifetime;
 89     switch (particle.particleType)
 90     {
 91     case PARTICLE_TYPE_EXPLOSION:
 92       DrawExplosionParticle(&particle, transition);
 93       break;
 94     default:
 95       DrawCube(particle.position, 0.3f, 0.5f, 0.3f, RED);
 96       break;
 97     }
 98   }
 99 }

  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 Tower towers[TOWER_MAX_COUNT];
  5 int towerCount = 0;
  6
  7 Model towerModels[TOWER_TYPE_COUNT];
  8 Texture2D palette;
  9
 10 void TowerInit()
 11 {
 12   for (int i = 0; i < TOWER_MAX_COUNT; i++)
 13   {
 14     towers[i] = (Tower){0};
 15   }
 16   towerCount = 0;
 17
 18   // we'll use a palette texture to colorize the all buildings and environment art
 19   palette = LoadTexture("data/palette.png");
 20   // The texture uses gradients on very small space, so we'll enable bilinear filtering
 21   SetTextureFilter(palette, TEXTURE_FILTER_BILINEAR);
 22
 23   towerModels[TOWER_TYPE_WALL] = LoadModel("data/wall-0000.glb");
 24
 25   for (int i = 0; i < TOWER_TYPE_COUNT; i++)
 26   {
 27     if (towerModels[i].materials)
 28     {
 29       // assign the palette texture to the material of the model (0 is not used afaik)
 30       towerModels[i].materials[1].maps[MATERIAL_MAP_DIFFUSE].texture = palette;
 31     }
 32   }
 33 }
 34
 35 static void TowerGunUpdate(Tower *tower)
 36 {
 37   if (tower->cooldown <= 0)
 38   {
 39     Enemy *enemy = EnemyGetClosestToCastle(tower->x, tower->y, 3.0f);
 40     if (enemy)
 41     {
 42       tower->cooldown = 0.5f;
 43       // shoot the enemy; determine future position of the enemy
 44       float bulletSpeed = 1.0f;
 45       float bulletDamage = 3.0f;
 46       Vector2 velocity = enemy->simVelocity;
 47       Vector2 futurePosition = EnemyGetPosition(enemy, gameTime.time - enemy->startMovingTime, &velocity, 0);
 48       Vector2 towerPosition = {tower->x, tower->y};
 49       float eta = Vector2Distance(towerPosition, futurePosition) / bulletSpeed;
 50       for (int i = 0; i < 8; i++) {
 51         velocity = enemy->simVelocity;
 52         futurePosition = EnemyGetPosition(enemy, gameTime.time - enemy->startMovingTime + eta, &velocity, 0);
 53         float distance = Vector2Distance(towerPosition, futurePosition);
 54         float eta2 = distance / bulletSpeed;
 55         if (fabs(eta - eta2) < 0.01f) {
 56           break;
 57         }
 58         eta = (eta2 + eta) * 0.5f;
 59       }
 60       ProjectileTryAdd(PROJECTILE_TYPE_BULLET, enemy, towerPosition, futurePosition,
 61         bulletSpeed, bulletDamage);
 62       enemy->futureDamage += bulletDamage;
 63     }
 64   }
 65   else
 66   {
 67     tower->cooldown -= gameTime.deltaTime;
 68   }
 69 }
 70
 71 Tower *TowerGetAt(int16_t x, int16_t y)
 72 {
 73   for (int i = 0; i < towerCount; i++)
 74   {
 75     if (towers[i].x == x && towers[i].y == y && towers[i].towerType != TOWER_TYPE_NONE)
 76     {
 77       return &towers[i];
 78     }
 79   }
 80   return 0;
 81 }
 82
 83 Tower *TowerTryAdd(uint8_t towerType, int16_t x, int16_t y)
 84 {
 85   if (towerCount >= TOWER_MAX_COUNT)
 86   {
 87     return 0;
 88   }
 89
 90   Tower *tower = TowerGetAt(x, y);
 91   if (tower)
 92   {
 93     return 0;
 94   }
 95
 96   tower = &towers[towerCount++];
 97   tower->x = x;
 98   tower->y = y;
 99   tower->towerType = towerType;
100   tower->cooldown = 0.0f;
101   tower->damage = 0.0f;
102   return tower;
103 }
104
105 Tower *GetTowerByType(uint8_t towerType)
106 {
107   for (int i = 0; i < towerCount; i++)
108   {
109     if (towers[i].towerType == towerType)
110     {
111       return &towers[i];
112     }
113   }
114   return 0;
115 }
116
117 int GetTowerCosts(uint8_t towerType)
118 {
119   switch (towerType)
120   {
121   case TOWER_TYPE_BASE:
122     return 0;
123   case TOWER_TYPE_GUN:
124     return 6;
125   case TOWER_TYPE_WALL:
126     return 2;
127   }
128   return 0;
129 }
130
131 float TowerGetMaxHealth(Tower *tower)
132 {
133   switch (tower->towerType)
134   {
135   case TOWER_TYPE_BASE:
136     return 10.0f;
137   case TOWER_TYPE_GUN:
138     return 3.0f;
139   case TOWER_TYPE_WALL:
140     return 5.0f;
141   }
142   return 0.0f;
143 }
144
145 void TowerDraw()
146 {
147   for (int i = 0; i < towerCount; i++)
148   {
149     Tower tower = towers[i];
150     if (tower.towerType == TOWER_TYPE_NONE)
151     {
152       continue;
153     }
154
155     switch (tower.towerType)
156     {
157     case TOWER_TYPE_BASE:
158       DrawCube((Vector3){tower.x, 0.4f, tower.y}, 0.8f, 0.8f, 0.8f, MAROON);
159       break;
160     case TOWER_TYPE_GUN:
161       DrawCube((Vector3){tower.x, 0.2f, tower.y}, 0.8f, 0.4f, 0.8f, DARKPURPLE);
162       break;
163     default:
164       if (towerModels[tower.towerType].materials)
165       {
166         DrawModel(towerModels[tower.towerType], (Vector3){tower.x, 0.0f, tower.y}, 1.0f, WHITE);
167       } else {
168         DrawCube((Vector3){tower.x, 0.5f, tower.y}, 1.0f, 1.0f, 1.0f, LIGHTGRAY);
169       }
170       break;
171     }
172   }
173 }
174
175 void TowerUpdate()
176 {
177   for (int i = 0; i < towerCount; i++)
178   {
179     Tower *tower = &towers[i];
180     switch (tower->towerType)
181     {
182     case TOWER_TYPE_GUN:
183       TowerGunUpdate(tower);
184       break;
185     }
186   }
187 }
188
189 void TowerDrawHealthBars(Camera3D camera)
190 {
191   for (int i = 0; i < towerCount; i++)
192   {
193     Tower *tower = &towers[i];
194     if (tower->towerType == TOWER_TYPE_NONE || tower->damage <= 0.0f)
195     {
196       continue;
197     }
198
199     Vector3 position = (Vector3){tower->x, 0.5f, tower->y};
200     float maxHealth = TowerGetMaxHealth(tower);
201     float health = maxHealth - tower->damage;
202     float healthRatio = health / maxHealth;
203
204     DrawHealthBar(camera, position, healthRatio, GREEN);
205   }
206 }

  1 #include "raylib.h"
  2 #include "preferred_size.h"
  3
  4 // Since the canvas size is not known at compile time, we need to query it at runtime;
  5 // the following platform specific code obtains the canvas size and we will use this
  6 // size as the preferred size for the window at init time. We're ignoring here the
  7 // possibility of the canvas size changing during runtime - this would require to
  8 // poll the canvas size in the game loop or establishing a callback to be notified
  9
 10 #ifdef PLATFORM_WEB
 11 #include <emscripten.h>
 12 EMSCRIPTEN_RESULT emscripten_get_element_css_size(const char *target, double *width, double *height);
 13
 14 void GetPreferredSize(int *screenWidth, int *screenHeight)
 15 {
 16   double canvasWidth, canvasHeight;
 17   emscripten_get_element_css_size("#" CANVAS_NAME, &canvasWidth, &canvasHeight);
 18   *screenWidth = (int)canvasWidth;
 19   *screenHeight = (int)canvasHeight;
 20   TraceLog(LOG_INFO, "preferred size for %s: %d %d", CANVAS_NAME, *screenWidth, *screenHeight);
 21 }
 22
 23 int IsPaused()
 24 {
 25   const char *js = "(function(){\n"
 26   "  var canvas = document.getElementById(\"" CANVAS_NAME "\");\n"
 27   "  var rect = canvas.getBoundingClientRect();\n"
 28   "  var isVisible = (\n"
 29   "    rect.top >= 0 &&\n"
 30   "    rect.left >= 0 &&\n"
 31   "    rect.bottom <= (window.innerHeight || document.documentElement.clientHeight) &&\n"
 32   "    rect.right <= (window.innerWidth || document.documentElement.clientWidth)\n"
 33   "  );\n"
 34   "  return isVisible ? 0 : 1;\n"
 35   "})()";
 36   return emscripten_run_script_int(js);
 37 }
 38
 39 #else
 40 void GetPreferredSize(int *screenWidth, int *screenHeight)
 41 {
 42   *screenWidth = 600;
 43   *screenHeight = 240;
 44 }
 45 int IsPaused()
 46 {
 47   return 0;
 48 }
 49 #endif

  1 #ifndef PREFERRED_SIZE_H
  2 #define PREFERRED_SIZE_H
  3
  4 void GetPreferredSize(int *screenWidth, int *screenHeight);
  5 int IsPaused();
  6
  7 #endif

Place some walls to see the graphics:

There is now only a model for the walls; everything else is untouched:

Typically, prototyping assets are simple and not very detailed, but my weakness is that I tend to look at things from an artistic perspective and prefer to have things looking a little bit more polished.

So the setting is now good old medieval or fantasy; So the enemies should be some kind of orcs or goblins and the shooter ... how about adding archers to the towers, also as sprites? This means we need to combine 3D models with 2D sprites. Let's experiment a little

td-tut-45/td_main.c
td-tut-45/td_main.h
td-tut-45/enemy.c
td-tut-45/path_finding.c
td-tut-45/projectile_system.c
td-tut-45/particle_system.c
td-tut-45/tower_system.c
td-tut-45/preferred_size.c
td-tut-45/preferred_size.h
💾

  1 #include "td_main.h"
  2 #include <raymath.h>
  3 #include <stdlib.h>
  4 #include <math.h>
  5
  6 //# Variables
  7 GUIState guiState = {0};
  8 GameTime gameTime = {0};
  9
 10 Level levels[] = {
 11   [0] = {
 12     .state = LEVEL_STATE_BUILDING,
 13     .initialGold = 20,
 14     .waves[0] = {
 15       .enemyType = ENEMY_TYPE_MINION,
 16       .wave = 0,
 17       .count = 10,
 18       .interval = 2.5f,
 19       .delay = 1.0f,
 20       .spawnPosition = {0, 6},
 21     },
 22     .waves[1] = {
 23       .enemyType = ENEMY_TYPE_MINION,
 24       .wave = 1,
 25       .count = 20,
 26       .interval = 1.5f,
 27       .delay = 1.0f,
 28       .spawnPosition = {0, 6},
 29     },
 30     .waves[2] = {
 31       .enemyType = ENEMY_TYPE_MINION,
 32       .wave = 2,
 33       .count = 30,
 34       .interval = 1.2f,
 35       .delay = 1.0f,
 36       .spawnPosition = {0, 6},
 37     }
 38   },
 39 };
 40
 41 Level *currentLevel = levels;
 42
 43 //# Game
 44
 45 void InitLevel(Level *level)
 46 {
 47   TowerInit();
 48   EnemyInit();
 49   ProjectileInit();
 50   ParticleInit();
 51   TowerTryAdd(TOWER_TYPE_BASE, 0, 0);
 52
 53   level->placementMode = 0;
 54   level->state = LEVEL_STATE_BUILDING;
 55   level->nextState = LEVEL_STATE_NONE;
 56   level->playerGold = level->initialGold;
 57
 58   Camera *camera = &level->camera;
 59   camera->position = (Vector3){1.0f, 12.0f, 6.5f};
 60   camera->target = (Vector3){0.0f, 0.5f, 1.0f};
 61   camera->up = (Vector3){0.0f, 1.0f, 0.0f};
 62   camera->fovy = 45.0f;
 63   camera->projection = CAMERA_PERSPECTIVE;
 64 }
 65
 66 void DrawLevelHud(Level *level)
 67 {
 68   const char *text = TextFormat("Gold: %d", level->playerGold);
 69   Font font = GetFontDefault();
 70   DrawTextEx(font, text, (Vector2){GetScreenWidth() - 120, 10}, font.baseSize * 2.0f, 2.0f, BLACK);
 71   DrawTextEx(font, text, (Vector2){GetScreenWidth() - 122, 8}, font.baseSize * 2.0f, 2.0f, YELLOW);
 72 }
 73
 74 void DrawLevelReportLostWave(Level *level)
 75 {
 76   BeginMode3D(level->camera);
 77   DrawGrid(10, 1.0f);
 78   TowerDraw();
 79   EnemyDraw();
 80   ProjectileDraw();
 81   ParticleDraw();
 82   guiState.isBlocked = 0;
 83   EndMode3D();
 84
 85   TowerDrawHealthBars(level->camera);
 86
 87   const char *text = "Wave lost";
 88   int textWidth = MeasureText(text, 20);
 89   DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE);
 90
 91   if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0))
 92   {
 93     level->nextState = LEVEL_STATE_RESET;
 94   }
 95 }
 96
 97 int HasLevelNextWave(Level *level)
 98 {
 99   for (int i = 0; i < 10; i++)
100   {
101     EnemyWave *wave = &level->waves[i];
102     if (wave->wave == level->currentWave)
103     {
104       return 1;
105     }
106   }
107   return 0;
108 }
109
110 void DrawLevelReportWonWave(Level *level)
111 {
112   BeginMode3D(level->camera);
113   DrawGrid(10, 1.0f);
114   TowerDraw();
115   EnemyDraw();
116   ProjectileDraw();
117   ParticleDraw();
118   guiState.isBlocked = 0;
119   EndMode3D();
120
121   TowerDrawHealthBars(level->camera);
122
123   const char *text = "Wave won";
124   int textWidth = MeasureText(text, 20);
125   DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE);
126
127
128   if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0))
129   {
130     level->nextState = LEVEL_STATE_RESET;
131   }
132
133   if (HasLevelNextWave(level))
134   {
135     if (Button("Prepare for next wave", GetScreenWidth() - 300, GetScreenHeight() - 40, 300, 30, 0))
136     {
137       level->nextState = LEVEL_STATE_BUILDING;
138     }
139   }
140   else {
141     if (Button("Level won", GetScreenWidth() - 300, GetScreenHeight() - 40, 300, 30, 0))
142     {
143       level->nextState = LEVEL_STATE_WON_LEVEL;
144     }
145   }
146 }
147
148 void DrawBuildingBuildButton(Level *level, int x, int y, int width, int height, uint8_t towerType, const char *name)
149 {
150   static ButtonState buttonStates[8] = {0};
151   int cost = GetTowerCosts(towerType);
152   const char *text = TextFormat("%s: %d", name, cost);
153   buttonStates[towerType].isSelected = level->placementMode == towerType;
154   buttonStates[towerType].isDisabled = level->playerGold < cost;
155   if (Button(text, x, y, width, height, &buttonStates[towerType]))
156   {
157     level->placementMode = buttonStates[towerType].isSelected ? 0 : towerType;
158   }
159 }
160
161 void DrawLevelBuildingState(Level *level)
162 {
163   BeginMode3D(level->camera);
164   DrawGrid(10, 1.0f);
165   TowerDraw();
166   EnemyDraw();
167   ProjectileDraw();
168   ParticleDraw();
169
170   Ray ray = GetScreenToWorldRay(GetMousePosition(), level->camera);
171   float planeDistance = ray.position.y / -ray.direction.y;
172   float planeX = ray.direction.x * planeDistance + ray.position.x;
173   float planeY = ray.direction.z * planeDistance + ray.position.z;
174   int16_t mapX = (int16_t)floorf(planeX + 0.5f);
175   int16_t mapY = (int16_t)floorf(planeY + 0.5f);
176   if (level->placementMode && !guiState.isBlocked)
177   {
178     DrawCubeWires((Vector3){mapX, 0.2f, mapY}, 1.0f, 0.4f, 1.0f, RED);
179     if (IsMouseButtonPressed(MOUSE_LEFT_BUTTON))
180     {
181       if (TowerTryAdd(level->placementMode, mapX, mapY))
182       {
183         level->playerGold -= GetTowerCosts(level->placementMode);
184         level->placementMode = TOWER_TYPE_NONE;
185       }
186     }
187   }
188
189   guiState.isBlocked = 0;
190
191   EndMode3D();
192
193   TowerDrawHealthBars(level->camera);
194
195   static ButtonState buildWallButtonState = {0};
196   static ButtonState buildGunButtonState = {0};
197   buildWallButtonState.isSelected = level->placementMode == TOWER_TYPE_WALL;
198   buildGunButtonState.isSelected = level->placementMode == TOWER_TYPE_GUN;
199
200   DrawBuildingBuildButton(level, 10, 10, 80, 30, TOWER_TYPE_WALL, "Wall");
201   DrawBuildingBuildButton(level, 10, 50, 80, 30, TOWER_TYPE_GUN, "Gun");
202
203   if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0))
204   {
205     level->nextState = LEVEL_STATE_RESET;
206   }
207
208   if (Button("Begin waves", GetScreenWidth() - 160, GetScreenHeight() - 40, 160, 30, 0))
209   {
210     level->nextState = LEVEL_STATE_BATTLE;
211   }
212
213   const char *text = "Building phase";
214   int textWidth = MeasureText(text, 20);
215   DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE);
216 }
217
218 void InitBattleStateConditions(Level *level)
219 {
220   level->state = LEVEL_STATE_BATTLE;
221   level->nextState = LEVEL_STATE_NONE;
222   level->waveEndTimer = 0.0f;
223   for (int i = 0; i < 10; i++)
224   {
225     EnemyWave *wave = &level->waves[i];
226     wave->spawned = 0;
227     wave->timeToSpawnNext = wave->delay;
228   }
229 }
230
231 void DrawLevelBattleState(Level *level)
232 {
233   BeginMode3D(level->camera);
234   DrawGrid(10, 1.0f);
235   TowerDraw();
236   EnemyDraw();
237   ProjectileDraw();
238   ParticleDraw();
239   guiState.isBlocked = 0;
240   EndMode3D();
241
242   EnemyDrawHealthbars(level->camera);
243   TowerDrawHealthBars(level->camera);
244
245   if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0))
246   {
247     level->nextState = LEVEL_STATE_RESET;
248   }
249
250   int maxCount = 0;
251   int remainingCount = 0;
252   for (int i = 0; i < 10; i++)
253   {
254     EnemyWave *wave = &level->waves[i];
255     if (wave->wave != level->currentWave)
256     {
257       continue;
258     }
259     maxCount += wave->count;
260     remainingCount += wave->count - wave->spawned;
261   }
262   int aliveCount = EnemyCount();
263   remainingCount += aliveCount;
264
265   const char *text = TextFormat("Battle phase: %03d%%", 100 - remainingCount * 100 / maxCount);
266   int textWidth = MeasureText(text, 20);
267   DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE);
268 }
269
270 void DrawLevel(Level *level)
271 {
272   switch (level->state)
273   {
274     case LEVEL_STATE_BUILDING: DrawLevelBuildingState(level); break;
275     case LEVEL_STATE_BATTLE: DrawLevelBattleState(level); break;
276     case LEVEL_STATE_WON_WAVE: DrawLevelReportWonWave(level); break;
277     case LEVEL_STATE_LOST_WAVE: DrawLevelReportLostWave(level); break;
278     default: break;
279   }
280
281   DrawLevelHud(level);
282 }
283
284 void UpdateLevel(Level *level)
285 {
286   if (level->state == LEVEL_STATE_BATTLE)
287   {
288     int activeWaves = 0;
289     for (int i = 0; i < 10; i++)
290     {
291       EnemyWave *wave = &level->waves[i];
292       if (wave->spawned >= wave->count || wave->wave != level->currentWave)
293       {
294         continue;
295       }
296       activeWaves++;
297       wave->timeToSpawnNext -= gameTime.deltaTime;
298       if (wave->timeToSpawnNext <= 0.0f)
299       {
300         Enemy *enemy = EnemyTryAdd(wave->enemyType, wave->spawnPosition.x, wave->spawnPosition.y);
301         if (enemy)
302         {
303           wave->timeToSpawnNext = wave->interval;
304           wave->spawned++;
305         }
306       }
307     }
308     if (GetTowerByType(TOWER_TYPE_BASE) == 0) {
309       level->waveEndTimer += gameTime.deltaTime;
310       if (level->waveEndTimer >= 2.0f)
311       {
312         level->nextState = LEVEL_STATE_LOST_WAVE;
313       }
314     }
315     else if (activeWaves == 0 && EnemyCount() == 0)
316     {
317       level->waveEndTimer += gameTime.deltaTime;
318       if (level->waveEndTimer >= 2.0f)
319       {
320         level->nextState = LEVEL_STATE_WON_WAVE;
321       }
322     }
323   }
324
325   PathFindingMapUpdate();
326   EnemyUpdate();
327   TowerUpdate();
328   ProjectileUpdate();
329   ParticleUpdate();
330
331   if (level->nextState == LEVEL_STATE_RESET)
332   {
333     InitLevel(level);
334   }
335
336   if (level->nextState == LEVEL_STATE_BATTLE)
337   {
338     InitBattleStateConditions(level);
339   }
340
341   if (level->nextState == LEVEL_STATE_WON_WAVE)
342   {
343     level->currentWave++;
344     level->state = LEVEL_STATE_WON_WAVE;
345   }
346
347   if (level->nextState == LEVEL_STATE_LOST_WAVE)
348   {
349     level->state = LEVEL_STATE_LOST_WAVE;
350   }
351
352   if (level->nextState == LEVEL_STATE_BUILDING)
353   {
354     level->state = LEVEL_STATE_BUILDING;
355   }
356
357   if (level->nextState == LEVEL_STATE_WON_LEVEL)
358   {
359     // make something of this later
360     InitLevel(level);
361   }
362
363   level->nextState = LEVEL_STATE_NONE;
364 }
365
366 float nextSpawnTime = 0.0f;
367
368 void ResetGame()
369 {
370   InitLevel(currentLevel);
371 }
372
373 void InitGame()
374 {
375   TowerInit();
376   EnemyInit();
377   ProjectileInit();
378   ParticleInit();
379   PathfindingMapInit(20, 20, (Vector3){-10.0f, 0.0f, -10.0f}, 1.0f);
380
381   currentLevel = levels;
382   InitLevel(currentLevel);
383 }
384
385 //# Immediate GUI functions
386
387 void DrawHealthBar(Camera3D camera, Vector3 position, float healthRatio, Color barColor)
388 {
389   const float healthBarWidth = 40.0f;
390   const float healthBarHeight = 6.0f;
391   const float healthBarOffset = 15.0f;
392   const float inset = 2.0f;
393   const float innerWidth = healthBarWidth - inset * 2;
394   const float innerHeight = healthBarHeight - inset * 2;
395
396   Vector2 screenPos = GetWorldToScreen(position, camera);
397   float centerX = screenPos.x - healthBarWidth * 0.5f;
398   float topY = screenPos.y - healthBarOffset;
399   DrawRectangle(centerX, topY, healthBarWidth, healthBarHeight, BLACK);
400   float healthWidth = innerWidth * healthRatio;
401   DrawRectangle(centerX + inset, topY + inset, healthWidth, innerHeight, barColor);
402 }
403
404 int Button(const char *text, int x, int y, int width, int height, ButtonState *state)
405 {
406   Rectangle bounds = {x, y, width, height};
407   int isPressed = 0;
408   int isSelected = state && state->isSelected;
409   if (CheckCollisionPointRec(GetMousePosition(), bounds) && !guiState.isBlocked && !state->isDisabled)
410   {
411     Color color = isSelected ? DARKGRAY : GRAY;
412     DrawRectangle(x, y, width, height, color);
413     if (IsMouseButtonPressed(MOUSE_LEFT_BUTTON))
414     {
415       isPressed = 1;
416     }
417     guiState.isBlocked = 1;
418   }
419   else
420   {
421     Color color = isSelected ? WHITE : LIGHTGRAY;
422     DrawRectangle(x, y, width, height, color);
423   }
424   Font font = GetFontDefault();
425   Vector2 textSize = MeasureTextEx(font, text, font.baseSize * 2.0f, 1);
426   Color textColor = state->isDisabled ? GRAY : BLACK;
427   DrawTextEx(font, text, (Vector2){x + width / 2 - textSize.x / 2, y + height / 2 - textSize.y / 2}, font.baseSize * 2.0f, 1, textColor);
428   return isPressed;
429 }
430
431 //# Main game loop
432
433 void GameUpdate()
434 {
435   float dt = GetFrameTime();
436   // cap maximum delta time to 0.1 seconds to prevent large time steps
437   if (dt > 0.1f) dt = 0.1f;
438   gameTime.time += dt;
439   gameTime.deltaTime = dt;
440
441   UpdateLevel(currentLevel);
442 }
443
444 int main(void)
445 {
446   int screenWidth, screenHeight;
447   GetPreferredSize(&screenWidth, &screenHeight);
448   InitWindow(screenWidth, screenHeight, "Tower defense");
449   SetTargetFPS(30);
450
451   InitGame();
452
453   while (!WindowShouldClose())
454   {
455     if (IsPaused()) {
456       // canvas is not visible in browser - do nothing
457       continue;
458     }
459
460     BeginDrawing();
461     ClearBackground(DARKBLUE);
462
463     GameUpdate();
464     DrawLevel(currentLevel);
465
466     EndDrawing();
467   }
468
469   CloseWindow();
470
471   return 0;
472 }

  1 #ifndef TD_TUT_2_MAIN_H
  2 #define TD_TUT_2_MAIN_H
  3
  4 #include <inttypes.h>
  5
  6 #include "raylib.h"
  7 #include "preferred_size.h"
  8
  9 //# Declarations
 10
 11 #define ENEMY_MAX_PATH_COUNT 8
 12 #define ENEMY_MAX_COUNT 400
 13 #define ENEMY_TYPE_NONE 0
 14 #define ENEMY_TYPE_MINION 1
 15
 16 #define PARTICLE_MAX_COUNT 400
 17 #define PARTICLE_TYPE_NONE 0
 18 #define PARTICLE_TYPE_EXPLOSION 1
 19
 20 typedef struct Particle
 21 {
 22   uint8_t particleType;
 23   float spawnTime;
 24   float lifetime;
 25   Vector3 position;
 26   Vector3 velocity;
 27 } Particle;
 28
 29 #define TOWER_MAX_COUNT 400
 30 #define TOWER_TYPE_NONE 0
 31 #define TOWER_TYPE_BASE 1
 32 #define TOWER_TYPE_GUN 2
 33 #define TOWER_TYPE_WALL 3
 34 #define TOWER_TYPE_COUNT 4
 35
 36 typedef struct Tower
 37 {
 38   int16_t x, y;
 39   uint8_t towerType;
 40   float cooldown;
 41   float damage;
 42 } Tower;
 43
 44 typedef struct GameTime
 45 {
 46   float time;
 47   float deltaTime;
 48 } GameTime;
 49
 50 typedef struct ButtonState {
 51   char isSelected;
 52   char isDisabled;
 53 } ButtonState;
 54
 55 typedef struct GUIState {
 56   int isBlocked;
 57 } GUIState;
 58
 59 typedef enum LevelState
 60 {
 61   LEVEL_STATE_NONE,
 62   LEVEL_STATE_BUILDING,
 63   LEVEL_STATE_BATTLE,
 64   LEVEL_STATE_WON_WAVE,
 65   LEVEL_STATE_LOST_WAVE,
 66   LEVEL_STATE_WON_LEVEL,
 67   LEVEL_STATE_RESET,
 68 } LevelState;
 69
 70 typedef struct EnemyWave {
 71   uint8_t enemyType;
 72   uint8_t wave;
 73   uint16_t count;
 74   float interval;
 75   float delay;
 76   Vector2 spawnPosition;
 77
 78   uint16_t spawned;
 79   float timeToSpawnNext;
 80 } EnemyWave;
 81
 82 typedef struct Level
 83 {
 84   LevelState state;
 85   LevelState nextState;
 86   Camera3D camera;
 87   int placementMode;
 88
 89   int initialGold;
 90   int playerGold;
 91
 92   EnemyWave waves[10];
 93   int currentWave;
 94   float waveEndTimer;
 95 } Level;
 96
 97 typedef struct DeltaSrc
 98 {
 99   char x, y;
100 } DeltaSrc;
101
102 typedef struct PathfindingMap
103 {
104   int width, height;
105   float scale;
106   float *distances;
107   long *towerIndex;
108   DeltaSrc *deltaSrc;
109   float maxDistance;
110   Matrix toMapSpace;
111   Matrix toWorldSpace;
112 } PathfindingMap;
113
114 // when we execute the pathfinding algorithm, we need to store the active nodes
115 // in a queue. Each node has a position, a distance from the start, and the
116 // position of the node that we came from.
117 typedef struct PathfindingNode
118 {
119   int16_t x, y, fromX, fromY;
120   float distance;
121 } PathfindingNode;
122
123 typedef struct EnemyId
124 {
125   uint16_t index;
126   uint16_t generation;
127 } EnemyId;
128
129 typedef struct EnemyClassConfig
130 {
131   float speed;
132   float health;
133   float radius;
134   float maxAcceleration;
135   float requiredContactTime;
136   float explosionDamage;
137   float explosionRange;
138   float explosionPushbackPower;
139   int goldValue;
140 } EnemyClassConfig;
141
142 typedef struct Enemy
143 {
144   int16_t currentX, currentY;
145   int16_t nextX, nextY;
146   Vector2 simPosition;
147   Vector2 simVelocity;
148   uint16_t generation;
149   float startMovingTime;
150   float damage, futureDamage;
151   float contactTime;
152   uint8_t enemyType;
153   uint8_t movePathCount;
154   Vector2 movePath[ENEMY_MAX_PATH_COUNT];
155 } Enemy;
156
157 #define PROJECTILE_MAX_COUNT 1200
158 #define PROJECTILE_TYPE_NONE 0
159 #define PROJECTILE_TYPE_BULLET 1
160
161 typedef struct Projectile
162 {
163   uint8_t projectileType;
164   float shootTime;
165   float arrivalTime;
166   float damage;
167   Vector2 position;
168   Vector2 target;
169   Vector2 directionNormal;
170   EnemyId targetEnemy;
171 } Projectile;
172
173 //# Function declarations
174 float TowerGetMaxHealth(Tower *tower);
175 int Button(const char *text, int x, int y, int width, int height, ButtonState *state);
176 int EnemyAddDamage(Enemy *enemy, float damage);
177
178 //# Enemy functions
179 void EnemyInit();
180 void EnemyDraw();
181 void EnemyTriggerExplode(Enemy *enemy, Tower *tower, Vector3 explosionSource);
182 void EnemyUpdate();
183 float EnemyGetCurrentMaxSpeed(Enemy *enemy);
184 float EnemyGetMaxHealth(Enemy *enemy);
185 int EnemyGetNextPosition(int16_t currentX, int16_t currentY, int16_t *nextX, int16_t *nextY);
186 Vector2 EnemyGetPosition(Enemy *enemy, float deltaT, Vector2 *velocity, int *waypointPassedCount);
187 EnemyId EnemyGetId(Enemy *enemy);
188 Enemy *EnemyTryResolve(EnemyId enemyId);
189 Enemy *EnemyTryAdd(uint8_t enemyType, int16_t currentX, int16_t currentY);
190 int EnemyAddDamage(Enemy *enemy, float damage);
191 Enemy* EnemyGetClosestToCastle(int16_t towerX, int16_t towerY, float range);
192 int EnemyCount();
193 void EnemyDrawHealthbars(Camera3D camera);
194
195 //# Tower functions
196 void TowerInit();
197 Tower *TowerGetAt(int16_t x, int16_t y);
198 Tower *TowerTryAdd(uint8_t towerType, int16_t x, int16_t y);
199 Tower *GetTowerByType(uint8_t towerType);
200 int GetTowerCosts(uint8_t towerType);
201 float TowerGetMaxHealth(Tower *tower);
202 void TowerDraw();
203 void TowerUpdate();
204 void TowerDrawHealthBars(Camera3D camera);
205
206 //# Particles
207 void ParticleInit();
208 void ParticleAdd(uint8_t particleType, Vector3 position, Vector3 velocity, float lifetime);
209 void ParticleUpdate();
210 void ParticleDraw();
211
212 //# Projectiles
213 void ProjectileInit();
214 void ProjectileDraw();
215 void ProjectileUpdate();
216 Projectile *ProjectileTryAdd(uint8_t projectileType, Enemy *enemy, Vector2 position, Vector2 target, float speed, float damage);
217
218 //# Pathfinding map
219 void PathfindingMapInit(int width, int height, Vector3 translate, float scale);
220 float PathFindingGetDistance(int mapX, int mapY);
221 Vector2 PathFindingGetGradient(Vector3 world);
222 int PathFindingFromWorldToMapPosition(Vector3 worldPosition, int16_t *mapX, int16_t *mapY);
223 void PathFindingMapUpdate();
224 void PathFindingMapDraw();
225
226 //# UI
227 void DrawHealthBar(Camera3D camera, Vector3 position, float healthRatio, Color barColor);
228
229 //# variables
230 extern Level *currentLevel;
231 extern Enemy enemies[ENEMY_MAX_COUNT];
232 extern int enemyCount;
233 extern EnemyClassConfig enemyClassConfigs[];
234
235 extern GUIState guiState;
236 extern GameTime gameTime;
237 extern Tower towers[TOWER_MAX_COUNT];
238 extern int towerCount;
239
240 #endif

  1 #include "td_main.h"
  2 #include <raymath.h>
  3 #include <stdlib.h>
  4 #include <math.h>
  5
  6 EnemyClassConfig enemyClassConfigs[] = {
  7     [ENEMY_TYPE_MINION] = {
  8       .health = 10.0f,
  9       .speed = 0.6f,
 10       .radius = 0.25f,
 11       .maxAcceleration = 1.0f,
 12       .explosionDamage = 1.0f,
 13       .requiredContactTime = 0.5f,
 14       .explosionRange = 1.0f,
 15       .explosionPushbackPower = 0.25f,
 16       .goldValue = 1,
 17     },
 18 };
 19
 20 Enemy enemies[ENEMY_MAX_COUNT];
 21 int enemyCount = 0;
 22
 23 void EnemyInit()
 24 {
 25   for (int i = 0; i < ENEMY_MAX_COUNT; i++)
 26   {
 27     enemies[i] = (Enemy){0};
 28   }
 29   enemyCount = 0;
 30 }
 31
 32 float EnemyGetCurrentMaxSpeed(Enemy *enemy)
 33 {
 34   return enemyClassConfigs[enemy->enemyType].speed;
 35 }
 36
 37 float EnemyGetMaxHealth(Enemy *enemy)
 38 {
 39   return enemyClassConfigs[enemy->enemyType].health;
 40 }
 41
 42 int EnemyGetNextPosition(int16_t currentX, int16_t currentY, int16_t *nextX, int16_t *nextY)
 43 {
 44   int16_t castleX = 0;
 45   int16_t castleY = 0;
 46   int16_t dx = castleX - currentX;
 47   int16_t dy = castleY - currentY;
 48   if (dx == 0 && dy == 0)
 49   {
 50     *nextX = currentX;
 51     *nextY = currentY;
 52     return 1;
 53   }
 54   Vector2 gradient = PathFindingGetGradient((Vector3){currentX, 0, currentY});
 55
 56   if (gradient.x == 0 && gradient.y == 0)
 57   {
 58     *nextX = currentX;
 59     *nextY = currentY;
 60     return 1;
 61   }
 62
 63   if (fabsf(gradient.x) > fabsf(gradient.y))
 64   {
 65     *nextX = currentX + (int16_t)(gradient.x > 0.0f ? 1 : -1);
 66     *nextY = currentY;
 67     return 0;
 68   }
 69   *nextX = currentX;
 70   *nextY = currentY + (int16_t)(gradient.y > 0.0f ? 1 : -1);
 71   return 0;
 72 }
 73
 74
 75 // this function predicts the movement of the unit for the next deltaT seconds
 76 Vector2 EnemyGetPosition(Enemy *enemy, float deltaT, Vector2 *velocity, int *waypointPassedCount)
 77 {
 78   const float pointReachedDistance = 0.25f;
 79   const float pointReachedDistance2 = pointReachedDistance * pointReachedDistance;
 80   const float maxSimStepTime = 0.015625f;
 81
 82   float maxAcceleration = enemyClassConfigs[enemy->enemyType].maxAcceleration;
 83   float maxSpeed = EnemyGetCurrentMaxSpeed(enemy);
 84   int16_t nextX = enemy->nextX;
 85   int16_t nextY = enemy->nextY;
 86   Vector2 position = enemy->simPosition;
 87   int passedCount = 0;
 88   for (float t = 0.0f; t < deltaT; t += maxSimStepTime)
 89   {
 90     float stepTime = fminf(deltaT - t, maxSimStepTime);
 91     Vector2 target = (Vector2){nextX, nextY};
 92     float speed = Vector2Length(*velocity);
 93     // draw the target position for debugging
 94     DrawCubeWires((Vector3){target.x, 0.2f, target.y}, 0.1f, 0.4f, 0.1f, RED);
 95     Vector2 lookForwardPos = Vector2Add(position, Vector2Scale(*velocity, speed));
 96     if (Vector2DistanceSqr(target, lookForwardPos) <= pointReachedDistance2)
 97     {
 98       // we reached the target position, let's move to the next waypoint
 99       EnemyGetNextPosition(nextX, nextY, &nextX, &nextY);
100       target = (Vector2){nextX, nextY};
101       // track how many waypoints we passed
102       passedCount++;
103     }
104
105     // acceleration towards the target
106     Vector2 unitDirection = Vector2Normalize(Vector2Subtract(target, lookForwardPos));
107     Vector2 acceleration = Vector2Scale(unitDirection, maxAcceleration * stepTime);
108     *velocity = Vector2Add(*velocity, acceleration);
109
110     // limit the speed to the maximum speed
111     if (speed > maxSpeed)
112     {
113       *velocity = Vector2Scale(*velocity, maxSpeed / speed);
114     }
115
116     // move the enemy
117     position = Vector2Add(position, Vector2Scale(*velocity, stepTime));
118   }
119
120   if (waypointPassedCount)
121   {
122     (*waypointPassedCount) = passedCount;
123   }
124
125   return position;
126 }
127
128 void EnemyDraw()
129 {
130   for (int i = 0; i < enemyCount; i++)
131   {
132     Enemy enemy = enemies[i];
133     if (enemy.enemyType == ENEMY_TYPE_NONE)
134     {
135       continue;
136     }
137
138     Vector2 position = EnemyGetPosition(&enemy, gameTime.time - enemy.startMovingTime, &enemy.simVelocity, 0);
139
140     if (enemy.movePathCount > 0)
141     {
142       Vector3 p = {enemy.movePath[0].x, 0.2f, enemy.movePath[0].y};
143       DrawLine3D(p, (Vector3){position.x, 0.2f, position.y}, GREEN);
144     }
145     for (int j = 1; j < enemy.movePathCount; j++)
146     {
147       Vector3 p = {enemy.movePath[j - 1].x, 0.2f, enemy.movePath[j - 1].y};
148       Vector3 q = {enemy.movePath[j].x, 0.2f, enemy.movePath[j].y};
149       DrawLine3D(p, q, GREEN);
150     }
151
152     switch (enemy.enemyType)
153     {
154     case ENEMY_TYPE_MINION:
155       DrawCubeWires((Vector3){position.x, 0.2f, position.y}, 0.4f, 0.4f, 0.4f, GREEN);
156       break;
157     }
158   }
159 }
160
161 void EnemyTriggerExplode(Enemy *enemy, Tower *tower, Vector3 explosionSource)
162 {
163   // damage the tower
164   float explosionDamge = enemyClassConfigs[enemy->enemyType].explosionDamage;
165   float explosionRange = enemyClassConfigs[enemy->enemyType].explosionRange;
166   float explosionPushbackPower = enemyClassConfigs[enemy->enemyType].explosionPushbackPower;
167   float explosionRange2 = explosionRange * explosionRange;
168   tower->damage += enemyClassConfigs[enemy->enemyType].explosionDamage;
169   // explode the enemy
170   if (tower->damage >= TowerGetMaxHealth(tower))
171   {
172     tower->towerType = TOWER_TYPE_NONE;
173   }
174
175   ParticleAdd(PARTICLE_TYPE_EXPLOSION,
176     explosionSource,
177     (Vector3){0, 0.1f, 0}, 1.0f);
178
179   enemy->enemyType = ENEMY_TYPE_NONE;
180
181   // push back enemies & dealing damage
182   for (int i = 0; i < enemyCount; i++)
183   {
184     Enemy *other = &enemies[i];
185     if (other->enemyType == ENEMY_TYPE_NONE)
186     {
187       continue;
188     }
189     float distanceSqr = Vector2DistanceSqr(enemy->simPosition, other->simPosition);
190     if (distanceSqr > 0 && distanceSqr < explosionRange2)
191     {
192       Vector2 direction = Vector2Normalize(Vector2Subtract(other->simPosition, enemy->simPosition));
193       other->simPosition = Vector2Add(other->simPosition, Vector2Scale(direction, explosionPushbackPower));
194       EnemyAddDamage(other, explosionDamge);
195     }
196   }
197 }
198
199 void EnemyUpdate()
200 {
201   const float castleX = 0;
202   const float castleY = 0;
203   const float maxPathDistance2 = 0.25f * 0.25f;
204
205   for (int i = 0; i < enemyCount; i++)
206   {
207     Enemy *enemy = &enemies[i];
208     if (enemy->enemyType == ENEMY_TYPE_NONE)
209     {
210       continue;
211     }
212
213     int waypointPassedCount = 0;
214     enemy->simPosition = EnemyGetPosition(enemy, gameTime.time - enemy->startMovingTime, &enemy->simVelocity, &waypointPassedCount);
215     enemy->startMovingTime = gameTime.time;
216     // track path of unit
217     if (enemy->movePathCount == 0 || Vector2DistanceSqr(enemy->simPosition, enemy->movePath[0]) > maxPathDistance2)
218     {
219       for (int j = ENEMY_MAX_PATH_COUNT - 1; j > 0; j--)
220       {
221         enemy->movePath[j] = enemy->movePath[j - 1];
222       }
223       enemy->movePath[0] = enemy->simPosition;
224       if (++enemy->movePathCount > ENEMY_MAX_PATH_COUNT)
225       {
226         enemy->movePathCount = ENEMY_MAX_PATH_COUNT;
227       }
228     }
229
230     if (waypointPassedCount > 0)
231     {
232       enemy->currentX = enemy->nextX;
233       enemy->currentY = enemy->nextY;
234       if (EnemyGetNextPosition(enemy->currentX, enemy->currentY, &enemy->nextX, &enemy->nextY) &&
235         Vector2DistanceSqr(enemy->simPosition, (Vector2){castleX, castleY}) <= 0.25f * 0.25f)
236       {
237         // enemy reached the castle; remove it
238         enemy->enemyType = ENEMY_TYPE_NONE;
239         continue;
240       }
241     }
242   }
243
244   // handle collisions between enemies
245   for (int i = 0; i < enemyCount - 1; i++)
246   {
247     Enemy *enemyA = &enemies[i];
248     if (enemyA->enemyType == ENEMY_TYPE_NONE)
249     {
250       continue;
251     }
252     for (int j = i + 1; j < enemyCount; j++)
253     {
254       Enemy *enemyB = &enemies[j];
255       if (enemyB->enemyType == ENEMY_TYPE_NONE)
256       {
257         continue;
258       }
259       float distanceSqr = Vector2DistanceSqr(enemyA->simPosition, enemyB->simPosition);
260       float radiusA = enemyClassConfigs[enemyA->enemyType].radius;
261       float radiusB = enemyClassConfigs[enemyB->enemyType].radius;
262       float radiusSum = radiusA + radiusB;
263       if (distanceSqr < radiusSum * radiusSum && distanceSqr > 0.001f)
264       {
265         // collision
266         float distance = sqrtf(distanceSqr);
267         float overlap = radiusSum - distance;
268         // move the enemies apart, but softly; if we have a clog of enemies,
269         // moving them perfectly apart can cause them to jitter
270         float positionCorrection = overlap / 5.0f;
271         Vector2 direction = (Vector2){
272             (enemyB->simPosition.x - enemyA->simPosition.x) / distance * positionCorrection,
273             (enemyB->simPosition.y - enemyA->simPosition.y) / distance * positionCorrection};
274         enemyA->simPosition = Vector2Subtract(enemyA->simPosition, direction);
275         enemyB->simPosition = Vector2Add(enemyB->simPosition, direction);
276       }
277     }
278   }
279
280   // handle collisions between enemies and towers
281   for (int i = 0; i < enemyCount; i++)
282   {
283     Enemy *enemy = &enemies[i];
284     if (enemy->enemyType == ENEMY_TYPE_NONE)
285     {
286       continue;
287     }
288     enemy->contactTime -= gameTime.deltaTime;
289     if (enemy->contactTime < 0.0f)
290     {
291       enemy->contactTime = 0.0f;
292     }
293
294     float enemyRadius = enemyClassConfigs[enemy->enemyType].radius;
295     // linear search over towers; could be optimized by using path finding tower map,
296     // but for now, we keep it simple
297     for (int j = 0; j < towerCount; j++)
298     {
299       Tower *tower = &towers[j];
300       if (tower->towerType == TOWER_TYPE_NONE)
301       {
302         continue;
303       }
304       float distanceSqr = Vector2DistanceSqr(enemy->simPosition, (Vector2){tower->x, tower->y});
305       float combinedRadius = enemyRadius + 0.708; // sqrt(0.5^2 + 0.5^2), corner-center distance of square with side length 1
306       if (distanceSqr > combinedRadius * combinedRadius)
307       {
308         continue;
309       }
310       // potential collision; square / circle intersection
311       float dx = tower->x - enemy->simPosition.x;
312       float dy = tower->y - enemy->simPosition.y;
313       float absDx = fabsf(dx);
314       float absDy = fabsf(dy);
315       Vector3 contactPoint = {0};
316       if (absDx <= 0.5f && absDx <= absDy) {
317         // vertical collision; push the enemy out horizontally
318         float overlap = enemyRadius + 0.5f - absDy;
319         if (overlap < 0.0f)
320         {
321           continue;
322         }
323         float direction = dy > 0.0f ? -1.0f : 1.0f;
324         enemy->simPosition.y += direction * overlap;
325         contactPoint = (Vector3){enemy->simPosition.x, 0.2f, tower->y + direction * 0.5f};
326       }
327       else if (absDy <= 0.5f && absDy <= absDx)
328       {
329         // horizontal collision; push the enemy out vertically
330         float overlap = enemyRadius + 0.5f - absDx;
331         if (overlap < 0.0f)
332         {
333           continue;
334         }
335         float direction = dx > 0.0f ? -1.0f : 1.0f;
336         enemy->simPosition.x += direction * overlap;
337         contactPoint = (Vector3){tower->x + direction * 0.5f, 0.2f, enemy->simPosition.y};
338       }
339       else
340       {
341         // possible collision with a corner
342         float cornerDX = dx > 0.0f ? -0.5f : 0.5f;
343         float cornerDY = dy > 0.0f ? -0.5f : 0.5f;
344         float cornerX = tower->x + cornerDX;
345         float cornerY = tower->y + cornerDY;
346         float cornerDistanceSqr = Vector2DistanceSqr(enemy->simPosition, (Vector2){cornerX, cornerY});
347         if (cornerDistanceSqr > enemyRadius * enemyRadius)
348         {
349           continue;
350         }
351         // push the enemy out along the diagonal
352         float cornerDistance = sqrtf(cornerDistanceSqr);
353         float overlap = enemyRadius - cornerDistance;
354         float directionX = cornerDistance > 0.0f ? (cornerX - enemy->simPosition.x) / cornerDistance : -cornerDX;
355         float directionY = cornerDistance > 0.0f ? (cornerY - enemy->simPosition.y) / cornerDistance : -cornerDY;
356         enemy->simPosition.x -= directionX * overlap;
357         enemy->simPosition.y -= directionY * overlap;
358         contactPoint = (Vector3){cornerX, 0.2f, cornerY};
359       }
360
361       if (enemyClassConfigs[enemy->enemyType].explosionDamage > 0.0f)
362       {
363         enemy->contactTime += gameTime.deltaTime * 2.0f; // * 2 to undo the subtraction above
364         if (enemy->contactTime >= enemyClassConfigs[enemy->enemyType].requiredContactTime)
365         {
366           EnemyTriggerExplode(enemy, tower, contactPoint);
367         }
368       }
369     }
370   }
371 }
372
373 EnemyId EnemyGetId(Enemy *enemy)
374 {
375   return (EnemyId){enemy - enemies, enemy->generation};
376 }
377
378 Enemy *EnemyTryResolve(EnemyId enemyId)
379 {
380   if (enemyId.index >= ENEMY_MAX_COUNT)
381   {
382     return 0;
383   }
384   Enemy *enemy = &enemies[enemyId.index];
385   if (enemy->generation != enemyId.generation || enemy->enemyType == ENEMY_TYPE_NONE)
386   {
387     return 0;
388   }
389   return enemy;
390 }
391
392 Enemy *EnemyTryAdd(uint8_t enemyType, int16_t currentX, int16_t currentY)
393 {
394   Enemy *spawn = 0;
395   for (int i = 0; i < enemyCount; i++)
396   {
397     Enemy *enemy = &enemies[i];
398     if (enemy->enemyType == ENEMY_TYPE_NONE)
399     {
400       spawn = enemy;
401       break;
402     }
403   }
404
405   if (enemyCount < ENEMY_MAX_COUNT && !spawn)
406   {
407     spawn = &enemies[enemyCount++];
408   }
409
410   if (spawn)
411   {
412     spawn->currentX = currentX;
413     spawn->currentY = currentY;
414     spawn->nextX = currentX;
415     spawn->nextY = currentY;
416     spawn->simPosition = (Vector2){currentX, currentY};
417     spawn->simVelocity = (Vector2){0, 0};
418     spawn->enemyType = enemyType;
419     spawn->startMovingTime = gameTime.time;
420     spawn->damage = 0.0f;
421     spawn->futureDamage = 0.0f;
422     spawn->generation++;
423     spawn->movePathCount = 0;
424   }
425
426   return spawn;
427 }
428
429 int EnemyAddDamage(Enemy *enemy, float damage)
430 {
431   enemy->damage += damage;
432   if (enemy->damage >= EnemyGetMaxHealth(enemy))
433   {
434     currentLevel->playerGold += enemyClassConfigs[enemy->enemyType].goldValue;
435     enemy->enemyType = ENEMY_TYPE_NONE;
436     return 1;
437   }
438
439   return 0;
440 }
441
442 Enemy* EnemyGetClosestToCastle(int16_t towerX, int16_t towerY, float range)
443 {
444   int16_t castleX = 0;
445   int16_t castleY = 0;
446   Enemy* closest = 0;
447   int16_t closestDistance = 0;
448   float range2 = range * range;
449   for (int i = 0; i < enemyCount; i++)
450   {
451     Enemy* enemy = &enemies[i];
452     if (enemy->enemyType == ENEMY_TYPE_NONE)
453     {
454       continue;
455     }
456     float maxHealth = EnemyGetMaxHealth(enemy);
457     if (enemy->futureDamage >= maxHealth)
458     {
459       // ignore enemies that will die soon
460       continue;
461     }
462     int16_t dx = castleX - enemy->currentX;
463     int16_t dy = castleY - enemy->currentY;
464     int16_t distance = abs(dx) + abs(dy);
465     if (!closest || distance < closestDistance)
466     {
467       float tdx = towerX - enemy->currentX;
468       float tdy = towerY - enemy->currentY;
469       float tdistance2 = tdx * tdx + tdy * tdy;
470       if (tdistance2 <= range2)
471       {
472         closest = enemy;
473         closestDistance = distance;
474       }
475     }
476   }
477   return closest;
478 }
479
480 int EnemyCount()
481 {
482   int count = 0;
483   for (int i = 0; i < enemyCount; i++)
484   {
485     if (enemies[i].enemyType != ENEMY_TYPE_NONE)
486     {
487       count++;
488     }
489   }
490   return count;
491 }
492
493 void EnemyDrawHealthbars(Camera3D camera)
494 {
495   for (int i = 0; i < enemyCount; i++)
496   {
497     Enemy *enemy = &enemies[i];
498     if (enemy->enemyType == ENEMY_TYPE_NONE || enemy->damage == 0.0f)
499     {
500       continue;
501     }
502     Vector3 position = (Vector3){enemy->simPosition.x, 0.5f, enemy->simPosition.y};
503     float maxHealth = EnemyGetMaxHealth(enemy);
504     float health = maxHealth - enemy->damage;
505     float healthRatio = health / maxHealth;
506
507     DrawHealthBar(camera, position, healthRatio, GREEN);
508   }
509 }

  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 // The queue is a simple array of nodes, we add nodes to the end and remove
  5 // nodes from the front. We keep the array around to avoid unnecessary allocations
  6 static PathfindingNode *pathfindingNodeQueue = 0;
  7 static int pathfindingNodeQueueCount = 0;
  8 static int pathfindingNodeQueueCapacity = 0;
  9
 10 // The pathfinding map stores the distances from the castle to each cell in the map.
 11 static PathfindingMap pathfindingMap = {0};
 12
 13 void PathfindingMapInit(int width, int height, Vector3 translate, float scale)
 14 {
 15   // transforming between map space and world space allows us to adapt
 16   // position and scale of the map without changing the pathfinding data
 17   pathfindingMap.toWorldSpace = MatrixTranslate(translate.x, translate.y, translate.z);
 18   pathfindingMap.toWorldSpace = MatrixMultiply(pathfindingMap.toWorldSpace, MatrixScale(scale, scale, scale));
 19   pathfindingMap.toMapSpace = MatrixInvert(pathfindingMap.toWorldSpace);
 20   pathfindingMap.width = width;
 21   pathfindingMap.height = height;
 22   pathfindingMap.scale = scale;
 23   pathfindingMap.distances = (float *)MemAlloc(width * height * sizeof(float));
 24   for (int i = 0; i < width * height; i++)
 25   {
 26     pathfindingMap.distances[i] = -1.0f;
 27   }
 28
 29   pathfindingMap.towerIndex = (long *)MemAlloc(width * height * sizeof(long));
 30   pathfindingMap.deltaSrc = (DeltaSrc *)MemAlloc(width * height * sizeof(DeltaSrc));
 31 }
 32
 33 static void PathFindingNodePush(int16_t x, int16_t y, int16_t fromX, int16_t fromY, float distance)
 34 {
 35   if (pathfindingNodeQueueCount >= pathfindingNodeQueueCapacity)
 36   {
 37     pathfindingNodeQueueCapacity = pathfindingNodeQueueCapacity == 0 ? 256 : pathfindingNodeQueueCapacity * 2;
 38     // we use MemAlloc/MemRealloc to allocate memory for the queue
 39     // I am not entirely sure if MemRealloc allows passing a null pointer
 40     // so we check if the pointer is null and use MemAlloc in that case
 41     if (pathfindingNodeQueue == 0)
 42     {
 43       pathfindingNodeQueue = (PathfindingNode *)MemAlloc(pathfindingNodeQueueCapacity * sizeof(PathfindingNode));
 44     }
 45     else
 46     {
 47       pathfindingNodeQueue = (PathfindingNode *)MemRealloc(pathfindingNodeQueue, pathfindingNodeQueueCapacity * sizeof(PathfindingNode));
 48     }
 49   }
 50
 51   PathfindingNode *node = &pathfindingNodeQueue[pathfindingNodeQueueCount++];
 52   node->x = x;
 53   node->y = y;
 54   node->fromX = fromX;
 55   node->fromY = fromY;
 56   node->distance = distance;
 57 }
 58
 59 static PathfindingNode *PathFindingNodePop()
 60 {
 61   if (pathfindingNodeQueueCount == 0)
 62   {
 63     return 0;
 64   }
 65   // we return the first node in the queue; we want to return a pointer to the node
 66   // so we can return 0 if the queue is empty.
 67   // We should _not_ return a pointer to the element in the list, because the list
 68   // may be reallocated and the pointer would become invalid. Or the
 69   // popped element is overwritten by the next push operation.
 70   // Using static here means that the variable is permanently allocated.
 71   static PathfindingNode node;
 72   node = pathfindingNodeQueue[0];
 73   // we shift all nodes one position to the front
 74   for (int i = 1; i < pathfindingNodeQueueCount; i++)
 75   {
 76     pathfindingNodeQueue[i - 1] = pathfindingNodeQueue[i];
 77   }
 78   --pathfindingNodeQueueCount;
 79   return &node;
 80 }
 81
 82 float PathFindingGetDistance(int mapX, int mapY)
 83 {
 84   if (mapX < 0 || mapX >= pathfindingMap.width || mapY < 0 || mapY >= pathfindingMap.height)
 85   {
 86     // when outside the map, we return the manhattan distance to the castle (0,0)
 87     return fabsf((float)mapX) + fabsf((float)mapY);
 88   }
 89
 90   return pathfindingMap.distances[mapY * pathfindingMap.width + mapX];
 91 }
 92
 93 // transform a world position to a map position in the array;
 94 // returns true if the position is inside the map
 95 int PathFindingFromWorldToMapPosition(Vector3 worldPosition, int16_t *mapX, int16_t *mapY)
 96 {
 97   Vector3 mapPosition = Vector3Transform(worldPosition, pathfindingMap.toMapSpace);
 98   *mapX = (int16_t)mapPosition.x;
 99   *mapY = (int16_t)mapPosition.z;
100   return *mapX >= 0 && *mapX < pathfindingMap.width && *mapY >= 0 && *mapY < pathfindingMap.height;
101 }
102
103 void PathFindingMapUpdate()
104 {
105   const int castleX = 0, castleY = 0;
106   int16_t castleMapX, castleMapY;
107   if (!PathFindingFromWorldToMapPosition((Vector3){castleX, 0.0f, castleY}, &castleMapX, &castleMapY))
108   {
109     return;
110   }
111   int width = pathfindingMap.width, height = pathfindingMap.height;
112
113   // reset the distances to -1
114   for (int i = 0; i < width * height; i++)
115   {
116     pathfindingMap.distances[i] = -1.0f;
117   }
118   // reset the tower indices
119   for (int i = 0; i < width * height; i++)
120   {
121     pathfindingMap.towerIndex[i] = -1;
122   }
123   // reset the delta src
124   for (int i = 0; i < width * height; i++)
125   {
126     pathfindingMap.deltaSrc[i].x = 0;
127     pathfindingMap.deltaSrc[i].y = 0;
128   }
129
130   for (int i = 0; i < towerCount; i++)
131   {
132     Tower *tower = &towers[i];
133     if (tower->towerType == TOWER_TYPE_NONE || tower->towerType == TOWER_TYPE_BASE)
134     {
135       continue;
136     }
137     int16_t mapX, mapY;
138     // technically, if the tower cell scale is not in sync with the pathfinding map scale,
139     // this would not work correctly and needs to be refined to allow towers covering multiple cells
140     // or having multiple towers in one cell; for simplicity, we assume that the tower covers exactly
141     // one cell. For now.
142     if (!PathFindingFromWorldToMapPosition((Vector3){tower->x, 0.0f, tower->y}, &mapX, &mapY))
143     {
144       continue;
145     }
146     int index = mapY * width + mapX;
147     pathfindingMap.towerIndex[index] = i;
148   }
149
150   // we start at the castle and add the castle to the queue
151   pathfindingMap.maxDistance = 0.0f;
152   pathfindingNodeQueueCount = 0;
153   PathFindingNodePush(castleMapX, castleMapY, castleMapX, castleMapY, 0.0f);
154   PathfindingNode *node = 0;
155   while ((node = PathFindingNodePop()))
156   {
157     if (node->x < 0 || node->x >= width || node->y < 0 || node->y >= height)
158     {
159       continue;
160     }
161     int index = node->y * width + node->x;
162     if (pathfindingMap.distances[index] >= 0 && pathfindingMap.distances[index] <= node->distance)
163     {
164       continue;
165     }
166
167     int deltaX = node->x - node->fromX;
168     int deltaY = node->y - node->fromY;
169     // even if the cell is blocked by a tower, we still may want to store the direction
170     // (though this might not be needed, IDK right now)
171     pathfindingMap.deltaSrc[index].x = (char) deltaX;
172     pathfindingMap.deltaSrc[index].y = (char) deltaY;
173
174     // we skip nodes that are blocked by towers
175     if (pathfindingMap.towerIndex[index] >= 0)
176     {
177       node->distance += 8.0f;
178     }
179     pathfindingMap.distances[index] = node->distance;
180     pathfindingMap.maxDistance = fmaxf(pathfindingMap.maxDistance, node->distance);
181     PathFindingNodePush(node->x, node->y + 1, node->x, node->y, node->distance + 1.0f);
182     PathFindingNodePush(node->x, node->y - 1, node->x, node->y, node->distance + 1.0f);
183     PathFindingNodePush(node->x + 1, node->y, node->x, node->y, node->distance + 1.0f);
184     PathFindingNodePush(node->x - 1, node->y, node->x, node->y, node->distance + 1.0f);
185   }
186 }
187
188 void PathFindingMapDraw()
189 {
190   float cellSize = pathfindingMap.scale * 0.9f;
191   float highlightDistance = fmodf(GetTime() * 4.0f, pathfindingMap.maxDistance);
192   for (int x = 0; x < pathfindingMap.width; x++)
193   {
194     for (int y = 0; y < pathfindingMap.height; y++)
195     {
196       float distance = pathfindingMap.distances[y * pathfindingMap.width + x];
197       float colorV = distance < 0 ? 0 : fminf(distance / pathfindingMap.maxDistance, 1.0f);
198       Color color = distance < 0 ? BLUE : (Color){fminf(colorV, 1.0f) * 255, 0, 0, 255};
199       Vector3 position = Vector3Transform((Vector3){x, -0.25f, y}, pathfindingMap.toWorldSpace);
200       // animate the distance "wave" to show how the pathfinding algorithm expands
201       // from the castle
202       if (distance + 0.5f > highlightDistance && distance - 0.5f < highlightDistance)
203       {
204         color = BLACK;
205       }
206       DrawCube(position, cellSize, 0.1f, cellSize, color);
207     }
208   }
209 }
210
211 Vector2 PathFindingGetGradient(Vector3 world)
212 {
213   int16_t mapX, mapY;
214   if (PathFindingFromWorldToMapPosition(world, &mapX, &mapY))
215   {
216     DeltaSrc delta = pathfindingMap.deltaSrc[mapY * pathfindingMap.width + mapX];
217     return (Vector2){(float)-delta.x, (float)-delta.y};
218   }
219   // fallback to a simple gradient calculation
220   float n = PathFindingGetDistance(mapX, mapY - 1);
221   float s = PathFindingGetDistance(mapX, mapY + 1);
222   float w = PathFindingGetDistance(mapX - 1, mapY);
223   float e = PathFindingGetDistance(mapX + 1, mapY);
224   return (Vector2){w - e + 0.25f, n - s + 0.125f};
225 }

  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 static Projectile projectiles[PROJECTILE_MAX_COUNT];
  5 static int projectileCount = 0;
  6
  7 void ProjectileInit()
  8 {
  9   for (int i = 0; i < PROJECTILE_MAX_COUNT; i++)
 10   {
 11     projectiles[i] = (Projectile){0};
 12   }
 13 }
 14
 15 void ProjectileDraw()
 16 {
 17   for (int i = 0; i < projectileCount; i++)
 18   {
 19     Projectile projectile = projectiles[i];
 20     if (projectile.projectileType == PROJECTILE_TYPE_NONE)
 21     {
 22       continue;
 23     }
 24     float transition = (gameTime.time - projectile.shootTime) / (projectile.arrivalTime - projectile.shootTime);
 25     if (transition >= 1.0f)
 26     {
 27       continue;
 28     }
 29     Vector2 position = Vector2Lerp(projectile.position, projectile.target, transition);
 30     float x = position.x;
 31     float y = position.y;
 32     float dx = projectile.directionNormal.x;
 33     float dy = projectile.directionNormal.y;
 34     for (float d = 1.0f; d > 0.0f; d -= 0.25f)
 35     {
 36       x -= dx * 0.1f;
 37       y -= dy * 0.1f;
 38       float size = 0.1f * d;
 39       DrawCube((Vector3){x, 0.2f, y}, size, size, size, RED);
 40     }
 41   }
 42 }
 43
 44 void ProjectileUpdate()
 45 {
 46   for (int i = 0; i < projectileCount; i++)
 47   {
 48     Projectile *projectile = &projectiles[i];
 49     if (projectile->projectileType == PROJECTILE_TYPE_NONE)
 50     {
 51       continue;
 52     }
 53     float transition = (gameTime.time - projectile->shootTime) / (projectile->arrivalTime - projectile->shootTime);
 54     if (transition >= 1.0f)
 55     {
 56       projectile->projectileType = PROJECTILE_TYPE_NONE;
 57       Enemy *enemy = EnemyTryResolve(projectile->targetEnemy);
 58       if (enemy)
 59       {
 60         EnemyAddDamage(enemy, projectile->damage);
 61       }
 62       continue;
 63     }
 64   }
 65 }
 66
 67 Projectile *ProjectileTryAdd(uint8_t projectileType, Enemy *enemy, Vector2 position, Vector2 target, float speed, float damage)
 68 {
 69   for (int i = 0; i < PROJECTILE_MAX_COUNT; i++)
 70   {
 71     Projectile *projectile = &projectiles[i];
 72     if (projectile->projectileType == PROJECTILE_TYPE_NONE)
 73     {
 74       projectile->projectileType = projectileType;
 75       projectile->shootTime = gameTime.time;
 76       projectile->arrivalTime = gameTime.time + Vector2Distance(position, target) / speed;
 77       projectile->damage = damage;
 78       projectile->position = position;
 79       projectile->target = target;
 80       projectile->directionNormal = Vector2Normalize(Vector2Subtract(target, position));
 81       projectile->targetEnemy = EnemyGetId(enemy);
 82       projectileCount = projectileCount <= i ? i + 1 : projectileCount;
 83       return projectile;
 84     }
 85   }
 86   return 0;
 87 }

  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 static Particle particles[PARTICLE_MAX_COUNT];
  5 static int particleCount = 0;
  6
  7 void ParticleInit()
  8 {
  9   for (int i = 0; i < PARTICLE_MAX_COUNT; i++)
 10   {
 11     particles[i] = (Particle){0};
 12   }
 13   particleCount = 0;
 14 }
 15
 16 static void DrawExplosionParticle(Particle *particle, float transition)
 17 {
 18   float size = 1.2f * (1.0f - transition);
 19   Color startColor = WHITE;
 20   Color endColor = RED;
 21   Color color = ColorLerp(startColor, endColor, transition);
 22   DrawCube(particle->position, size, size, size, color);
 23 }
 24
 25 void ParticleAdd(uint8_t particleType, Vector3 position, Vector3 velocity, float lifetime)
 26 {
 27   if (particleCount >= PARTICLE_MAX_COUNT)
 28   {
 29     return;
 30   }
 31
 32   int index = -1;
 33   for (int i = 0; i < particleCount; i++)
 34   {
 35     if (particles[i].particleType == PARTICLE_TYPE_NONE)
 36     {
 37       index = i;
 38       break;
 39     }
 40   }
 41
 42   if (index == -1)
 43   {
 44     index = particleCount++;
 45   }
 46
 47   Particle *particle = &particles[index];
 48   particle->particleType = particleType;
 49   particle->spawnTime = gameTime.time;
 50   particle->lifetime = lifetime;
 51   particle->position = position;
 52   particle->velocity = velocity;
 53 }
 54
 55 void ParticleUpdate()
 56 {
 57   for (int i = 0; i < particleCount; i++)
 58   {
 59     Particle *particle = &particles[i];
 60     if (particle->particleType == PARTICLE_TYPE_NONE)
 61     {
 62       continue;
 63     }
 64
 65     float age = gameTime.time - particle->spawnTime;
 66
 67     if (particle->lifetime > age)
 68     {
 69       particle->position = Vector3Add(particle->position, Vector3Scale(particle->velocity, gameTime.deltaTime));
 70     }
 71     else {
 72       particle->particleType = PARTICLE_TYPE_NONE;
 73     }
 74   }
 75 }
 76
 77 void ParticleDraw()
 78 {
 79   for (int i = 0; i < particleCount; i++)
 80   {
 81     Particle particle = particles[i];
 82     if (particle.particleType == PARTICLE_TYPE_NONE)
 83     {
 84       continue;
 85     }
 86
 87     float age = gameTime.time - particle.spawnTime;
 88     float transition = age / particle.lifetime;
 89     switch (particle.particleType)
 90     {
 91     case PARTICLE_TYPE_EXPLOSION:
 92       DrawExplosionParticle(&particle, transition);
 93       break;
 94     default:
 95       DrawCube(particle.position, 0.3f, 0.5f, 0.3f, RED);
 96       break;
 97     }
 98   }
 99 }

  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 Tower towers[TOWER_MAX_COUNT];
  5 int towerCount = 0;
  6
  7 Model towerModels[TOWER_TYPE_COUNT];
  8 Texture2D palette, spriteSheet;
  9
 10 // a unit that uses sprites to be drawn
 11 typedef struct SpriteUnit
 12 {
 13   Rectangle srcRect;
 14   Vector2 offset;
 15 } SpriteUnit;
 16
 17 // definition of our archer unit
 18 SpriteUnit archerUnit = {
 19     .srcRect = {0, 0, 16, 16},
 20     .offset = {7, 1},
 21 };
 22
 23 void DrawSpriteUnit(SpriteUnit unit, Vector3 position)
 24 {
 25   Camera3D camera = currentLevel->camera;
 26   float size = 0.5f;
 27   Vector2 offset = (Vector2){ unit.offset.x / 16.0f * size, unit.offset.y / 16.0f * size };
 28   Vector2 scale = (Vector2){ unit.srcRect.width / 16.0f * size, unit.srcRect.height / 16.0f * size };
 29   // we want the sprite to face the camera, so we need to calculate the up vector
 30   Vector3 forward = Vector3Subtract(camera.target, camera.position);
 31   Vector3 up = {0, 1, 0};
 32   Vector3 right = Vector3CrossProduct(forward, up);
 33   up = Vector3Normalize(Vector3CrossProduct(right, forward));
 34   DrawBillboardPro(camera, spriteSheet, unit.srcRect, position, up, scale, offset, 0, WHITE);
 35 }
 36
 37 void TowerInit()
 38 {
 39   for (int i = 0; i < TOWER_MAX_COUNT; i++)
 40   {
 41     towers[i] = (Tower){0};
 42   }
 43   towerCount = 0;
 44
 45   // load a sprite sheet that contains all units
 46   spriteSheet = LoadTexture("data/spritesheet.png");
 47
 48   // we'll use a palette texture to colorize the all buildings and environment art
 49   palette = LoadTexture("data/palette.png");
 50   // The texture uses gradients on very small space, so we'll enable bilinear filtering
 51   SetTextureFilter(palette, TEXTURE_FILTER_BILINEAR);
 52
 53   towerModels[TOWER_TYPE_WALL] = LoadModel("data/wall-0000.glb");
 54
 55   for (int i = 0; i < TOWER_TYPE_COUNT; i++)
 56   {
 57     if (towerModels[i].materials)
 58     {
 59       // assign the palette texture to the material of the model (0 is not used afaik)
 60       towerModels[i].materials[1].maps[MATERIAL_MAP_DIFFUSE].texture = palette;
 61     }
 62   }
 63 }
 64
 65 static void TowerGunUpdate(Tower *tower)
 66 {
 67   if (tower->cooldown <= 0)
 68   {
 69     Enemy *enemy = EnemyGetClosestToCastle(tower->x, tower->y, 3.0f);
 70     if (enemy)
 71     {
 72       tower->cooldown = 0.5f;
 73       // shoot the enemy; determine future position of the enemy
 74       float bulletSpeed = 1.0f;
 75       float bulletDamage = 3.0f;
 76       Vector2 velocity = enemy->simVelocity;
 77       Vector2 futurePosition = EnemyGetPosition(enemy, gameTime.time - enemy->startMovingTime, &velocity, 0);
 78       Vector2 towerPosition = {tower->x, tower->y};
 79       float eta = Vector2Distance(towerPosition, futurePosition) / bulletSpeed;
 80       for (int i = 0; i < 8; i++) {
 81         velocity = enemy->simVelocity;
 82         futurePosition = EnemyGetPosition(enemy, gameTime.time - enemy->startMovingTime + eta, &velocity, 0);
 83         float distance = Vector2Distance(towerPosition, futurePosition);
 84         float eta2 = distance / bulletSpeed;
 85         if (fabs(eta - eta2) < 0.01f) {
 86           break;
 87         }
 88         eta = (eta2 + eta) * 0.5f;
 89       }
 90       ProjectileTryAdd(PROJECTILE_TYPE_BULLET, enemy, towerPosition, futurePosition,
 91         bulletSpeed, bulletDamage);
 92       enemy->futureDamage += bulletDamage;
 93     }
 94   }
 95   else
 96   {
 97     tower->cooldown -= gameTime.deltaTime;
 98   }
 99 }
100
101 Tower *TowerGetAt(int16_t x, int16_t y)
102 {
103   for (int i = 0; i < towerCount; i++)
104   {
105     if (towers[i].x == x && towers[i].y == y && towers[i].towerType != TOWER_TYPE_NONE)
106     {
107       return &towers[i];
108     }
109   }
110   return 0;
111 }
112
113 Tower *TowerTryAdd(uint8_t towerType, int16_t x, int16_t y)
114 {
115   if (towerCount >= TOWER_MAX_COUNT)
116   {
117     return 0;
118   }
119
120   Tower *tower = TowerGetAt(x, y);
121   if (tower)
122   {
123     return 0;
124   }
125
126   tower = &towers[towerCount++];
127   tower->x = x;
128   tower->y = y;
129   tower->towerType = towerType;
130   tower->cooldown = 0.0f;
131   tower->damage = 0.0f;
132   return tower;
133 }
134
135 Tower *GetTowerByType(uint8_t towerType)
136 {
137   for (int i = 0; i < towerCount; i++)
138   {
139     if (towers[i].towerType == towerType)
140     {
141       return &towers[i];
142     }
143   }
144   return 0;
145 }
146
147 int GetTowerCosts(uint8_t towerType)
148 {
149   switch (towerType)
150   {
151   case TOWER_TYPE_BASE:
152     return 0;
153   case TOWER_TYPE_GUN:
154     return 6;
155   case TOWER_TYPE_WALL:
156     return 2;
157   }
158   return 0;
159 }
160
161 float TowerGetMaxHealth(Tower *tower)
162 {
163   switch (tower->towerType)
164   {
165   case TOWER_TYPE_BASE:
166     return 10.0f;
167   case TOWER_TYPE_GUN:
168     return 3.0f;
169   case TOWER_TYPE_WALL:
170     return 5.0f;
171   }
172   return 0.0f;
173 }
174
175 void TowerDraw()
176 {
177   for (int i = 0; i < towerCount; i++)
178   {
179     Tower tower = towers[i];
180     if (tower.towerType == TOWER_TYPE_NONE)
181     {
182       continue;
183     }
184
185     switch (tower.towerType)
186     {
187     case TOWER_TYPE_BASE:
188       DrawCube((Vector3){tower.x, 0.4f, tower.y}, 0.8f, 0.8f, 0.8f, MAROON);
189       break;
190     case TOWER_TYPE_GUN:
191       DrawModel(towerModels[TOWER_TYPE_WALL], (Vector3){tower.x, 0.0f, tower.y}, 1.0f, WHITE);
192       DrawSpriteUnit(archerUnit, (Vector3){tower.x, 1.0f, tower.y});
193       break;
194     default:
195       if (towerModels[tower.towerType].materials)
196       {
197         DrawModel(towerModels[tower.towerType], (Vector3){tower.x, 0.0f, tower.y}, 1.0f, WHITE);
198       } else {
199         DrawCube((Vector3){tower.x, 0.5f, tower.y}, 1.0f, 1.0f, 1.0f, LIGHTGRAY);
200       }
201       break;
202     }
203   }
204 }
205
206 void TowerUpdate()
207 {
208   for (int i = 0; i < towerCount; i++)
209   {
210     Tower *tower = &towers[i];
211     switch (tower->towerType)
212     {
213     case TOWER_TYPE_GUN:
214       TowerGunUpdate(tower);
215       break;
216     }
217   }
218 }
219
220 void TowerDrawHealthBars(Camera3D camera)
221 {
222   for (int i = 0; i < towerCount; i++)
223   {
224     Tower *tower = &towers[i];
225     if (tower->towerType == TOWER_TYPE_NONE || tower->damage <= 0.0f)
226     {
227       continue;
228     }
229
230     Vector3 position = (Vector3){tower->x, 0.5f, tower->y};
231     float maxHealth = TowerGetMaxHealth(tower);
232     float health = maxHealth - tower->damage;
233     float healthRatio = health / maxHealth;
234
235     DrawHealthBar(camera, position, healthRatio, GREEN);
236   }
237 }

  1 #include "raylib.h"
  2 #include "preferred_size.h"
  3
  4 // Since the canvas size is not known at compile time, we need to query it at runtime;
  5 // the following platform specific code obtains the canvas size and we will use this
  6 // size as the preferred size for the window at init time. We're ignoring here the
  7 // possibility of the canvas size changing during runtime - this would require to
  8 // poll the canvas size in the game loop or establishing a callback to be notified
  9
 10 #ifdef PLATFORM_WEB
 11 #include <emscripten.h>
 12 EMSCRIPTEN_RESULT emscripten_get_element_css_size(const char *target, double *width, double *height);
 13
 14 void GetPreferredSize(int *screenWidth, int *screenHeight)
 15 {
 16   double canvasWidth, canvasHeight;
 17   emscripten_get_element_css_size("#" CANVAS_NAME, &canvasWidth, &canvasHeight);
 18   *screenWidth = (int)canvasWidth;
 19   *screenHeight = (int)canvasHeight;
 20   TraceLog(LOG_INFO, "preferred size for %s: %d %d", CANVAS_NAME, *screenWidth, *screenHeight);
 21 }
 22
 23 int IsPaused()
 24 {
 25   const char *js = "(function(){\n"
 26   "  var canvas = document.getElementById(\"" CANVAS_NAME "\");\n"
 27   "  var rect = canvas.getBoundingClientRect();\n"
 28   "  var isVisible = (\n"
 29   "    rect.top >= 0 &&\n"
 30   "    rect.left >= 0 &&\n"
 31   "    rect.bottom <= (window.innerHeight || document.documentElement.clientHeight) &&\n"
 32   "    rect.right <= (window.innerWidth || document.documentElement.clientWidth)\n"
 33   "  );\n"
 34   "  return isVisible ? 0 : 1;\n"
 35   "})()";
 36   return emscripten_run_script_int(js);
 37 }
 38
 39 #else
 40 void GetPreferredSize(int *screenWidth, int *screenHeight)
 41 {
 42   *screenWidth = 600;
 43   *screenHeight = 240;
 44 }
 45 int IsPaused()
 46 {
 47   return 0;
 48 }
 49 #endif

  1 #ifndef PREFERRED_SIZE_H
  2 #define PREFERRED_SIZE_H
  3
  4 void GetPreferredSize(int *screenWidth, int *screenHeight);
  5 int IsPaused();
  6
  7 #endif

Place a gun to see a tower with the sprite on top:

So we have now a tower on which a ... person is standing. It's not an archer yet, but looking at the result...

... maybe we should try an orthogonal view for the game. This way, the sprites should mix better with the 3D models. Let's try this:

td-tut-46/td_main.c
td-tut-46/td_main.h
td-tut-46/enemy.c
td-tut-46/path_finding.c
td-tut-46/projectile_system.c
td-tut-46/particle_system.c
td-tut-46/tower_system.c
td-tut-46/preferred_size.c
td-tut-46/preferred_size.h
💾

  1 #include "td_main.h"
  2 #include <raymath.h>
  3 #include <stdlib.h>
  4 #include <math.h>
  5
  6 //# Variables
  7 GUIState guiState = {0};
  8 GameTime gameTime = {0};
  9
 10 Level levels[] = {
 11   [0] = {
 12     .state = LEVEL_STATE_BUILDING,
 13     .initialGold = 20,
 14     .waves[0] = {
 15       .enemyType = ENEMY_TYPE_MINION,
 16       .wave = 0,
 17       .count = 10,
 18       .interval = 2.5f,
 19       .delay = 1.0f,
 20       .spawnPosition = {0, 6},
 21     },
 22     .waves[1] = {
 23       .enemyType = ENEMY_TYPE_MINION,
 24       .wave = 1,
 25       .count = 20,
 26       .interval = 1.5f,
 27       .delay = 1.0f,
 28       .spawnPosition = {0, 6},
 29     },
 30     .waves[2] = {
 31       .enemyType = ENEMY_TYPE_MINION,
 32       .wave = 2,
 33       .count = 30,
 34       .interval = 1.2f,
 35       .delay = 1.0f,
 36       .spawnPosition = {0, 6},
 37     }
 38   },
 39 };
 40
 41 Level *currentLevel = levels;
 42
 43 //# Game
 44
 45 void InitLevel(Level *level)
 46 {
 47   TowerInit();
 48   EnemyInit();
 49   ProjectileInit();
 50   ParticleInit();
 51   TowerTryAdd(TOWER_TYPE_BASE, 0, 0);
 52
 53   level->placementMode = 0;
 54   level->state = LEVEL_STATE_BUILDING;
 55   level->nextState = LEVEL_STATE_NONE;
 56   level->playerGold = level->initialGold;
 57
 58   Camera *camera = &level->camera;
 59   camera->position = (Vector3){4.0f, 8.0f, 8.0f};
 60   camera->target = (Vector3){0.0f, 0.0f, 0.0f};
 61   camera->up = (Vector3){0.0f, 1.0f, 0.0f};
 62   camera->fovy = 10.0f;
 63   camera->projection = CAMERA_ORTHOGRAPHIC;
 64 }
 65
 66 void DrawLevelHud(Level *level)
 67 {
 68   const char *text = TextFormat("Gold: %d", level->playerGold);
 69   Font font = GetFontDefault();
 70   DrawTextEx(font, text, (Vector2){GetScreenWidth() - 120, 10}, font.baseSize * 2.0f, 2.0f, BLACK);
 71   DrawTextEx(font, text, (Vector2){GetScreenWidth() - 122, 8}, font.baseSize * 2.0f, 2.0f, YELLOW);
 72 }
 73
 74 void DrawLevelReportLostWave(Level *level)
 75 {
 76   BeginMode3D(level->camera);
 77   DrawGrid(10, 1.0f);
 78   TowerDraw();
 79   EnemyDraw();
 80   ProjectileDraw();
 81   ParticleDraw();
 82   guiState.isBlocked = 0;
 83   EndMode3D();
 84
 85   TowerDrawHealthBars(level->camera);
 86
 87   const char *text = "Wave lost";
 88   int textWidth = MeasureText(text, 20);
 89   DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE);
 90
 91   if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0))
 92   {
 93     level->nextState = LEVEL_STATE_RESET;
 94   }
 95 }
 96
 97 int HasLevelNextWave(Level *level)
 98 {
 99   for (int i = 0; i < 10; i++)
100   {
101     EnemyWave *wave = &level->waves[i];
102     if (wave->wave == level->currentWave)
103     {
104       return 1;
105     }
106   }
107   return 0;
108 }
109
110 void DrawLevelReportWonWave(Level *level)
111 {
112   BeginMode3D(level->camera);
113   DrawGrid(10, 1.0f);
114   TowerDraw();
115   EnemyDraw();
116   ProjectileDraw();
117   ParticleDraw();
118   guiState.isBlocked = 0;
119   EndMode3D();
120
121   TowerDrawHealthBars(level->camera);
122
123   const char *text = "Wave won";
124   int textWidth = MeasureText(text, 20);
125   DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE);
126
127
128   if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0))
129   {
130     level->nextState = LEVEL_STATE_RESET;
131   }
132
133   if (HasLevelNextWave(level))
134   {
135     if (Button("Prepare for next wave", GetScreenWidth() - 300, GetScreenHeight() - 40, 300, 30, 0))
136     {
137       level->nextState = LEVEL_STATE_BUILDING;
138     }
139   }
140   else {
141     if (Button("Level won", GetScreenWidth() - 300, GetScreenHeight() - 40, 300, 30, 0))
142     {
143       level->nextState = LEVEL_STATE_WON_LEVEL;
144     }
145   }
146 }
147
148 void DrawBuildingBuildButton(Level *level, int x, int y, int width, int height, uint8_t towerType, const char *name)
149 {
150   static ButtonState buttonStates[8] = {0};
151   int cost = GetTowerCosts(towerType);
152   const char *text = TextFormat("%s: %d", name, cost);
153   buttonStates[towerType].isSelected = level->placementMode == towerType;
154   buttonStates[towerType].isDisabled = level->playerGold < cost;
155   if (Button(text, x, y, width, height, &buttonStates[towerType]))
156   {
157     level->placementMode = buttonStates[towerType].isSelected ? 0 : towerType;
158   }
159 }
160
161 void DrawLevelBuildingState(Level *level)
162 {
163   BeginMode3D(level->camera);
164   DrawGrid(10, 1.0f);
165   TowerDraw();
166   EnemyDraw();
167   ProjectileDraw();
168   ParticleDraw();
169
170   Ray ray = GetScreenToWorldRay(GetMousePosition(), level->camera);
171   float planeDistance = ray.position.y / -ray.direction.y;
172   float planeX = ray.direction.x * planeDistance + ray.position.x;
173   float planeY = ray.direction.z * planeDistance + ray.position.z;
174   int16_t mapX = (int16_t)floorf(planeX + 0.5f);
175   int16_t mapY = (int16_t)floorf(planeY + 0.5f);
176   if (level->placementMode && !guiState.isBlocked)
177   {
178     DrawCubeWires((Vector3){mapX, 0.2f, mapY}, 1.0f, 0.4f, 1.0f, RED);
179     if (IsMouseButtonPressed(MOUSE_LEFT_BUTTON))
180     {
181       if (TowerTryAdd(level->placementMode, mapX, mapY))
182       {
183         level->playerGold -= GetTowerCosts(level->placementMode);
184         level->placementMode = TOWER_TYPE_NONE;
185       }
186     }
187   }
188
189   guiState.isBlocked = 0;
190
191   EndMode3D();
192
193   TowerDrawHealthBars(level->camera);
194
195   static ButtonState buildWallButtonState = {0};
196   static ButtonState buildGunButtonState = {0};
197   buildWallButtonState.isSelected = level->placementMode == TOWER_TYPE_WALL;
198   buildGunButtonState.isSelected = level->placementMode == TOWER_TYPE_GUN;
199
200   DrawBuildingBuildButton(level, 10, 10, 80, 30, TOWER_TYPE_WALL, "Wall");
201   DrawBuildingBuildButton(level, 10, 50, 80, 30, TOWER_TYPE_GUN, "Gun");
202
203   if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0))
204   {
205     level->nextState = LEVEL_STATE_RESET;
206   }
207
208   if (Button("Begin waves", GetScreenWidth() - 160, GetScreenHeight() - 40, 160, 30, 0))
209   {
210     level->nextState = LEVEL_STATE_BATTLE;
211   }
212
213   const char *text = "Building phase";
214   int textWidth = MeasureText(text, 20);
215   DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE);
216 }
217
218 void InitBattleStateConditions(Level *level)
219 {
220   level->state = LEVEL_STATE_BATTLE;
221   level->nextState = LEVEL_STATE_NONE;
222   level->waveEndTimer = 0.0f;
223   for (int i = 0; i < 10; i++)
224   {
225     EnemyWave *wave = &level->waves[i];
226     wave->spawned = 0;
227     wave->timeToSpawnNext = wave->delay;
228   }
229 }
230
231 void DrawLevelBattleState(Level *level)
232 {
233   BeginMode3D(level->camera);
234   DrawGrid(10, 1.0f);
235   TowerDraw();
236   EnemyDraw();
237   ProjectileDraw();
238   ParticleDraw();
239   guiState.isBlocked = 0;
240   EndMode3D();
241
242   EnemyDrawHealthbars(level->camera);
243   TowerDrawHealthBars(level->camera);
244
245   if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0))
246   {
247     level->nextState = LEVEL_STATE_RESET;
248   }
249
250   int maxCount = 0;
251   int remainingCount = 0;
252   for (int i = 0; i < 10; i++)
253   {
254     EnemyWave *wave = &level->waves[i];
255     if (wave->wave != level->currentWave)
256     {
257       continue;
258     }
259     maxCount += wave->count;
260     remainingCount += wave->count - wave->spawned;
261   }
262   int aliveCount = EnemyCount();
263   remainingCount += aliveCount;
264
265   const char *text = TextFormat("Battle phase: %03d%%", 100 - remainingCount * 100 / maxCount);
266   int textWidth = MeasureText(text, 20);
267   DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE);
268 }
269
270 void DrawLevel(Level *level)
271 {
272   switch (level->state)
273   {
274     case LEVEL_STATE_BUILDING: DrawLevelBuildingState(level); break;
275     case LEVEL_STATE_BATTLE: DrawLevelBattleState(level); break;
276     case LEVEL_STATE_WON_WAVE: DrawLevelReportWonWave(level); break;
277     case LEVEL_STATE_LOST_WAVE: DrawLevelReportLostWave(level); break;
278     default: break;
279   }
280
281   DrawLevelHud(level);
282 }
283
284 void UpdateLevel(Level *level)
285 {
286   if (level->state == LEVEL_STATE_BATTLE)
287   {
288     int activeWaves = 0;
289     for (int i = 0; i < 10; i++)
290     {
291       EnemyWave *wave = &level->waves[i];
292       if (wave->spawned >= wave->count || wave->wave != level->currentWave)
293       {
294         continue;
295       }
296       activeWaves++;
297       wave->timeToSpawnNext -= gameTime.deltaTime;
298       if (wave->timeToSpawnNext <= 0.0f)
299       {
300         Enemy *enemy = EnemyTryAdd(wave->enemyType, wave->spawnPosition.x, wave->spawnPosition.y);
301         if (enemy)
302         {
303           wave->timeToSpawnNext = wave->interval;
304           wave->spawned++;
305         }
306       }
307     }
308     if (GetTowerByType(TOWER_TYPE_BASE) == 0) {
309       level->waveEndTimer += gameTime.deltaTime;
310       if (level->waveEndTimer >= 2.0f)
311       {
312         level->nextState = LEVEL_STATE_LOST_WAVE;
313       }
314     }
315     else if (activeWaves == 0 && EnemyCount() == 0)
316     {
317       level->waveEndTimer += gameTime.deltaTime;
318       if (level->waveEndTimer >= 2.0f)
319       {
320         level->nextState = LEVEL_STATE_WON_WAVE;
321       }
322     }
323   }
324
325   PathFindingMapUpdate();
326   EnemyUpdate();
327   TowerUpdate();
328   ProjectileUpdate();
329   ParticleUpdate();
330
331   if (level->nextState == LEVEL_STATE_RESET)
332   {
333     InitLevel(level);
334   }
335
336   if (level->nextState == LEVEL_STATE_BATTLE)
337   {
338     InitBattleStateConditions(level);
339   }
340
341   if (level->nextState == LEVEL_STATE_WON_WAVE)
342   {
343     level->currentWave++;
344     level->state = LEVEL_STATE_WON_WAVE;
345   }
346
347   if (level->nextState == LEVEL_STATE_LOST_WAVE)
348   {
349     level->state = LEVEL_STATE_LOST_WAVE;
350   }
351
352   if (level->nextState == LEVEL_STATE_BUILDING)
353   {
354     level->state = LEVEL_STATE_BUILDING;
355   }
356
357   if (level->nextState == LEVEL_STATE_WON_LEVEL)
358   {
359     // make something of this later
360     InitLevel(level);
361   }
362
363   level->nextState = LEVEL_STATE_NONE;
364 }
365
366 float nextSpawnTime = 0.0f;
367
368 void ResetGame()
369 {
370   InitLevel(currentLevel);
371 }
372
373 void InitGame()
374 {
375   TowerInit();
376   EnemyInit();
377   ProjectileInit();
378   ParticleInit();
379   PathfindingMapInit(20, 20, (Vector3){-10.0f, 0.0f, -10.0f}, 1.0f);
380
381   currentLevel = levels;
382   InitLevel(currentLevel);
383 }
384
385 //# Immediate GUI functions
386
387 void DrawHealthBar(Camera3D camera, Vector3 position, float healthRatio, Color barColor)
388 {
389   const float healthBarWidth = 40.0f;
390   const float healthBarHeight = 6.0f;
391   const float healthBarOffset = 15.0f;
392   const float inset = 2.0f;
393   const float innerWidth = healthBarWidth - inset * 2;
394   const float innerHeight = healthBarHeight - inset * 2;
395
396   Vector2 screenPos = GetWorldToScreen(position, camera);
397   float centerX = screenPos.x - healthBarWidth * 0.5f;
398   float topY = screenPos.y - healthBarOffset;
399   DrawRectangle(centerX, topY, healthBarWidth, healthBarHeight, BLACK);
400   float healthWidth = innerWidth * healthRatio;
401   DrawRectangle(centerX + inset, topY + inset, healthWidth, innerHeight, barColor);
402 }
403
404 int Button(const char *text, int x, int y, int width, int height, ButtonState *state)
405 {
406   Rectangle bounds = {x, y, width, height};
407   int isPressed = 0;
408   int isSelected = state && state->isSelected;
409   if (CheckCollisionPointRec(GetMousePosition(), bounds) && !guiState.isBlocked && !state->isDisabled)
410   {
411     Color color = isSelected ? DARKGRAY : GRAY;
412     DrawRectangle(x, y, width, height, color);
413     if (IsMouseButtonPressed(MOUSE_LEFT_BUTTON))
414     {
415       isPressed = 1;
416     }
417     guiState.isBlocked = 1;
418   }
419   else
420   {
421     Color color = isSelected ? WHITE : LIGHTGRAY;
422     DrawRectangle(x, y, width, height, color);
423   }
424   Font font = GetFontDefault();
425   Vector2 textSize = MeasureTextEx(font, text, font.baseSize * 2.0f, 1);
426   Color textColor = state->isDisabled ? GRAY : BLACK;
427   DrawTextEx(font, text, (Vector2){x + width / 2 - textSize.x / 2, y + height / 2 - textSize.y / 2}, font.baseSize * 2.0f, 1, textColor);
428   return isPressed;
429 }
430
431 //# Main game loop
432
433 void GameUpdate()
434 {
435   float dt = GetFrameTime();
436   // cap maximum delta time to 0.1 seconds to prevent large time steps
437   if (dt > 0.1f) dt = 0.1f;
438   gameTime.time += dt;
439   gameTime.deltaTime = dt;
440
441   UpdateLevel(currentLevel);
442 }
443
444 int main(void)
445 {
446   int screenWidth, screenHeight;
447   GetPreferredSize(&screenWidth, &screenHeight);
448   InitWindow(screenWidth, screenHeight, "Tower defense");
449   SetTargetFPS(30);
450
451   InitGame();
452
453   while (!WindowShouldClose())
454   {
455     if (IsPaused()) {
456       // canvas is not visible in browser - do nothing
457       continue;
458     }
459
460     BeginDrawing();
461     ClearBackground(DARKBLUE);
462
463     GameUpdate();
464     DrawLevel(currentLevel);
465
466     EndDrawing();
467   }
468
469   CloseWindow();
470
471   return 0;
472 }

  1 #ifndef TD_TUT_2_MAIN_H
  2 #define TD_TUT_2_MAIN_H
  3
  4 #include <inttypes.h>
  5
  6 #include "raylib.h"
  7 #include "preferred_size.h"
  8
  9 //# Declarations
 10
 11 #define ENEMY_MAX_PATH_COUNT 8
 12 #define ENEMY_MAX_COUNT 400
 13 #define ENEMY_TYPE_NONE 0
 14 #define ENEMY_TYPE_MINION 1
 15
 16 #define PARTICLE_MAX_COUNT 400
 17 #define PARTICLE_TYPE_NONE 0
 18 #define PARTICLE_TYPE_EXPLOSION 1
 19
 20 typedef struct Particle
 21 {
 22   uint8_t particleType;
 23   float spawnTime;
 24   float lifetime;
 25   Vector3 position;
 26   Vector3 velocity;
 27 } Particle;
 28
 29 #define TOWER_MAX_COUNT 400
 30 #define TOWER_TYPE_NONE 0
 31 #define TOWER_TYPE_BASE 1
 32 #define TOWER_TYPE_GUN 2
 33 #define TOWER_TYPE_WALL 3
 34 #define TOWER_TYPE_COUNT 4
 35
 36 typedef struct Tower
 37 {
 38   int16_t x, y;
 39   uint8_t towerType;
 40   float cooldown;
 41   float damage;
 42 } Tower;
 43
 44 typedef struct GameTime
 45 {
 46   float time;
 47   float deltaTime;
 48 } GameTime;
 49
 50 typedef struct ButtonState {
 51   char isSelected;
 52   char isDisabled;
 53 } ButtonState;
 54
 55 typedef struct GUIState {
 56   int isBlocked;
 57 } GUIState;
 58
 59 typedef enum LevelState
 60 {
 61   LEVEL_STATE_NONE,
 62   LEVEL_STATE_BUILDING,
 63   LEVEL_STATE_BATTLE,
 64   LEVEL_STATE_WON_WAVE,
 65   LEVEL_STATE_LOST_WAVE,
 66   LEVEL_STATE_WON_LEVEL,
 67   LEVEL_STATE_RESET,
 68 } LevelState;
 69
 70 typedef struct EnemyWave {
 71   uint8_t enemyType;
 72   uint8_t wave;
 73   uint16_t count;
 74   float interval;
 75   float delay;
 76   Vector2 spawnPosition;
 77
 78   uint16_t spawned;
 79   float timeToSpawnNext;
 80 } EnemyWave;
 81
 82 typedef struct Level
 83 {
 84   LevelState state;
 85   LevelState nextState;
 86   Camera3D camera;
 87   int placementMode;
 88
 89   int initialGold;
 90   int playerGold;
 91
 92   EnemyWave waves[10];
 93   int currentWave;
 94   float waveEndTimer;
 95 } Level;
 96
 97 typedef struct DeltaSrc
 98 {
 99   char x, y;
100 } DeltaSrc;
101
102 typedef struct PathfindingMap
103 {
104   int width, height;
105   float scale;
106   float *distances;
107   long *towerIndex;
108   DeltaSrc *deltaSrc;
109   float maxDistance;
110   Matrix toMapSpace;
111   Matrix toWorldSpace;
112 } PathfindingMap;
113
114 // when we execute the pathfinding algorithm, we need to store the active nodes
115 // in a queue. Each node has a position, a distance from the start, and the
116 // position of the node that we came from.
117 typedef struct PathfindingNode
118 {
119   int16_t x, y, fromX, fromY;
120   float distance;
121 } PathfindingNode;
122
123 typedef struct EnemyId
124 {
125   uint16_t index;
126   uint16_t generation;
127 } EnemyId;
128
129 typedef struct EnemyClassConfig
130 {
131   float speed;
132   float health;
133   float radius;
134   float maxAcceleration;
135   float requiredContactTime;
136   float explosionDamage;
137   float explosionRange;
138   float explosionPushbackPower;
139   int goldValue;
140 } EnemyClassConfig;
141
142 typedef struct Enemy
143 {
144   int16_t currentX, currentY;
145   int16_t nextX, nextY;
146   Vector2 simPosition;
147   Vector2 simVelocity;
148   uint16_t generation;
149   float startMovingTime;
150   float damage, futureDamage;
151   float contactTime;
152   uint8_t enemyType;
153   uint8_t movePathCount;
154   Vector2 movePath[ENEMY_MAX_PATH_COUNT];
155 } Enemy;
156
157 #define PROJECTILE_MAX_COUNT 1200
158 #define PROJECTILE_TYPE_NONE 0
159 #define PROJECTILE_TYPE_BULLET 1
160
161 typedef struct Projectile
162 {
163   uint8_t projectileType;
164   float shootTime;
165   float arrivalTime;
166   float damage;
167   Vector2 position;
168   Vector2 target;
169   Vector2 directionNormal;
170   EnemyId targetEnemy;
171 } Projectile;
172
173 //# Function declarations
174 float TowerGetMaxHealth(Tower *tower);
175 int Button(const char *text, int x, int y, int width, int height, ButtonState *state);
176 int EnemyAddDamage(Enemy *enemy, float damage);
177
178 //# Enemy functions
179 void EnemyInit();
180 void EnemyDraw();
181 void EnemyTriggerExplode(Enemy *enemy, Tower *tower, Vector3 explosionSource);
182 void EnemyUpdate();
183 float EnemyGetCurrentMaxSpeed(Enemy *enemy);
184 float EnemyGetMaxHealth(Enemy *enemy);
185 int EnemyGetNextPosition(int16_t currentX, int16_t currentY, int16_t *nextX, int16_t *nextY);
186 Vector2 EnemyGetPosition(Enemy *enemy, float deltaT, Vector2 *velocity, int *waypointPassedCount);
187 EnemyId EnemyGetId(Enemy *enemy);
188 Enemy *EnemyTryResolve(EnemyId enemyId);
189 Enemy *EnemyTryAdd(uint8_t enemyType, int16_t currentX, int16_t currentY);
190 int EnemyAddDamage(Enemy *enemy, float damage);
191 Enemy* EnemyGetClosestToCastle(int16_t towerX, int16_t towerY, float range);
192 int EnemyCount();
193 void EnemyDrawHealthbars(Camera3D camera);
194
195 //# Tower functions
196 void TowerInit();
197 Tower *TowerGetAt(int16_t x, int16_t y);
198 Tower *TowerTryAdd(uint8_t towerType, int16_t x, int16_t y);
199 Tower *GetTowerByType(uint8_t towerType);
200 int GetTowerCosts(uint8_t towerType);
201 float TowerGetMaxHealth(Tower *tower);
202 void TowerDraw();
203 void TowerUpdate();
204 void TowerDrawHealthBars(Camera3D camera);
205
206 //# Particles
207 void ParticleInit();
208 void ParticleAdd(uint8_t particleType, Vector3 position, Vector3 velocity, float lifetime);
209 void ParticleUpdate();
210 void ParticleDraw();
211
212 //# Projectiles
213 void ProjectileInit();
214 void ProjectileDraw();
215 void ProjectileUpdate();
216 Projectile *ProjectileTryAdd(uint8_t projectileType, Enemy *enemy, Vector2 position, Vector2 target, float speed, float damage);
217
218 //# Pathfinding map
219 void PathfindingMapInit(int width, int height, Vector3 translate, float scale);
220 float PathFindingGetDistance(int mapX, int mapY);
221 Vector2 PathFindingGetGradient(Vector3 world);
222 int PathFindingFromWorldToMapPosition(Vector3 worldPosition, int16_t *mapX, int16_t *mapY);
223 void PathFindingMapUpdate();
224 void PathFindingMapDraw();
225
226 //# UI
227 void DrawHealthBar(Camera3D camera, Vector3 position, float healthRatio, Color barColor);
228
229 //# variables
230 extern Level *currentLevel;
231 extern Enemy enemies[ENEMY_MAX_COUNT];
232 extern int enemyCount;
233 extern EnemyClassConfig enemyClassConfigs[];
234
235 extern GUIState guiState;
236 extern GameTime gameTime;
237 extern Tower towers[TOWER_MAX_COUNT];
238 extern int towerCount;
239
240 #endif

  1 #include "td_main.h"
  2 #include <raymath.h>
  3 #include <stdlib.h>
  4 #include <math.h>
  5
  6 EnemyClassConfig enemyClassConfigs[] = {
  7     [ENEMY_TYPE_MINION] = {
  8       .health = 10.0f,
  9       .speed = 0.6f,
 10       .radius = 0.25f,
 11       .maxAcceleration = 1.0f,
 12       .explosionDamage = 1.0f,
 13       .requiredContactTime = 0.5f,
 14       .explosionRange = 1.0f,
 15       .explosionPushbackPower = 0.25f,
 16       .goldValue = 1,
 17     },
 18 };
 19
 20 Enemy enemies[ENEMY_MAX_COUNT];
 21 int enemyCount = 0;
 22
 23 void EnemyInit()
 24 {
 25   for (int i = 0; i < ENEMY_MAX_COUNT; i++)
 26   {
 27     enemies[i] = (Enemy){0};
 28   }
 29   enemyCount = 0;
 30 }
 31
 32 float EnemyGetCurrentMaxSpeed(Enemy *enemy)
 33 {
 34   return enemyClassConfigs[enemy->enemyType].speed;
 35 }
 36
 37 float EnemyGetMaxHealth(Enemy *enemy)
 38 {
 39   return enemyClassConfigs[enemy->enemyType].health;
 40 }
 41
 42 int EnemyGetNextPosition(int16_t currentX, int16_t currentY, int16_t *nextX, int16_t *nextY)
 43 {
 44   int16_t castleX = 0;
 45   int16_t castleY = 0;
 46   int16_t dx = castleX - currentX;
 47   int16_t dy = castleY - currentY;
 48   if (dx == 0 && dy == 0)
 49   {
 50     *nextX = currentX;
 51     *nextY = currentY;
 52     return 1;
 53   }
 54   Vector2 gradient = PathFindingGetGradient((Vector3){currentX, 0, currentY});
 55
 56   if (gradient.x == 0 && gradient.y == 0)
 57   {
 58     *nextX = currentX;
 59     *nextY = currentY;
 60     return 1;
 61   }
 62
 63   if (fabsf(gradient.x) > fabsf(gradient.y))
 64   {
 65     *nextX = currentX + (int16_t)(gradient.x > 0.0f ? 1 : -1);
 66     *nextY = currentY;
 67     return 0;
 68   }
 69   *nextX = currentX;
 70   *nextY = currentY + (int16_t)(gradient.y > 0.0f ? 1 : -1);
 71   return 0;
 72 }
 73
 74
 75 // this function predicts the movement of the unit for the next deltaT seconds
 76 Vector2 EnemyGetPosition(Enemy *enemy, float deltaT, Vector2 *velocity, int *waypointPassedCount)
 77 {
 78   const float pointReachedDistance = 0.25f;
 79   const float pointReachedDistance2 = pointReachedDistance * pointReachedDistance;
 80   const float maxSimStepTime = 0.015625f;
 81
 82   float maxAcceleration = enemyClassConfigs[enemy->enemyType].maxAcceleration;
 83   float maxSpeed = EnemyGetCurrentMaxSpeed(enemy);
 84   int16_t nextX = enemy->nextX;
 85   int16_t nextY = enemy->nextY;
 86   Vector2 position = enemy->simPosition;
 87   int passedCount = 0;
 88   for (float t = 0.0f; t < deltaT; t += maxSimStepTime)
 89   {
 90     float stepTime = fminf(deltaT - t, maxSimStepTime);
 91     Vector2 target = (Vector2){nextX, nextY};
 92     float speed = Vector2Length(*velocity);
 93     // draw the target position for debugging
 94     DrawCubeWires((Vector3){target.x, 0.2f, target.y}, 0.1f, 0.4f, 0.1f, RED);
 95     Vector2 lookForwardPos = Vector2Add(position, Vector2Scale(*velocity, speed));
 96     if (Vector2DistanceSqr(target, lookForwardPos) <= pointReachedDistance2)
 97     {
 98       // we reached the target position, let's move to the next waypoint
 99       EnemyGetNextPosition(nextX, nextY, &nextX, &nextY);
100       target = (Vector2){nextX, nextY};
101       // track how many waypoints we passed
102       passedCount++;
103     }
104
105     // acceleration towards the target
106     Vector2 unitDirection = Vector2Normalize(Vector2Subtract(target, lookForwardPos));
107     Vector2 acceleration = Vector2Scale(unitDirection, maxAcceleration * stepTime);
108     *velocity = Vector2Add(*velocity, acceleration);
109
110     // limit the speed to the maximum speed
111     if (speed > maxSpeed)
112     {
113       *velocity = Vector2Scale(*velocity, maxSpeed / speed);
114     }
115
116     // move the enemy
117     position = Vector2Add(position, Vector2Scale(*velocity, stepTime));
118   }
119
120   if (waypointPassedCount)
121   {
122     (*waypointPassedCount) = passedCount;
123   }
124
125   return position;
126 }
127
128 void EnemyDraw()
129 {
130   for (int i = 0; i < enemyCount; i++)
131   {
132     Enemy enemy = enemies[i];
133     if (enemy.enemyType == ENEMY_TYPE_NONE)
134     {
135       continue;
136     }
137
138     Vector2 position = EnemyGetPosition(&enemy, gameTime.time - enemy.startMovingTime, &enemy.simVelocity, 0);
139
140     if (enemy.movePathCount > 0)
141     {
142       Vector3 p = {enemy.movePath[0].x, 0.2f, enemy.movePath[0].y};
143       DrawLine3D(p, (Vector3){position.x, 0.2f, position.y}, GREEN);
144     }
145     for (int j = 1; j < enemy.movePathCount; j++)
146     {
147       Vector3 p = {enemy.movePath[j - 1].x, 0.2f, enemy.movePath[j - 1].y};
148       Vector3 q = {enemy.movePath[j].x, 0.2f, enemy.movePath[j].y};
149       DrawLine3D(p, q, GREEN);
150     }
151
152     switch (enemy.enemyType)
153     {
154     case ENEMY_TYPE_MINION:
155       DrawCubeWires((Vector3){position.x, 0.2f, position.y}, 0.4f, 0.4f, 0.4f, GREEN);
156       break;
157     }
158   }
159 }
160
161 void EnemyTriggerExplode(Enemy *enemy, Tower *tower, Vector3 explosionSource)
162 {
163   // damage the tower
164   float explosionDamge = enemyClassConfigs[enemy->enemyType].explosionDamage;
165   float explosionRange = enemyClassConfigs[enemy->enemyType].explosionRange;
166   float explosionPushbackPower = enemyClassConfigs[enemy->enemyType].explosionPushbackPower;
167   float explosionRange2 = explosionRange * explosionRange;
168   tower->damage += enemyClassConfigs[enemy->enemyType].explosionDamage;
169   // explode the enemy
170   if (tower->damage >= TowerGetMaxHealth(tower))
171   {
172     tower->towerType = TOWER_TYPE_NONE;
173   }
174
175   ParticleAdd(PARTICLE_TYPE_EXPLOSION,
176     explosionSource,
177     (Vector3){0, 0.1f, 0}, 1.0f);
178
179   enemy->enemyType = ENEMY_TYPE_NONE;
180
181   // push back enemies & dealing damage
182   for (int i = 0; i < enemyCount; i++)
183   {
184     Enemy *other = &enemies[i];
185     if (other->enemyType == ENEMY_TYPE_NONE)
186     {
187       continue;
188     }
189     float distanceSqr = Vector2DistanceSqr(enemy->simPosition, other->simPosition);
190     if (distanceSqr > 0 && distanceSqr < explosionRange2)
191     {
192       Vector2 direction = Vector2Normalize(Vector2Subtract(other->simPosition, enemy->simPosition));
193       other->simPosition = Vector2Add(other->simPosition, Vector2Scale(direction, explosionPushbackPower));
194       EnemyAddDamage(other, explosionDamge);
195     }
196   }
197 }
198
199 void EnemyUpdate()
200 {
201   const float castleX = 0;
202   const float castleY = 0;
203   const float maxPathDistance2 = 0.25f * 0.25f;
204
205   for (int i = 0; i < enemyCount; i++)
206   {
207     Enemy *enemy = &enemies[i];
208     if (enemy->enemyType == ENEMY_TYPE_NONE)
209     {
210       continue;
211     }
212
213     int waypointPassedCount = 0;
214     enemy->simPosition = EnemyGetPosition(enemy, gameTime.time - enemy->startMovingTime, &enemy->simVelocity, &waypointPassedCount);
215     enemy->startMovingTime = gameTime.time;
216     // track path of unit
217     if (enemy->movePathCount == 0 || Vector2DistanceSqr(enemy->simPosition, enemy->movePath[0]) > maxPathDistance2)
218     {
219       for (int j = ENEMY_MAX_PATH_COUNT - 1; j > 0; j--)
220       {
221         enemy->movePath[j] = enemy->movePath[j - 1];
222       }
223       enemy->movePath[0] = enemy->simPosition;
224       if (++enemy->movePathCount > ENEMY_MAX_PATH_COUNT)
225       {
226         enemy->movePathCount = ENEMY_MAX_PATH_COUNT;
227       }
228     }
229
230     if (waypointPassedCount > 0)
231     {
232       enemy->currentX = enemy->nextX;
233       enemy->currentY = enemy->nextY;
234       if (EnemyGetNextPosition(enemy->currentX, enemy->currentY, &enemy->nextX, &enemy->nextY) &&
235         Vector2DistanceSqr(enemy->simPosition, (Vector2){castleX, castleY}) <= 0.25f * 0.25f)
236       {
237         // enemy reached the castle; remove it
238         enemy->enemyType = ENEMY_TYPE_NONE;
239         continue;
240       }
241     }
242   }
243
244   // handle collisions between enemies
245   for (int i = 0; i < enemyCount - 1; i++)
246   {
247     Enemy *enemyA = &enemies[i];
248     if (enemyA->enemyType == ENEMY_TYPE_NONE)
249     {
250       continue;
251     }
252     for (int j = i + 1; j < enemyCount; j++)
253     {
254       Enemy *enemyB = &enemies[j];
255       if (enemyB->enemyType == ENEMY_TYPE_NONE)
256       {
257         continue;
258       }
259       float distanceSqr = Vector2DistanceSqr(enemyA->simPosition, enemyB->simPosition);
260       float radiusA = enemyClassConfigs[enemyA->enemyType].radius;
261       float radiusB = enemyClassConfigs[enemyB->enemyType].radius;
262       float radiusSum = radiusA + radiusB;
263       if (distanceSqr < radiusSum * radiusSum && distanceSqr > 0.001f)
264       {
265         // collision
266         float distance = sqrtf(distanceSqr);
267         float overlap = radiusSum - distance;
268         // move the enemies apart, but softly; if we have a clog of enemies,
269         // moving them perfectly apart can cause them to jitter
270         float positionCorrection = overlap / 5.0f;
271         Vector2 direction = (Vector2){
272             (enemyB->simPosition.x - enemyA->simPosition.x) / distance * positionCorrection,
273             (enemyB->simPosition.y - enemyA->simPosition.y) / distance * positionCorrection};
274         enemyA->simPosition = Vector2Subtract(enemyA->simPosition, direction);
275         enemyB->simPosition = Vector2Add(enemyB->simPosition, direction);
276       }
277     }
278   }
279
280   // handle collisions between enemies and towers
281   for (int i = 0; i < enemyCount; i++)
282   {
283     Enemy *enemy = &enemies[i];
284     if (enemy->enemyType == ENEMY_TYPE_NONE)
285     {
286       continue;
287     }
288     enemy->contactTime -= gameTime.deltaTime;
289     if (enemy->contactTime < 0.0f)
290     {
291       enemy->contactTime = 0.0f;
292     }
293
294     float enemyRadius = enemyClassConfigs[enemy->enemyType].radius;
295     // linear search over towers; could be optimized by using path finding tower map,
296     // but for now, we keep it simple
297     for (int j = 0; j < towerCount; j++)
298     {
299       Tower *tower = &towers[j];
300       if (tower->towerType == TOWER_TYPE_NONE)
301       {
302         continue;
303       }
304       float distanceSqr = Vector2DistanceSqr(enemy->simPosition, (Vector2){tower->x, tower->y});
305       float combinedRadius = enemyRadius + 0.708; // sqrt(0.5^2 + 0.5^2), corner-center distance of square with side length 1
306       if (distanceSqr > combinedRadius * combinedRadius)
307       {
308         continue;
309       }
310       // potential collision; square / circle intersection
311       float dx = tower->x - enemy->simPosition.x;
312       float dy = tower->y - enemy->simPosition.y;
313       float absDx = fabsf(dx);
314       float absDy = fabsf(dy);
315       Vector3 contactPoint = {0};
316       if (absDx <= 0.5f && absDx <= absDy) {
317         // vertical collision; push the enemy out horizontally
318         float overlap = enemyRadius + 0.5f - absDy;
319         if (overlap < 0.0f)
320         {
321           continue;
322         }
323         float direction = dy > 0.0f ? -1.0f : 1.0f;
324         enemy->simPosition.y += direction * overlap;
325         contactPoint = (Vector3){enemy->simPosition.x, 0.2f, tower->y + direction * 0.5f};
326       }
327       else if (absDy <= 0.5f && absDy <= absDx)
328       {
329         // horizontal collision; push the enemy out vertically
330         float overlap = enemyRadius + 0.5f - absDx;
331         if (overlap < 0.0f)
332         {
333           continue;
334         }
335         float direction = dx > 0.0f ? -1.0f : 1.0f;
336         enemy->simPosition.x += direction * overlap;
337         contactPoint = (Vector3){tower->x + direction * 0.5f, 0.2f, enemy->simPosition.y};
338       }
339       else
340       {
341         // possible collision with a corner
342         float cornerDX = dx > 0.0f ? -0.5f : 0.5f;
343         float cornerDY = dy > 0.0f ? -0.5f : 0.5f;
344         float cornerX = tower->x + cornerDX;
345         float cornerY = tower->y + cornerDY;
346         float cornerDistanceSqr = Vector2DistanceSqr(enemy->simPosition, (Vector2){cornerX, cornerY});
347         if (cornerDistanceSqr > enemyRadius * enemyRadius)
348         {
349           continue;
350         }
351         // push the enemy out along the diagonal
352         float cornerDistance = sqrtf(cornerDistanceSqr);
353         float overlap = enemyRadius - cornerDistance;
354         float directionX = cornerDistance > 0.0f ? (cornerX - enemy->simPosition.x) / cornerDistance : -cornerDX;
355         float directionY = cornerDistance > 0.0f ? (cornerY - enemy->simPosition.y) / cornerDistance : -cornerDY;
356         enemy->simPosition.x -= directionX * overlap;
357         enemy->simPosition.y -= directionY * overlap;
358         contactPoint = (Vector3){cornerX, 0.2f, cornerY};
359       }
360
361       if (enemyClassConfigs[enemy->enemyType].explosionDamage > 0.0f)
362       {
363         enemy->contactTime += gameTime.deltaTime * 2.0f; // * 2 to undo the subtraction above
364         if (enemy->contactTime >= enemyClassConfigs[enemy->enemyType].requiredContactTime)
365         {
366           EnemyTriggerExplode(enemy, tower, contactPoint);
367         }
368       }
369     }
370   }
371 }
372
373 EnemyId EnemyGetId(Enemy *enemy)
374 {
375   return (EnemyId){enemy - enemies, enemy->generation};
376 }
377
378 Enemy *EnemyTryResolve(EnemyId enemyId)
379 {
380   if (enemyId.index >= ENEMY_MAX_COUNT)
381   {
382     return 0;
383   }
384   Enemy *enemy = &enemies[enemyId.index];
385   if (enemy->generation != enemyId.generation || enemy->enemyType == ENEMY_TYPE_NONE)
386   {
387     return 0;
388   }
389   return enemy;
390 }
391
392 Enemy *EnemyTryAdd(uint8_t enemyType, int16_t currentX, int16_t currentY)
393 {
394   Enemy *spawn = 0;
395   for (int i = 0; i < enemyCount; i++)
396   {
397     Enemy *enemy = &enemies[i];
398     if (enemy->enemyType == ENEMY_TYPE_NONE)
399     {
400       spawn = enemy;
401       break;
402     }
403   }
404
405   if (enemyCount < ENEMY_MAX_COUNT && !spawn)
406   {
407     spawn = &enemies[enemyCount++];
408   }
409
410   if (spawn)
411   {
412     spawn->currentX = currentX;
413     spawn->currentY = currentY;
414     spawn->nextX = currentX;
415     spawn->nextY = currentY;
416     spawn->simPosition = (Vector2){currentX, currentY};
417     spawn->simVelocity = (Vector2){0, 0};
418     spawn->enemyType = enemyType;
419     spawn->startMovingTime = gameTime.time;
420     spawn->damage = 0.0f;
421     spawn->futureDamage = 0.0f;
422     spawn->generation++;
423     spawn->movePathCount = 0;
424   }
425
426   return spawn;
427 }
428
429 int EnemyAddDamage(Enemy *enemy, float damage)
430 {
431   enemy->damage += damage;
432   if (enemy->damage >= EnemyGetMaxHealth(enemy))
433   {
434     currentLevel->playerGold += enemyClassConfigs[enemy->enemyType].goldValue;
435     enemy->enemyType = ENEMY_TYPE_NONE;
436     return 1;
437   }
438
439   return 0;
440 }
441
442 Enemy* EnemyGetClosestToCastle(int16_t towerX, int16_t towerY, float range)
443 {
444   int16_t castleX = 0;
445   int16_t castleY = 0;
446   Enemy* closest = 0;
447   int16_t closestDistance = 0;
448   float range2 = range * range;
449   for (int i = 0; i < enemyCount; i++)
450   {
451     Enemy* enemy = &enemies[i];
452     if (enemy->enemyType == ENEMY_TYPE_NONE)
453     {
454       continue;
455     }
456     float maxHealth = EnemyGetMaxHealth(enemy);
457     if (enemy->futureDamage >= maxHealth)
458     {
459       // ignore enemies that will die soon
460       continue;
461     }
462     int16_t dx = castleX - enemy->currentX;
463     int16_t dy = castleY - enemy->currentY;
464     int16_t distance = abs(dx) + abs(dy);
465     if (!closest || distance < closestDistance)
466     {
467       float tdx = towerX - enemy->currentX;
468       float tdy = towerY - enemy->currentY;
469       float tdistance2 = tdx * tdx + tdy * tdy;
470       if (tdistance2 <= range2)
471       {
472         closest = enemy;
473         closestDistance = distance;
474       }
475     }
476   }
477   return closest;
478 }
479
480 int EnemyCount()
481 {
482   int count = 0;
483   for (int i = 0; i < enemyCount; i++)
484   {
485     if (enemies[i].enemyType != ENEMY_TYPE_NONE)
486     {
487       count++;
488     }
489   }
490   return count;
491 }
492
493 void EnemyDrawHealthbars(Camera3D camera)
494 {
495   for (int i = 0; i < enemyCount; i++)
496   {
497     Enemy *enemy = &enemies[i];
498     if (enemy->enemyType == ENEMY_TYPE_NONE || enemy->damage == 0.0f)
499     {
500       continue;
501     }
502     Vector3 position = (Vector3){enemy->simPosition.x, 0.5f, enemy->simPosition.y};
503     float maxHealth = EnemyGetMaxHealth(enemy);
504     float health = maxHealth - enemy->damage;
505     float healthRatio = health / maxHealth;
506
507     DrawHealthBar(camera, position, healthRatio, GREEN);
508   }
509 }

  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 // The queue is a simple array of nodes, we add nodes to the end and remove
  5 // nodes from the front. We keep the array around to avoid unnecessary allocations
  6 static PathfindingNode *pathfindingNodeQueue = 0;
  7 static int pathfindingNodeQueueCount = 0;
  8 static int pathfindingNodeQueueCapacity = 0;
  9
 10 // The pathfinding map stores the distances from the castle to each cell in the map.
 11 static PathfindingMap pathfindingMap = {0};
 12
 13 void PathfindingMapInit(int width, int height, Vector3 translate, float scale)
 14 {
 15   // transforming between map space and world space allows us to adapt
 16   // position and scale of the map without changing the pathfinding data
 17   pathfindingMap.toWorldSpace = MatrixTranslate(translate.x, translate.y, translate.z);
 18   pathfindingMap.toWorldSpace = MatrixMultiply(pathfindingMap.toWorldSpace, MatrixScale(scale, scale, scale));
 19   pathfindingMap.toMapSpace = MatrixInvert(pathfindingMap.toWorldSpace);
 20   pathfindingMap.width = width;
 21   pathfindingMap.height = height;
 22   pathfindingMap.scale = scale;
 23   pathfindingMap.distances = (float *)MemAlloc(width * height * sizeof(float));
 24   for (int i = 0; i < width * height; i++)
 25   {
 26     pathfindingMap.distances[i] = -1.0f;
 27   }
 28
 29   pathfindingMap.towerIndex = (long *)MemAlloc(width * height * sizeof(long));
 30   pathfindingMap.deltaSrc = (DeltaSrc *)MemAlloc(width * height * sizeof(DeltaSrc));
 31 }
 32
 33 static void PathFindingNodePush(int16_t x, int16_t y, int16_t fromX, int16_t fromY, float distance)
 34 {
 35   if (pathfindingNodeQueueCount >= pathfindingNodeQueueCapacity)
 36   {
 37     pathfindingNodeQueueCapacity = pathfindingNodeQueueCapacity == 0 ? 256 : pathfindingNodeQueueCapacity * 2;
 38     // we use MemAlloc/MemRealloc to allocate memory for the queue
 39     // I am not entirely sure if MemRealloc allows passing a null pointer
 40     // so we check if the pointer is null and use MemAlloc in that case
 41     if (pathfindingNodeQueue == 0)
 42     {
 43       pathfindingNodeQueue = (PathfindingNode *)MemAlloc(pathfindingNodeQueueCapacity * sizeof(PathfindingNode));
 44     }
 45     else
 46     {
 47       pathfindingNodeQueue = (PathfindingNode *)MemRealloc(pathfindingNodeQueue, pathfindingNodeQueueCapacity * sizeof(PathfindingNode));
 48     }
 49   }
 50
 51   PathfindingNode *node = &pathfindingNodeQueue[pathfindingNodeQueueCount++];
 52   node->x = x;
 53   node->y = y;
 54   node->fromX = fromX;
 55   node->fromY = fromY;
 56   node->distance = distance;
 57 }
 58
 59 static PathfindingNode *PathFindingNodePop()
 60 {
 61   if (pathfindingNodeQueueCount == 0)
 62   {
 63     return 0;
 64   }
 65   // we return the first node in the queue; we want to return a pointer to the node
 66   // so we can return 0 if the queue is empty.
 67   // We should _not_ return a pointer to the element in the list, because the list
 68   // may be reallocated and the pointer would become invalid. Or the
 69   // popped element is overwritten by the next push operation.
 70   // Using static here means that the variable is permanently allocated.
 71   static PathfindingNode node;
 72   node = pathfindingNodeQueue[0];
 73   // we shift all nodes one position to the front
 74   for (int i = 1; i < pathfindingNodeQueueCount; i++)
 75   {
 76     pathfindingNodeQueue[i - 1] = pathfindingNodeQueue[i];
 77   }
 78   --pathfindingNodeQueueCount;
 79   return &node;
 80 }
 81
 82 float PathFindingGetDistance(int mapX, int mapY)
 83 {
 84   if (mapX < 0 || mapX >= pathfindingMap.width || mapY < 0 || mapY >= pathfindingMap.height)
 85   {
 86     // when outside the map, we return the manhattan distance to the castle (0,0)
 87     return fabsf((float)mapX) + fabsf((float)mapY);
 88   }
 89
 90   return pathfindingMap.distances[mapY * pathfindingMap.width + mapX];
 91 }
 92
 93 // transform a world position to a map position in the array;
 94 // returns true if the position is inside the map
 95 int PathFindingFromWorldToMapPosition(Vector3 worldPosition, int16_t *mapX, int16_t *mapY)
 96 {
 97   Vector3 mapPosition = Vector3Transform(worldPosition, pathfindingMap.toMapSpace);
 98   *mapX = (int16_t)mapPosition.x;
 99   *mapY = (int16_t)mapPosition.z;
100   return *mapX >= 0 && *mapX < pathfindingMap.width && *mapY >= 0 && *mapY < pathfindingMap.height;
101 }
102
103 void PathFindingMapUpdate()
104 {
105   const int castleX = 0, castleY = 0;
106   int16_t castleMapX, castleMapY;
107   if (!PathFindingFromWorldToMapPosition((Vector3){castleX, 0.0f, castleY}, &castleMapX, &castleMapY))
108   {
109     return;
110   }
111   int width = pathfindingMap.width, height = pathfindingMap.height;
112
113   // reset the distances to -1
114   for (int i = 0; i < width * height; i++)
115   {
116     pathfindingMap.distances[i] = -1.0f;
117   }
118   // reset the tower indices
119   for (int i = 0; i < width * height; i++)
120   {
121     pathfindingMap.towerIndex[i] = -1;
122   }
123   // reset the delta src
124   for (int i = 0; i < width * height; i++)
125   {
126     pathfindingMap.deltaSrc[i].x = 0;
127     pathfindingMap.deltaSrc[i].y = 0;
128   }
129
130   for (int i = 0; i < towerCount; i++)
131   {
132     Tower *tower = &towers[i];
133     if (tower->towerType == TOWER_TYPE_NONE || tower->towerType == TOWER_TYPE_BASE)
134     {
135       continue;
136     }
137     int16_t mapX, mapY;
138     // technically, if the tower cell scale is not in sync with the pathfinding map scale,
139     // this would not work correctly and needs to be refined to allow towers covering multiple cells
140     // or having multiple towers in one cell; for simplicity, we assume that the tower covers exactly
141     // one cell. For now.
142     if (!PathFindingFromWorldToMapPosition((Vector3){tower->x, 0.0f, tower->y}, &mapX, &mapY))
143     {
144       continue;
145     }
146     int index = mapY * width + mapX;
147     pathfindingMap.towerIndex[index] = i;
148   }
149
150   // we start at the castle and add the castle to the queue
151   pathfindingMap.maxDistance = 0.0f;
152   pathfindingNodeQueueCount = 0;
153   PathFindingNodePush(castleMapX, castleMapY, castleMapX, castleMapY, 0.0f);
154   PathfindingNode *node = 0;
155   while ((node = PathFindingNodePop()))
156   {
157     if (node->x < 0 || node->x >= width || node->y < 0 || node->y >= height)
158     {
159       continue;
160     }
161     int index = node->y * width + node->x;
162     if (pathfindingMap.distances[index] >= 0 && pathfindingMap.distances[index] <= node->distance)
163     {
164       continue;
165     }
166
167     int deltaX = node->x - node->fromX;
168     int deltaY = node->y - node->fromY;
169     // even if the cell is blocked by a tower, we still may want to store the direction
170     // (though this might not be needed, IDK right now)
171     pathfindingMap.deltaSrc[index].x = (char) deltaX;
172     pathfindingMap.deltaSrc[index].y = (char) deltaY;
173
174     // we skip nodes that are blocked by towers
175     if (pathfindingMap.towerIndex[index] >= 0)
176     {
177       node->distance += 8.0f;
178     }
179     pathfindingMap.distances[index] = node->distance;
180     pathfindingMap.maxDistance = fmaxf(pathfindingMap.maxDistance, node->distance);
181     PathFindingNodePush(node->x, node->y + 1, node->x, node->y, node->distance + 1.0f);
182     PathFindingNodePush(node->x, node->y - 1, node->x, node->y, node->distance + 1.0f);
183     PathFindingNodePush(node->x + 1, node->y, node->x, node->y, node->distance + 1.0f);
184     PathFindingNodePush(node->x - 1, node->y, node->x, node->y, node->distance + 1.0f);
185   }
186 }
187
188 void PathFindingMapDraw()
189 {
190   float cellSize = pathfindingMap.scale * 0.9f;
191   float highlightDistance = fmodf(GetTime() * 4.0f, pathfindingMap.maxDistance);
192   for (int x = 0; x < pathfindingMap.width; x++)
193   {
194     for (int y = 0; y < pathfindingMap.height; y++)
195     {
196       float distance = pathfindingMap.distances[y * pathfindingMap.width + x];
197       float colorV = distance < 0 ? 0 : fminf(distance / pathfindingMap.maxDistance, 1.0f);
198       Color color = distance < 0 ? BLUE : (Color){fminf(colorV, 1.0f) * 255, 0, 0, 255};
199       Vector3 position = Vector3Transform((Vector3){x, -0.25f, y}, pathfindingMap.toWorldSpace);
200       // animate the distance "wave" to show how the pathfinding algorithm expands
201       // from the castle
202       if (distance + 0.5f > highlightDistance && distance - 0.5f < highlightDistance)
203       {
204         color = BLACK;
205       }
206       DrawCube(position, cellSize, 0.1f, cellSize, color);
207     }
208   }
209 }
210
211 Vector2 PathFindingGetGradient(Vector3 world)
212 {
213   int16_t mapX, mapY;
214   if (PathFindingFromWorldToMapPosition(world, &mapX, &mapY))
215   {
216     DeltaSrc delta = pathfindingMap.deltaSrc[mapY * pathfindingMap.width + mapX];
217     return (Vector2){(float)-delta.x, (float)-delta.y};
218   }
219   // fallback to a simple gradient calculation
220   float n = PathFindingGetDistance(mapX, mapY - 1);
221   float s = PathFindingGetDistance(mapX, mapY + 1);
222   float w = PathFindingGetDistance(mapX - 1, mapY);
223   float e = PathFindingGetDistance(mapX + 1, mapY);
224   return (Vector2){w - e + 0.25f, n - s + 0.125f};
225 }

  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 static Projectile projectiles[PROJECTILE_MAX_COUNT];
  5 static int projectileCount = 0;
  6
  7 void ProjectileInit()
  8 {
  9   for (int i = 0; i < PROJECTILE_MAX_COUNT; i++)
 10   {
 11     projectiles[i] = (Projectile){0};
 12   }
 13 }
 14
 15 void ProjectileDraw()
 16 {
 17   for (int i = 0; i < projectileCount; i++)
 18   {
 19     Projectile projectile = projectiles[i];
 20     if (projectile.projectileType == PROJECTILE_TYPE_NONE)
 21     {
 22       continue;
 23     }
 24     float transition = (gameTime.time - projectile.shootTime) / (projectile.arrivalTime - projectile.shootTime);
 25     if (transition >= 1.0f)
 26     {
 27       continue;
 28     }
 29     Vector2 position = Vector2Lerp(projectile.position, projectile.target, transition);
 30     float x = position.x;
 31     float y = position.y;
 32     float dx = projectile.directionNormal.x;
 33     float dy = projectile.directionNormal.y;
 34     for (float d = 1.0f; d > 0.0f; d -= 0.25f)
 35     {
 36       x -= dx * 0.1f;
 37       y -= dy * 0.1f;
 38       float size = 0.1f * d;
 39       DrawCube((Vector3){x, 0.2f, y}, size, size, size, RED);
 40     }
 41   }
 42 }
 43
 44 void ProjectileUpdate()
 45 {
 46   for (int i = 0; i < projectileCount; i++)
 47   {
 48     Projectile *projectile = &projectiles[i];
 49     if (projectile->projectileType == PROJECTILE_TYPE_NONE)
 50     {
 51       continue;
 52     }
 53     float transition = (gameTime.time - projectile->shootTime) / (projectile->arrivalTime - projectile->shootTime);
 54     if (transition >= 1.0f)
 55     {
 56       projectile->projectileType = PROJECTILE_TYPE_NONE;
 57       Enemy *enemy = EnemyTryResolve(projectile->targetEnemy);
 58       if (enemy)
 59       {
 60         EnemyAddDamage(enemy, projectile->damage);
 61       }
 62       continue;
 63     }
 64   }
 65 }
 66
 67 Projectile *ProjectileTryAdd(uint8_t projectileType, Enemy *enemy, Vector2 position, Vector2 target, float speed, float damage)
 68 {
 69   for (int i = 0; i < PROJECTILE_MAX_COUNT; i++)
 70   {
 71     Projectile *projectile = &projectiles[i];
 72     if (projectile->projectileType == PROJECTILE_TYPE_NONE)
 73     {
 74       projectile->projectileType = projectileType;
 75       projectile->shootTime = gameTime.time;
 76       projectile->arrivalTime = gameTime.time + Vector2Distance(position, target) / speed;
 77       projectile->damage = damage;
 78       projectile->position = position;
 79       projectile->target = target;
 80       projectile->directionNormal = Vector2Normalize(Vector2Subtract(target, position));
 81       projectile->targetEnemy = EnemyGetId(enemy);
 82       projectileCount = projectileCount <= i ? i + 1 : projectileCount;
 83       return projectile;
 84     }
 85   }
 86   return 0;
 87 }

  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 static Particle particles[PARTICLE_MAX_COUNT];
  5 static int particleCount = 0;
  6
  7 void ParticleInit()
  8 {
  9   for (int i = 0; i < PARTICLE_MAX_COUNT; i++)
 10   {
 11     particles[i] = (Particle){0};
 12   }
 13   particleCount = 0;
 14 }
 15
 16 static void DrawExplosionParticle(Particle *particle, float transition)
 17 {
 18   float size = 1.2f * (1.0f - transition);
 19   Color startColor = WHITE;
 20   Color endColor = RED;
 21   Color color = ColorLerp(startColor, endColor, transition);
 22   DrawCube(particle->position, size, size, size, color);
 23 }
 24
 25 void ParticleAdd(uint8_t particleType, Vector3 position, Vector3 velocity, float lifetime)
 26 {
 27   if (particleCount >= PARTICLE_MAX_COUNT)
 28   {
 29     return;
 30   }
 31
 32   int index = -1;
 33   for (int i = 0; i < particleCount; i++)
 34   {
 35     if (particles[i].particleType == PARTICLE_TYPE_NONE)
 36     {
 37       index = i;
 38       break;
 39     }
 40   }
 41
 42   if (index == -1)
 43   {
 44     index = particleCount++;
 45   }
 46
 47   Particle *particle = &particles[index];
 48   particle->particleType = particleType;
 49   particle->spawnTime = gameTime.time;
 50   particle->lifetime = lifetime;
 51   particle->position = position;
 52   particle->velocity = velocity;
 53 }
 54
 55 void ParticleUpdate()
 56 {
 57   for (int i = 0; i < particleCount; i++)
 58   {
 59     Particle *particle = &particles[i];
 60     if (particle->particleType == PARTICLE_TYPE_NONE)
 61     {
 62       continue;
 63     }
 64
 65     float age = gameTime.time - particle->spawnTime;
 66
 67     if (particle->lifetime > age)
 68     {
 69       particle->position = Vector3Add(particle->position, Vector3Scale(particle->velocity, gameTime.deltaTime));
 70     }
 71     else {
 72       particle->particleType = PARTICLE_TYPE_NONE;
 73     }
 74   }
 75 }
 76
 77 void ParticleDraw()
 78 {
 79   for (int i = 0; i < particleCount; i++)
 80   {
 81     Particle particle = particles[i];
 82     if (particle.particleType == PARTICLE_TYPE_NONE)
 83     {
 84       continue;
 85     }
 86
 87     float age = gameTime.time - particle.spawnTime;
 88     float transition = age / particle.lifetime;
 89     switch (particle.particleType)
 90     {
 91     case PARTICLE_TYPE_EXPLOSION:
 92       DrawExplosionParticle(&particle, transition);
 93       break;
 94     default:
 95       DrawCube(particle.position, 0.3f, 0.5f, 0.3f, RED);
 96       break;
 97     }
 98   }
 99 }

  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 Tower towers[TOWER_MAX_COUNT];
  5 int towerCount = 0;
  6
  7 Model towerModels[TOWER_TYPE_COUNT];
  8 Texture2D palette, spriteSheet;
  9
 10 // a unit that uses sprites to be drawn
 11 typedef struct SpriteUnit
 12 {
 13   Rectangle srcRect;
 14   Vector2 offset;
 15 } SpriteUnit;
 16
 17 // definition of our archer unit
 18 SpriteUnit archerUnit = {
 19     .srcRect = {0, 0, 16, 16},
 20     .offset = {7, 1},
 21 };
 22
 23 void DrawSpriteUnit(SpriteUnit unit, Vector3 position)
 24 {
 25   Camera3D camera = currentLevel->camera;
 26   float size = 0.5f;
 27   Vector2 offset = (Vector2){ unit.offset.x / 16.0f * size, unit.offset.y / 16.0f * size };
 28   Vector2 scale = (Vector2){ unit.srcRect.width / 16.0f * size, unit.srcRect.height / 16.0f * size };
 29   // we want the sprite to face the camera, so we need to calculate the up vector
 30   Vector3 forward = Vector3Subtract(camera.target, camera.position);
 31   Vector3 up = {0, 1, 0};
 32   Vector3 right = Vector3CrossProduct(forward, up);
 33   up = Vector3Normalize(Vector3CrossProduct(right, forward));
 34   DrawBillboardPro(camera, spriteSheet, unit.srcRect, position, up, scale, offset, 0, WHITE);
 35 }
 36
 37 void TowerInit()
 38 {
 39   for (int i = 0; i < TOWER_MAX_COUNT; i++)
 40   {
 41     towers[i] = (Tower){0};
 42   }
 43   towerCount = 0;
 44
 45   // load a sprite sheet that contains all units
 46   spriteSheet = LoadTexture("data/spritesheet.png");
 47
 48   // we'll use a palette texture to colorize the all buildings and environment art
 49   palette = LoadTexture("data/palette.png");
 50   // The texture uses gradients on very small space, so we'll enable bilinear filtering
 51   SetTextureFilter(palette, TEXTURE_FILTER_BILINEAR);
 52
 53   towerModels[TOWER_TYPE_WALL] = LoadModel("data/wall-0000.glb");
 54
 55   for (int i = 0; i < TOWER_TYPE_COUNT; i++)
 56   {
 57     if (towerModels[i].materials)
 58     {
 59       // assign the palette texture to the material of the model (0 is not used afaik)
 60       towerModels[i].materials[1].maps[MATERIAL_MAP_DIFFUSE].texture = palette;
 61     }
 62   }
 63 }
 64
 65 static void TowerGunUpdate(Tower *tower)
 66 {
 67   if (tower->cooldown <= 0)
 68   {
 69     Enemy *enemy = EnemyGetClosestToCastle(tower->x, tower->y, 3.0f);
 70     if (enemy)
 71     {
 72       tower->cooldown = 0.5f;
 73       // shoot the enemy; determine future position of the enemy
 74       float bulletSpeed = 1.0f;
 75       float bulletDamage = 3.0f;
 76       Vector2 velocity = enemy->simVelocity;
 77       Vector2 futurePosition = EnemyGetPosition(enemy, gameTime.time - enemy->startMovingTime, &velocity, 0);
 78       Vector2 towerPosition = {tower->x, tower->y};
 79       float eta = Vector2Distance(towerPosition, futurePosition) / bulletSpeed;
 80       for (int i = 0; i < 8; i++) {
 81         velocity = enemy->simVelocity;
 82         futurePosition = EnemyGetPosition(enemy, gameTime.time - enemy->startMovingTime + eta, &velocity, 0);
 83         float distance = Vector2Distance(towerPosition, futurePosition);
 84         float eta2 = distance / bulletSpeed;
 85         if (fabs(eta - eta2) < 0.01f) {
 86           break;
 87         }
 88         eta = (eta2 + eta) * 0.5f;
 89       }
 90       ProjectileTryAdd(PROJECTILE_TYPE_BULLET, enemy, towerPosition, futurePosition,
 91         bulletSpeed, bulletDamage);
 92       enemy->futureDamage += bulletDamage;
 93     }
 94   }
 95   else
 96   {
 97     tower->cooldown -= gameTime.deltaTime;
 98   }
 99 }
100
101 Tower *TowerGetAt(int16_t x, int16_t y)
102 {
103   for (int i = 0; i < towerCount; i++)
104   {
105     if (towers[i].x == x && towers[i].y == y && towers[i].towerType != TOWER_TYPE_NONE)
106     {
107       return &towers[i];
108     }
109   }
110   return 0;
111 }
112
113 Tower *TowerTryAdd(uint8_t towerType, int16_t x, int16_t y)
114 {
115   if (towerCount >= TOWER_MAX_COUNT)
116   {
117     return 0;
118   }
119
120   Tower *tower = TowerGetAt(x, y);
121   if (tower)
122   {
123     return 0;
124   }
125
126   tower = &towers[towerCount++];
127   tower->x = x;
128   tower->y = y;
129   tower->towerType = towerType;
130   tower->cooldown = 0.0f;
131   tower->damage = 0.0f;
132   return tower;
133 }
134
135 Tower *GetTowerByType(uint8_t towerType)
136 {
137   for (int i = 0; i < towerCount; i++)
138   {
139     if (towers[i].towerType == towerType)
140     {
141       return &towers[i];
142     }
143   }
144   return 0;
145 }
146
147 int GetTowerCosts(uint8_t towerType)
148 {
149   switch (towerType)
150   {
151   case TOWER_TYPE_BASE:
152     return 0;
153   case TOWER_TYPE_GUN:
154     return 6;
155   case TOWER_TYPE_WALL:
156     return 2;
157   }
158   return 0;
159 }
160
161 float TowerGetMaxHealth(Tower *tower)
162 {
163   switch (tower->towerType)
164   {
165   case TOWER_TYPE_BASE:
166     return 10.0f;
167   case TOWER_TYPE_GUN:
168     return 3.0f;
169   case TOWER_TYPE_WALL:
170     return 5.0f;
171   }
172   return 0.0f;
173 }
174
175 void TowerDraw()
176 {
177   for (int i = 0; i < towerCount; i++)
178   {
179     Tower tower = towers[i];
180     if (tower.towerType == TOWER_TYPE_NONE)
181     {
182       continue;
183     }
184
185     switch (tower.towerType)
186     {
187     case TOWER_TYPE_BASE:
188       DrawCube((Vector3){tower.x, 0.4f, tower.y}, 0.8f, 0.8f, 0.8f, MAROON);
189       break;
190     case TOWER_TYPE_GUN:
191       DrawModel(towerModels[TOWER_TYPE_WALL], (Vector3){tower.x, 0.0f, tower.y}, 1.0f, WHITE);
192       DrawSpriteUnit(archerUnit, (Vector3){tower.x, 1.0f, tower.y});
193       break;
194     default:
195       if (towerModels[tower.towerType].materials)
196       {
197         DrawModel(towerModels[tower.towerType], (Vector3){tower.x, 0.0f, tower.y}, 1.0f, WHITE);
198       } else {
199         DrawCube((Vector3){tower.x, 0.5f, tower.y}, 1.0f, 1.0f, 1.0f, LIGHTGRAY);
200       }
201       break;
202     }
203   }
204 }
205
206 void TowerUpdate()
207 {
208   for (int i = 0; i < towerCount; i++)
209   {
210     Tower *tower = &towers[i];
211     switch (tower->towerType)
212     {
213     case TOWER_TYPE_GUN:
214       TowerGunUpdate(tower);
215       break;
216     }
217   }
218 }
219
220 void TowerDrawHealthBars(Camera3D camera)
221 {
222   for (int i = 0; i < towerCount; i++)
223   {
224     Tower *tower = &towers[i];
225     if (tower->towerType == TOWER_TYPE_NONE || tower->damage <= 0.0f)
226     {
227       continue;
228     }
229
230     Vector3 position = (Vector3){tower->x, 0.5f, tower->y};
231     float maxHealth = TowerGetMaxHealth(tower);
232     float health = maxHealth - tower->damage;
233     float healthRatio = health / maxHealth;
234
235     DrawHealthBar(camera, position, healthRatio, GREEN);
236   }
237 }

  1 #include "raylib.h"
  2 #include "preferred_size.h"
  3
  4 // Since the canvas size is not known at compile time, we need to query it at runtime;
  5 // the following platform specific code obtains the canvas size and we will use this
  6 // size as the preferred size for the window at init time. We're ignoring here the
  7 // possibility of the canvas size changing during runtime - this would require to
  8 // poll the canvas size in the game loop or establishing a callback to be notified
  9
 10 #ifdef PLATFORM_WEB
 11 #include <emscripten.h>
 12 EMSCRIPTEN_RESULT emscripten_get_element_css_size(const char *target, double *width, double *height);
 13
 14 void GetPreferredSize(int *screenWidth, int *screenHeight)
 15 {
 16   double canvasWidth, canvasHeight;
 17   emscripten_get_element_css_size("#" CANVAS_NAME, &canvasWidth, &canvasHeight);
 18   *screenWidth = (int)canvasWidth;
 19   *screenHeight = (int)canvasHeight;
 20   TraceLog(LOG_INFO, "preferred size for %s: %d %d", CANVAS_NAME, *screenWidth, *screenHeight);
 21 }
 22
 23 int IsPaused()
 24 {
 25   const char *js = "(function(){\n"
 26   "  var canvas = document.getElementById(\"" CANVAS_NAME "\");\n"
 27   "  var rect = canvas.getBoundingClientRect();\n"
 28   "  var isVisible = (\n"
 29   "    rect.top >= 0 &&\n"
 30   "    rect.left >= 0 &&\n"
 31   "    rect.bottom <= (window.innerHeight || document.documentElement.clientHeight) &&\n"
 32   "    rect.right <= (window.innerWidth || document.documentElement.clientWidth)\n"
 33   "  );\n"
 34   "  return isVisible ? 0 : 1;\n"
 35   "})()";
 36   return emscripten_run_script_int(js);
 37 }
 38
 39 #else
 40 void GetPreferredSize(int *screenWidth, int *screenHeight)
 41 {
 42   *screenWidth = 600;
 43   *screenHeight = 240;
 44 }
 45 int IsPaused()
 46 {
 47   return 0;
 48 }
 49 #endif

  1 #ifndef PREFERRED_SIZE_H
  2 #define PREFERRED_SIZE_H
  3
  4 void GetPreferredSize(int *screenWidth, int *screenHeight);
  5 int IsPaused();
  6
  7 #endif

The result looks like this:

This starts looking decent! The orthogonal view makes the sprites fit better with the 3D models. There is still much to do, but this tutorial step has grown quite long already, so I will pause here.

Wrap up

We have now added healthbars that are aligned with the enemy positions and added some basic graphics for the wall and tower buildings. The camera is now in orthogonal view, which makes the sprites fit better with the 3D models. The graphics are simple and low poly, and we have a few more to add in the next steps!

So in the next part, we will continue with tweaking the graphics and adding more enemy types and towers. There's lots of details to add and improve, so next week, we will continue with this. Until then, have fun!
