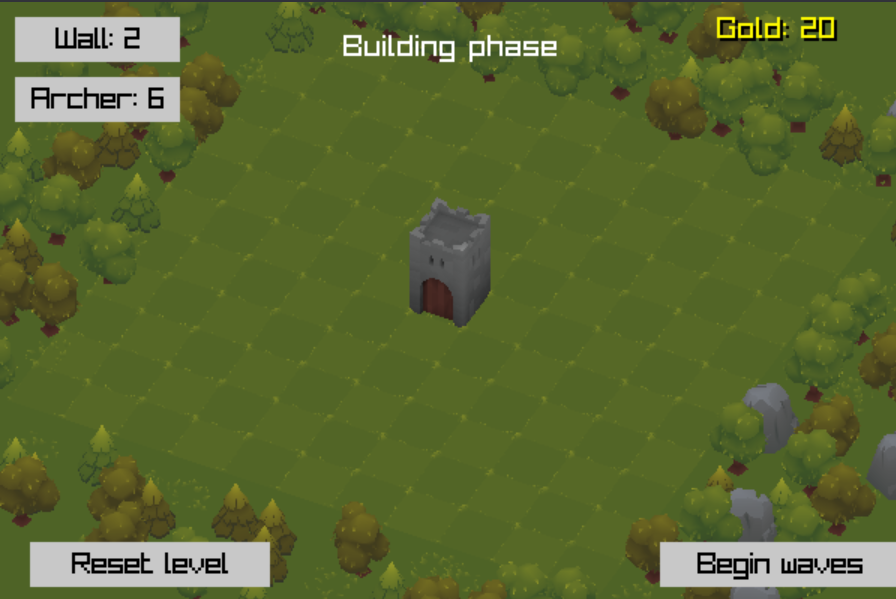

Simple tower defense tutorial, part 9: Decorations

Let's quickly look at what we had last time:

What the game looked like at the end of the last part

Having graphics for the towers and enemies makes the ground look quite bad. It is time to change that!

Small note: The ZIP files of the following tutorial steps contain a makefile to build the code on desktop. It expects raylib to be installed in a sibling directory to the tutorial code. The makefile is based on the raylib game template project. Hopefully that helps you to compile the project locally. I am still working on improving this, but this is quite a bit of work and I haven't managed to finish it yet. But at least this version should work for you - and isn't crashing (yes, the previous tutorial steps had a NULL pointer error that didn't cause problems in the browser, which is why I didn't notice it).

If you have make installed, you can also provide the installation directory of raylib this way:

make RAYLIB_SRC_PATH=/path/to/raylib

Making the game look beautiful isn't really necessary to do that now, but it's a fairly easy step and one I enjoy a lot. There are lots of opinions when to work out the graphic style. Using placeholders until the gameplay is solid is the typical approach and one that makes a lot of sense in a professional environment while artists focus on finding the right style. Just know: There are work places where it is not accepted to work on graphics isn't allowed until the gameplay is solid.

For me, it's quite difficult to continue working with primitive placeholder art as it tends to distract me, so I usually spend more time on the graphics than I should (probably the reason why I tend to not finish games). But again, this isn't work for me. And one thing I learned is, that it's better to have fun with your hobby than making it a chore. That's the reason I am doing the graphics at this point - not because it needs to be done at this point but because it is something I enjoy!

Another point is: What I intend to do here isn't very complicated to do. Once you understand the concept, you should be able to apply this in different situations as well.

So the plan is:

Checkerboard ground tiles

This is easy: We use two different grass tiles and place them in a checkerboard pattern. We introduce a function to load assets more conveniently: The models I created use all the same texture, so the code should assign the texture to the model automatically when loading the model. This is done in the LoadGLBModel function in line 50. The LoadAssets function in line 62 loads all the models and textures. We will later add more models to this function. Since the game is kept small, we don't need to worry about unloading unused assets - which is a rather complex topic.

The DrawLevelGround function in line 192 is responsible for drawing the level ground. Here's the code:

  • 💾
  1 #include "td_main.h"
  2 #include <raymath.h>
  3 #include <stdlib.h>
  4 #include <math.h>
  5
  6 //# Variables
  7 GUIState guiState = {0};
  8 GameTime gameTime = {0};
  9
10 Model floorTileAModel = {0}; 11 Model floorTileBModel = {0}; 12 13 Texture2D palette, spriteSheet; 14
15 Level levels[] = { 16 [0] = { 17 .state = LEVEL_STATE_BUILDING, 18 .initialGold = 20, 19 .waves[0] = { 20 .enemyType = ENEMY_TYPE_MINION, 21 .wave = 0, 22 .count = 10, 23 .interval = 2.5f, 24 .delay = 1.0f, 25 .spawnPosition = {0, 6}, 26 }, 27 .waves[1] = { 28 .enemyType = ENEMY_TYPE_MINION, 29 .wave = 1, 30 .count = 20, 31 .interval = 1.5f, 32 .delay = 1.0f, 33 .spawnPosition = {0, 6}, 34 }, 35 .waves[2] = { 36 .enemyType = ENEMY_TYPE_MINION, 37 .wave = 2, 38 .count = 30, 39 .interval = 1.2f, 40 .delay = 1.0f, 41 .spawnPosition = {0, 6}, 42 } 43 }, 44 }; 45 46 Level *currentLevel = levels; 47
48 //# Game 49 50 static Model LoadGLBModel(char *filename) 51 { 52 Model model = LoadModel(TextFormat("data/%s.glb",filename)); 53 if (model.materialCount > 1) 54 { 55 model.materials[1].maps[MATERIAL_MAP_DIFFUSE].texture = palette; 56 } 57 return model; 58 } 59 60 void LoadAssets() 61 { 62 // load a sprite sheet that contains all units 63 spriteSheet = LoadTexture("data/spritesheet.png"); 64 SetTextureFilter(spriteSheet, TEXTURE_FILTER_BILINEAR); 65 66 // we'll use a palette texture to colorize the all buildings and environment art 67 palette = LoadTexture("data/palette.png"); 68 // The texture uses gradients on very small space, so we'll enable bilinear filtering 69 SetTextureFilter(palette, TEXTURE_FILTER_BILINEAR); 70 71 floorTileAModel = LoadGLBModel("floor-tile-a"); 72 floorTileBModel = LoadGLBModel("floor-tile-b"); 73 }
74 75 void InitLevel(Level *level) 76 { 77 TowerInit(); 78 EnemyInit(); 79 ProjectileInit(); 80 ParticleInit(); 81 TowerTryAdd(TOWER_TYPE_BASE, 0, 0); 82 83 level->placementMode = 0; 84 level->state = LEVEL_STATE_BUILDING; 85 level->nextState = LEVEL_STATE_NONE; 86 level->playerGold = level->initialGold; 87 level->currentWave = 0; 88 89 Camera *camera = &level->camera; 90 camera->position = (Vector3){4.0f, 8.0f, 8.0f}; 91 camera->target = (Vector3){0.0f, 0.0f, 0.0f}; 92 camera->up = (Vector3){0.0f, 1.0f, 0.0f}; 93 camera->fovy = 10.0f; 94 camera->projection = CAMERA_ORTHOGRAPHIC; 95 } 96 97 void DrawLevelHud(Level *level) 98 { 99 const char *text = TextFormat("Gold: %d", level->playerGold); 100 Font font = GetFontDefault(); 101 DrawTextEx(font, text, (Vector2){GetScreenWidth() - 120, 10}, font.baseSize * 2.0f, 2.0f, BLACK); 102 DrawTextEx(font, text, (Vector2){GetScreenWidth() - 122, 8}, font.baseSize * 2.0f, 2.0f, YELLOW); 103 } 104 105 void DrawLevelReportLostWave(Level *level) 106 { 107 BeginMode3D(level->camera);
108 DrawLevelGround(level);
109 TowerDraw(); 110 EnemyDraw(); 111 ProjectileDraw(); 112 ParticleDraw(); 113 guiState.isBlocked = 0; 114 EndMode3D(); 115 116 TowerDrawHealthBars(level->camera); 117 118 const char *text = "Wave lost"; 119 int textWidth = MeasureText(text, 20); 120 DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE); 121 122 if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0)) 123 { 124 level->nextState = LEVEL_STATE_RESET; 125 } 126 } 127 128 int HasLevelNextWave(Level *level) 129 { 130 for (int i = 0; i < 10; i++) 131 { 132 EnemyWave *wave = &level->waves[i]; 133 if (wave->wave == level->currentWave) 134 { 135 return 1; 136 } 137 } 138 return 0; 139 } 140 141 void DrawLevelReportWonWave(Level *level) 142 { 143 BeginMode3D(level->camera);
144 DrawLevelGround(level);
145 TowerDraw(); 146 EnemyDraw(); 147 ProjectileDraw(); 148 ParticleDraw(); 149 guiState.isBlocked = 0; 150 EndMode3D(); 151 152 TowerDrawHealthBars(level->camera); 153 154 const char *text = "Wave won"; 155 int textWidth = MeasureText(text, 20); 156 DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE); 157 158 159 if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0)) 160 { 161 level->nextState = LEVEL_STATE_RESET; 162 } 163 164 if (HasLevelNextWave(level)) 165 { 166 if (Button("Prepare for next wave", GetScreenWidth() - 300, GetScreenHeight() - 40, 300, 30, 0)) 167 { 168 level->nextState = LEVEL_STATE_BUILDING; 169 } 170 } 171 else { 172 if (Button("Level won", GetScreenWidth() - 300, GetScreenHeight() - 40, 300, 30, 0)) 173 { 174 level->nextState = LEVEL_STATE_WON_LEVEL; 175 } 176 } 177 } 178 179 void DrawBuildingBuildButton(Level *level, int x, int y, int width, int height, uint8_t towerType, const char *name) 180 { 181 static ButtonState buttonStates[8] = {0}; 182 int cost = GetTowerCosts(towerType); 183 const char *text = TextFormat("%s: %d", name, cost); 184 buttonStates[towerType].isSelected = level->placementMode == towerType; 185 buttonStates[towerType].isDisabled = level->playerGold < cost; 186 if (Button(text, x, y, width, height, &buttonStates[towerType])) 187 {
188 level->placementMode = buttonStates[towerType].isSelected ? 0 : towerType; 189 } 190 } 191 192 void DrawLevelGround(Level *level) 193 { 194 // draw checkerboard ground pattern 195 for (int x = -5; x <= 5; x += 1) 196 { 197 for (int y = -5; y <= 5; y += 1) 198 { 199 Model *model = (x + y) % 2 == 0 ? &floorTileAModel : &floorTileBModel; 200 DrawModel(*model, (Vector3){x, 0.0f, y}, 1.0f, WHITE); 201 }
202 } 203 } 204 205 void DrawLevelBuildingState(Level *level) 206 { 207 BeginMode3D(level->camera);
208 DrawLevelGround(level);
209 TowerDraw(); 210 EnemyDraw(); 211 ProjectileDraw(); 212 ParticleDraw(); 213 214 Ray ray = GetScreenToWorldRay(GetMousePosition(), level->camera); 215 float planeDistance = ray.position.y / -ray.direction.y; 216 float planeX = ray.direction.x * planeDistance + ray.position.x; 217 float planeY = ray.direction.z * planeDistance + ray.position.z; 218 int16_t mapX = (int16_t)floorf(planeX + 0.5f); 219 int16_t mapY = (int16_t)floorf(planeY + 0.5f);
220 if (level->placementMode && !guiState.isBlocked && mapX >= -5 && mapX <= 5 && mapY >= -5 && mapY <= 5)
221 { 222 DrawCubeWires((Vector3){mapX, 0.2f, mapY}, 1.0f, 0.4f, 1.0f, RED); 223 if (IsMouseButtonPressed(MOUSE_LEFT_BUTTON)) 224 { 225 if (TowerTryAdd(level->placementMode, mapX, mapY)) 226 { 227 level->playerGold -= GetTowerCosts(level->placementMode); 228 level->placementMode = TOWER_TYPE_NONE; 229 } 230 } 231 } 232 233 guiState.isBlocked = 0; 234 235 EndMode3D(); 236 237 TowerDrawHealthBars(level->camera); 238 239 static ButtonState buildWallButtonState = {0}; 240 static ButtonState buildGunButtonState = {0}; 241 buildWallButtonState.isSelected = level->placementMode == TOWER_TYPE_WALL; 242 buildGunButtonState.isSelected = level->placementMode == TOWER_TYPE_GUN; 243
244 DrawBuildingBuildButton(level, 10, 10, 110, 30, TOWER_TYPE_WALL, "Wall"); 245 DrawBuildingBuildButton(level, 10, 50, 110, 30, TOWER_TYPE_GUN, "Archer");
246 247 if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0)) 248 { 249 level->nextState = LEVEL_STATE_RESET; 250 } 251 252 if (Button("Begin waves", GetScreenWidth() - 160, GetScreenHeight() - 40, 160, 30, 0)) 253 { 254 level->nextState = LEVEL_STATE_BATTLE; 255 } 256 257 const char *text = "Building phase"; 258 int textWidth = MeasureText(text, 20); 259 DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE); 260 } 261 262 void InitBattleStateConditions(Level *level) 263 { 264 level->state = LEVEL_STATE_BATTLE; 265 level->nextState = LEVEL_STATE_NONE; 266 level->waveEndTimer = 0.0f; 267 for (int i = 0; i < 10; i++) 268 { 269 EnemyWave *wave = &level->waves[i]; 270 wave->spawned = 0; 271 wave->timeToSpawnNext = wave->delay; 272 } 273 } 274 275 void DrawLevelBattleState(Level *level) 276 { 277 BeginMode3D(level->camera);
278 DrawLevelGround(level);
279 TowerDraw(); 280 EnemyDraw(); 281 ProjectileDraw(); 282 ParticleDraw(); 283 guiState.isBlocked = 0; 284 EndMode3D(); 285 286 EnemyDrawHealthbars(level->camera); 287 TowerDrawHealthBars(level->camera); 288 289 if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0)) 290 { 291 level->nextState = LEVEL_STATE_RESET; 292 } 293 294 int maxCount = 0; 295 int remainingCount = 0; 296 for (int i = 0; i < 10; i++) 297 { 298 EnemyWave *wave = &level->waves[i]; 299 if (wave->wave != level->currentWave) 300 { 301 continue; 302 } 303 maxCount += wave->count; 304 remainingCount += wave->count - wave->spawned; 305 } 306 int aliveCount = EnemyCount(); 307 remainingCount += aliveCount; 308 309 const char *text = TextFormat("Battle phase: %03d%%", 100 - remainingCount * 100 / maxCount); 310 int textWidth = MeasureText(text, 20); 311 DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE); 312 } 313 314 void DrawLevel(Level *level) 315 { 316 switch (level->state) 317 { 318 case LEVEL_STATE_BUILDING: DrawLevelBuildingState(level); break; 319 case LEVEL_STATE_BATTLE: DrawLevelBattleState(level); break; 320 case LEVEL_STATE_WON_WAVE: DrawLevelReportWonWave(level); break; 321 case LEVEL_STATE_LOST_WAVE: DrawLevelReportLostWave(level); break; 322 default: break; 323 } 324 325 DrawLevelHud(level); 326 } 327 328 void UpdateLevel(Level *level) 329 { 330 if (level->state == LEVEL_STATE_BATTLE) 331 { 332 int activeWaves = 0; 333 for (int i = 0; i < 10; i++) 334 { 335 EnemyWave *wave = &level->waves[i]; 336 if (wave->spawned >= wave->count || wave->wave != level->currentWave) 337 { 338 continue; 339 } 340 activeWaves++; 341 wave->timeToSpawnNext -= gameTime.deltaTime; 342 if (wave->timeToSpawnNext <= 0.0f) 343 { 344 Enemy *enemy = EnemyTryAdd(wave->enemyType, wave->spawnPosition.x, wave->spawnPosition.y); 345 if (enemy) 346 { 347 wave->timeToSpawnNext = wave->interval; 348 wave->spawned++; 349 } 350 } 351 } 352 if (GetTowerByType(TOWER_TYPE_BASE) == 0) { 353 level->waveEndTimer += gameTime.deltaTime; 354 if (level->waveEndTimer >= 2.0f) 355 { 356 level->nextState = LEVEL_STATE_LOST_WAVE; 357 } 358 } 359 else if (activeWaves == 0 && EnemyCount() == 0) 360 { 361 level->waveEndTimer += gameTime.deltaTime; 362 if (level->waveEndTimer >= 2.0f) 363 { 364 level->nextState = LEVEL_STATE_WON_WAVE; 365 } 366 } 367 } 368 369 PathFindingMapUpdate(); 370 EnemyUpdate(); 371 TowerUpdate(); 372 ProjectileUpdate(); 373 ParticleUpdate(); 374 375 if (level->nextState == LEVEL_STATE_RESET) 376 { 377 InitLevel(level); 378 } 379 380 if (level->nextState == LEVEL_STATE_BATTLE) 381 { 382 InitBattleStateConditions(level); 383 } 384 385 if (level->nextState == LEVEL_STATE_WON_WAVE) 386 { 387 level->currentWave++; 388 level->state = LEVEL_STATE_WON_WAVE; 389 } 390 391 if (level->nextState == LEVEL_STATE_LOST_WAVE) 392 { 393 level->state = LEVEL_STATE_LOST_WAVE; 394 } 395 396 if (level->nextState == LEVEL_STATE_BUILDING) 397 { 398 level->state = LEVEL_STATE_BUILDING; 399 } 400 401 if (level->nextState == LEVEL_STATE_WON_LEVEL) 402 { 403 // make something of this later 404 InitLevel(level); 405 } 406 407 level->nextState = LEVEL_STATE_NONE; 408 } 409 410 float nextSpawnTime = 0.0f; 411 412 void ResetGame() 413 { 414 InitLevel(currentLevel); 415 } 416 417 void InitGame() 418 { 419 TowerInit(); 420 EnemyInit(); 421 ProjectileInit(); 422 ParticleInit(); 423 PathfindingMapInit(20, 20, (Vector3){-10.0f, 0.0f, -10.0f}, 1.0f); 424 425 currentLevel = levels; 426 InitLevel(currentLevel); 427 } 428 429 //# Immediate GUI functions 430 431 void DrawHealthBar(Camera3D camera, Vector3 position, float healthRatio, Color barColor, float healthBarWidth) 432 { 433 const float healthBarHeight = 6.0f; 434 const float healthBarOffset = 15.0f; 435 const float inset = 2.0f; 436 const float innerWidth = healthBarWidth - inset * 2; 437 const float innerHeight = healthBarHeight - inset * 2; 438 439 Vector2 screenPos = GetWorldToScreen(position, camera); 440 float centerX = screenPos.x - healthBarWidth * 0.5f; 441 float topY = screenPos.y - healthBarOffset; 442 DrawRectangle(centerX, topY, healthBarWidth, healthBarHeight, BLACK); 443 float healthWidth = innerWidth * healthRatio; 444 DrawRectangle(centerX + inset, topY + inset, healthWidth, innerHeight, barColor); 445 } 446 447 int Button(const char *text, int x, int y, int width, int height, ButtonState *state) 448 { 449 Rectangle bounds = {x, y, width, height}; 450 int isPressed = 0; 451 int isSelected = state && state->isSelected; 452 int isDisabled = state && state->isDisabled; 453 if (CheckCollisionPointRec(GetMousePosition(), bounds) && !guiState.isBlocked && !isDisabled) 454 { 455 Color color = isSelected ? DARKGRAY : GRAY; 456 DrawRectangle(x, y, width, height, color); 457 if (IsMouseButtonPressed(MOUSE_LEFT_BUTTON)) 458 { 459 isPressed = 1; 460 } 461 guiState.isBlocked = 1; 462 } 463 else 464 { 465 Color color = isSelected ? WHITE : LIGHTGRAY; 466 DrawRectangle(x, y, width, height, color); 467 } 468 Font font = GetFontDefault(); 469 Vector2 textSize = MeasureTextEx(font, text, font.baseSize * 2.0f, 1); 470 Color textColor = isDisabled ? GRAY : BLACK; 471 DrawTextEx(font, text, (Vector2){x + width / 2 - textSize.x / 2, y + height / 2 - textSize.y / 2}, font.baseSize * 2.0f, 1, textColor); 472 return isPressed; 473 } 474 475 //# Main game loop 476 477 void GameUpdate() 478 { 479 float dt = GetFrameTime(); 480 // cap maximum delta time to 0.1 seconds to prevent large time steps 481 if (dt > 0.1f) dt = 0.1f; 482 gameTime.time += dt; 483 gameTime.deltaTime = dt; 484 485 UpdateLevel(currentLevel); 486 } 487 488 int main(void) 489 { 490 int screenWidth, screenHeight; 491 GetPreferredSize(&screenWidth, &screenHeight); 492 InitWindow(screenWidth, screenHeight, "Tower defense"); 493 SetTargetFPS(30);
494 495 LoadAssets();
496 InitGame(); 497 498 while (!WindowShouldClose()) 499 { 500 if (IsPaused()) { 501 // canvas is not visible in browser - do nothing 502 continue; 503 } 504 505 BeginDrawing();
506 ClearBackground((Color){0x4E, 0x63, 0x26, 0xFF});
507 508 GameUpdate(); 509 DrawLevel(currentLevel); 510 511 EndDrawing(); 512 } 513 514 CloseWindow(); 515 516 return 0; 517 }
  1 #ifndef TD_TUT_2_MAIN_H
  2 #define TD_TUT_2_MAIN_H
  3
  4 #include <inttypes.h>
  5
  6 #include "raylib.h"
  7 #include "preferred_size.h"
  8
  9 //# Declarations
 10
 11 #define ENEMY_MAX_PATH_COUNT 8
 12 #define ENEMY_MAX_COUNT 400
 13 #define ENEMY_TYPE_NONE 0
 14 #define ENEMY_TYPE_MINION 1
 15
 16 #define PARTICLE_MAX_COUNT 400
 17 #define PARTICLE_TYPE_NONE 0
 18 #define PARTICLE_TYPE_EXPLOSION 1
 19
 20 typedef struct Particle
 21 {
 22   uint8_t particleType;
 23   float spawnTime;
 24   float lifetime;
 25   Vector3 position;
 26   Vector3 velocity;
 27 } Particle;
 28
 29 #define TOWER_MAX_COUNT 400
 30 #define TOWER_TYPE_NONE 0
 31 #define TOWER_TYPE_BASE 1
 32 #define TOWER_TYPE_GUN 2
 33 #define TOWER_TYPE_WALL 3
 34 #define TOWER_TYPE_COUNT 4
 35
 36 typedef struct Tower
 37 {
 38   int16_t x, y;
 39   uint8_t towerType;
 40   Vector2 lastTargetPosition;
 41   float cooldown;
 42   float damage;
 43 } Tower;
 44
 45 typedef struct GameTime
 46 {
 47   float time;
 48   float deltaTime;
 49 } GameTime;
 50
 51 typedef struct ButtonState {
 52   char isSelected;
 53   char isDisabled;
 54 } ButtonState;
 55
 56 typedef struct GUIState {
 57   int isBlocked;
 58 } GUIState;
 59
 60 typedef enum LevelState
 61 {
 62   LEVEL_STATE_NONE,
 63   LEVEL_STATE_BUILDING,
 64   LEVEL_STATE_BATTLE,
 65   LEVEL_STATE_WON_WAVE,
 66   LEVEL_STATE_LOST_WAVE,
 67   LEVEL_STATE_WON_LEVEL,
 68   LEVEL_STATE_RESET,
 69 } LevelState;
 70
 71 typedef struct EnemyWave {
 72   uint8_t enemyType;
 73   uint8_t wave;
 74   uint16_t count;
 75   float interval;
 76   float delay;
 77   Vector2 spawnPosition;
 78
 79   uint16_t spawned;
 80   float timeToSpawnNext;
 81 } EnemyWave;
 82
 83 typedef struct Level
 84 {
 85   LevelState state;
 86   LevelState nextState;
 87   Camera3D camera;
 88   int placementMode;
 89
 90   int initialGold;
 91   int playerGold;
 92
 93   EnemyWave waves[10];
 94   int currentWave;
 95   float waveEndTimer;
 96 } Level;
 97
 98 typedef struct DeltaSrc
 99 {
100   char x, y;
101 } DeltaSrc;
102
103 typedef struct PathfindingMap
104 {
105   int width, height;
106   float scale;
107   float *distances;
108   long *towerIndex;
109   DeltaSrc *deltaSrc;
110   float maxDistance;
111   Matrix toMapSpace;
112   Matrix toWorldSpace;
113 } PathfindingMap;
114
115 // when we execute the pathfinding algorithm, we need to store the active nodes
116 // in a queue. Each node has a position, a distance from the start, and the
117 // position of the node that we came from.
118 typedef struct PathfindingNode
119 {
120   int16_t x, y, fromX, fromY;
121   float distance;
122 } PathfindingNode;
123
124 typedef struct EnemyId
125 {
126   uint16_t index;
127   uint16_t generation;
128 } EnemyId;
129
130 typedef struct EnemyClassConfig
131 {
132   float speed;
133   float health;
134   float radius;
135   float maxAcceleration;
136   float requiredContactTime;
137   float explosionDamage;
138   float explosionRange;
139   float explosionPushbackPower;
140   int goldValue;
141 } EnemyClassConfig;
142
143 typedef struct Enemy
144 {
145   int16_t currentX, currentY;
146   int16_t nextX, nextY;
147   Vector2 simPosition;
148   Vector2 simVelocity;
149   uint16_t generation;
150   float walkedDistance;
151   float startMovingTime;
152   float damage, futureDamage;
153   float contactTime;
154   uint8_t enemyType;
155   uint8_t movePathCount;
156   Vector2 movePath[ENEMY_MAX_PATH_COUNT];
157 } Enemy;
158
159 // a unit that uses sprites to be drawn
160 #define SPRITE_UNIT_PHASE_WEAPON_IDLE 0
161 #define SPRITE_UNIT_PHASE_WEAPON_COOLDOWN 1
162 typedef struct SpriteUnit
163 {
164   Rectangle srcRect;
165   Vector2 offset;
166   int frameCount;
167   float frameDuration;
168   Rectangle srcWeaponIdleRect;
169   Vector2 srcWeaponIdleOffset;
170   Rectangle srcWeaponCooldownRect;
171   Vector2 srcWeaponCooldownOffset;
172 } SpriteUnit;
173
174 #define PROJECTILE_MAX_COUNT 1200
175 #define PROJECTILE_TYPE_NONE 0
176 #define PROJECTILE_TYPE_ARROW 1
177
178 typedef struct Projectile
179 {
180   uint8_t projectileType;
181   float shootTime;
182   float arrivalTime;
183   float distance;
184   float damage;
185   Vector3 position;
186   Vector3 target;
187   Vector3 directionNormal;
188   EnemyId targetEnemy;
189 } Projectile;
190
191 //# Function declarations
192 float TowerGetMaxHealth(Tower *tower);
193 int Button(const char *text, int x, int y, int width, int height, ButtonState *state);
194 int EnemyAddDamage(Enemy *enemy, float damage);
195
196 //# Enemy functions
197 void EnemyInit();
198 void EnemyDraw();
199 void EnemyTriggerExplode(Enemy *enemy, Tower *tower, Vector3 explosionSource);
200 void EnemyUpdate();
201 float EnemyGetCurrentMaxSpeed(Enemy *enemy);
202 float EnemyGetMaxHealth(Enemy *enemy);
203 int EnemyGetNextPosition(int16_t currentX, int16_t currentY, int16_t *nextX, int16_t *nextY);
204 Vector2 EnemyGetPosition(Enemy *enemy, float deltaT, Vector2 *velocity, int *waypointPassedCount);
205 EnemyId EnemyGetId(Enemy *enemy);
206 Enemy *EnemyTryResolve(EnemyId enemyId);
207 Enemy *EnemyTryAdd(uint8_t enemyType, int16_t currentX, int16_t currentY);
208 int EnemyAddDamage(Enemy *enemy, float damage);
209 Enemy* EnemyGetClosestToCastle(int16_t towerX, int16_t towerY, float range);
210 int EnemyCount();
211 void EnemyDrawHealthbars(Camera3D camera);
212
213 //# Tower functions
214 void TowerInit();
215 Tower *TowerGetAt(int16_t x, int16_t y);
216 Tower *TowerTryAdd(uint8_t towerType, int16_t x, int16_t y);
217 Tower *GetTowerByType(uint8_t towerType);
218 int GetTowerCosts(uint8_t towerType);
219 float TowerGetMaxHealth(Tower *tower);
220 void TowerDraw();
221 void TowerUpdate();
222 void TowerDrawHealthBars(Camera3D camera);
223 void DrawSpriteUnit(SpriteUnit unit, Vector3 position, float t, int flip, int phase);
224
225 //# Particles
226 void ParticleInit();
227 void ParticleAdd(uint8_t particleType, Vector3 position, Vector3 velocity, float lifetime);
228 void ParticleUpdate();
229 void ParticleDraw();
230
231 //# Projectiles
232 void ProjectileInit();
233 void ProjectileDraw();
234 void ProjectileUpdate();
235 Projectile *ProjectileTryAdd(uint8_t projectileType, Enemy *enemy, Vector3 position, Vector3 target, float speed, float damage);
236
237 //# Pathfinding map
238 void PathfindingMapInit(int width, int height, Vector3 translate, float scale);
239 float PathFindingGetDistance(int mapX, int mapY);
240 Vector2 PathFindingGetGradient(Vector3 world);
241 int PathFindingFromWorldToMapPosition(Vector3 worldPosition, int16_t *mapX, int16_t *mapY);
242 void PathFindingMapUpdate();
243 void PathFindingMapDraw();
244
245 //# UI
246 void DrawHealthBar(Camera3D camera, Vector3 position, float healthRatio, Color barColor, float healthBarWidth);
247
248 //# Level 249 void DrawLevelGround(Level *level); 250
251 //# variables 252 extern Level *currentLevel; 253 extern Enemy enemies[ENEMY_MAX_COUNT]; 254 extern int enemyCount; 255 extern EnemyClassConfig enemyClassConfigs[]; 256 257 extern GUIState guiState; 258 extern GameTime gameTime; 259 extern Tower towers[TOWER_MAX_COUNT];
260 extern int towerCount; 261 262 extern Texture2D palette, spriteSheet;
263 264 #endif
  1 #include "td_main.h"
  2 #include <raymath.h>
  3 #include <stdlib.h>
  4 #include <math.h>
  5
  6 EnemyClassConfig enemyClassConfigs[] = {
  7     [ENEMY_TYPE_MINION] = {
  8       .health = 10.0f,
  9       .speed = 0.6f,
 10       .radius = 0.25f,
 11       .maxAcceleration = 1.0f,
 12       .explosionDamage = 1.0f,
 13       .requiredContactTime = 0.5f,
 14       .explosionRange = 1.0f,
 15       .explosionPushbackPower = 0.25f,
 16       .goldValue = 1,
 17     },
 18 };
 19
 20 Enemy enemies[ENEMY_MAX_COUNT];
 21 int enemyCount = 0;
 22
 23 SpriteUnit enemySprites[] = {
 24     [ENEMY_TYPE_MINION] = {
 25       .srcRect = {0, 16, 16, 16},
 26       .offset = {8.0f, 0.0f},
 27       .frameCount = 6,
 28       .frameDuration = 0.1f,
 29     },
 30 };
 31
 32 void EnemyInit()
 33 {
 34   for (int i = 0; i < ENEMY_MAX_COUNT; i++)
 35   {
 36     enemies[i] = (Enemy){0};
 37   }
 38   enemyCount = 0;
 39 }
 40
 41 float EnemyGetCurrentMaxSpeed(Enemy *enemy)
 42 {
 43   return enemyClassConfigs[enemy->enemyType].speed;
 44 }
 45
 46 float EnemyGetMaxHealth(Enemy *enemy)
 47 {
 48   return enemyClassConfigs[enemy->enemyType].health;
 49 }
 50
 51 int EnemyGetNextPosition(int16_t currentX, int16_t currentY, int16_t *nextX, int16_t *nextY)
 52 {
 53   int16_t castleX = 0;
 54   int16_t castleY = 0;
 55   int16_t dx = castleX - currentX;
 56   int16_t dy = castleY - currentY;
 57   if (dx == 0 && dy == 0)
 58   {
 59     *nextX = currentX;
 60     *nextY = currentY;
 61     return 1;
 62   }
 63   Vector2 gradient = PathFindingGetGradient((Vector3){currentX, 0, currentY});
 64
 65   if (gradient.x == 0 && gradient.y == 0)
 66   {
 67     *nextX = currentX;
 68     *nextY = currentY;
 69     return 1;
 70   }
 71
 72   if (fabsf(gradient.x) > fabsf(gradient.y))
 73   {
 74     *nextX = currentX + (int16_t)(gradient.x > 0.0f ? 1 : -1);
 75     *nextY = currentY;
 76     return 0;
 77   }
 78   *nextX = currentX;
 79   *nextY = currentY + (int16_t)(gradient.y > 0.0f ? 1 : -1);
 80   return 0;
 81 }
 82
 83
 84 // this function predicts the movement of the unit for the next deltaT seconds
 85 Vector2 EnemyGetPosition(Enemy *enemy, float deltaT, Vector2 *velocity, int *waypointPassedCount)
 86 {
 87   const float pointReachedDistance = 0.25f;
 88   const float pointReachedDistance2 = pointReachedDistance * pointReachedDistance;
 89   const float maxSimStepTime = 0.015625f;
 90
 91   float maxAcceleration = enemyClassConfigs[enemy->enemyType].maxAcceleration;
 92   float maxSpeed = EnemyGetCurrentMaxSpeed(enemy);
 93   int16_t nextX = enemy->nextX;
 94   int16_t nextY = enemy->nextY;
 95   Vector2 position = enemy->simPosition;
 96   int passedCount = 0;
 97   for (float t = 0.0f; t < deltaT; t += maxSimStepTime)
 98   {
 99     float stepTime = fminf(deltaT - t, maxSimStepTime);
100     Vector2 target = (Vector2){nextX, nextY};
101     float speed = Vector2Length(*velocity);
102     // draw the target position for debugging
103     DrawCubeWires((Vector3){target.x, 0.2f, target.y}, 0.1f, 0.4f, 0.1f, RED);
104     Vector2 lookForwardPos = Vector2Add(position, Vector2Scale(*velocity, speed));
105     if (Vector2DistanceSqr(target, lookForwardPos) <= pointReachedDistance2)
106     {
107       // we reached the target position, let's move to the next waypoint
108       EnemyGetNextPosition(nextX, nextY, &nextX, &nextY);
109       target = (Vector2){nextX, nextY};
110       // track how many waypoints we passed
111       passedCount++;
112     }
113
114     // acceleration towards the target
115     Vector2 unitDirection = Vector2Normalize(Vector2Subtract(target, lookForwardPos));
116     Vector2 acceleration = Vector2Scale(unitDirection, maxAcceleration * stepTime);
117     *velocity = Vector2Add(*velocity, acceleration);
118
119     // limit the speed to the maximum speed
120     if (speed > maxSpeed)
121     {
122       *velocity = Vector2Scale(*velocity, maxSpeed / speed);
123     }
124
125     // move the enemy
126     position = Vector2Add(position, Vector2Scale(*velocity, stepTime));
127   }
128
129   if (waypointPassedCount)
130   {
131     (*waypointPassedCount) = passedCount;
132   }
133
134   return position;
135 }
136
137 void EnemyDraw()
138 {
139   for (int i = 0; i < enemyCount; i++)
140   {
141     Enemy enemy = enemies[i];
142     if (enemy.enemyType == ENEMY_TYPE_NONE)
143     {
144       continue;
145     }
146
147     Vector2 position = EnemyGetPosition(&enemy, gameTime.time - enemy.startMovingTime, &enemy.simVelocity, 0);
148
149     // don't draw any trails for now; might replace this with footprints later
150     // if (enemy.movePathCount > 0)
151     // {
152     //   Vector3 p = {enemy.movePath[0].x, 0.2f, enemy.movePath[0].y};
153     //   DrawLine3D(p, (Vector3){position.x, 0.2f, position.y}, GREEN);
154     // }
155     // for (int j = 1; j < enemy.movePathCount; j++)
156     // {
157     //   Vector3 p = {enemy.movePath[j - 1].x, 0.2f, enemy.movePath[j - 1].y};
158     //   Vector3 q = {enemy.movePath[j].x, 0.2f, enemy.movePath[j].y};
159     //   DrawLine3D(p, q, GREEN);
160     // }
161
162     switch (enemy.enemyType)
163     {
164     case ENEMY_TYPE_MINION:
165       DrawSpriteUnit(enemySprites[ENEMY_TYPE_MINION], (Vector3){position.x, 0.0f, position.y},
166         enemy.walkedDistance, 0, 0);
167       break;
168     }
169   }
170 }
171
172 void EnemyTriggerExplode(Enemy *enemy, Tower *tower, Vector3 explosionSource)
173 {
174   // damage the tower
175   float explosionDamge = enemyClassConfigs[enemy->enemyType].explosionDamage;
176   float explosionRange = enemyClassConfigs[enemy->enemyType].explosionRange;
177   float explosionPushbackPower = enemyClassConfigs[enemy->enemyType].explosionPushbackPower;
178   float explosionRange2 = explosionRange * explosionRange;
179   tower->damage += enemyClassConfigs[enemy->enemyType].explosionDamage;
180   // explode the enemy
181   if (tower->damage >= TowerGetMaxHealth(tower))
182   {
183     tower->towerType = TOWER_TYPE_NONE;
184   }
185
186   ParticleAdd(PARTICLE_TYPE_EXPLOSION,
187     explosionSource,
188     (Vector3){0, 0.1f, 0}, 1.0f);
189
190   enemy->enemyType = ENEMY_TYPE_NONE;
191
192   // push back enemies & dealing damage
193   for (int i = 0; i < enemyCount; i++)
194   {
195     Enemy *other = &enemies[i];
196     if (other->enemyType == ENEMY_TYPE_NONE)
197     {
198       continue;
199     }
200     float distanceSqr = Vector2DistanceSqr(enemy->simPosition, other->simPosition);
201     if (distanceSqr > 0 && distanceSqr < explosionRange2)
202     {
203       Vector2 direction = Vector2Normalize(Vector2Subtract(other->simPosition, enemy->simPosition));
204       other->simPosition = Vector2Add(other->simPosition, Vector2Scale(direction, explosionPushbackPower));
205       EnemyAddDamage(other, explosionDamge);
206     }
207   }
208 }
209
210 void EnemyUpdate()
211 {
212   const float castleX = 0;
213   const float castleY = 0;
214   const float maxPathDistance2 = 0.25f * 0.25f;
215
216   for (int i = 0; i < enemyCount; i++)
217   {
218     Enemy *enemy = &enemies[i];
219     if (enemy->enemyType == ENEMY_TYPE_NONE)
220     {
221       continue;
222     }
223
224     int waypointPassedCount = 0;
225     Vector2 prevPosition = enemy->simPosition;
226     enemy->simPosition = EnemyGetPosition(enemy, gameTime.time - enemy->startMovingTime, &enemy->simVelocity, &waypointPassedCount);
227     enemy->startMovingTime = gameTime.time;
228     enemy->walkedDistance += Vector2Distance(prevPosition, enemy->simPosition);
229     // track path of unit
230     if (enemy->movePathCount == 0 || Vector2DistanceSqr(enemy->simPosition, enemy->movePath[0]) > maxPathDistance2)
231     {
232       for (int j = ENEMY_MAX_PATH_COUNT - 1; j > 0; j--)
233       {
234         enemy->movePath[j] = enemy->movePath[j - 1];
235       }
236       enemy->movePath[0] = enemy->simPosition;
237       if (++enemy->movePathCount > ENEMY_MAX_PATH_COUNT)
238       {
239         enemy->movePathCount = ENEMY_MAX_PATH_COUNT;
240       }
241     }
242
243     if (waypointPassedCount > 0)
244     {
245       enemy->currentX = enemy->nextX;
246       enemy->currentY = enemy->nextY;
247       if (EnemyGetNextPosition(enemy->currentX, enemy->currentY, &enemy->nextX, &enemy->nextY) &&
248         Vector2DistanceSqr(enemy->simPosition, (Vector2){castleX, castleY}) <= 0.25f * 0.25f)
249       {
250         // enemy reached the castle; remove it
251         enemy->enemyType = ENEMY_TYPE_NONE;
252         continue;
253       }
254     }
255   }
256
257   // handle collisions between enemies
258   for (int i = 0; i < enemyCount - 1; i++)
259   {
260     Enemy *enemyA = &enemies[i];
261     if (enemyA->enemyType == ENEMY_TYPE_NONE)
262     {
263       continue;
264     }
265     for (int j = i + 1; j < enemyCount; j++)
266     {
267       Enemy *enemyB = &enemies[j];
268       if (enemyB->enemyType == ENEMY_TYPE_NONE)
269       {
270         continue;
271       }
272       float distanceSqr = Vector2DistanceSqr(enemyA->simPosition, enemyB->simPosition);
273       float radiusA = enemyClassConfigs[enemyA->enemyType].radius;
274       float radiusB = enemyClassConfigs[enemyB->enemyType].radius;
275       float radiusSum = radiusA + radiusB;
276       if (distanceSqr < radiusSum * radiusSum && distanceSqr > 0.001f)
277       {
278         // collision
279         float distance = sqrtf(distanceSqr);
280         float overlap = radiusSum - distance;
281         // move the enemies apart, but softly; if we have a clog of enemies,
282         // moving them perfectly apart can cause them to jitter
283         float positionCorrection = overlap / 5.0f;
284         Vector2 direction = (Vector2){
285             (enemyB->simPosition.x - enemyA->simPosition.x) / distance * positionCorrection,
286             (enemyB->simPosition.y - enemyA->simPosition.y) / distance * positionCorrection};
287         enemyA->simPosition = Vector2Subtract(enemyA->simPosition, direction);
288         enemyB->simPosition = Vector2Add(enemyB->simPosition, direction);
289       }
290     }
291   }
292
293   // handle collisions between enemies and towers
294   for (int i = 0; i < enemyCount; i++)
295   {
296     Enemy *enemy = &enemies[i];
297     if (enemy->enemyType == ENEMY_TYPE_NONE)
298     {
299       continue;
300     }
301     enemy->contactTime -= gameTime.deltaTime;
302     if (enemy->contactTime < 0.0f)
303     {
304       enemy->contactTime = 0.0f;
305     }
306
307     float enemyRadius = enemyClassConfigs[enemy->enemyType].radius;
308     // linear search over towers; could be optimized by using path finding tower map,
309     // but for now, we keep it simple
310     for (int j = 0; j < towerCount; j++)
311     {
312       Tower *tower = &towers[j];
313       if (tower->towerType == TOWER_TYPE_NONE)
314       {
315         continue;
316       }
317       float distanceSqr = Vector2DistanceSqr(enemy->simPosition, (Vector2){tower->x, tower->y});
318       float combinedRadius = enemyRadius + 0.708; // sqrt(0.5^2 + 0.5^2), corner-center distance of square with side length 1
319       if (distanceSqr > combinedRadius * combinedRadius)
320       {
321         continue;
322       }
323       // potential collision; square / circle intersection
324       float dx = tower->x - enemy->simPosition.x;
325       float dy = tower->y - enemy->simPosition.y;
326       float absDx = fabsf(dx);
327       float absDy = fabsf(dy);
328       Vector3 contactPoint = {0};
329       if (absDx <= 0.5f && absDx <= absDy) {
330         // vertical collision; push the enemy out horizontally
331         float overlap = enemyRadius + 0.5f - absDy;
332         if (overlap < 0.0f)
333         {
334           continue;
335         }
336         float direction = dy > 0.0f ? -1.0f : 1.0f;
337         enemy->simPosition.y += direction * overlap;
338         contactPoint = (Vector3){enemy->simPosition.x, 0.2f, tower->y + direction * 0.5f};
339       }
340       else if (absDy <= 0.5f && absDy <= absDx)
341       {
342         // horizontal collision; push the enemy out vertically
343         float overlap = enemyRadius + 0.5f - absDx;
344         if (overlap < 0.0f)
345         {
346           continue;
347         }
348         float direction = dx > 0.0f ? -1.0f : 1.0f;
349         enemy->simPosition.x += direction * overlap;
350         contactPoint = (Vector3){tower->x + direction * 0.5f, 0.2f, enemy->simPosition.y};
351       }
352       else
353       {
354         // possible collision with a corner
355         float cornerDX = dx > 0.0f ? -0.5f : 0.5f;
356         float cornerDY = dy > 0.0f ? -0.5f : 0.5f;
357         float cornerX = tower->x + cornerDX;
358         float cornerY = tower->y + cornerDY;
359         float cornerDistanceSqr = Vector2DistanceSqr(enemy->simPosition, (Vector2){cornerX, cornerY});
360         if (cornerDistanceSqr > enemyRadius * enemyRadius)
361         {
362           continue;
363         }
364         // push the enemy out along the diagonal
365         float cornerDistance = sqrtf(cornerDistanceSqr);
366         float overlap = enemyRadius - cornerDistance;
367         float directionX = cornerDistance > 0.0f ? (cornerX - enemy->simPosition.x) / cornerDistance : -cornerDX;
368         float directionY = cornerDistance > 0.0f ? (cornerY - enemy->simPosition.y) / cornerDistance : -cornerDY;
369         enemy->simPosition.x -= directionX * overlap;
370         enemy->simPosition.y -= directionY * overlap;
371         contactPoint = (Vector3){cornerX, 0.2f, cornerY};
372       }
373
374       if (enemyClassConfigs[enemy->enemyType].explosionDamage > 0.0f)
375       {
376         enemy->contactTime += gameTime.deltaTime * 2.0f; // * 2 to undo the subtraction above
377         if (enemy->contactTime >= enemyClassConfigs[enemy->enemyType].requiredContactTime)
378         {
379           EnemyTriggerExplode(enemy, tower, contactPoint);
380         }
381       }
382     }
383   }
384 }
385
386 EnemyId EnemyGetId(Enemy *enemy)
387 {
388   return (EnemyId){enemy - enemies, enemy->generation};
389 }
390
391 Enemy *EnemyTryResolve(EnemyId enemyId)
392 {
393   if (enemyId.index >= ENEMY_MAX_COUNT)
394   {
395     return 0;
396   }
397   Enemy *enemy = &enemies[enemyId.index];
398   if (enemy->generation != enemyId.generation || enemy->enemyType == ENEMY_TYPE_NONE)
399   {
400     return 0;
401   }
402   return enemy;
403 }
404
405 Enemy *EnemyTryAdd(uint8_t enemyType, int16_t currentX, int16_t currentY)
406 {
407   Enemy *spawn = 0;
408   for (int i = 0; i < enemyCount; i++)
409   {
410     Enemy *enemy = &enemies[i];
411     if (enemy->enemyType == ENEMY_TYPE_NONE)
412     {
413       spawn = enemy;
414       break;
415     }
416   }
417
418   if (enemyCount < ENEMY_MAX_COUNT && !spawn)
419   {
420     spawn = &enemies[enemyCount++];
421   }
422
423   if (spawn)
424   {
425     spawn->currentX = currentX;
426     spawn->currentY = currentY;
427     spawn->nextX = currentX;
428     spawn->nextY = currentY;
429     spawn->simPosition = (Vector2){currentX, currentY};
430     spawn->simVelocity = (Vector2){0, 0};
431     spawn->enemyType = enemyType;
432     spawn->startMovingTime = gameTime.time;
433     spawn->damage = 0.0f;
434     spawn->futureDamage = 0.0f;
435     spawn->generation++;
436     spawn->movePathCount = 0;
437     spawn->walkedDistance = 0.0f;
438   }
439
440   return spawn;
441 }
442
443 int EnemyAddDamage(Enemy *enemy, float damage)
444 {
445   enemy->damage += damage;
446   if (enemy->damage >= EnemyGetMaxHealth(enemy))
447   {
448     currentLevel->playerGold += enemyClassConfigs[enemy->enemyType].goldValue;
449     enemy->enemyType = ENEMY_TYPE_NONE;
450     return 1;
451   }
452
453   return 0;
454 }
455
456 Enemy* EnemyGetClosestToCastle(int16_t towerX, int16_t towerY, float range)
457 {
458   int16_t castleX = 0;
459   int16_t castleY = 0;
460   Enemy* closest = 0;
461   int16_t closestDistance = 0;
462   float range2 = range * range;
463   for (int i = 0; i < enemyCount; i++)
464   {
465     Enemy* enemy = &enemies[i];
466     if (enemy->enemyType == ENEMY_TYPE_NONE)
467     {
468       continue;
469     }
470     float maxHealth = EnemyGetMaxHealth(enemy);
471     if (enemy->futureDamage >= maxHealth)
472     {
473       // ignore enemies that will die soon
474       continue;
475     }
476     int16_t dx = castleX - enemy->currentX;
477     int16_t dy = castleY - enemy->currentY;
478     int16_t distance = abs(dx) + abs(dy);
479     if (!closest || distance < closestDistance)
480     {
481       float tdx = towerX - enemy->currentX;
482       float tdy = towerY - enemy->currentY;
483       float tdistance2 = tdx * tdx + tdy * tdy;
484       if (tdistance2 <= range2)
485       {
486         closest = enemy;
487         closestDistance = distance;
488       }
489     }
490   }
491   return closest;
492 }
493
494 int EnemyCount()
495 {
496   int count = 0;
497   for (int i = 0; i < enemyCount; i++)
498   {
499     if (enemies[i].enemyType != ENEMY_TYPE_NONE)
500     {
501       count++;
502     }
503   }
504   return count;
505 }
506
507 void EnemyDrawHealthbars(Camera3D camera)
508 {
509   for (int i = 0; i < enemyCount; i++)
510   {
511     Enemy *enemy = &enemies[i];
512     if (enemy->enemyType == ENEMY_TYPE_NONE || enemy->damage == 0.0f)
513     {
514       continue;
515     }
516     Vector3 position = (Vector3){enemy->simPosition.x, 0.5f, enemy->simPosition.y};
517     float maxHealth = EnemyGetMaxHealth(enemy);
518     float health = maxHealth - enemy->damage;
519     float healthRatio = health / maxHealth;
520
521     DrawHealthBar(camera, position, healthRatio, GREEN, 15.0f);
522   }
523 }
  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 // The queue is a simple array of nodes, we add nodes to the end and remove
  5 // nodes from the front. We keep the array around to avoid unnecessary allocations
  6 static PathfindingNode *pathfindingNodeQueue = 0;
  7 static int pathfindingNodeQueueCount = 0;
  8 static int pathfindingNodeQueueCapacity = 0;
  9
 10 // The pathfinding map stores the distances from the castle to each cell in the map.
 11 static PathfindingMap pathfindingMap = {0};
 12
 13 void PathfindingMapInit(int width, int height, Vector3 translate, float scale)
 14 {
 15   // transforming between map space and world space allows us to adapt
 16   // position and scale of the map without changing the pathfinding data
 17   pathfindingMap.toWorldSpace = MatrixTranslate(translate.x, translate.y, translate.z);
 18   pathfindingMap.toWorldSpace = MatrixMultiply(pathfindingMap.toWorldSpace, MatrixScale(scale, scale, scale));
 19   pathfindingMap.toMapSpace = MatrixInvert(pathfindingMap.toWorldSpace);
 20   pathfindingMap.width = width;
 21   pathfindingMap.height = height;
 22   pathfindingMap.scale = scale;
 23   pathfindingMap.distances = (float *)MemAlloc(width * height * sizeof(float));
 24   for (int i = 0; i < width * height; i++)
 25   {
 26     pathfindingMap.distances[i] = -1.0f;
 27   }
 28
 29   pathfindingMap.towerIndex = (long *)MemAlloc(width * height * sizeof(long));
 30   pathfindingMap.deltaSrc = (DeltaSrc *)MemAlloc(width * height * sizeof(DeltaSrc));
 31 }
 32
 33 static void PathFindingNodePush(int16_t x, int16_t y, int16_t fromX, int16_t fromY, float distance)
 34 {
 35   if (pathfindingNodeQueueCount >= pathfindingNodeQueueCapacity)
 36   {
 37     pathfindingNodeQueueCapacity = pathfindingNodeQueueCapacity == 0 ? 256 : pathfindingNodeQueueCapacity * 2;
 38     // we use MemAlloc/MemRealloc to allocate memory for the queue
 39     // I am not entirely sure if MemRealloc allows passing a null pointer
 40     // so we check if the pointer is null and use MemAlloc in that case
 41     if (pathfindingNodeQueue == 0)
 42     {
 43       pathfindingNodeQueue = (PathfindingNode *)MemAlloc(pathfindingNodeQueueCapacity * sizeof(PathfindingNode));
 44     }
 45     else
 46     {
 47       pathfindingNodeQueue = (PathfindingNode *)MemRealloc(pathfindingNodeQueue, pathfindingNodeQueueCapacity * sizeof(PathfindingNode));
 48     }
 49   }
 50
 51   PathfindingNode *node = &pathfindingNodeQueue[pathfindingNodeQueueCount++];
 52   node->x = x;
 53   node->y = y;
 54   node->fromX = fromX;
 55   node->fromY = fromY;
 56   node->distance = distance;
 57 }
 58
 59 static PathfindingNode *PathFindingNodePop()
 60 {
 61   if (pathfindingNodeQueueCount == 0)
 62   {
 63     return 0;
 64   }
 65   // we return the first node in the queue; we want to return a pointer to the node
 66   // so we can return 0 if the queue is empty.
 67   // We should _not_ return a pointer to the element in the list, because the list
 68   // may be reallocated and the pointer would become invalid. Or the
 69   // popped element is overwritten by the next push operation.
 70   // Using static here means that the variable is permanently allocated.
 71   static PathfindingNode node;
 72   node = pathfindingNodeQueue[0];
 73   // we shift all nodes one position to the front
 74   for (int i = 1; i < pathfindingNodeQueueCount; i++)
 75   {
 76     pathfindingNodeQueue[i - 1] = pathfindingNodeQueue[i];
 77   }
 78   --pathfindingNodeQueueCount;
 79   return &node;
 80 }
 81
 82 float PathFindingGetDistance(int mapX, int mapY)
 83 {
 84   if (mapX < 0 || mapX >= pathfindingMap.width || mapY < 0 || mapY >= pathfindingMap.height)
 85   {
 86     // when outside the map, we return the manhattan distance to the castle (0,0)
 87     return fabsf((float)mapX) + fabsf((float)mapY);
 88   }
 89
 90   return pathfindingMap.distances[mapY * pathfindingMap.width + mapX];
 91 }
 92
 93 // transform a world position to a map position in the array;
 94 // returns true if the position is inside the map
 95 int PathFindingFromWorldToMapPosition(Vector3 worldPosition, int16_t *mapX, int16_t *mapY)
 96 {
 97   Vector3 mapPosition = Vector3Transform(worldPosition, pathfindingMap.toMapSpace);
 98   *mapX = (int16_t)mapPosition.x;
 99   *mapY = (int16_t)mapPosition.z;
100   return *mapX >= 0 && *mapX < pathfindingMap.width && *mapY >= 0 && *mapY < pathfindingMap.height;
101 }
102
103 void PathFindingMapUpdate()
104 {
105   const int castleX = 0, castleY = 0;
106   int16_t castleMapX, castleMapY;
107   if (!PathFindingFromWorldToMapPosition((Vector3){castleX, 0.0f, castleY}, &castleMapX, &castleMapY))
108   {
109     return;
110   }
111   int width = pathfindingMap.width, height = pathfindingMap.height;
112
113   // reset the distances to -1
114   for (int i = 0; i < width * height; i++)
115   {
116     pathfindingMap.distances[i] = -1.0f;
117   }
118   // reset the tower indices
119   for (int i = 0; i < width * height; i++)
120   {
121     pathfindingMap.towerIndex[i] = -1;
122   }
123   // reset the delta src
124   for (int i = 0; i < width * height; i++)
125   {
126     pathfindingMap.deltaSrc[i].x = 0;
127     pathfindingMap.deltaSrc[i].y = 0;
128   }
129
130   for (int i = 0; i < towerCount; i++)
131   {
132     Tower *tower = &towers[i];
133     if (tower->towerType == TOWER_TYPE_NONE || tower->towerType == TOWER_TYPE_BASE)
134     {
135       continue;
136     }
137     int16_t mapX, mapY;
138     // technically, if the tower cell scale is not in sync with the pathfinding map scale,
139     // this would not work correctly and needs to be refined to allow towers covering multiple cells
140     // or having multiple towers in one cell; for simplicity, we assume that the tower covers exactly
141     // one cell. For now.
142     if (!PathFindingFromWorldToMapPosition((Vector3){tower->x, 0.0f, tower->y}, &mapX, &mapY))
143     {
144       continue;
145     }
146     int index = mapY * width + mapX;
147     pathfindingMap.towerIndex[index] = i;
148   }
149
150   // we start at the castle and add the castle to the queue
151   pathfindingMap.maxDistance = 0.0f;
152   pathfindingNodeQueueCount = 0;
153   PathFindingNodePush(castleMapX, castleMapY, castleMapX, castleMapY, 0.0f);
154   PathfindingNode *node = 0;
155   while ((node = PathFindingNodePop()))
156   {
157     if (node->x < 0 || node->x >= width || node->y < 0 || node->y >= height)
158     {
159       continue;
160     }
161     int index = node->y * width + node->x;
162     if (pathfindingMap.distances[index] >= 0 && pathfindingMap.distances[index] <= node->distance)
163     {
164       continue;
165     }
166
167     int deltaX = node->x - node->fromX;
168     int deltaY = node->y - node->fromY;
169     // even if the cell is blocked by a tower, we still may want to store the direction
170     // (though this might not be needed, IDK right now)
171     pathfindingMap.deltaSrc[index].x = (char) deltaX;
172     pathfindingMap.deltaSrc[index].y = (char) deltaY;
173
174     // we skip nodes that are blocked by towers
175     if (pathfindingMap.towerIndex[index] >= 0)
176     {
177       node->distance += 8.0f;
178     }
179     pathfindingMap.distances[index] = node->distance;
180     pathfindingMap.maxDistance = fmaxf(pathfindingMap.maxDistance, node->distance);
181     PathFindingNodePush(node->x, node->y + 1, node->x, node->y, node->distance + 1.0f);
182     PathFindingNodePush(node->x, node->y - 1, node->x, node->y, node->distance + 1.0f);
183     PathFindingNodePush(node->x + 1, node->y, node->x, node->y, node->distance + 1.0f);
184     PathFindingNodePush(node->x - 1, node->y, node->x, node->y, node->distance + 1.0f);
185   }
186 }
187
188 void PathFindingMapDraw()
189 {
190   float cellSize = pathfindingMap.scale * 0.9f;
191   float highlightDistance = fmodf(GetTime() * 4.0f, pathfindingMap.maxDistance);
192   for (int x = 0; x < pathfindingMap.width; x++)
193   {
194     for (int y = 0; y < pathfindingMap.height; y++)
195     {
196       float distance = pathfindingMap.distances[y * pathfindingMap.width + x];
197       float colorV = distance < 0 ? 0 : fminf(distance / pathfindingMap.maxDistance, 1.0f);
198       Color color = distance < 0 ? BLUE : (Color){fminf(colorV, 1.0f) * 255, 0, 0, 255};
199       Vector3 position = Vector3Transform((Vector3){x, -0.25f, y}, pathfindingMap.toWorldSpace);
200       // animate the distance "wave" to show how the pathfinding algorithm expands
201       // from the castle
202       if (distance + 0.5f > highlightDistance && distance - 0.5f < highlightDistance)
203       {
204         color = BLACK;
205       }
206       DrawCube(position, cellSize, 0.1f, cellSize, color);
207     }
208   }
209 }
210
211 Vector2 PathFindingGetGradient(Vector3 world)
212 {
213   int16_t mapX, mapY;
214   if (PathFindingFromWorldToMapPosition(world, &mapX, &mapY))
215   {
216     DeltaSrc delta = pathfindingMap.deltaSrc[mapY * pathfindingMap.width + mapX];
217     return (Vector2){(float)-delta.x, (float)-delta.y};
218   }
219   // fallback to a simple gradient calculation
220   float n = PathFindingGetDistance(mapX, mapY - 1);
221   float s = PathFindingGetDistance(mapX, mapY + 1);
222   float w = PathFindingGetDistance(mapX - 1, mapY);
223   float e = PathFindingGetDistance(mapX + 1, mapY);
224   return (Vector2){w - e + 0.25f, n - s + 0.125f};
225 }
  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 static Projectile projectiles[PROJECTILE_MAX_COUNT];
  5 static int projectileCount = 0;
  6
  7 void ProjectileInit()
  8 {
  9   for (int i = 0; i < PROJECTILE_MAX_COUNT; i++)
 10   {
 11     projectiles[i] = (Projectile){0};
 12   }
 13 }
 14
 15 void ProjectileDraw()
 16 {
 17   for (int i = 0; i < projectileCount; i++)
 18   {
 19     Projectile projectile = projectiles[i];
 20     if (projectile.projectileType == PROJECTILE_TYPE_NONE)
 21     {
 22       continue;
 23     }
 24     float transition = (gameTime.time - projectile.shootTime) / (projectile.arrivalTime - projectile.shootTime);
 25     if (transition >= 1.0f)
 26     {
 27       continue;
 28     }
 29     for (float transitionOffset = 0.0f; transitionOffset < 1.0f; transitionOffset += 0.1f)
 30     {
 31       float t = transition + transitionOffset * 0.3f;
 32       if (t > 1.0f)
 33       {
 34         break;
 35       }
 36       Vector3 position = Vector3Lerp(projectile.position, projectile.target, t);
 37       Color color = RED;
 38       if (projectile.projectileType == PROJECTILE_TYPE_ARROW)
 39       {
 40         // make tip red but quickly fade to brown
 41         color = ColorLerp(BROWN, RED, transitionOffset * transitionOffset);
 42         // fake a ballista flight path using parabola equation
 43         float parabolaT = t - 0.5f;
 44         parabolaT = 1.0f - 4.0f * parabolaT * parabolaT;
 45         position.y += 0.15f * parabolaT * projectile.distance;
 46       }
 47
 48       float size = 0.06f * (transitionOffset + 0.25f);
 49       DrawCube(position, size, size, size, color);
 50     }
 51   }
 52 }
 53
 54 void ProjectileUpdate()
 55 {
 56   for (int i = 0; i < projectileCount; i++)
 57   {
 58     Projectile *projectile = &projectiles[i];
 59     if (projectile->projectileType == PROJECTILE_TYPE_NONE)
 60     {
 61       continue;
 62     }
 63     float transition = (gameTime.time - projectile->shootTime) / (projectile->arrivalTime - projectile->shootTime);
 64     if (transition >= 1.0f)
 65     {
 66       projectile->projectileType = PROJECTILE_TYPE_NONE;
 67       Enemy *enemy = EnemyTryResolve(projectile->targetEnemy);
 68       if (enemy)
 69       {
 70         EnemyAddDamage(enemy, projectile->damage);
 71       }
 72       continue;
 73     }
 74   }
 75 }
 76
 77 Projectile *ProjectileTryAdd(uint8_t projectileType, Enemy *enemy, Vector3 position, Vector3 target, float speed, float damage)
 78 {
 79   for (int i = 0; i < PROJECTILE_MAX_COUNT; i++)
 80   {
 81     Projectile *projectile = &projectiles[i];
 82     if (projectile->projectileType == PROJECTILE_TYPE_NONE)
 83     {
 84       projectile->projectileType = projectileType;
 85       projectile->shootTime = gameTime.time;
 86       float distance = Vector3Distance(position, target);
 87       projectile->arrivalTime = gameTime.time + distance / speed;
 88       projectile->damage = damage;
 89       projectile->position = position;
 90       projectile->target = target;
 91       projectile->directionNormal = Vector3Scale(Vector3Subtract(target, position), 1.0f / distance);
 92       projectile->distance = distance;
 93       projectile->targetEnemy = EnemyGetId(enemy);
 94       projectileCount = projectileCount <= i ? i + 1 : projectileCount;
 95       return projectile;
 96     }
 97   }
 98   return 0;
 99 }
  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 static Particle particles[PARTICLE_MAX_COUNT];
  5 static int particleCount = 0;
  6
  7 void ParticleInit()
  8 {
  9   for (int i = 0; i < PARTICLE_MAX_COUNT; i++)
 10   {
 11     particles[i] = (Particle){0};
 12   }
 13   particleCount = 0;
 14 }
 15
 16 static void DrawExplosionParticle(Particle *particle, float transition)
 17 {
 18   float size = 1.2f * (1.0f - transition);
 19   Color startColor = WHITE;
 20   Color endColor = RED;
 21   Color color = ColorLerp(startColor, endColor, transition);
 22   DrawCube(particle->position, size, size, size, color);
 23 }
 24
 25 void ParticleAdd(uint8_t particleType, Vector3 position, Vector3 velocity, float lifetime)
 26 {
 27   if (particleCount >= PARTICLE_MAX_COUNT)
 28   {
 29     return;
 30   }
 31
 32   int index = -1;
 33   for (int i = 0; i < particleCount; i++)
 34   {
 35     if (particles[i].particleType == PARTICLE_TYPE_NONE)
 36     {
 37       index = i;
 38       break;
 39     }
 40   }
 41
 42   if (index == -1)
 43   {
 44     index = particleCount++;
 45   }
 46
 47   Particle *particle = &particles[index];
 48   particle->particleType = particleType;
 49   particle->spawnTime = gameTime.time;
 50   particle->lifetime = lifetime;
 51   particle->position = position;
 52   particle->velocity = velocity;
 53 }
 54
 55 void ParticleUpdate()
 56 {
 57   for (int i = 0; i < particleCount; i++)
 58   {
 59     Particle *particle = &particles[i];
 60     if (particle->particleType == PARTICLE_TYPE_NONE)
 61     {
 62       continue;
 63     }
 64
 65     float age = gameTime.time - particle->spawnTime;
 66
 67     if (particle->lifetime > age)
 68     {
 69       particle->position = Vector3Add(particle->position, Vector3Scale(particle->velocity, gameTime.deltaTime));
 70     }
 71     else {
 72       particle->particleType = PARTICLE_TYPE_NONE;
 73     }
 74   }
 75 }
 76
 77 void ParticleDraw()
 78 {
 79   for (int i = 0; i < particleCount; i++)
 80   {
 81     Particle particle = particles[i];
 82     if (particle.particleType == PARTICLE_TYPE_NONE)
 83     {
 84       continue;
 85     }
 86
 87     float age = gameTime.time - particle.spawnTime;
 88     float transition = age / particle.lifetime;
 89     switch (particle.particleType)
 90     {
 91     case PARTICLE_TYPE_EXPLOSION:
 92       DrawExplosionParticle(&particle, transition);
 93       break;
 94     default:
 95       DrawCube(particle.position, 0.3f, 0.5f, 0.3f, RED);
 96       break;
 97     }
 98   }
 99 }
  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 Tower towers[TOWER_MAX_COUNT];
  5 int towerCount = 0;
  6
  7 Model towerModels[TOWER_TYPE_COUNT];
8
9 // definition of our archer unit 10 SpriteUnit archerUnit = { 11 .srcRect = {0, 0, 16, 16}, 12 .offset = {7, 1}, 13 .frameCount = 1, 14 .frameDuration = 0.0f, 15 .srcWeaponIdleRect = {16, 0, 6, 16}, 16 .srcWeaponIdleOffset = {8, 0}, 17 .srcWeaponCooldownRect = {22, 0, 11, 16}, 18 .srcWeaponCooldownOffset = {10, 0}, 19 }; 20 21 void DrawSpriteUnit(SpriteUnit unit, Vector3 position, float t, int flip, int phase) 22 { 23 float xScale = flip ? -1.0f : 1.0f; 24 Camera3D camera = currentLevel->camera; 25 float size = 0.5f; 26 Vector2 offset = (Vector2){ unit.offset.x / 16.0f * size, unit.offset.y / 16.0f * size * xScale }; 27 Vector2 scale = (Vector2){ unit.srcRect.width / 16.0f * size, unit.srcRect.height / 16.0f * size }; 28 // we want the sprite to face the camera, so we need to calculate the up vector 29 Vector3 forward = Vector3Subtract(camera.target, camera.position); 30 Vector3 up = {0, 1, 0}; 31 Vector3 right = Vector3CrossProduct(forward, up); 32 up = Vector3Normalize(Vector3CrossProduct(right, forward)); 33 34 Rectangle srcRect = unit.srcRect; 35 if (unit.frameCount > 1) 36 { 37 srcRect.x += (int)(t / unit.frameDuration) % unit.frameCount * srcRect.width; 38 } 39 if (flip) 40 { 41 srcRect.x += srcRect.width; 42 srcRect.width = -srcRect.width; 43 } 44 DrawBillboardPro(camera, spriteSheet, srcRect, position, up, scale, offset, 0, WHITE); 45 46 if (phase == SPRITE_UNIT_PHASE_WEAPON_COOLDOWN && unit.srcWeaponCooldownRect.width > 0) 47 { 48 offset = (Vector2){ unit.srcWeaponCooldownOffset.x / 16.0f * size, unit.srcWeaponCooldownOffset.y / 16.0f * size }; 49 scale = (Vector2){ unit.srcWeaponCooldownRect.width / 16.0f * size, unit.srcWeaponCooldownRect.height / 16.0f * size }; 50 srcRect = unit.srcWeaponCooldownRect; 51 if (flip) 52 { 53 // position.x = flip * scale.x * 0.5f; 54 srcRect.x += srcRect.width; 55 srcRect.width = -srcRect.width; 56 offset.x = scale.x - offset.x; 57 } 58 DrawBillboardPro(camera, spriteSheet, srcRect, position, up, scale, offset, 0, WHITE); 59 } 60 else if (phase == SPRITE_UNIT_PHASE_WEAPON_IDLE && unit.srcWeaponIdleRect.width > 0) 61 { 62 offset = (Vector2){ unit.srcWeaponIdleOffset.x / 16.0f * size, unit.srcWeaponIdleOffset.y / 16.0f * size }; 63 scale = (Vector2){ unit.srcWeaponIdleRect.width / 16.0f * size, unit.srcWeaponIdleRect.height / 16.0f * size }; 64 srcRect = unit.srcWeaponIdleRect; 65 if (flip) 66 { 67 // position.x = flip * scale.x * 0.5f; 68 srcRect.x += srcRect.width; 69 srcRect.width = -srcRect.width; 70 offset.x = scale.x - offset.x; 71 }
72 DrawBillboardPro(camera, spriteSheet, srcRect, position, up, scale, offset, 0, WHITE); 73 } 74 } 75 76 void TowerInit() 77 { 78 for (int i = 0; i < TOWER_MAX_COUNT; i++) 79 { 80 towers[i] = (Tower){0}; 81 }
82 towerCount = 0; 83 84 towerModels[TOWER_TYPE_BASE] = LoadModel("data/keep.glb"); 85 towerModels[TOWER_TYPE_WALL] = LoadModel("data/wall-0000.glb"); 86 87 for (int i = 0; i < TOWER_TYPE_COUNT; i++) 88 { 89 if (towerModels[i].materials) 90 { 91 // assign the palette texture to the material of the model (0 is not used afaik) 92 towerModels[i].materials[1].maps[MATERIAL_MAP_DIFFUSE].texture = palette; 93 } 94 } 95 } 96 97 static void TowerGunUpdate(Tower *tower) 98 { 99 if (tower->cooldown <= 0) 100 { 101 Enemy *enemy = EnemyGetClosestToCastle(tower->x, tower->y, 3.0f); 102 if (enemy) 103 { 104 tower->cooldown = 0.5f; 105 // shoot the enemy; determine future position of the enemy 106 float bulletSpeed = 4.0f; 107 float bulletDamage = 3.0f; 108 Vector2 velocity = enemy->simVelocity; 109 Vector2 futurePosition = EnemyGetPosition(enemy, gameTime.time - enemy->startMovingTime, &velocity, 0); 110 Vector2 towerPosition = {tower->x, tower->y}; 111 float eta = Vector2Distance(towerPosition, futurePosition) / bulletSpeed; 112 for (int i = 0; i < 8; i++) { 113 velocity = enemy->simVelocity; 114 futurePosition = EnemyGetPosition(enemy, gameTime.time - enemy->startMovingTime + eta, &velocity, 0); 115 float distance = Vector2Distance(towerPosition, futurePosition); 116 float eta2 = distance / bulletSpeed; 117 if (fabs(eta - eta2) < 0.01f) { 118 break; 119 } 120 eta = (eta2 + eta) * 0.5f; 121 } 122 ProjectileTryAdd(PROJECTILE_TYPE_ARROW, enemy, 123 (Vector3){towerPosition.x, 1.33f, towerPosition.y}, 124 (Vector3){futurePosition.x, 0.25f, futurePosition.y}, 125 bulletSpeed, bulletDamage); 126 enemy->futureDamage += bulletDamage; 127 tower->lastTargetPosition = futurePosition; 128 } 129 } 130 else 131 { 132 tower->cooldown -= gameTime.deltaTime; 133 } 134 } 135 136 Tower *TowerGetAt(int16_t x, int16_t y) 137 { 138 for (int i = 0; i < towerCount; i++) 139 { 140 if (towers[i].x == x && towers[i].y == y && towers[i].towerType != TOWER_TYPE_NONE) 141 { 142 return &towers[i]; 143 } 144 } 145 return 0; 146 } 147 148 Tower *TowerTryAdd(uint8_t towerType, int16_t x, int16_t y) 149 { 150 if (towerCount >= TOWER_MAX_COUNT) 151 { 152 return 0; 153 } 154 155 Tower *tower = TowerGetAt(x, y); 156 if (tower) 157 { 158 return 0; 159 } 160 161 tower = &towers[towerCount++]; 162 tower->x = x; 163 tower->y = y; 164 tower->towerType = towerType; 165 tower->cooldown = 0.0f; 166 tower->damage = 0.0f; 167 return tower; 168 } 169 170 Tower *GetTowerByType(uint8_t towerType) 171 { 172 for (int i = 0; i < towerCount; i++) 173 { 174 if (towers[i].towerType == towerType) 175 { 176 return &towers[i]; 177 } 178 } 179 return 0; 180 } 181 182 int GetTowerCosts(uint8_t towerType) 183 { 184 switch (towerType) 185 { 186 case TOWER_TYPE_BASE: 187 return 0; 188 case TOWER_TYPE_GUN: 189 return 6; 190 case TOWER_TYPE_WALL: 191 return 2; 192 } 193 return 0; 194 } 195 196 float TowerGetMaxHealth(Tower *tower) 197 { 198 switch (tower->towerType) 199 { 200 case TOWER_TYPE_BASE: 201 return 10.0f; 202 case TOWER_TYPE_GUN: 203 return 3.0f; 204 case TOWER_TYPE_WALL: 205 return 5.0f; 206 } 207 return 0.0f; 208 } 209 210 void TowerDraw() 211 { 212 for (int i = 0; i < towerCount; i++) 213 { 214 Tower tower = towers[i]; 215 if (tower.towerType == TOWER_TYPE_NONE) 216 { 217 continue; 218 } 219 220 switch (tower.towerType) 221 { 222 case TOWER_TYPE_GUN: 223 { 224 Vector2 screenPosTower = GetWorldToScreen((Vector3){tower.x, 0.0f, tower.y}, currentLevel->camera); 225 Vector2 screenPosTarget = GetWorldToScreen((Vector3){tower.lastTargetPosition.x, 0.0f, tower.lastTargetPosition.y}, currentLevel->camera); 226 DrawModel(towerModels[TOWER_TYPE_WALL], (Vector3){tower.x, 0.0f, tower.y}, 1.0f, WHITE); 227 DrawSpriteUnit(archerUnit, (Vector3){tower.x, 1.0f, tower.y}, 0, screenPosTarget.x > screenPosTower.x, 228 tower.cooldown > 0.2f ? SPRITE_UNIT_PHASE_WEAPON_COOLDOWN : SPRITE_UNIT_PHASE_WEAPON_IDLE); 229 } 230 break; 231 default: 232 if (towerModels[tower.towerType].materials) 233 { 234 DrawModel(towerModels[tower.towerType], (Vector3){tower.x, 0.0f, tower.y}, 1.0f, WHITE); 235 } else { 236 DrawCube((Vector3){tower.x, 0.5f, tower.y}, 1.0f, 1.0f, 1.0f, LIGHTGRAY); 237 } 238 break; 239 } 240 } 241 } 242 243 void TowerUpdate() 244 { 245 for (int i = 0; i < towerCount; i++) 246 { 247 Tower *tower = &towers[i]; 248 switch (tower->towerType) 249 { 250 case TOWER_TYPE_GUN: 251 TowerGunUpdate(tower); 252 break; 253 } 254 } 255 } 256 257 void TowerDrawHealthBars(Camera3D camera) 258 { 259 for (int i = 0; i < towerCount; i++) 260 { 261 Tower *tower = &towers[i]; 262 if (tower->towerType == TOWER_TYPE_NONE || tower->damage <= 0.0f) 263 { 264 continue; 265 } 266 267 Vector3 position = (Vector3){tower->x, 0.5f, tower->y}; 268 float maxHealth = TowerGetMaxHealth(tower); 269 float health = maxHealth - tower->damage; 270 float healthRatio = health / maxHealth; 271 272 DrawHealthBar(camera, position, healthRatio, GREEN, 35.0f); 273 } 274 }
  1 #include "raylib.h"
  2 #include "preferred_size.h"
  3
  4 // Since the canvas size is not known at compile time, we need to query it at runtime;
  5 // the following platform specific code obtains the canvas size and we will use this
  6 // size as the preferred size for the window at init time. We're ignoring here the
  7 // possibility of the canvas size changing during runtime - this would require to
  8 // poll the canvas size in the game loop or establishing a callback to be notified
  9
 10 #ifdef PLATFORM_WEB
 11 #include <emscripten.h>
 12 EMSCRIPTEN_RESULT emscripten_get_element_css_size(const char *target, double *width, double *height);
 13
 14 void GetPreferredSize(int *screenWidth, int *screenHeight)
 15 {
 16   double canvasWidth, canvasHeight;
 17   emscripten_get_element_css_size("#" CANVAS_NAME, &canvasWidth, &canvasHeight);
 18   *screenWidth = (int)canvasWidth;
 19   *screenHeight = (int)canvasHeight;
 20   TraceLog(LOG_INFO, "preferred size for %s: %d %d", CANVAS_NAME, *screenWidth, *screenHeight);
 21 }
 22
 23 int IsPaused()
 24 {
 25   const char *js = "(function(){\n"
 26   "  var canvas = document.getElementById(\"" CANVAS_NAME "\");\n"
 27   "  var rect = canvas.getBoundingClientRect();\n"
 28   "  var isVisible = (\n"
 29   "    rect.top >= 0 &&\n"
 30   "    rect.left >= 0 &&\n"
 31   "    rect.bottom <= (window.innerHeight || document.documentElement.clientHeight) &&\n"
 32   "    rect.right <= (window.innerWidth || document.documentElement.clientWidth)\n"
 33   "  );\n"
 34   "  return isVisible ? 0 : 1;\n"
 35   "})()";
 36   return emscripten_run_script_int(js);
 37 }
 38
 39 #else
 40 void GetPreferredSize(int *screenWidth, int *screenHeight)
 41 {
 42   *screenWidth = 600;
 43   *screenHeight = 240;
 44 }
 45 int IsPaused()
 46 {
 47   return 0;
 48 }
 49 #endif
  1 #ifndef PREFERRED_SIZE_H
  2 #define PREFERRED_SIZE_H
  3
  4 void GetPreferredSize(int *screenWidth, int *screenHeight);
  5 int IsPaused();
  6
  7 #endif
The game with the checkerboard pattern on the ground and some decorative objects. The towers can now only be placed on the checkerboard tiles.

The function is quite simple and the level size is hardcoded to be 11x11 (from -5 to 5 on the x and z axis). The function loops over all tiles and draws the tile depending on the sum of x and y. If the sum is even, it draws the first tile, otherwise the second tile:

  1 for (int x = -5; x <= 5; x += 1)
  2 {
  3   for (int y = -5; y <= 5; y += 1)
  4   {
  5     Model *model = (x + y) % 2 == 0 ? &floorTileAModel : &floorTileBModel;
  6     DrawModel(*model, (Vector3){x, 0.0f, y}, 1.0f, WHITE);
  7   }
  8 }

The function to load the GLB models and assigning the palette texture simply assigns the texture to all materials in the model and returns the model:

  1 static Model LoadGLBModel(char *filename)
  2 {
  3   Model model = LoadModel(TextFormat("data/%s.glb",filename));
  4   if (model.materialCount > 1)
  5   {
  6     model.materials[1].maps[MATERIAL_MAP_DIFFUSE].texture = palette;
  7   }
  8   return model;
  9 }

The LoadAssets function is now taking care of loading the texture and floor tiles. We could later also load the tower and enemy models here - or let the tower init function load the models through the LoadGLBModel function. It isn't a bad idea that the modules take care of their own assets, but for bigger projects where asset management becomes more complex, it's better to have dedicated asset management functions to avoid loading the same asset multiple times or unloading assets that are still in use. Thankfully, our game is unlikely to grow that big.

For now, let's focus on setting up the environment decorations, so let's ignore that step here:

  1 void LoadAssets()
  2 {
  3   // load a sprite sheet that contains all units
  4   spriteSheet = LoadTexture("data/spritesheet.png");
  5   SetTextureFilter(spriteSheet, TEXTURE_FILTER_BILINEAR);
  6
  7   // we'll use a palette texture to colorize the all buildings and environment art
  8   palette = LoadTexture("data/palette.png");
  9   // The texture uses gradients on very small space, so we'll enable bilinear filtering
 10   SetTextureFilter(palette, TEXTURE_FILTER_BILINEAR);
 11
 12   floorTileAModel = LoadGLBModel("floor-tile-a");
 13   floorTileBModel = LoadGLBModel("floor-tile-b");
 14 }

By clearing the background to a dark green color, it looks like the game map is placed on a grass field. Quite more appealing than the blue background we had!

But let's add some more decorations outside the map to make it look more natural, just for fun! We have the assets, so let's use them.

Decoration objects

The idea is to place now some decorative objects randomly around the map.

  • 💾
  1 #include "td_main.h"
  2 #include <raymath.h>
  3 #include <stdlib.h>
  4 #include <math.h>
  5
  6 //# Variables
  7 GUIState guiState = {0};
  8 GameTime gameTime = {0};
  9
 10 Model floorTileAModel = {0};
 11 Model floorTileBModel = {0};
12 Model grassPatchModel[1] = {0};
13 14 Texture2D palette, spriteSheet; 15 16 Level levels[] = { 17 [0] = { 18 .state = LEVEL_STATE_BUILDING, 19 .initialGold = 20, 20 .waves[0] = { 21 .enemyType = ENEMY_TYPE_MINION, 22 .wave = 0, 23 .count = 10, 24 .interval = 2.5f, 25 .delay = 1.0f, 26 .spawnPosition = {0, 6}, 27 }, 28 .waves[1] = { 29 .enemyType = ENEMY_TYPE_MINION, 30 .wave = 1, 31 .count = 20, 32 .interval = 1.5f, 33 .delay = 1.0f, 34 .spawnPosition = {0, 6}, 35 }, 36 .waves[2] = { 37 .enemyType = ENEMY_TYPE_MINION, 38 .wave = 2, 39 .count = 30, 40 .interval = 1.2f, 41 .delay = 1.0f, 42 .spawnPosition = {0, 6}, 43 } 44 }, 45 }; 46 47 Level *currentLevel = levels; 48 49 //# Game 50 51 static Model LoadGLBModel(char *filename) 52 { 53 Model model = LoadModel(TextFormat("data/%s.glb",filename)); 54 if (model.materialCount > 1) 55 { 56 model.materials[1].maps[MATERIAL_MAP_DIFFUSE].texture = palette; 57 } 58 return model; 59 } 60 61 void LoadAssets() 62 { 63 // load a sprite sheet that contains all units 64 spriteSheet = LoadTexture("data/spritesheet.png"); 65 SetTextureFilter(spriteSheet, TEXTURE_FILTER_BILINEAR); 66 67 // we'll use a palette texture to colorize the all buildings and environment art 68 palette = LoadTexture("data/palette.png"); 69 // The texture uses gradients on very small space, so we'll enable bilinear filtering 70 SetTextureFilter(palette, TEXTURE_FILTER_BILINEAR); 71 72 floorTileAModel = LoadGLBModel("floor-tile-a");
73 floorTileBModel = LoadGLBModel("floor-tile-b"); 74 grassPatchModel[0] = LoadGLBModel("grass-patch-1");
75 } 76 77 void InitLevel(Level *level) 78 { 79 TowerInit(); 80 EnemyInit(); 81 ProjectileInit(); 82 ParticleInit(); 83 TowerTryAdd(TOWER_TYPE_BASE, 0, 0); 84 85 level->placementMode = 0; 86 level->state = LEVEL_STATE_BUILDING; 87 level->nextState = LEVEL_STATE_NONE; 88 level->playerGold = level->initialGold; 89 level->currentWave = 0; 90 91 Camera *camera = &level->camera; 92 camera->position = (Vector3){4.0f, 8.0f, 8.0f}; 93 camera->target = (Vector3){0.0f, 0.0f, 0.0f}; 94 camera->up = (Vector3){0.0f, 1.0f, 0.0f}; 95 camera->fovy = 10.0f; 96 camera->projection = CAMERA_ORTHOGRAPHIC; 97 } 98 99 void DrawLevelHud(Level *level) 100 { 101 const char *text = TextFormat("Gold: %d", level->playerGold); 102 Font font = GetFontDefault(); 103 DrawTextEx(font, text, (Vector2){GetScreenWidth() - 120, 10}, font.baseSize * 2.0f, 2.0f, BLACK); 104 DrawTextEx(font, text, (Vector2){GetScreenWidth() - 122, 8}, font.baseSize * 2.0f, 2.0f, YELLOW); 105 } 106 107 void DrawLevelReportLostWave(Level *level) 108 { 109 BeginMode3D(level->camera); 110 DrawLevelGround(level); 111 TowerDraw(); 112 EnemyDraw(); 113 ProjectileDraw(); 114 ParticleDraw(); 115 guiState.isBlocked = 0; 116 EndMode3D(); 117 118 TowerDrawHealthBars(level->camera); 119 120 const char *text = "Wave lost"; 121 int textWidth = MeasureText(text, 20); 122 DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE); 123 124 if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0)) 125 { 126 level->nextState = LEVEL_STATE_RESET; 127 } 128 } 129 130 int HasLevelNextWave(Level *level) 131 { 132 for (int i = 0; i < 10; i++) 133 { 134 EnemyWave *wave = &level->waves[i]; 135 if (wave->wave == level->currentWave) 136 { 137 return 1; 138 } 139 } 140 return 0; 141 } 142 143 void DrawLevelReportWonWave(Level *level) 144 { 145 BeginMode3D(level->camera); 146 DrawLevelGround(level); 147 TowerDraw(); 148 EnemyDraw(); 149 ProjectileDraw(); 150 ParticleDraw(); 151 guiState.isBlocked = 0; 152 EndMode3D(); 153 154 TowerDrawHealthBars(level->camera); 155 156 const char *text = "Wave won"; 157 int textWidth = MeasureText(text, 20); 158 DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE); 159 160 161 if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0)) 162 { 163 level->nextState = LEVEL_STATE_RESET; 164 } 165 166 if (HasLevelNextWave(level)) 167 { 168 if (Button("Prepare for next wave", GetScreenWidth() - 300, GetScreenHeight() - 40, 300, 30, 0)) 169 { 170 level->nextState = LEVEL_STATE_BUILDING; 171 } 172 } 173 else { 174 if (Button("Level won", GetScreenWidth() - 300, GetScreenHeight() - 40, 300, 30, 0)) 175 { 176 level->nextState = LEVEL_STATE_WON_LEVEL; 177 } 178 } 179 } 180 181 void DrawBuildingBuildButton(Level *level, int x, int y, int width, int height, uint8_t towerType, const char *name) 182 { 183 static ButtonState buttonStates[8] = {0}; 184 int cost = GetTowerCosts(towerType); 185 const char *text = TextFormat("%s: %d", name, cost); 186 buttonStates[towerType].isSelected = level->placementMode == towerType; 187 buttonStates[towerType].isDisabled = level->playerGold < cost; 188 if (Button(text, x, y, width, height, &buttonStates[towerType])) 189 { 190 level->placementMode = buttonStates[towerType].isSelected ? 0 : towerType; 191 } 192 } 193 194 void DrawLevelGround(Level *level) 195 { 196 // draw checkerboard ground pattern 197 for (int x = -5; x <= 5; x += 1) 198 { 199 for (int y = -5; y <= 5; y += 1) 200 { 201 Model *model = (x + y) % 2 == 0 ? &floorTileAModel : &floorTileBModel;
202 DrawModel(*model, (Vector3){x, 0.0f, y}, 1.0f, WHITE); 203 } 204 } 205 206 // draw grass patches around the edges 207 const int layerCount = 2; 208 for (int layer = 0; layer < layerCount; layer++) 209 { 210 int layerPos = 6 + layer; 211 for (int x = -6 + layer; x <= 6 + layer; x += 1) 212 { 213 DrawModel(grassPatchModel[0], 214 (Vector3){x, 0.0f, -layerPos}, 215 1.0f, WHITE); 216 DrawModel(grassPatchModel[0], 217 (Vector3){x, 0.0f, layerPos}, 218 1.0f, WHITE); 219 } 220 221 for (int z = -5 + layer; z <= 5 + layer; z += 1) 222 { 223 DrawModel(grassPatchModel[0], 224 (Vector3){-layerPos, 0.0f, z}, 225 1.0f, WHITE); 226 DrawModel(grassPatchModel[0], 227 (Vector3){layerPos, 0.0f, z}, 228 1.0f, WHITE);
229 } 230 } 231 } 232 233 void DrawLevelBuildingState(Level *level) 234 { 235 BeginMode3D(level->camera); 236 DrawLevelGround(level); 237 TowerDraw(); 238 EnemyDraw(); 239 ProjectileDraw(); 240 ParticleDraw(); 241 242 Ray ray = GetScreenToWorldRay(GetMousePosition(), level->camera); 243 float planeDistance = ray.position.y / -ray.direction.y; 244 float planeX = ray.direction.x * planeDistance + ray.position.x; 245 float planeY = ray.direction.z * planeDistance + ray.position.z; 246 int16_t mapX = (int16_t)floorf(planeX + 0.5f); 247 int16_t mapY = (int16_t)floorf(planeY + 0.5f); 248 if (level->placementMode && !guiState.isBlocked && mapX >= -5 && mapX <= 5 && mapY >= -5 && mapY <= 5) 249 { 250 DrawCubeWires((Vector3){mapX, 0.2f, mapY}, 1.0f, 0.4f, 1.0f, RED); 251 if (IsMouseButtonPressed(MOUSE_LEFT_BUTTON)) 252 { 253 if (TowerTryAdd(level->placementMode, mapX, mapY)) 254 { 255 level->playerGold -= GetTowerCosts(level->placementMode); 256 level->placementMode = TOWER_TYPE_NONE; 257 } 258 } 259 } 260 261 guiState.isBlocked = 0; 262 263 EndMode3D(); 264 265 TowerDrawHealthBars(level->camera); 266 267 static ButtonState buildWallButtonState = {0}; 268 static ButtonState buildGunButtonState = {0}; 269 buildWallButtonState.isSelected = level->placementMode == TOWER_TYPE_WALL; 270 buildGunButtonState.isSelected = level->placementMode == TOWER_TYPE_GUN; 271 272 DrawBuildingBuildButton(level, 10, 10, 110, 30, TOWER_TYPE_WALL, "Wall"); 273 DrawBuildingBuildButton(level, 10, 50, 110, 30, TOWER_TYPE_GUN, "Archer"); 274 275 if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0)) 276 { 277 level->nextState = LEVEL_STATE_RESET; 278 } 279 280 if (Button("Begin waves", GetScreenWidth() - 160, GetScreenHeight() - 40, 160, 30, 0)) 281 { 282 level->nextState = LEVEL_STATE_BATTLE; 283 } 284 285 const char *text = "Building phase"; 286 int textWidth = MeasureText(text, 20); 287 DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE); 288 } 289 290 void InitBattleStateConditions(Level *level) 291 { 292 level->state = LEVEL_STATE_BATTLE; 293 level->nextState = LEVEL_STATE_NONE; 294 level->waveEndTimer = 0.0f; 295 for (int i = 0; i < 10; i++) 296 { 297 EnemyWave *wave = &level->waves[i]; 298 wave->spawned = 0; 299 wave->timeToSpawnNext = wave->delay; 300 } 301 } 302 303 void DrawLevelBattleState(Level *level) 304 { 305 BeginMode3D(level->camera); 306 DrawLevelGround(level); 307 TowerDraw(); 308 EnemyDraw(); 309 ProjectileDraw(); 310 ParticleDraw(); 311 guiState.isBlocked = 0; 312 EndMode3D(); 313 314 EnemyDrawHealthbars(level->camera); 315 TowerDrawHealthBars(level->camera); 316 317 if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0)) 318 { 319 level->nextState = LEVEL_STATE_RESET; 320 } 321 322 int maxCount = 0; 323 int remainingCount = 0; 324 for (int i = 0; i < 10; i++) 325 { 326 EnemyWave *wave = &level->waves[i]; 327 if (wave->wave != level->currentWave) 328 { 329 continue; 330 } 331 maxCount += wave->count; 332 remainingCount += wave->count - wave->spawned; 333 } 334 int aliveCount = EnemyCount(); 335 remainingCount += aliveCount; 336 337 const char *text = TextFormat("Battle phase: %03d%%", 100 - remainingCount * 100 / maxCount); 338 int textWidth = MeasureText(text, 20); 339 DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE); 340 } 341 342 void DrawLevel(Level *level) 343 { 344 switch (level->state) 345 { 346 case LEVEL_STATE_BUILDING: DrawLevelBuildingState(level); break; 347 case LEVEL_STATE_BATTLE: DrawLevelBattleState(level); break; 348 case LEVEL_STATE_WON_WAVE: DrawLevelReportWonWave(level); break; 349 case LEVEL_STATE_LOST_WAVE: DrawLevelReportLostWave(level); break; 350 default: break; 351 } 352 353 DrawLevelHud(level); 354 } 355 356 void UpdateLevel(Level *level) 357 { 358 if (level->state == LEVEL_STATE_BATTLE) 359 { 360 int activeWaves = 0; 361 for (int i = 0; i < 10; i++) 362 { 363 EnemyWave *wave = &level->waves[i]; 364 if (wave->spawned >= wave->count || wave->wave != level->currentWave) 365 { 366 continue; 367 } 368 activeWaves++; 369 wave->timeToSpawnNext -= gameTime.deltaTime; 370 if (wave->timeToSpawnNext <= 0.0f) 371 { 372 Enemy *enemy = EnemyTryAdd(wave->enemyType, wave->spawnPosition.x, wave->spawnPosition.y); 373 if (enemy) 374 { 375 wave->timeToSpawnNext = wave->interval; 376 wave->spawned++; 377 } 378 } 379 } 380 if (GetTowerByType(TOWER_TYPE_BASE) == 0) { 381 level->waveEndTimer += gameTime.deltaTime; 382 if (level->waveEndTimer >= 2.0f) 383 { 384 level->nextState = LEVEL_STATE_LOST_WAVE; 385 } 386 } 387 else if (activeWaves == 0 && EnemyCount() == 0) 388 { 389 level->waveEndTimer += gameTime.deltaTime; 390 if (level->waveEndTimer >= 2.0f) 391 { 392 level->nextState = LEVEL_STATE_WON_WAVE; 393 } 394 } 395 } 396 397 PathFindingMapUpdate(); 398 EnemyUpdate(); 399 TowerUpdate(); 400 ProjectileUpdate(); 401 ParticleUpdate(); 402 403 if (level->nextState == LEVEL_STATE_RESET) 404 { 405 InitLevel(level); 406 } 407 408 if (level->nextState == LEVEL_STATE_BATTLE) 409 { 410 InitBattleStateConditions(level); 411 } 412 413 if (level->nextState == LEVEL_STATE_WON_WAVE) 414 { 415 level->currentWave++; 416 level->state = LEVEL_STATE_WON_WAVE; 417 } 418 419 if (level->nextState == LEVEL_STATE_LOST_WAVE) 420 { 421 level->state = LEVEL_STATE_LOST_WAVE; 422 } 423 424 if (level->nextState == LEVEL_STATE_BUILDING) 425 { 426 level->state = LEVEL_STATE_BUILDING; 427 } 428 429 if (level->nextState == LEVEL_STATE_WON_LEVEL) 430 { 431 // make something of this later 432 InitLevel(level); 433 } 434 435 level->nextState = LEVEL_STATE_NONE; 436 } 437 438 float nextSpawnTime = 0.0f; 439 440 void ResetGame() 441 { 442 InitLevel(currentLevel); 443 } 444 445 void InitGame() 446 { 447 TowerInit(); 448 EnemyInit(); 449 ProjectileInit(); 450 ParticleInit(); 451 PathfindingMapInit(20, 20, (Vector3){-10.0f, 0.0f, -10.0f}, 1.0f); 452 453 currentLevel = levels; 454 InitLevel(currentLevel); 455 } 456 457 //# Immediate GUI functions 458 459 void DrawHealthBar(Camera3D camera, Vector3 position, float healthRatio, Color barColor, float healthBarWidth) 460 { 461 const float healthBarHeight = 6.0f; 462 const float healthBarOffset = 15.0f; 463 const float inset = 2.0f; 464 const float innerWidth = healthBarWidth - inset * 2; 465 const float innerHeight = healthBarHeight - inset * 2; 466 467 Vector2 screenPos = GetWorldToScreen(position, camera); 468 float centerX = screenPos.x - healthBarWidth * 0.5f; 469 float topY = screenPos.y - healthBarOffset; 470 DrawRectangle(centerX, topY, healthBarWidth, healthBarHeight, BLACK); 471 float healthWidth = innerWidth * healthRatio; 472 DrawRectangle(centerX + inset, topY + inset, healthWidth, innerHeight, barColor); 473 } 474 475 int Button(const char *text, int x, int y, int width, int height, ButtonState *state) 476 { 477 Rectangle bounds = {x, y, width, height}; 478 int isPressed = 0; 479 int isSelected = state && state->isSelected; 480 int isDisabled = state && state->isDisabled; 481 if (CheckCollisionPointRec(GetMousePosition(), bounds) && !guiState.isBlocked && !isDisabled) 482 { 483 Color color = isSelected ? DARKGRAY : GRAY; 484 DrawRectangle(x, y, width, height, color); 485 if (IsMouseButtonPressed(MOUSE_LEFT_BUTTON)) 486 { 487 isPressed = 1; 488 } 489 guiState.isBlocked = 1; 490 } 491 else 492 { 493 Color color = isSelected ? WHITE : LIGHTGRAY; 494 DrawRectangle(x, y, width, height, color); 495 } 496 Font font = GetFontDefault(); 497 Vector2 textSize = MeasureTextEx(font, text, font.baseSize * 2.0f, 1); 498 Color textColor = isDisabled ? GRAY : BLACK; 499 DrawTextEx(font, text, (Vector2){x + width / 2 - textSize.x / 2, y + height / 2 - textSize.y / 2}, font.baseSize * 2.0f, 1, textColor); 500 return isPressed; 501 } 502 503 //# Main game loop 504 505 void GameUpdate() 506 { 507 float dt = GetFrameTime(); 508 // cap maximum delta time to 0.1 seconds to prevent large time steps 509 if (dt > 0.1f) dt = 0.1f; 510 gameTime.time += dt; 511 gameTime.deltaTime = dt; 512 513 UpdateLevel(currentLevel); 514 } 515 516 int main(void) 517 { 518 int screenWidth, screenHeight; 519 GetPreferredSize(&screenWidth, &screenHeight); 520 InitWindow(screenWidth, screenHeight, "Tower defense"); 521 SetTargetFPS(30); 522 523 LoadAssets(); 524 InitGame(); 525 526 while (!WindowShouldClose()) 527 { 528 if (IsPaused()) { 529 // canvas is not visible in browser - do nothing 530 continue; 531 } 532 533 BeginDrawing(); 534 ClearBackground((Color){0x4E, 0x63, 0x26, 0xFF}); 535 536 GameUpdate(); 537 DrawLevel(currentLevel); 538 539 EndDrawing(); 540 } 541 542 CloseWindow(); 543 544 return 0; 545 }
  1 #ifndef TD_TUT_2_MAIN_H
  2 #define TD_TUT_2_MAIN_H
  3
  4 #include <inttypes.h>
  5
  6 #include "raylib.h"
  7 #include "preferred_size.h"
  8
  9 //# Declarations
 10
 11 #define ENEMY_MAX_PATH_COUNT 8
 12 #define ENEMY_MAX_COUNT 400
 13 #define ENEMY_TYPE_NONE 0
 14 #define ENEMY_TYPE_MINION 1
 15
 16 #define PARTICLE_MAX_COUNT 400
 17 #define PARTICLE_TYPE_NONE 0
 18 #define PARTICLE_TYPE_EXPLOSION 1
 19
 20 typedef struct Particle
 21 {
 22   uint8_t particleType;
 23   float spawnTime;
 24   float lifetime;
 25   Vector3 position;
 26   Vector3 velocity;
 27 } Particle;
 28
 29 #define TOWER_MAX_COUNT 400
 30 #define TOWER_TYPE_NONE 0
 31 #define TOWER_TYPE_BASE 1
 32 #define TOWER_TYPE_GUN 2
 33 #define TOWER_TYPE_WALL 3
 34 #define TOWER_TYPE_COUNT 4
 35
 36 typedef struct Tower
 37 {
 38   int16_t x, y;
 39   uint8_t towerType;
 40   Vector2 lastTargetPosition;
 41   float cooldown;
 42   float damage;
 43 } Tower;
 44
 45 typedef struct GameTime
 46 {
 47   float time;
 48   float deltaTime;
 49 } GameTime;
 50
 51 typedef struct ButtonState {
 52   char isSelected;
 53   char isDisabled;
 54 } ButtonState;
 55
 56 typedef struct GUIState {
 57   int isBlocked;
 58 } GUIState;
 59
 60 typedef enum LevelState
 61 {
 62   LEVEL_STATE_NONE,
 63   LEVEL_STATE_BUILDING,
 64   LEVEL_STATE_BATTLE,
 65   LEVEL_STATE_WON_WAVE,
 66   LEVEL_STATE_LOST_WAVE,
 67   LEVEL_STATE_WON_LEVEL,
 68   LEVEL_STATE_RESET,
 69 } LevelState;
 70
 71 typedef struct EnemyWave {
 72   uint8_t enemyType;
 73   uint8_t wave;
 74   uint16_t count;
 75   float interval;
 76   float delay;
 77   Vector2 spawnPosition;
 78
 79   uint16_t spawned;
 80   float timeToSpawnNext;
 81 } EnemyWave;
 82
 83 typedef struct Level
 84 {
 85   LevelState state;
 86   LevelState nextState;
 87   Camera3D camera;
 88   int placementMode;
 89
 90   int initialGold;
 91   int playerGold;
 92
 93   EnemyWave waves[10];
 94   int currentWave;
 95   float waveEndTimer;
 96 } Level;
 97
 98 typedef struct DeltaSrc
 99 {
100   char x, y;
101 } DeltaSrc;
102
103 typedef struct PathfindingMap
104 {
105   int width, height;
106   float scale;
107   float *distances;
108   long *towerIndex;
109   DeltaSrc *deltaSrc;
110   float maxDistance;
111   Matrix toMapSpace;
112   Matrix toWorldSpace;
113 } PathfindingMap;
114
115 // when we execute the pathfinding algorithm, we need to store the active nodes
116 // in a queue. Each node has a position, a distance from the start, and the
117 // position of the node that we came from.
118 typedef struct PathfindingNode
119 {
120   int16_t x, y, fromX, fromY;
121   float distance;
122 } PathfindingNode;
123
124 typedef struct EnemyId
125 {
126   uint16_t index;
127   uint16_t generation;
128 } EnemyId;
129
130 typedef struct EnemyClassConfig
131 {
132   float speed;
133   float health;
134   float radius;
135   float maxAcceleration;
136   float requiredContactTime;
137   float explosionDamage;
138   float explosionRange;
139   float explosionPushbackPower;
140   int goldValue;
141 } EnemyClassConfig;
142
143 typedef struct Enemy
144 {
145   int16_t currentX, currentY;
146   int16_t nextX, nextY;
147   Vector2 simPosition;
148   Vector2 simVelocity;
149   uint16_t generation;
150   float walkedDistance;
151   float startMovingTime;
152   float damage, futureDamage;
153   float contactTime;
154   uint8_t enemyType;
155   uint8_t movePathCount;
156   Vector2 movePath[ENEMY_MAX_PATH_COUNT];
157 } Enemy;
158
159 // a unit that uses sprites to be drawn
160 #define SPRITE_UNIT_PHASE_WEAPON_IDLE 0
161 #define SPRITE_UNIT_PHASE_WEAPON_COOLDOWN 1
162 typedef struct SpriteUnit
163 {
164   Rectangle srcRect;
165   Vector2 offset;
166   int frameCount;
167   float frameDuration;
168   Rectangle srcWeaponIdleRect;
169   Vector2 srcWeaponIdleOffset;
170   Rectangle srcWeaponCooldownRect;
171   Vector2 srcWeaponCooldownOffset;
172 } SpriteUnit;
173
174 #define PROJECTILE_MAX_COUNT 1200
175 #define PROJECTILE_TYPE_NONE 0
176 #define PROJECTILE_TYPE_ARROW 1
177
178 typedef struct Projectile
179 {
180   uint8_t projectileType;
181   float shootTime;
182   float arrivalTime;
183   float distance;
184   float damage;
185   Vector3 position;
186   Vector3 target;
187   Vector3 directionNormal;
188   EnemyId targetEnemy;
189 } Projectile;
190
191 //# Function declarations
192 float TowerGetMaxHealth(Tower *tower);
193 int Button(const char *text, int x, int y, int width, int height, ButtonState *state);
194 int EnemyAddDamage(Enemy *enemy, float damage);
195
196 //# Enemy functions
197 void EnemyInit();
198 void EnemyDraw();
199 void EnemyTriggerExplode(Enemy *enemy, Tower *tower, Vector3 explosionSource);
200 void EnemyUpdate();
201 float EnemyGetCurrentMaxSpeed(Enemy *enemy);
202 float EnemyGetMaxHealth(Enemy *enemy);
203 int EnemyGetNextPosition(int16_t currentX, int16_t currentY, int16_t *nextX, int16_t *nextY);
204 Vector2 EnemyGetPosition(Enemy *enemy, float deltaT, Vector2 *velocity, int *waypointPassedCount);
205 EnemyId EnemyGetId(Enemy *enemy);
206 Enemy *EnemyTryResolve(EnemyId enemyId);
207 Enemy *EnemyTryAdd(uint8_t enemyType, int16_t currentX, int16_t currentY);
208 int EnemyAddDamage(Enemy *enemy, float damage);
209 Enemy* EnemyGetClosestToCastle(int16_t towerX, int16_t towerY, float range);
210 int EnemyCount();
211 void EnemyDrawHealthbars(Camera3D camera);
212
213 //# Tower functions
214 void TowerInit();
215 Tower *TowerGetAt(int16_t x, int16_t y);
216 Tower *TowerTryAdd(uint8_t towerType, int16_t x, int16_t y);
217 Tower *GetTowerByType(uint8_t towerType);
218 int GetTowerCosts(uint8_t towerType);
219 float TowerGetMaxHealth(Tower *tower);
220 void TowerDraw();
221 void TowerUpdate();
222 void TowerDrawHealthBars(Camera3D camera);
223 void DrawSpriteUnit(SpriteUnit unit, Vector3 position, float t, int flip, int phase);
224
225 //# Particles
226 void ParticleInit();
227 void ParticleAdd(uint8_t particleType, Vector3 position, Vector3 velocity, float lifetime);
228 void ParticleUpdate();
229 void ParticleDraw();
230
231 //# Projectiles
232 void ProjectileInit();
233 void ProjectileDraw();
234 void ProjectileUpdate();
235 Projectile *ProjectileTryAdd(uint8_t projectileType, Enemy *enemy, Vector3 position, Vector3 target, float speed, float damage);
236
237 //# Pathfinding map
238 void PathfindingMapInit(int width, int height, Vector3 translate, float scale);
239 float PathFindingGetDistance(int mapX, int mapY);
240 Vector2 PathFindingGetGradient(Vector3 world);
241 int PathFindingFromWorldToMapPosition(Vector3 worldPosition, int16_t *mapX, int16_t *mapY);
242 void PathFindingMapUpdate();
243 void PathFindingMapDraw();
244
245 //# UI
246 void DrawHealthBar(Camera3D camera, Vector3 position, float healthRatio, Color barColor, float healthBarWidth);
247
248 //# Level
249 void DrawLevelGround(Level *level);
250
251 //# variables
252 extern Level *currentLevel;
253 extern Enemy enemies[ENEMY_MAX_COUNT];
254 extern int enemyCount;
255 extern EnemyClassConfig enemyClassConfigs[];
256
257 extern GUIState guiState;
258 extern GameTime gameTime;
259 extern Tower towers[TOWER_MAX_COUNT];
260 extern int towerCount;
261
262 extern Texture2D palette, spriteSheet;
263
264 #endif
  1 #include "td_main.h"
  2 #include <raymath.h>
  3 #include <stdlib.h>
  4 #include <math.h>
  5
  6 EnemyClassConfig enemyClassConfigs[] = {
  7     [ENEMY_TYPE_MINION] = {
  8       .health = 10.0f,
  9       .speed = 0.6f,
 10       .radius = 0.25f,
 11       .maxAcceleration = 1.0f,
 12       .explosionDamage = 1.0f,
 13       .requiredContactTime = 0.5f,
 14       .explosionRange = 1.0f,
 15       .explosionPushbackPower = 0.25f,
 16       .goldValue = 1,
 17     },
 18 };
 19
 20 Enemy enemies[ENEMY_MAX_COUNT];
 21 int enemyCount = 0;
 22
 23 SpriteUnit enemySprites[] = {
 24     [ENEMY_TYPE_MINION] = {
 25       .srcRect = {0, 16, 16, 16},
 26       .offset = {8.0f, 0.0f},
 27       .frameCount = 6,
 28       .frameDuration = 0.1f,
 29     },
 30 };
 31
 32 void EnemyInit()
 33 {
 34   for (int i = 0; i < ENEMY_MAX_COUNT; i++)
 35   {
 36     enemies[i] = (Enemy){0};
 37   }
 38   enemyCount = 0;
 39 }
 40
 41 float EnemyGetCurrentMaxSpeed(Enemy *enemy)
 42 {
 43   return enemyClassConfigs[enemy->enemyType].speed;
 44 }
 45
 46 float EnemyGetMaxHealth(Enemy *enemy)
 47 {
 48   return enemyClassConfigs[enemy->enemyType].health;
 49 }
 50
 51 int EnemyGetNextPosition(int16_t currentX, int16_t currentY, int16_t *nextX, int16_t *nextY)
 52 {
 53   int16_t castleX = 0;
 54   int16_t castleY = 0;
 55   int16_t dx = castleX - currentX;
 56   int16_t dy = castleY - currentY;
 57   if (dx == 0 && dy == 0)
 58   {
 59     *nextX = currentX;
 60     *nextY = currentY;
 61     return 1;
 62   }
 63   Vector2 gradient = PathFindingGetGradient((Vector3){currentX, 0, currentY});
 64
 65   if (gradient.x == 0 && gradient.y == 0)
 66   {
 67     *nextX = currentX;
 68     *nextY = currentY;
 69     return 1;
 70   }
 71
 72   if (fabsf(gradient.x) > fabsf(gradient.y))
 73   {
 74     *nextX = currentX + (int16_t)(gradient.x > 0.0f ? 1 : -1);
 75     *nextY = currentY;
 76     return 0;
 77   }
 78   *nextX = currentX;
 79   *nextY = currentY + (int16_t)(gradient.y > 0.0f ? 1 : -1);
 80   return 0;
 81 }
 82
 83
 84 // this function predicts the movement of the unit for the next deltaT seconds
 85 Vector2 EnemyGetPosition(Enemy *enemy, float deltaT, Vector2 *velocity, int *waypointPassedCount)
 86 {
 87   const float pointReachedDistance = 0.25f;
 88   const float pointReachedDistance2 = pointReachedDistance * pointReachedDistance;
 89   const float maxSimStepTime = 0.015625f;
 90
 91   float maxAcceleration = enemyClassConfigs[enemy->enemyType].maxAcceleration;
 92   float maxSpeed = EnemyGetCurrentMaxSpeed(enemy);
 93   int16_t nextX = enemy->nextX;
 94   int16_t nextY = enemy->nextY;
 95   Vector2 position = enemy->simPosition;
 96   int passedCount = 0;
 97   for (float t = 0.0f; t < deltaT; t += maxSimStepTime)
 98   {
 99     float stepTime = fminf(deltaT - t, maxSimStepTime);
100     Vector2 target = (Vector2){nextX, nextY};
101     float speed = Vector2Length(*velocity);
102     // draw the target position for debugging
103     DrawCubeWires((Vector3){target.x, 0.2f, target.y}, 0.1f, 0.4f, 0.1f, RED);
104     Vector2 lookForwardPos = Vector2Add(position, Vector2Scale(*velocity, speed));
105     if (Vector2DistanceSqr(target, lookForwardPos) <= pointReachedDistance2)
106     {
107       // we reached the target position, let's move to the next waypoint
108       EnemyGetNextPosition(nextX, nextY, &nextX, &nextY);
109       target = (Vector2){nextX, nextY};
110       // track how many waypoints we passed
111       passedCount++;
112     }
113
114     // acceleration towards the target
115     Vector2 unitDirection = Vector2Normalize(Vector2Subtract(target, lookForwardPos));
116     Vector2 acceleration = Vector2Scale(unitDirection, maxAcceleration * stepTime);
117     *velocity = Vector2Add(*velocity, acceleration);
118
119     // limit the speed to the maximum speed
120     if (speed > maxSpeed)
121     {
122       *velocity = Vector2Scale(*velocity, maxSpeed / speed);
123     }
124
125     // move the enemy
126     position = Vector2Add(position, Vector2Scale(*velocity, stepTime));
127   }
128
129   if (waypointPassedCount)
130   {
131     (*waypointPassedCount) = passedCount;
132   }
133
134   return position;
135 }
136
137 void EnemyDraw()
138 {
139   for (int i = 0; i < enemyCount; i++)
140   {
141     Enemy enemy = enemies[i];
142     if (enemy.enemyType == ENEMY_TYPE_NONE)
143     {
144       continue;
145     }
146
147     Vector2 position = EnemyGetPosition(&enemy, gameTime.time - enemy.startMovingTime, &enemy.simVelocity, 0);
148
149     // don't draw any trails for now; might replace this with footprints later
150     // if (enemy.movePathCount > 0)
151     // {
152     //   Vector3 p = {enemy.movePath[0].x, 0.2f, enemy.movePath[0].y};
153     //   DrawLine3D(p, (Vector3){position.x, 0.2f, position.y}, GREEN);
154     // }
155     // for (int j = 1; j < enemy.movePathCount; j++)
156     // {
157     //   Vector3 p = {enemy.movePath[j - 1].x, 0.2f, enemy.movePath[j - 1].y};
158     //   Vector3 q = {enemy.movePath[j].x, 0.2f, enemy.movePath[j].y};
159     //   DrawLine3D(p, q, GREEN);
160     // }
161
162     switch (enemy.enemyType)
163     {
164     case ENEMY_TYPE_MINION:
165       DrawSpriteUnit(enemySprites[ENEMY_TYPE_MINION], (Vector3){position.x, 0.0f, position.y},
166         enemy.walkedDistance, 0, 0);
167       break;
168     }
169   }
170 }
171
172 void EnemyTriggerExplode(Enemy *enemy, Tower *tower, Vector3 explosionSource)
173 {
174   // damage the tower
175   float explosionDamge = enemyClassConfigs[enemy->enemyType].explosionDamage;
176   float explosionRange = enemyClassConfigs[enemy->enemyType].explosionRange;
177   float explosionPushbackPower = enemyClassConfigs[enemy->enemyType].explosionPushbackPower;
178   float explosionRange2 = explosionRange * explosionRange;
179   tower->damage += enemyClassConfigs[enemy->enemyType].explosionDamage;
180   // explode the enemy
181   if (tower->damage >= TowerGetMaxHealth(tower))
182   {
183     tower->towerType = TOWER_TYPE_NONE;
184   }
185
186   ParticleAdd(PARTICLE_TYPE_EXPLOSION,
187     explosionSource,
188     (Vector3){0, 0.1f, 0}, 1.0f);
189
190   enemy->enemyType = ENEMY_TYPE_NONE;
191
192   // push back enemies & dealing damage
193   for (int i = 0; i < enemyCount; i++)
194   {
195     Enemy *other = &enemies[i];
196     if (other->enemyType == ENEMY_TYPE_NONE)
197     {
198       continue;
199     }
200     float distanceSqr = Vector2DistanceSqr(enemy->simPosition, other->simPosition);
201     if (distanceSqr > 0 && distanceSqr < explosionRange2)
202     {
203       Vector2 direction = Vector2Normalize(Vector2Subtract(other->simPosition, enemy->simPosition));
204       other->simPosition = Vector2Add(other->simPosition, Vector2Scale(direction, explosionPushbackPower));
205       EnemyAddDamage(other, explosionDamge);
206     }
207   }
208 }
209
210 void EnemyUpdate()
211 {
212   const float castleX = 0;
213   const float castleY = 0;
214   const float maxPathDistance2 = 0.25f * 0.25f;
215
216   for (int i = 0; i < enemyCount; i++)
217   {
218     Enemy *enemy = &enemies[i];
219     if (enemy->enemyType == ENEMY_TYPE_NONE)
220     {
221       continue;
222     }
223
224     int waypointPassedCount = 0;
225     Vector2 prevPosition = enemy->simPosition;
226     enemy->simPosition = EnemyGetPosition(enemy, gameTime.time - enemy->startMovingTime, &enemy->simVelocity, &waypointPassedCount);
227     enemy->startMovingTime = gameTime.time;
228     enemy->walkedDistance += Vector2Distance(prevPosition, enemy->simPosition);
229     // track path of unit
230     if (enemy->movePathCount == 0 || Vector2DistanceSqr(enemy->simPosition, enemy->movePath[0]) > maxPathDistance2)
231     {
232       for (int j = ENEMY_MAX_PATH_COUNT - 1; j > 0; j--)
233       {
234         enemy->movePath[j] = enemy->movePath[j - 1];
235       }
236       enemy->movePath[0] = enemy->simPosition;
237       if (++enemy->movePathCount > ENEMY_MAX_PATH_COUNT)
238       {
239         enemy->movePathCount = ENEMY_MAX_PATH_COUNT;
240       }
241     }
242
243     if (waypointPassedCount > 0)
244     {
245       enemy->currentX = enemy->nextX;
246       enemy->currentY = enemy->nextY;
247       if (EnemyGetNextPosition(enemy->currentX, enemy->currentY, &enemy->nextX, &enemy->nextY) &&
248         Vector2DistanceSqr(enemy->simPosition, (Vector2){castleX, castleY}) <= 0.25f * 0.25f)
249       {
250         // enemy reached the castle; remove it
251         enemy->enemyType = ENEMY_TYPE_NONE;
252         continue;
253       }
254     }
255   }
256
257   // handle collisions between enemies
258   for (int i = 0; i < enemyCount - 1; i++)
259   {
260     Enemy *enemyA = &enemies[i];
261     if (enemyA->enemyType == ENEMY_TYPE_NONE)
262     {
263       continue;
264     }
265     for (int j = i + 1; j < enemyCount; j++)
266     {
267       Enemy *enemyB = &enemies[j];
268       if (enemyB->enemyType == ENEMY_TYPE_NONE)
269       {
270         continue;
271       }
272       float distanceSqr = Vector2DistanceSqr(enemyA->simPosition, enemyB->simPosition);
273       float radiusA = enemyClassConfigs[enemyA->enemyType].radius;
274       float radiusB = enemyClassConfigs[enemyB->enemyType].radius;
275       float radiusSum = radiusA + radiusB;
276       if (distanceSqr < radiusSum * radiusSum && distanceSqr > 0.001f)
277       {
278         // collision
279         float distance = sqrtf(distanceSqr);
280         float overlap = radiusSum - distance;
281         // move the enemies apart, but softly; if we have a clog of enemies,
282         // moving them perfectly apart can cause them to jitter
283         float positionCorrection = overlap / 5.0f;
284         Vector2 direction = (Vector2){
285             (enemyB->simPosition.x - enemyA->simPosition.x) / distance * positionCorrection,
286             (enemyB->simPosition.y - enemyA->simPosition.y) / distance * positionCorrection};
287         enemyA->simPosition = Vector2Subtract(enemyA->simPosition, direction);
288         enemyB->simPosition = Vector2Add(enemyB->simPosition, direction);
289       }
290     }
291   }
292
293   // handle collisions between enemies and towers
294   for (int i = 0; i < enemyCount; i++)
295   {
296     Enemy *enemy = &enemies[i];
297     if (enemy->enemyType == ENEMY_TYPE_NONE)
298     {
299       continue;
300     }
301     enemy->contactTime -= gameTime.deltaTime;
302     if (enemy->contactTime < 0.0f)
303     {
304       enemy->contactTime = 0.0f;
305     }
306
307     float enemyRadius = enemyClassConfigs[enemy->enemyType].radius;
308     // linear search over towers; could be optimized by using path finding tower map,
309     // but for now, we keep it simple
310     for (int j = 0; j < towerCount; j++)
311     {
312       Tower *tower = &towers[j];
313       if (tower->towerType == TOWER_TYPE_NONE)
314       {
315         continue;
316       }
317       float distanceSqr = Vector2DistanceSqr(enemy->simPosition, (Vector2){tower->x, tower->y});
318       float combinedRadius = enemyRadius + 0.708; // sqrt(0.5^2 + 0.5^2), corner-center distance of square with side length 1
319       if (distanceSqr > combinedRadius * combinedRadius)
320       {
321         continue;
322       }
323       // potential collision; square / circle intersection
324       float dx = tower->x - enemy->simPosition.x;
325       float dy = tower->y - enemy->simPosition.y;
326       float absDx = fabsf(dx);
327       float absDy = fabsf(dy);
328       Vector3 contactPoint = {0};
329       if (absDx <= 0.5f && absDx <= absDy) {
330         // vertical collision; push the enemy out horizontally
331         float overlap = enemyRadius + 0.5f - absDy;
332         if (overlap < 0.0f)
333         {
334           continue;
335         }
336         float direction = dy > 0.0f ? -1.0f : 1.0f;
337         enemy->simPosition.y += direction * overlap;
338         contactPoint = (Vector3){enemy->simPosition.x, 0.2f, tower->y + direction * 0.5f};
339       }
340       else if (absDy <= 0.5f && absDy <= absDx)
341       {
342         // horizontal collision; push the enemy out vertically
343         float overlap = enemyRadius + 0.5f - absDx;
344         if (overlap < 0.0f)
345         {
346           continue;
347         }
348         float direction = dx > 0.0f ? -1.0f : 1.0f;
349         enemy->simPosition.x += direction * overlap;
350         contactPoint = (Vector3){tower->x + direction * 0.5f, 0.2f, enemy->simPosition.y};
351       }
352       else
353       {
354         // possible collision with a corner
355         float cornerDX = dx > 0.0f ? -0.5f : 0.5f;
356         float cornerDY = dy > 0.0f ? -0.5f : 0.5f;
357         float cornerX = tower->x + cornerDX;
358         float cornerY = tower->y + cornerDY;
359         float cornerDistanceSqr = Vector2DistanceSqr(enemy->simPosition, (Vector2){cornerX, cornerY});
360         if (cornerDistanceSqr > enemyRadius * enemyRadius)
361         {
362           continue;
363         }
364         // push the enemy out along the diagonal
365         float cornerDistance = sqrtf(cornerDistanceSqr);
366         float overlap = enemyRadius - cornerDistance;
367         float directionX = cornerDistance > 0.0f ? (cornerX - enemy->simPosition.x) / cornerDistance : -cornerDX;
368         float directionY = cornerDistance > 0.0f ? (cornerY - enemy->simPosition.y) / cornerDistance : -cornerDY;
369         enemy->simPosition.x -= directionX * overlap;
370         enemy->simPosition.y -= directionY * overlap;
371         contactPoint = (Vector3){cornerX, 0.2f, cornerY};
372       }
373
374       if (enemyClassConfigs[enemy->enemyType].explosionDamage > 0.0f)
375       {
376         enemy->contactTime += gameTime.deltaTime * 2.0f; // * 2 to undo the subtraction above
377         if (enemy->contactTime >= enemyClassConfigs[enemy->enemyType].requiredContactTime)
378         {
379           EnemyTriggerExplode(enemy, tower, contactPoint);
380         }
381       }
382     }
383   }
384 }
385
386 EnemyId EnemyGetId(Enemy *enemy)
387 {
388   return (EnemyId){enemy - enemies, enemy->generation};
389 }
390
391 Enemy *EnemyTryResolve(EnemyId enemyId)
392 {
393   if (enemyId.index >= ENEMY_MAX_COUNT)
394   {
395     return 0;
396   }
397   Enemy *enemy = &enemies[enemyId.index];
398   if (enemy->generation != enemyId.generation || enemy->enemyType == ENEMY_TYPE_NONE)
399   {
400     return 0;
401   }
402   return enemy;
403 }
404
405 Enemy *EnemyTryAdd(uint8_t enemyType, int16_t currentX, int16_t currentY)
406 {
407   Enemy *spawn = 0;
408   for (int i = 0; i < enemyCount; i++)
409   {
410     Enemy *enemy = &enemies[i];
411     if (enemy->enemyType == ENEMY_TYPE_NONE)
412     {
413       spawn = enemy;
414       break;
415     }
416   }
417
418   if (enemyCount < ENEMY_MAX_COUNT && !spawn)
419   {
420     spawn = &enemies[enemyCount++];
421   }
422
423   if (spawn)
424   {
425     spawn->currentX = currentX;
426     spawn->currentY = currentY;
427     spawn->nextX = currentX;
428     spawn->nextY = currentY;
429     spawn->simPosition = (Vector2){currentX, currentY};
430     spawn->simVelocity = (Vector2){0, 0};
431     spawn->enemyType = enemyType;
432     spawn->startMovingTime = gameTime.time;
433     spawn->damage = 0.0f;
434     spawn->futureDamage = 0.0f;
435     spawn->generation++;
436     spawn->movePathCount = 0;
437     spawn->walkedDistance = 0.0f;
438   }
439
440   return spawn;
441 }
442
443 int EnemyAddDamage(Enemy *enemy, float damage)
444 {
445   enemy->damage += damage;
446   if (enemy->damage >= EnemyGetMaxHealth(enemy))
447   {
448     currentLevel->playerGold += enemyClassConfigs[enemy->enemyType].goldValue;
449     enemy->enemyType = ENEMY_TYPE_NONE;
450     return 1;
451   }
452
453   return 0;
454 }
455
456 Enemy* EnemyGetClosestToCastle(int16_t towerX, int16_t towerY, float range)
457 {
458   int16_t castleX = 0;
459   int16_t castleY = 0;
460   Enemy* closest = 0;
461   int16_t closestDistance = 0;
462   float range2 = range * range;
463   for (int i = 0; i < enemyCount; i++)
464   {
465     Enemy* enemy = &enemies[i];
466     if (enemy->enemyType == ENEMY_TYPE_NONE)
467     {
468       continue;
469     }
470     float maxHealth = EnemyGetMaxHealth(enemy);
471     if (enemy->futureDamage >= maxHealth)
472     {
473       // ignore enemies that will die soon
474       continue;
475     }
476     int16_t dx = castleX - enemy->currentX;
477     int16_t dy = castleY - enemy->currentY;
478     int16_t distance = abs(dx) + abs(dy);
479     if (!closest || distance < closestDistance)
480     {
481       float tdx = towerX - enemy->currentX;
482       float tdy = towerY - enemy->currentY;
483       float tdistance2 = tdx * tdx + tdy * tdy;
484       if (tdistance2 <= range2)
485       {
486         closest = enemy;
487         closestDistance = distance;
488       }
489     }
490   }
491   return closest;
492 }
493
494 int EnemyCount()
495 {
496   int count = 0;
497   for (int i = 0; i < enemyCount; i++)
498   {
499     if (enemies[i].enemyType != ENEMY_TYPE_NONE)
500     {
501       count++;
502     }
503   }
504   return count;
505 }
506
507 void EnemyDrawHealthbars(Camera3D camera)
508 {
509   for (int i = 0; i < enemyCount; i++)
510   {
511     Enemy *enemy = &enemies[i];
512     if (enemy->enemyType == ENEMY_TYPE_NONE || enemy->damage == 0.0f)
513     {
514       continue;
515     }
516     Vector3 position = (Vector3){enemy->simPosition.x, 0.5f, enemy->simPosition.y};
517     float maxHealth = EnemyGetMaxHealth(enemy);
518     float health = maxHealth - enemy->damage;
519     float healthRatio = health / maxHealth;
520
521     DrawHealthBar(camera, position, healthRatio, GREEN, 15.0f);
522   }
523 }
  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 // The queue is a simple array of nodes, we add nodes to the end and remove
  5 // nodes from the front. We keep the array around to avoid unnecessary allocations
  6 static PathfindingNode *pathfindingNodeQueue = 0;
  7 static int pathfindingNodeQueueCount = 0;
  8 static int pathfindingNodeQueueCapacity = 0;
  9
 10 // The pathfinding map stores the distances from the castle to each cell in the map.
 11 static PathfindingMap pathfindingMap = {0};
 12
 13 void PathfindingMapInit(int width, int height, Vector3 translate, float scale)
 14 {
 15   // transforming between map space and world space allows us to adapt
 16   // position and scale of the map without changing the pathfinding data
 17   pathfindingMap.toWorldSpace = MatrixTranslate(translate.x, translate.y, translate.z);
 18   pathfindingMap.toWorldSpace = MatrixMultiply(pathfindingMap.toWorldSpace, MatrixScale(scale, scale, scale));
 19   pathfindingMap.toMapSpace = MatrixInvert(pathfindingMap.toWorldSpace);
 20   pathfindingMap.width = width;
 21   pathfindingMap.height = height;
 22   pathfindingMap.scale = scale;
 23   pathfindingMap.distances = (float *)MemAlloc(width * height * sizeof(float));
 24   for (int i = 0; i < width * height; i++)
 25   {
 26     pathfindingMap.distances[i] = -1.0f;
 27   }
 28
 29   pathfindingMap.towerIndex = (long *)MemAlloc(width * height * sizeof(long));
 30   pathfindingMap.deltaSrc = (DeltaSrc *)MemAlloc(width * height * sizeof(DeltaSrc));
 31 }
 32
 33 static void PathFindingNodePush(int16_t x, int16_t y, int16_t fromX, int16_t fromY, float distance)
 34 {
 35   if (pathfindingNodeQueueCount >= pathfindingNodeQueueCapacity)
 36   {
 37     pathfindingNodeQueueCapacity = pathfindingNodeQueueCapacity == 0 ? 256 : pathfindingNodeQueueCapacity * 2;
 38     // we use MemAlloc/MemRealloc to allocate memory for the queue
 39     // I am not entirely sure if MemRealloc allows passing a null pointer
 40     // so we check if the pointer is null and use MemAlloc in that case
 41     if (pathfindingNodeQueue == 0)
 42     {
 43       pathfindingNodeQueue = (PathfindingNode *)MemAlloc(pathfindingNodeQueueCapacity * sizeof(PathfindingNode));
 44     }
 45     else
 46     {
 47       pathfindingNodeQueue = (PathfindingNode *)MemRealloc(pathfindingNodeQueue, pathfindingNodeQueueCapacity * sizeof(PathfindingNode));
 48     }
 49   }
 50
 51   PathfindingNode *node = &pathfindingNodeQueue[pathfindingNodeQueueCount++];
 52   node->x = x;
 53   node->y = y;
 54   node->fromX = fromX;
 55   node->fromY = fromY;
 56   node->distance = distance;
 57 }
 58
 59 static PathfindingNode *PathFindingNodePop()
 60 {
 61   if (pathfindingNodeQueueCount == 0)
 62   {
 63     return 0;
 64   }
 65   // we return the first node in the queue; we want to return a pointer to the node
 66   // so we can return 0 if the queue is empty.
 67   // We should _not_ return a pointer to the element in the list, because the list
 68   // may be reallocated and the pointer would become invalid. Or the
 69   // popped element is overwritten by the next push operation.
 70   // Using static here means that the variable is permanently allocated.
 71   static PathfindingNode node;
 72   node = pathfindingNodeQueue[0];
 73   // we shift all nodes one position to the front
 74   for (int i = 1; i < pathfindingNodeQueueCount; i++)
 75   {
 76     pathfindingNodeQueue[i - 1] = pathfindingNodeQueue[i];
 77   }
 78   --pathfindingNodeQueueCount;
 79   return &node;
 80 }
 81
 82 float PathFindingGetDistance(int mapX, int mapY)
 83 {
 84   if (mapX < 0 || mapX >= pathfindingMap.width || mapY < 0 || mapY >= pathfindingMap.height)
 85   {
 86     // when outside the map, we return the manhattan distance to the castle (0,0)
 87     return fabsf((float)mapX) + fabsf((float)mapY);
 88   }
 89
 90   return pathfindingMap.distances[mapY * pathfindingMap.width + mapX];
 91 }
 92
 93 // transform a world position to a map position in the array;
 94 // returns true if the position is inside the map
 95 int PathFindingFromWorldToMapPosition(Vector3 worldPosition, int16_t *mapX, int16_t *mapY)
 96 {
 97   Vector3 mapPosition = Vector3Transform(worldPosition, pathfindingMap.toMapSpace);
 98   *mapX = (int16_t)mapPosition.x;
 99   *mapY = (int16_t)mapPosition.z;
100   return *mapX >= 0 && *mapX < pathfindingMap.width && *mapY >= 0 && *mapY < pathfindingMap.height;
101 }
102
103 void PathFindingMapUpdate()
104 {
105   const int castleX = 0, castleY = 0;
106   int16_t castleMapX, castleMapY;
107   if (!PathFindingFromWorldToMapPosition((Vector3){castleX, 0.0f, castleY}, &castleMapX, &castleMapY))
108   {
109     return;
110   }
111   int width = pathfindingMap.width, height = pathfindingMap.height;
112
113   // reset the distances to -1
114   for (int i = 0; i < width * height; i++)
115   {
116     pathfindingMap.distances[i] = -1.0f;
117   }
118   // reset the tower indices
119   for (int i = 0; i < width * height; i++)
120   {
121     pathfindingMap.towerIndex[i] = -1;
122   }
123   // reset the delta src
124   for (int i = 0; i < width * height; i++)
125   {
126     pathfindingMap.deltaSrc[i].x = 0;
127     pathfindingMap.deltaSrc[i].y = 0;
128   }
129
130   for (int i = 0; i < towerCount; i++)
131   {
132     Tower *tower = &towers[i];
133     if (tower->towerType == TOWER_TYPE_NONE || tower->towerType == TOWER_TYPE_BASE)
134     {
135       continue;
136     }
137     int16_t mapX, mapY;
138     // technically, if the tower cell scale is not in sync with the pathfinding map scale,
139     // this would not work correctly and needs to be refined to allow towers covering multiple cells
140     // or having multiple towers in one cell; for simplicity, we assume that the tower covers exactly
141     // one cell. For now.
142     if (!PathFindingFromWorldToMapPosition((Vector3){tower->x, 0.0f, tower->y}, &mapX, &mapY))
143     {
144       continue;
145     }
146     int index = mapY * width + mapX;
147     pathfindingMap.towerIndex[index] = i;
148   }
149
150   // we start at the castle and add the castle to the queue
151   pathfindingMap.maxDistance = 0.0f;
152   pathfindingNodeQueueCount = 0;
153   PathFindingNodePush(castleMapX, castleMapY, castleMapX, castleMapY, 0.0f);
154   PathfindingNode *node = 0;
155   while ((node = PathFindingNodePop()))
156   {
157     if (node->x < 0 || node->x >= width || node->y < 0 || node->y >= height)
158     {
159       continue;
160     }
161     int index = node->y * width + node->x;
162     if (pathfindingMap.distances[index] >= 0 && pathfindingMap.distances[index] <= node->distance)
163     {
164       continue;
165     }
166
167     int deltaX = node->x - node->fromX;
168     int deltaY = node->y - node->fromY;
169     // even if the cell is blocked by a tower, we still may want to store the direction
170     // (though this might not be needed, IDK right now)
171     pathfindingMap.deltaSrc[index].x = (char) deltaX;
172     pathfindingMap.deltaSrc[index].y = (char) deltaY;
173
174     // we skip nodes that are blocked by towers
175     if (pathfindingMap.towerIndex[index] >= 0)
176     {
177       node->distance += 8.0f;
178     }
179     pathfindingMap.distances[index] = node->distance;
180     pathfindingMap.maxDistance = fmaxf(pathfindingMap.maxDistance, node->distance);
181     PathFindingNodePush(node->x, node->y + 1, node->x, node->y, node->distance + 1.0f);
182     PathFindingNodePush(node->x, node->y - 1, node->x, node->y, node->distance + 1.0f);
183     PathFindingNodePush(node->x + 1, node->y, node->x, node->y, node->distance + 1.0f);
184     PathFindingNodePush(node->x - 1, node->y, node->x, node->y, node->distance + 1.0f);
185   }
186 }
187
188 void PathFindingMapDraw()
189 {
190   float cellSize = pathfindingMap.scale * 0.9f;
191   float highlightDistance = fmodf(GetTime() * 4.0f, pathfindingMap.maxDistance);
192   for (int x = 0; x < pathfindingMap.width; x++)
193   {
194     for (int y = 0; y < pathfindingMap.height; y++)
195     {
196       float distance = pathfindingMap.distances[y * pathfindingMap.width + x];
197       float colorV = distance < 0 ? 0 : fminf(distance / pathfindingMap.maxDistance, 1.0f);
198       Color color = distance < 0 ? BLUE : (Color){fminf(colorV, 1.0f) * 255, 0, 0, 255};
199       Vector3 position = Vector3Transform((Vector3){x, -0.25f, y}, pathfindingMap.toWorldSpace);
200       // animate the distance "wave" to show how the pathfinding algorithm expands
201       // from the castle
202       if (distance + 0.5f > highlightDistance && distance - 0.5f < highlightDistance)
203       {
204         color = BLACK;
205       }
206       DrawCube(position, cellSize, 0.1f, cellSize, color);
207     }
208   }
209 }
210
211 Vector2 PathFindingGetGradient(Vector3 world)
212 {
213   int16_t mapX, mapY;
214   if (PathFindingFromWorldToMapPosition(world, &mapX, &mapY))
215   {
216     DeltaSrc delta = pathfindingMap.deltaSrc[mapY * pathfindingMap.width + mapX];
217     return (Vector2){(float)-delta.x, (float)-delta.y};
218   }
219   // fallback to a simple gradient calculation
220   float n = PathFindingGetDistance(mapX, mapY - 1);
221   float s = PathFindingGetDistance(mapX, mapY + 1);
222   float w = PathFindingGetDistance(mapX - 1, mapY);
223   float e = PathFindingGetDistance(mapX + 1, mapY);
224   return (Vector2){w - e + 0.25f, n - s + 0.125f};
225 }
  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 static Projectile projectiles[PROJECTILE_MAX_COUNT];
  5 static int projectileCount = 0;
  6
  7 void ProjectileInit()
  8 {
  9   for (int i = 0; i < PROJECTILE_MAX_COUNT; i++)
 10   {
 11     projectiles[i] = (Projectile){0};
 12   }
 13 }
 14
 15 void ProjectileDraw()
 16 {
 17   for (int i = 0; i < projectileCount; i++)
 18   {
 19     Projectile projectile = projectiles[i];
 20     if (projectile.projectileType == PROJECTILE_TYPE_NONE)
 21     {
 22       continue;
 23     }
 24     float transition = (gameTime.time - projectile.shootTime) / (projectile.arrivalTime - projectile.shootTime);
 25     if (transition >= 1.0f)
 26     {
 27       continue;
 28     }
 29     for (float transitionOffset = 0.0f; transitionOffset < 1.0f; transitionOffset += 0.1f)
 30     {
 31       float t = transition + transitionOffset * 0.3f;
 32       if (t > 1.0f)
 33       {
 34         break;
 35       }
 36       Vector3 position = Vector3Lerp(projectile.position, projectile.target, t);
 37       Color color = RED;
 38       if (projectile.projectileType == PROJECTILE_TYPE_ARROW)
 39       {
 40         // make tip red but quickly fade to brown
 41         color = ColorLerp(BROWN, RED, transitionOffset * transitionOffset);
 42         // fake a ballista flight path using parabola equation
 43         float parabolaT = t - 0.5f;
 44         parabolaT = 1.0f - 4.0f * parabolaT * parabolaT;
 45         position.y += 0.15f * parabolaT * projectile.distance;
 46       }
 47
 48       float size = 0.06f * (transitionOffset + 0.25f);
 49       DrawCube(position, size, size, size, color);
 50     }
 51   }
 52 }
 53
 54 void ProjectileUpdate()
 55 {
 56   for (int i = 0; i < projectileCount; i++)
 57   {
 58     Projectile *projectile = &projectiles[i];
 59     if (projectile->projectileType == PROJECTILE_TYPE_NONE)
 60     {
 61       continue;
 62     }
 63     float transition = (gameTime.time - projectile->shootTime) / (projectile->arrivalTime - projectile->shootTime);
 64     if (transition >= 1.0f)
 65     {
 66       projectile->projectileType = PROJECTILE_TYPE_NONE;
 67       Enemy *enemy = EnemyTryResolve(projectile->targetEnemy);
 68       if (enemy)
 69       {
 70         EnemyAddDamage(enemy, projectile->damage);
 71       }
 72       continue;
 73     }
 74   }
 75 }
 76
 77 Projectile *ProjectileTryAdd(uint8_t projectileType, Enemy *enemy, Vector3 position, Vector3 target, float speed, float damage)
 78 {
 79   for (int i = 0; i < PROJECTILE_MAX_COUNT; i++)
 80   {
 81     Projectile *projectile = &projectiles[i];
 82     if (projectile->projectileType == PROJECTILE_TYPE_NONE)
 83     {
 84       projectile->projectileType = projectileType;
 85       projectile->shootTime = gameTime.time;
 86       float distance = Vector3Distance(position, target);
 87       projectile->arrivalTime = gameTime.time + distance / speed;
 88       projectile->damage = damage;
 89       projectile->position = position;
 90       projectile->target = target;
 91       projectile->directionNormal = Vector3Scale(Vector3Subtract(target, position), 1.0f / distance);
 92       projectile->distance = distance;
 93       projectile->targetEnemy = EnemyGetId(enemy);
 94       projectileCount = projectileCount <= i ? i + 1 : projectileCount;
 95       return projectile;
 96     }
 97   }
 98   return 0;
 99 }
  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 static Particle particles[PARTICLE_MAX_COUNT];
  5 static int particleCount = 0;
  6
  7 void ParticleInit()
  8 {
  9   for (int i = 0; i < PARTICLE_MAX_COUNT; i++)
 10   {
 11     particles[i] = (Particle){0};
 12   }
 13   particleCount = 0;
 14 }
 15
 16 static void DrawExplosionParticle(Particle *particle, float transition)
 17 {
 18   float size = 1.2f * (1.0f - transition);
 19   Color startColor = WHITE;
 20   Color endColor = RED;
 21   Color color = ColorLerp(startColor, endColor, transition);
 22   DrawCube(particle->position, size, size, size, color);
 23 }
 24
 25 void ParticleAdd(uint8_t particleType, Vector3 position, Vector3 velocity, float lifetime)
 26 {
 27   if (particleCount >= PARTICLE_MAX_COUNT)
 28   {
 29     return;
 30   }
 31
 32   int index = -1;
 33   for (int i = 0; i < particleCount; i++)
 34   {
 35     if (particles[i].particleType == PARTICLE_TYPE_NONE)
 36     {
 37       index = i;
 38       break;
 39     }
 40   }
 41
 42   if (index == -1)
 43   {
 44     index = particleCount++;
 45   }
 46
 47   Particle *particle = &particles[index];
 48   particle->particleType = particleType;
 49   particle->spawnTime = gameTime.time;
 50   particle->lifetime = lifetime;
 51   particle->position = position;
 52   particle->velocity = velocity;
 53 }
 54
 55 void ParticleUpdate()
 56 {
 57   for (int i = 0; i < particleCount; i++)
 58   {
 59     Particle *particle = &particles[i];
 60     if (particle->particleType == PARTICLE_TYPE_NONE)
 61     {
 62       continue;
 63     }
 64
 65     float age = gameTime.time - particle->spawnTime;
 66
 67     if (particle->lifetime > age)
 68     {
 69       particle->position = Vector3Add(particle->position, Vector3Scale(particle->velocity, gameTime.deltaTime));
 70     }
 71     else {
 72       particle->particleType = PARTICLE_TYPE_NONE;
 73     }
 74   }
 75 }
 76
 77 void ParticleDraw()
 78 {
 79   for (int i = 0; i < particleCount; i++)
 80   {
 81     Particle particle = particles[i];
 82     if (particle.particleType == PARTICLE_TYPE_NONE)
 83     {
 84       continue;
 85     }
 86
 87     float age = gameTime.time - particle.spawnTime;
 88     float transition = age / particle.lifetime;
 89     switch (particle.particleType)
 90     {
 91     case PARTICLE_TYPE_EXPLOSION:
 92       DrawExplosionParticle(&particle, transition);
 93       break;
 94     default:
 95       DrawCube(particle.position, 0.3f, 0.5f, 0.3f, RED);
 96       break;
 97     }
 98   }
 99 }
  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 Tower towers[TOWER_MAX_COUNT];
  5 int towerCount = 0;
  6
  7 Model towerModels[TOWER_TYPE_COUNT];
  8
  9 // definition of our archer unit
 10 SpriteUnit archerUnit = {
 11     .srcRect = {0, 0, 16, 16},
 12     .offset = {7, 1},
 13     .frameCount = 1,
 14     .frameDuration = 0.0f,
 15     .srcWeaponIdleRect = {16, 0, 6, 16},
 16     .srcWeaponIdleOffset = {8, 0},
 17     .srcWeaponCooldownRect = {22, 0, 11, 16},
 18     .srcWeaponCooldownOffset = {10, 0},
 19 };
 20
 21 void DrawSpriteUnit(SpriteUnit unit, Vector3 position, float t, int flip, int phase)
 22 {
 23   float xScale = flip ? -1.0f : 1.0f;
 24   Camera3D camera = currentLevel->camera;
 25   float size = 0.5f;
 26   Vector2 offset = (Vector2){ unit.offset.x / 16.0f * size, unit.offset.y / 16.0f * size * xScale };
 27   Vector2 scale = (Vector2){ unit.srcRect.width / 16.0f * size, unit.srcRect.height / 16.0f * size };
 28   // we want the sprite to face the camera, so we need to calculate the up vector
 29   Vector3 forward = Vector3Subtract(camera.target, camera.position);
 30   Vector3 up = {0, 1, 0};
 31   Vector3 right = Vector3CrossProduct(forward, up);
 32   up = Vector3Normalize(Vector3CrossProduct(right, forward));
 33
 34   Rectangle srcRect = unit.srcRect;
 35   if (unit.frameCount > 1)
 36   {
 37     srcRect.x += (int)(t / unit.frameDuration) % unit.frameCount * srcRect.width;
 38   }
 39   if (flip)
 40   {
 41     srcRect.x += srcRect.width;
 42     srcRect.width = -srcRect.width;
 43   }
 44   DrawBillboardPro(camera, spriteSheet, srcRect, position, up, scale, offset, 0, WHITE);
 45
 46   if (phase == SPRITE_UNIT_PHASE_WEAPON_COOLDOWN && unit.srcWeaponCooldownRect.width > 0)
 47   {
 48     offset = (Vector2){ unit.srcWeaponCooldownOffset.x / 16.0f * size, unit.srcWeaponCooldownOffset.y / 16.0f * size };
 49     scale = (Vector2){ unit.srcWeaponCooldownRect.width / 16.0f * size, unit.srcWeaponCooldownRect.height / 16.0f * size };
 50     srcRect = unit.srcWeaponCooldownRect;
 51     if (flip)
 52     {
 53       // position.x = flip * scale.x * 0.5f;
 54       srcRect.x += srcRect.width;
 55       srcRect.width = -srcRect.width;
 56       offset.x = scale.x - offset.x;
 57     }
 58     DrawBillboardPro(camera, spriteSheet, srcRect, position, up, scale, offset, 0, WHITE);
 59   }
 60   else if (phase == SPRITE_UNIT_PHASE_WEAPON_IDLE && unit.srcWeaponIdleRect.width > 0)
 61   {
 62     offset = (Vector2){ unit.srcWeaponIdleOffset.x / 16.0f * size, unit.srcWeaponIdleOffset.y / 16.0f * size };
 63     scale = (Vector2){ unit.srcWeaponIdleRect.width / 16.0f * size, unit.srcWeaponIdleRect.height / 16.0f * size };
 64     srcRect = unit.srcWeaponIdleRect;
 65     if (flip)
 66     {
 67       // position.x = flip * scale.x * 0.5f;
 68       srcRect.x += srcRect.width;
 69       srcRect.width = -srcRect.width;
 70       offset.x = scale.x - offset.x;
 71     }
 72     DrawBillboardPro(camera, spriteSheet, srcRect, position, up, scale, offset, 0, WHITE);
 73   }
 74 }
 75
 76 void TowerInit()
 77 {
 78   for (int i = 0; i < TOWER_MAX_COUNT; i++)
 79   {
 80     towers[i] = (Tower){0};
 81   }
 82   towerCount = 0;
 83
 84   towerModels[TOWER_TYPE_BASE] = LoadModel("data/keep.glb");
 85   towerModels[TOWER_TYPE_WALL] = LoadModel("data/wall-0000.glb");
 86
 87   for (int i = 0; i < TOWER_TYPE_COUNT; i++)
 88   {
 89     if (towerModels[i].materials)
 90     {
 91       // assign the palette texture to the material of the model (0 is not used afaik)
 92       towerModels[i].materials[1].maps[MATERIAL_MAP_DIFFUSE].texture = palette;
 93     }
 94   }
 95 }
 96
 97 static void TowerGunUpdate(Tower *tower)
 98 {
 99   if (tower->cooldown <= 0)
100   {
101     Enemy *enemy = EnemyGetClosestToCastle(tower->x, tower->y, 3.0f);
102     if (enemy)
103     {
104       tower->cooldown = 0.5f;
105       // shoot the enemy; determine future position of the enemy
106       float bulletSpeed = 4.0f;
107       float bulletDamage = 3.0f;
108       Vector2 velocity = enemy->simVelocity;
109       Vector2 futurePosition = EnemyGetPosition(enemy, gameTime.time - enemy->startMovingTime, &velocity, 0);
110       Vector2 towerPosition = {tower->x, tower->y};
111       float eta = Vector2Distance(towerPosition, futurePosition) / bulletSpeed;
112       for (int i = 0; i < 8; i++) {
113         velocity = enemy->simVelocity;
114         futurePosition = EnemyGetPosition(enemy, gameTime.time - enemy->startMovingTime + eta, &velocity, 0);
115         float distance = Vector2Distance(towerPosition, futurePosition);
116         float eta2 = distance / bulletSpeed;
117         if (fabs(eta - eta2) < 0.01f) {
118           break;
119         }
120         eta = (eta2 + eta) * 0.5f;
121       }
122       ProjectileTryAdd(PROJECTILE_TYPE_ARROW, enemy,
123         (Vector3){towerPosition.x, 1.33f, towerPosition.y},
124         (Vector3){futurePosition.x, 0.25f, futurePosition.y},
125         bulletSpeed, bulletDamage);
126       enemy->futureDamage += bulletDamage;
127       tower->lastTargetPosition = futurePosition;
128     }
129   }
130   else
131   {
132     tower->cooldown -= gameTime.deltaTime;
133   }
134 }
135
136 Tower *TowerGetAt(int16_t x, int16_t y)
137 {
138   for (int i = 0; i < towerCount; i++)
139   {
140     if (towers[i].x == x && towers[i].y == y && towers[i].towerType != TOWER_TYPE_NONE)
141     {
142       return &towers[i];
143     }
144   }
145   return 0;
146 }
147
148 Tower *TowerTryAdd(uint8_t towerType, int16_t x, int16_t y)
149 {
150   if (towerCount >= TOWER_MAX_COUNT)
151   {
152     return 0;
153   }
154
155   Tower *tower = TowerGetAt(x, y);
156   if (tower)
157   {
158     return 0;
159   }
160
161   tower = &towers[towerCount++];
162   tower->x = x;
163   tower->y = y;
164   tower->towerType = towerType;
165   tower->cooldown = 0.0f;
166   tower->damage = 0.0f;
167   return tower;
168 }
169
170 Tower *GetTowerByType(uint8_t towerType)
171 {
172   for (int i = 0; i < towerCount; i++)
173   {
174     if (towers[i].towerType == towerType)
175     {
176       return &towers[i];
177     }
178   }
179   return 0;
180 }
181
182 int GetTowerCosts(uint8_t towerType)
183 {
184   switch (towerType)
185   {
186   case TOWER_TYPE_BASE:
187     return 0;
188   case TOWER_TYPE_GUN:
189     return 6;
190   case TOWER_TYPE_WALL:
191     return 2;
192   }
193   return 0;
194 }
195
196 float TowerGetMaxHealth(Tower *tower)
197 {
198   switch (tower->towerType)
199   {
200   case TOWER_TYPE_BASE:
201     return 10.0f;
202   case TOWER_TYPE_GUN:
203     return 3.0f;
204   case TOWER_TYPE_WALL:
205     return 5.0f;
206   }
207   return 0.0f;
208 }
209
210 void TowerDraw()
211 {
212   for (int i = 0; i < towerCount; i++)
213   {
214     Tower tower = towers[i];
215     if (tower.towerType == TOWER_TYPE_NONE)
216     {
217       continue;
218     }
219
220     switch (tower.towerType)
221     {
222     case TOWER_TYPE_GUN:
223       {
224         Vector2 screenPosTower = GetWorldToScreen((Vector3){tower.x, 0.0f, tower.y}, currentLevel->camera);
225         Vector2 screenPosTarget = GetWorldToScreen((Vector3){tower.lastTargetPosition.x, 0.0f, tower.lastTargetPosition.y}, currentLevel->camera);
226         DrawModel(towerModels[TOWER_TYPE_WALL], (Vector3){tower.x, 0.0f, tower.y}, 1.0f, WHITE);
227         DrawSpriteUnit(archerUnit, (Vector3){tower.x, 1.0f, tower.y}, 0, screenPosTarget.x > screenPosTower.x,
228           tower.cooldown > 0.2f ? SPRITE_UNIT_PHASE_WEAPON_COOLDOWN : SPRITE_UNIT_PHASE_WEAPON_IDLE);
229       }
230       break;
231     default:
232       if (towerModels[tower.towerType].materials)
233       {
234         DrawModel(towerModels[tower.towerType], (Vector3){tower.x, 0.0f, tower.y}, 1.0f, WHITE);
235       } else {
236         DrawCube((Vector3){tower.x, 0.5f, tower.y}, 1.0f, 1.0f, 1.0f, LIGHTGRAY);
237       }
238       break;
239     }
240   }
241 }
242
243 void TowerUpdate()
244 {
245   for (int i = 0; i < towerCount; i++)
246   {
247     Tower *tower = &towers[i];
248     switch (tower->towerType)
249     {
250     case TOWER_TYPE_GUN:
251       TowerGunUpdate(tower);
252       break;
253     }
254   }
255 }
256
257 void TowerDrawHealthBars(Camera3D camera)
258 {
259   for (int i = 0; i < towerCount; i++)
260   {
261     Tower *tower = &towers[i];
262     if (tower->towerType == TOWER_TYPE_NONE || tower->damage <= 0.0f)
263     {
264       continue;
265     }
266
267     Vector3 position = (Vector3){tower->x, 0.5f, tower->y};
268     float maxHealth = TowerGetMaxHealth(tower);
269     float health = maxHealth - tower->damage;
270     float healthRatio = health / maxHealth;
271
272     DrawHealthBar(camera, position, healthRatio, GREEN, 35.0f);
273   }
274 }
  1 #include "raylib.h"
  2 #include "preferred_size.h"
  3
  4 // Since the canvas size is not known at compile time, we need to query it at runtime;
  5 // the following platform specific code obtains the canvas size and we will use this
  6 // size as the preferred size for the window at init time. We're ignoring here the
  7 // possibility of the canvas size changing during runtime - this would require to
  8 // poll the canvas size in the game loop or establishing a callback to be notified
  9
 10 #ifdef PLATFORM_WEB
 11 #include <emscripten.h>
 12 EMSCRIPTEN_RESULT emscripten_get_element_css_size(const char *target, double *width, double *height);
 13
 14 void GetPreferredSize(int *screenWidth, int *screenHeight)
 15 {
 16   double canvasWidth, canvasHeight;
 17   emscripten_get_element_css_size("#" CANVAS_NAME, &canvasWidth, &canvasHeight);
 18   *screenWidth = (int)canvasWidth;
 19   *screenHeight = (int)canvasHeight;
 20   TraceLog(LOG_INFO, "preferred size for %s: %d %d", CANVAS_NAME, *screenWidth, *screenHeight);
 21 }
 22
 23 int IsPaused()
 24 {
 25   const char *js = "(function(){\n"
 26   "  var canvas = document.getElementById(\"" CANVAS_NAME "\");\n"
 27   "  var rect = canvas.getBoundingClientRect();\n"
 28   "  var isVisible = (\n"
 29   "    rect.top >= 0 &&\n"
 30   "    rect.left >= 0 &&\n"
 31   "    rect.bottom <= (window.innerHeight || document.documentElement.clientHeight) &&\n"
 32   "    rect.right <= (window.innerWidth || document.documentElement.clientWidth)\n"
 33   "  );\n"
 34   "  return isVisible ? 0 : 1;\n"
 35   "})()";
 36   return emscripten_run_script_int(js);
 37 }
 38
 39 #else
 40 void GetPreferredSize(int *screenWidth, int *screenHeight)
 41 {
 42   *screenWidth = 600;
 43   *screenHeight = 240;
 44 }
 45 int IsPaused()
 46 {
 47   return 0;
 48 }
 49 #endif
  1 #ifndef PREFERRED_SIZE_H
  2 #define PREFERRED_SIZE_H
  3
  4 void GetPreferredSize(int *screenWidth, int *screenHeight);
  5 int IsPaused();
  6
  7 #endif
Everything is the same, but now we have some grass around the map.

The first change we do is to load an additional model and draw it around the map. The placement of the objects uses two nested loops constructions:

  1   const int layerCount = 2;
  2   for (int layer = 0; layer < layerCount; layer++)
  3   {
  4     int layerPos = 6 + layer;
  5     for (int x = -6 + layer; x <= 6 + layer; x += 1)
  6     {
  7       DrawModel(grassPatchModel[0],
  8         (Vector3){x, 0.0f, -layerPos},
  9         1.0f, WHITE);
 10       DrawModel(grassPatchModel[0],
 11         (Vector3){x, 0.0f, layerPos},
 12         1.0f, WHITE);
 13     }
 14
 15     for (int z = -5 + layer; z <= 5 + layer; z += 1)
 16     {
 17       DrawModel(grassPatchModel[0],
 18         (Vector3){-layerPos, 0.0f, z},
 19         1.0f, WHITE);
 20       DrawModel(grassPatchModel[0],
 21         (Vector3){layerPos, 0.0f, z},
 22         1.0f, WHITE);
 23     }
 24   }

The layerCount variable determines how many layers of objects are placed around the map. The layerPos variable is the distance from the center of the map - either in x or z direction (since our map is a square, one variable can be used for both axes).

The purpose of the two inner loops is to place objects along the edges of the x and z axis. The first loop places the models along the x axis on the left and right side of the map. The second loop places the models along the z axis on the top and bottom side of the map.

However, the objects are placed in a very strict grid. It would be better to place them in some random fashion to make it look more natural. Let's do that next and use a random value to offset the position of the objects a little bit.

  • 💾
  1 #include "td_main.h"
  2 #include <raymath.h>
  3 #include <stdlib.h>
  4 #include <math.h>
  5
  6 //# Variables
  7 GUIState guiState = {0};
  8 GameTime gameTime = {0};
  9
 10 Model floorTileAModel = {0};
 11 Model floorTileBModel = {0};
 12 Model grassPatchModel[1] = {0};
 13
 14 Texture2D palette, spriteSheet;
 15
 16 Level levels[] = {
 17   [0] = {
 18     .state = LEVEL_STATE_BUILDING,
 19     .initialGold = 20,
 20     .waves[0] = {
 21       .enemyType = ENEMY_TYPE_MINION,
 22       .wave = 0,
 23       .count = 10,
 24       .interval = 2.5f,
 25       .delay = 1.0f,
 26       .spawnPosition = {0, 6},
 27     },
 28     .waves[1] = {
 29       .enemyType = ENEMY_TYPE_MINION,
 30       .wave = 1,
 31       .count = 20,
 32       .interval = 1.5f,
 33       .delay = 1.0f,
 34       .spawnPosition = {0, 6},
 35     },
 36     .waves[2] = {
 37       .enemyType = ENEMY_TYPE_MINION,
 38       .wave = 2,
 39       .count = 30,
 40       .interval = 1.2f,
 41       .delay = 1.0f,
 42       .spawnPosition = {0, 6},
 43     }
 44   },
 45 };
 46
 47 Level *currentLevel = levels;
 48
 49 //# Game
 50
 51 static Model LoadGLBModel(char *filename)
 52 {
 53   Model model = LoadModel(TextFormat("data/%s.glb",filename));
 54   if (model.materialCount > 1)
 55   {
 56     model.materials[1].maps[MATERIAL_MAP_DIFFUSE].texture = palette;
 57   }
 58   return model;
 59 }
 60
 61 void LoadAssets()
 62 {
 63   // load a sprite sheet that contains all units
 64   spriteSheet = LoadTexture("data/spritesheet.png");
 65   SetTextureFilter(spriteSheet, TEXTURE_FILTER_BILINEAR);
 66
 67   // we'll use a palette texture to colorize the all buildings and environment art
 68   palette = LoadTexture("data/palette.png");
 69   // The texture uses gradients on very small space, so we'll enable bilinear filtering
 70   SetTextureFilter(palette, TEXTURE_FILTER_BILINEAR);
 71
 72   floorTileAModel = LoadGLBModel("floor-tile-a");
 73   floorTileBModel = LoadGLBModel("floor-tile-b");
 74   grassPatchModel[0] = LoadGLBModel("grass-patch-1");
 75 }
 76
 77 void InitLevel(Level *level)
 78 {
 79   TowerInit();
 80   EnemyInit();
 81   ProjectileInit();
 82   ParticleInit();
 83   TowerTryAdd(TOWER_TYPE_BASE, 0, 0);
 84
 85   level->placementMode = 0;
 86   level->state = LEVEL_STATE_BUILDING;
 87   level->nextState = LEVEL_STATE_NONE;
 88   level->playerGold = level->initialGold;
 89   level->currentWave = 0;
 90
 91   Camera *camera = &level->camera;
 92   camera->position = (Vector3){4.0f, 8.0f, 8.0f};
 93   camera->target = (Vector3){0.0f, 0.0f, 0.0f};
 94   camera->up = (Vector3){0.0f, 1.0f, 0.0f};
 95   camera->fovy = 10.0f;
 96   camera->projection = CAMERA_ORTHOGRAPHIC;
 97 }
 98
 99 void DrawLevelHud(Level *level)
100 {
101   const char *text = TextFormat("Gold: %d", level->playerGold);
102   Font font = GetFontDefault();
103   DrawTextEx(font, text, (Vector2){GetScreenWidth() - 120, 10}, font.baseSize * 2.0f, 2.0f, BLACK);
104   DrawTextEx(font, text, (Vector2){GetScreenWidth() - 122, 8}, font.baseSize * 2.0f, 2.0f, YELLOW);
105 }
106
107 void DrawLevelReportLostWave(Level *level)
108 {
109   BeginMode3D(level->camera);
110   DrawLevelGround(level);
111   TowerDraw();
112   EnemyDraw();
113   ProjectileDraw();
114   ParticleDraw();
115   guiState.isBlocked = 0;
116   EndMode3D();
117
118   TowerDrawHealthBars(level->camera);
119
120   const char *text = "Wave lost";
121   int textWidth = MeasureText(text, 20);
122   DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE);
123
124   if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0))
125   {
126     level->nextState = LEVEL_STATE_RESET;
127   }
128 }
129
130 int HasLevelNextWave(Level *level)
131 {
132   for (int i = 0; i < 10; i++)
133   {
134     EnemyWave *wave = &level->waves[i];
135     if (wave->wave == level->currentWave)
136     {
137       return 1;
138     }
139   }
140   return 0;
141 }
142
143 void DrawLevelReportWonWave(Level *level)
144 {
145   BeginMode3D(level->camera);
146   DrawLevelGround(level);
147   TowerDraw();
148   EnemyDraw();
149   ProjectileDraw();
150   ParticleDraw();
151   guiState.isBlocked = 0;
152   EndMode3D();
153
154   TowerDrawHealthBars(level->camera);
155
156   const char *text = "Wave won";
157   int textWidth = MeasureText(text, 20);
158   DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE);
159
160
161   if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0))
162   {
163     level->nextState = LEVEL_STATE_RESET;
164   }
165
166   if (HasLevelNextWave(level))
167   {
168     if (Button("Prepare for next wave", GetScreenWidth() - 300, GetScreenHeight() - 40, 300, 30, 0))
169     {
170       level->nextState = LEVEL_STATE_BUILDING;
171     }
172   }
173   else {
174     if (Button("Level won", GetScreenWidth() - 300, GetScreenHeight() - 40, 300, 30, 0))
175     {
176       level->nextState = LEVEL_STATE_WON_LEVEL;
177     }
178   }
179 }
180
181 void DrawBuildingBuildButton(Level *level, int x, int y, int width, int height, uint8_t towerType, const char *name)
182 {
183   static ButtonState buttonStates[8] = {0};
184   int cost = GetTowerCosts(towerType);
185   const char *text = TextFormat("%s: %d", name, cost);
186   buttonStates[towerType].isSelected = level->placementMode == towerType;
187   buttonStates[towerType].isDisabled = level->playerGold < cost;
188   if (Button(text, x, y, width, height, &buttonStates[towerType]))
189   {
190     level->placementMode = buttonStates[towerType].isSelected ? 0 : towerType;
191   }
192 }
193
194 void DrawLevelGround(Level *level)
195 {
196   // draw checkerboard ground pattern
197   for (int x = -5; x <= 5; x += 1)
198   {
199     for (int y = -5; y <= 5; y += 1)
200     {
201       Model *model = (x + y) % 2 == 0 ? &floorTileAModel : &floorTileBModel;
202       DrawModel(*model, (Vector3){x, 0.0f, y}, 1.0f, WHITE);
203     }
204   }
205
206   // draw grass patches around the edges
207   const int layerCount = 2;
208   for (int layer = 0; layer < layerCount; layer++)
209   {
210     int layerPos = 6 + layer;
211     for (int x = -6 + layer; x <= 6 + layer; x += 1)
212     {
213       DrawModel(grassPatchModel[0],
214 (Vector3){x + (float)GetRandomValue(-25,25) / 100.0f, 0.0f, -layerPos + (float)GetRandomValue(-25,25) / 100.0f},
215 1.0f, WHITE); 216 DrawModel(grassPatchModel[0],
217 (Vector3){x + (float)GetRandomValue(-25,25) / 100.0f, 0.0f, layerPos + (float)GetRandomValue(-25,25) / 100.0f},
218 1.0f, WHITE); 219 } 220 221 for (int z = -5 + layer; z <= 5 + layer; z += 1) 222 { 223 DrawModel(grassPatchModel[0],
224 (Vector3){-layerPos + (float)GetRandomValue(-25,25) / 100.0f, 0.0f, z + (float)GetRandomValue(-25,25) / 100.0f},
225 1.0f, WHITE); 226 DrawModel(grassPatchModel[0],
227 (Vector3){layerPos + (float)GetRandomValue(-25,25) / 100.0f, 0.0f, z + (float)GetRandomValue(-25,25) / 100.0f},
228 1.0f, WHITE); 229 } 230 } 231 } 232 233 void DrawLevelBuildingState(Level *level) 234 { 235 BeginMode3D(level->camera); 236 DrawLevelGround(level); 237 TowerDraw(); 238 EnemyDraw(); 239 ProjectileDraw(); 240 ParticleDraw(); 241 242 Ray ray = GetScreenToWorldRay(GetMousePosition(), level->camera); 243 float planeDistance = ray.position.y / -ray.direction.y; 244 float planeX = ray.direction.x * planeDistance + ray.position.x; 245 float planeY = ray.direction.z * planeDistance + ray.position.z; 246 int16_t mapX = (int16_t)floorf(planeX + 0.5f); 247 int16_t mapY = (int16_t)floorf(planeY + 0.5f); 248 if (level->placementMode && !guiState.isBlocked && mapX >= -5 && mapX <= 5 && mapY >= -5 && mapY <= 5) 249 { 250 DrawCubeWires((Vector3){mapX, 0.2f, mapY}, 1.0f, 0.4f, 1.0f, RED); 251 if (IsMouseButtonPressed(MOUSE_LEFT_BUTTON)) 252 { 253 if (TowerTryAdd(level->placementMode, mapX, mapY)) 254 { 255 level->playerGold -= GetTowerCosts(level->placementMode); 256 level->placementMode = TOWER_TYPE_NONE; 257 } 258 } 259 } 260 261 guiState.isBlocked = 0; 262 263 EndMode3D(); 264 265 TowerDrawHealthBars(level->camera); 266 267 static ButtonState buildWallButtonState = {0}; 268 static ButtonState buildGunButtonState = {0}; 269 buildWallButtonState.isSelected = level->placementMode == TOWER_TYPE_WALL; 270 buildGunButtonState.isSelected = level->placementMode == TOWER_TYPE_GUN; 271 272 DrawBuildingBuildButton(level, 10, 10, 110, 30, TOWER_TYPE_WALL, "Wall"); 273 DrawBuildingBuildButton(level, 10, 50, 110, 30, TOWER_TYPE_GUN, "Archer"); 274 275 if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0)) 276 { 277 level->nextState = LEVEL_STATE_RESET; 278 } 279 280 if (Button("Begin waves", GetScreenWidth() - 160, GetScreenHeight() - 40, 160, 30, 0)) 281 { 282 level->nextState = LEVEL_STATE_BATTLE; 283 } 284 285 const char *text = "Building phase"; 286 int textWidth = MeasureText(text, 20); 287 DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE); 288 } 289 290 void InitBattleStateConditions(Level *level) 291 { 292 level->state = LEVEL_STATE_BATTLE; 293 level->nextState = LEVEL_STATE_NONE; 294 level->waveEndTimer = 0.0f; 295 for (int i = 0; i < 10; i++) 296 { 297 EnemyWave *wave = &level->waves[i]; 298 wave->spawned = 0; 299 wave->timeToSpawnNext = wave->delay; 300 } 301 } 302 303 void DrawLevelBattleState(Level *level) 304 { 305 BeginMode3D(level->camera); 306 DrawLevelGround(level); 307 TowerDraw(); 308 EnemyDraw(); 309 ProjectileDraw(); 310 ParticleDraw(); 311 guiState.isBlocked = 0; 312 EndMode3D(); 313 314 EnemyDrawHealthbars(level->camera); 315 TowerDrawHealthBars(level->camera); 316 317 if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0)) 318 { 319 level->nextState = LEVEL_STATE_RESET; 320 } 321 322 int maxCount = 0; 323 int remainingCount = 0; 324 for (int i = 0; i < 10; i++) 325 { 326 EnemyWave *wave = &level->waves[i]; 327 if (wave->wave != level->currentWave) 328 { 329 continue; 330 } 331 maxCount += wave->count; 332 remainingCount += wave->count - wave->spawned; 333 } 334 int aliveCount = EnemyCount(); 335 remainingCount += aliveCount; 336 337 const char *text = TextFormat("Battle phase: %03d%%", 100 - remainingCount * 100 / maxCount); 338 int textWidth = MeasureText(text, 20); 339 DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE); 340 } 341 342 void DrawLevel(Level *level) 343 { 344 switch (level->state) 345 { 346 case LEVEL_STATE_BUILDING: DrawLevelBuildingState(level); break; 347 case LEVEL_STATE_BATTLE: DrawLevelBattleState(level); break; 348 case LEVEL_STATE_WON_WAVE: DrawLevelReportWonWave(level); break; 349 case LEVEL_STATE_LOST_WAVE: DrawLevelReportLostWave(level); break; 350 default: break; 351 } 352 353 DrawLevelHud(level); 354 } 355 356 void UpdateLevel(Level *level) 357 { 358 if (level->state == LEVEL_STATE_BATTLE) 359 { 360 int activeWaves = 0; 361 for (int i = 0; i < 10; i++) 362 { 363 EnemyWave *wave = &level->waves[i]; 364 if (wave->spawned >= wave->count || wave->wave != level->currentWave) 365 { 366 continue; 367 } 368 activeWaves++; 369 wave->timeToSpawnNext -= gameTime.deltaTime; 370 if (wave->timeToSpawnNext <= 0.0f) 371 { 372 Enemy *enemy = EnemyTryAdd(wave->enemyType, wave->spawnPosition.x, wave->spawnPosition.y); 373 if (enemy) 374 { 375 wave->timeToSpawnNext = wave->interval; 376 wave->spawned++; 377 } 378 } 379 } 380 if (GetTowerByType(TOWER_TYPE_BASE) == 0) { 381 level->waveEndTimer += gameTime.deltaTime; 382 if (level->waveEndTimer >= 2.0f) 383 { 384 level->nextState = LEVEL_STATE_LOST_WAVE; 385 } 386 } 387 else if (activeWaves == 0 && EnemyCount() == 0) 388 { 389 level->waveEndTimer += gameTime.deltaTime; 390 if (level->waveEndTimer >= 2.0f) 391 { 392 level->nextState = LEVEL_STATE_WON_WAVE; 393 } 394 } 395 } 396 397 PathFindingMapUpdate(); 398 EnemyUpdate(); 399 TowerUpdate(); 400 ProjectileUpdate(); 401 ParticleUpdate(); 402 403 if (level->nextState == LEVEL_STATE_RESET) 404 { 405 InitLevel(level); 406 } 407 408 if (level->nextState == LEVEL_STATE_BATTLE) 409 { 410 InitBattleStateConditions(level); 411 } 412 413 if (level->nextState == LEVEL_STATE_WON_WAVE) 414 { 415 level->currentWave++; 416 level->state = LEVEL_STATE_WON_WAVE; 417 } 418 419 if (level->nextState == LEVEL_STATE_LOST_WAVE) 420 { 421 level->state = LEVEL_STATE_LOST_WAVE; 422 } 423 424 if (level->nextState == LEVEL_STATE_BUILDING) 425 { 426 level->state = LEVEL_STATE_BUILDING; 427 } 428 429 if (level->nextState == LEVEL_STATE_WON_LEVEL) 430 { 431 // make something of this later 432 InitLevel(level); 433 } 434 435 level->nextState = LEVEL_STATE_NONE; 436 } 437 438 float nextSpawnTime = 0.0f; 439 440 void ResetGame() 441 { 442 InitLevel(currentLevel); 443 } 444 445 void InitGame() 446 { 447 TowerInit(); 448 EnemyInit(); 449 ProjectileInit(); 450 ParticleInit(); 451 PathfindingMapInit(20, 20, (Vector3){-10.0f, 0.0f, -10.0f}, 1.0f); 452 453 currentLevel = levels; 454 InitLevel(currentLevel); 455 } 456 457 //# Immediate GUI functions 458 459 void DrawHealthBar(Camera3D camera, Vector3 position, float healthRatio, Color barColor, float healthBarWidth) 460 { 461 const float healthBarHeight = 6.0f; 462 const float healthBarOffset = 15.0f; 463 const float inset = 2.0f; 464 const float innerWidth = healthBarWidth - inset * 2; 465 const float innerHeight = healthBarHeight - inset * 2; 466 467 Vector2 screenPos = GetWorldToScreen(position, camera); 468 float centerX = screenPos.x - healthBarWidth * 0.5f; 469 float topY = screenPos.y - healthBarOffset; 470 DrawRectangle(centerX, topY, healthBarWidth, healthBarHeight, BLACK); 471 float healthWidth = innerWidth * healthRatio; 472 DrawRectangle(centerX + inset, topY + inset, healthWidth, innerHeight, barColor); 473 } 474 475 int Button(const char *text, int x, int y, int width, int height, ButtonState *state) 476 { 477 Rectangle bounds = {x, y, width, height}; 478 int isPressed = 0; 479 int isSelected = state && state->isSelected; 480 int isDisabled = state && state->isDisabled; 481 if (CheckCollisionPointRec(GetMousePosition(), bounds) && !guiState.isBlocked && !isDisabled) 482 { 483 Color color = isSelected ? DARKGRAY : GRAY; 484 DrawRectangle(x, y, width, height, color); 485 if (IsMouseButtonPressed(MOUSE_LEFT_BUTTON)) 486 { 487 isPressed = 1; 488 } 489 guiState.isBlocked = 1; 490 } 491 else 492 { 493 Color color = isSelected ? WHITE : LIGHTGRAY; 494 DrawRectangle(x, y, width, height, color); 495 } 496 Font font = GetFontDefault(); 497 Vector2 textSize = MeasureTextEx(font, text, font.baseSize * 2.0f, 1); 498 Color textColor = isDisabled ? GRAY : BLACK; 499 DrawTextEx(font, text, (Vector2){x + width / 2 - textSize.x / 2, y + height / 2 - textSize.y / 2}, font.baseSize * 2.0f, 1, textColor); 500 return isPressed; 501 } 502 503 //# Main game loop 504 505 void GameUpdate() 506 { 507 float dt = GetFrameTime(); 508 // cap maximum delta time to 0.1 seconds to prevent large time steps 509 if (dt > 0.1f) dt = 0.1f; 510 gameTime.time += dt; 511 gameTime.deltaTime = dt; 512 513 UpdateLevel(currentLevel); 514 } 515 516 int main(void) 517 { 518 int screenWidth, screenHeight; 519 GetPreferredSize(&screenWidth, &screenHeight); 520 InitWindow(screenWidth, screenHeight, "Tower defense"); 521 SetTargetFPS(30); 522 523 LoadAssets(); 524 InitGame(); 525 526 while (!WindowShouldClose()) 527 { 528 if (IsPaused()) { 529 // canvas is not visible in browser - do nothing 530 continue; 531 } 532 533 BeginDrawing(); 534 ClearBackground((Color){0x4E, 0x63, 0x26, 0xFF}); 535 536 GameUpdate(); 537 DrawLevel(currentLevel); 538 539 EndDrawing(); 540 } 541 542 CloseWindow(); 543 544 return 0; 545 }
  1 #ifndef TD_TUT_2_MAIN_H
  2 #define TD_TUT_2_MAIN_H
  3
  4 #include <inttypes.h>
  5
  6 #include "raylib.h"
  7 #include "preferred_size.h"
  8
  9 //# Declarations
 10
 11 #define ENEMY_MAX_PATH_COUNT 8
 12 #define ENEMY_MAX_COUNT 400
 13 #define ENEMY_TYPE_NONE 0
 14 #define ENEMY_TYPE_MINION 1
 15
 16 #define PARTICLE_MAX_COUNT 400
 17 #define PARTICLE_TYPE_NONE 0
 18 #define PARTICLE_TYPE_EXPLOSION 1
 19
 20 typedef struct Particle
 21 {
 22   uint8_t particleType;
 23   float spawnTime;
 24   float lifetime;
 25   Vector3 position;
 26   Vector3 velocity;
 27 } Particle;
 28
 29 #define TOWER_MAX_COUNT 400
 30 #define TOWER_TYPE_NONE 0
 31 #define TOWER_TYPE_BASE 1
 32 #define TOWER_TYPE_GUN 2
 33 #define TOWER_TYPE_WALL 3
 34 #define TOWER_TYPE_COUNT 4
 35
 36 typedef struct Tower
 37 {
 38   int16_t x, y;
 39   uint8_t towerType;
 40   Vector2 lastTargetPosition;
 41   float cooldown;
 42   float damage;
 43 } Tower;
 44
 45 typedef struct GameTime
 46 {
 47   float time;
 48   float deltaTime;
 49 } GameTime;
 50
 51 typedef struct ButtonState {
 52   char isSelected;
 53   char isDisabled;
 54 } ButtonState;
 55
 56 typedef struct GUIState {
 57   int isBlocked;
 58 } GUIState;
 59
 60 typedef enum LevelState
 61 {
 62   LEVEL_STATE_NONE,
 63   LEVEL_STATE_BUILDING,
 64   LEVEL_STATE_BATTLE,
 65   LEVEL_STATE_WON_WAVE,
 66   LEVEL_STATE_LOST_WAVE,
 67   LEVEL_STATE_WON_LEVEL,
 68   LEVEL_STATE_RESET,
 69 } LevelState;
 70
 71 typedef struct EnemyWave {
 72   uint8_t enemyType;
 73   uint8_t wave;
 74   uint16_t count;
 75   float interval;
 76   float delay;
 77   Vector2 spawnPosition;
 78
 79   uint16_t spawned;
 80   float timeToSpawnNext;
 81 } EnemyWave;
 82
 83 typedef struct Level
 84 {
 85   LevelState state;
 86   LevelState nextState;
 87   Camera3D camera;
 88   int placementMode;
 89
 90   int initialGold;
 91   int playerGold;
 92
 93   EnemyWave waves[10];
 94   int currentWave;
 95   float waveEndTimer;
 96 } Level;
 97
 98 typedef struct DeltaSrc
 99 {
100   char x, y;
101 } DeltaSrc;
102
103 typedef struct PathfindingMap
104 {
105   int width, height;
106   float scale;
107   float *distances;
108   long *towerIndex;
109   DeltaSrc *deltaSrc;
110   float maxDistance;
111   Matrix toMapSpace;
112   Matrix toWorldSpace;
113 } PathfindingMap;
114
115 // when we execute the pathfinding algorithm, we need to store the active nodes
116 // in a queue. Each node has a position, a distance from the start, and the
117 // position of the node that we came from.
118 typedef struct PathfindingNode
119 {
120   int16_t x, y, fromX, fromY;
121   float distance;
122 } PathfindingNode;
123
124 typedef struct EnemyId
125 {
126   uint16_t index;
127   uint16_t generation;
128 } EnemyId;
129
130 typedef struct EnemyClassConfig
131 {
132   float speed;
133   float health;
134   float radius;
135   float maxAcceleration;
136   float requiredContactTime;
137   float explosionDamage;
138   float explosionRange;
139   float explosionPushbackPower;
140   int goldValue;
141 } EnemyClassConfig;
142
143 typedef struct Enemy
144 {
145   int16_t currentX, currentY;
146   int16_t nextX, nextY;
147   Vector2 simPosition;
148   Vector2 simVelocity;
149   uint16_t generation;
150   float walkedDistance;
151   float startMovingTime;
152   float damage, futureDamage;
153   float contactTime;
154   uint8_t enemyType;
155   uint8_t movePathCount;
156   Vector2 movePath[ENEMY_MAX_PATH_COUNT];
157 } Enemy;
158
159 // a unit that uses sprites to be drawn
160 #define SPRITE_UNIT_PHASE_WEAPON_IDLE 0
161 #define SPRITE_UNIT_PHASE_WEAPON_COOLDOWN 1
162 typedef struct SpriteUnit
163 {
164   Rectangle srcRect;
165   Vector2 offset;
166   int frameCount;
167   float frameDuration;
168   Rectangle srcWeaponIdleRect;
169   Vector2 srcWeaponIdleOffset;
170   Rectangle srcWeaponCooldownRect;
171   Vector2 srcWeaponCooldownOffset;
172 } SpriteUnit;
173
174 #define PROJECTILE_MAX_COUNT 1200
175 #define PROJECTILE_TYPE_NONE 0
176 #define PROJECTILE_TYPE_ARROW 1
177
178 typedef struct Projectile
179 {
180   uint8_t projectileType;
181   float shootTime;
182   float arrivalTime;
183   float distance;
184   float damage;
185   Vector3 position;
186   Vector3 target;
187   Vector3 directionNormal;
188   EnemyId targetEnemy;
189 } Projectile;
190
191 //# Function declarations
192 float TowerGetMaxHealth(Tower *tower);
193 int Button(const char *text, int x, int y, int width, int height, ButtonState *state);
194 int EnemyAddDamage(Enemy *enemy, float damage);
195
196 //# Enemy functions
197 void EnemyInit();
198 void EnemyDraw();
199 void EnemyTriggerExplode(Enemy *enemy, Tower *tower, Vector3 explosionSource);
200 void EnemyUpdate();
201 float EnemyGetCurrentMaxSpeed(Enemy *enemy);
202 float EnemyGetMaxHealth(Enemy *enemy);
203 int EnemyGetNextPosition(int16_t currentX, int16_t currentY, int16_t *nextX, int16_t *nextY);
204 Vector2 EnemyGetPosition(Enemy *enemy, float deltaT, Vector2 *velocity, int *waypointPassedCount);
205 EnemyId EnemyGetId(Enemy *enemy);
206 Enemy *EnemyTryResolve(EnemyId enemyId);
207 Enemy *EnemyTryAdd(uint8_t enemyType, int16_t currentX, int16_t currentY);
208 int EnemyAddDamage(Enemy *enemy, float damage);
209 Enemy* EnemyGetClosestToCastle(int16_t towerX, int16_t towerY, float range);
210 int EnemyCount();
211 void EnemyDrawHealthbars(Camera3D camera);
212
213 //# Tower functions
214 void TowerInit();
215 Tower *TowerGetAt(int16_t x, int16_t y);
216 Tower *TowerTryAdd(uint8_t towerType, int16_t x, int16_t y);
217 Tower *GetTowerByType(uint8_t towerType);
218 int GetTowerCosts(uint8_t towerType);
219 float TowerGetMaxHealth(Tower *tower);
220 void TowerDraw();
221 void TowerUpdate();
222 void TowerDrawHealthBars(Camera3D camera);
223 void DrawSpriteUnit(SpriteUnit unit, Vector3 position, float t, int flip, int phase);
224
225 //# Particles
226 void ParticleInit();
227 void ParticleAdd(uint8_t particleType, Vector3 position, Vector3 velocity, float lifetime);
228 void ParticleUpdate();
229 void ParticleDraw();
230
231 //# Projectiles
232 void ProjectileInit();
233 void ProjectileDraw();
234 void ProjectileUpdate();
235 Projectile *ProjectileTryAdd(uint8_t projectileType, Enemy *enemy, Vector3 position, Vector3 target, float speed, float damage);
236
237 //# Pathfinding map
238 void PathfindingMapInit(int width, int height, Vector3 translate, float scale);
239 float PathFindingGetDistance(int mapX, int mapY);
240 Vector2 PathFindingGetGradient(Vector3 world);
241 int PathFindingFromWorldToMapPosition(Vector3 worldPosition, int16_t *mapX, int16_t *mapY);
242 void PathFindingMapUpdate();
243 void PathFindingMapDraw();
244
245 //# UI
246 void DrawHealthBar(Camera3D camera, Vector3 position, float healthRatio, Color barColor, float healthBarWidth);
247
248 //# Level
249 void DrawLevelGround(Level *level);
250
251 //# variables
252 extern Level *currentLevel;
253 extern Enemy enemies[ENEMY_MAX_COUNT];
254 extern int enemyCount;
255 extern EnemyClassConfig enemyClassConfigs[];
256
257 extern GUIState guiState;
258 extern GameTime gameTime;
259 extern Tower towers[TOWER_MAX_COUNT];
260 extern int towerCount;
261
262 extern Texture2D palette, spriteSheet;
263
264 #endif
  1 #include "td_main.h"
  2 #include <raymath.h>
  3 #include <stdlib.h>
  4 #include <math.h>
  5
  6 EnemyClassConfig enemyClassConfigs[] = {
  7     [ENEMY_TYPE_MINION] = {
  8       .health = 10.0f,
  9       .speed = 0.6f,
 10       .radius = 0.25f,
 11       .maxAcceleration = 1.0f,
 12       .explosionDamage = 1.0f,
 13       .requiredContactTime = 0.5f,
 14       .explosionRange = 1.0f,
 15       .explosionPushbackPower = 0.25f,
 16       .goldValue = 1,
 17     },
 18 };
 19
 20 Enemy enemies[ENEMY_MAX_COUNT];
 21 int enemyCount = 0;
 22
 23 SpriteUnit enemySprites[] = {
 24     [ENEMY_TYPE_MINION] = {
 25       .srcRect = {0, 16, 16, 16},
 26       .offset = {8.0f, 0.0f},
 27       .frameCount = 6,
 28       .frameDuration = 0.1f,
 29     },
 30 };
 31
 32 void EnemyInit()
 33 {
 34   for (int i = 0; i < ENEMY_MAX_COUNT; i++)
 35   {
 36     enemies[i] = (Enemy){0};
 37   }
 38   enemyCount = 0;
 39 }
 40
 41 float EnemyGetCurrentMaxSpeed(Enemy *enemy)
 42 {
 43   return enemyClassConfigs[enemy->enemyType].speed;
 44 }
 45
 46 float EnemyGetMaxHealth(Enemy *enemy)
 47 {
 48   return enemyClassConfigs[enemy->enemyType].health;
 49 }
 50
 51 int EnemyGetNextPosition(int16_t currentX, int16_t currentY, int16_t *nextX, int16_t *nextY)
 52 {
 53   int16_t castleX = 0;
 54   int16_t castleY = 0;
 55   int16_t dx = castleX - currentX;
 56   int16_t dy = castleY - currentY;
 57   if (dx == 0 && dy == 0)
 58   {
 59     *nextX = currentX;
 60     *nextY = currentY;
 61     return 1;
 62   }
 63   Vector2 gradient = PathFindingGetGradient((Vector3){currentX, 0, currentY});
 64
 65   if (gradient.x == 0 && gradient.y == 0)
 66   {
 67     *nextX = currentX;
 68     *nextY = currentY;
 69     return 1;
 70   }
 71
 72   if (fabsf(gradient.x) > fabsf(gradient.y))
 73   {
 74     *nextX = currentX + (int16_t)(gradient.x > 0.0f ? 1 : -1);
 75     *nextY = currentY;
 76     return 0;
 77   }
 78   *nextX = currentX;
 79   *nextY = currentY + (int16_t)(gradient.y > 0.0f ? 1 : -1);
 80   return 0;
 81 }
 82
 83
 84 // this function predicts the movement of the unit for the next deltaT seconds
 85 Vector2 EnemyGetPosition(Enemy *enemy, float deltaT, Vector2 *velocity, int *waypointPassedCount)
 86 {
 87   const float pointReachedDistance = 0.25f;
 88   const float pointReachedDistance2 = pointReachedDistance * pointReachedDistance;
 89   const float maxSimStepTime = 0.015625f;
 90
 91   float maxAcceleration = enemyClassConfigs[enemy->enemyType].maxAcceleration;
 92   float maxSpeed = EnemyGetCurrentMaxSpeed(enemy);
 93   int16_t nextX = enemy->nextX;
 94   int16_t nextY = enemy->nextY;
 95   Vector2 position = enemy->simPosition;
 96   int passedCount = 0;
 97   for (float t = 0.0f; t < deltaT; t += maxSimStepTime)
 98   {
 99     float stepTime = fminf(deltaT - t, maxSimStepTime);
100     Vector2 target = (Vector2){nextX, nextY};
101     float speed = Vector2Length(*velocity);
102     // draw the target position for debugging
103     DrawCubeWires((Vector3){target.x, 0.2f, target.y}, 0.1f, 0.4f, 0.1f, RED);
104     Vector2 lookForwardPos = Vector2Add(position, Vector2Scale(*velocity, speed));
105     if (Vector2DistanceSqr(target, lookForwardPos) <= pointReachedDistance2)
106     {
107       // we reached the target position, let's move to the next waypoint
108       EnemyGetNextPosition(nextX, nextY, &nextX, &nextY);
109       target = (Vector2){nextX, nextY};
110       // track how many waypoints we passed
111       passedCount++;
112     }
113
114     // acceleration towards the target
115     Vector2 unitDirection = Vector2Normalize(Vector2Subtract(target, lookForwardPos));
116     Vector2 acceleration = Vector2Scale(unitDirection, maxAcceleration * stepTime);
117     *velocity = Vector2Add(*velocity, acceleration);
118
119     // limit the speed to the maximum speed
120     if (speed > maxSpeed)
121     {
122       *velocity = Vector2Scale(*velocity, maxSpeed / speed);
123     }
124
125     // move the enemy
126     position = Vector2Add(position, Vector2Scale(*velocity, stepTime));
127   }
128
129   if (waypointPassedCount)
130   {
131     (*waypointPassedCount) = passedCount;
132   }
133
134   return position;
135 }
136
137 void EnemyDraw()
138 {
139   for (int i = 0; i < enemyCount; i++)
140   {
141     Enemy enemy = enemies[i];
142     if (enemy.enemyType == ENEMY_TYPE_NONE)
143     {
144       continue;
145     }
146
147     Vector2 position = EnemyGetPosition(&enemy, gameTime.time - enemy.startMovingTime, &enemy.simVelocity, 0);
148
149     // don't draw any trails for now; might replace this with footprints later
150     // if (enemy.movePathCount > 0)
151     // {
152     //   Vector3 p = {enemy.movePath[0].x, 0.2f, enemy.movePath[0].y};
153     //   DrawLine3D(p, (Vector3){position.x, 0.2f, position.y}, GREEN);
154     // }
155     // for (int j = 1; j < enemy.movePathCount; j++)
156     // {
157     //   Vector3 p = {enemy.movePath[j - 1].x, 0.2f, enemy.movePath[j - 1].y};
158     //   Vector3 q = {enemy.movePath[j].x, 0.2f, enemy.movePath[j].y};
159     //   DrawLine3D(p, q, GREEN);
160     // }
161
162     switch (enemy.enemyType)
163     {
164     case ENEMY_TYPE_MINION:
165       DrawSpriteUnit(enemySprites[ENEMY_TYPE_MINION], (Vector3){position.x, 0.0f, position.y},
166         enemy.walkedDistance, 0, 0);
167       break;
168     }
169   }
170 }
171
172 void EnemyTriggerExplode(Enemy *enemy, Tower *tower, Vector3 explosionSource)
173 {
174   // damage the tower
175   float explosionDamge = enemyClassConfigs[enemy->enemyType].explosionDamage;
176   float explosionRange = enemyClassConfigs[enemy->enemyType].explosionRange;
177   float explosionPushbackPower = enemyClassConfigs[enemy->enemyType].explosionPushbackPower;
178   float explosionRange2 = explosionRange * explosionRange;
179   tower->damage += enemyClassConfigs[enemy->enemyType].explosionDamage;
180   // explode the enemy
181   if (tower->damage >= TowerGetMaxHealth(tower))
182   {
183     tower->towerType = TOWER_TYPE_NONE;
184   }
185
186   ParticleAdd(PARTICLE_TYPE_EXPLOSION,
187     explosionSource,
188     (Vector3){0, 0.1f, 0}, 1.0f);
189
190   enemy->enemyType = ENEMY_TYPE_NONE;
191
192   // push back enemies & dealing damage
193   for (int i = 0; i < enemyCount; i++)
194   {
195     Enemy *other = &enemies[i];
196     if (other->enemyType == ENEMY_TYPE_NONE)
197     {
198       continue;
199     }
200     float distanceSqr = Vector2DistanceSqr(enemy->simPosition, other->simPosition);
201     if (distanceSqr > 0 && distanceSqr < explosionRange2)
202     {
203       Vector2 direction = Vector2Normalize(Vector2Subtract(other->simPosition, enemy->simPosition));
204       other->simPosition = Vector2Add(other->simPosition, Vector2Scale(direction, explosionPushbackPower));
205       EnemyAddDamage(other, explosionDamge);
206     }
207   }
208 }
209
210 void EnemyUpdate()
211 {
212   const float castleX = 0;
213   const float castleY = 0;
214   const float maxPathDistance2 = 0.25f * 0.25f;
215
216   for (int i = 0; i < enemyCount; i++)
217   {
218     Enemy *enemy = &enemies[i];
219     if (enemy->enemyType == ENEMY_TYPE_NONE)
220     {
221       continue;
222     }
223
224     int waypointPassedCount = 0;
225     Vector2 prevPosition = enemy->simPosition;
226     enemy->simPosition = EnemyGetPosition(enemy, gameTime.time - enemy->startMovingTime, &enemy->simVelocity, &waypointPassedCount);
227     enemy->startMovingTime = gameTime.time;
228     enemy->walkedDistance += Vector2Distance(prevPosition, enemy->simPosition);
229     // track path of unit
230     if (enemy->movePathCount == 0 || Vector2DistanceSqr(enemy->simPosition, enemy->movePath[0]) > maxPathDistance2)
231     {
232       for (int j = ENEMY_MAX_PATH_COUNT - 1; j > 0; j--)
233       {
234         enemy->movePath[j] = enemy->movePath[j - 1];
235       }
236       enemy->movePath[0] = enemy->simPosition;
237       if (++enemy->movePathCount > ENEMY_MAX_PATH_COUNT)
238       {
239         enemy->movePathCount = ENEMY_MAX_PATH_COUNT;
240       }
241     }
242
243     if (waypointPassedCount > 0)
244     {
245       enemy->currentX = enemy->nextX;
246       enemy->currentY = enemy->nextY;
247       if (EnemyGetNextPosition(enemy->currentX, enemy->currentY, &enemy->nextX, &enemy->nextY) &&
248         Vector2DistanceSqr(enemy->simPosition, (Vector2){castleX, castleY}) <= 0.25f * 0.25f)
249       {
250         // enemy reached the castle; remove it
251         enemy->enemyType = ENEMY_TYPE_NONE;
252         continue;
253       }
254     }
255   }
256
257   // handle collisions between enemies
258   for (int i = 0; i < enemyCount - 1; i++)
259   {
260     Enemy *enemyA = &enemies[i];
261     if (enemyA->enemyType == ENEMY_TYPE_NONE)
262     {
263       continue;
264     }
265     for (int j = i + 1; j < enemyCount; j++)
266     {
267       Enemy *enemyB = &enemies[j];
268       if (enemyB->enemyType == ENEMY_TYPE_NONE)
269       {
270         continue;
271       }
272       float distanceSqr = Vector2DistanceSqr(enemyA->simPosition, enemyB->simPosition);
273       float radiusA = enemyClassConfigs[enemyA->enemyType].radius;
274       float radiusB = enemyClassConfigs[enemyB->enemyType].radius;
275       float radiusSum = radiusA + radiusB;
276       if (distanceSqr < radiusSum * radiusSum && distanceSqr > 0.001f)
277       {
278         // collision
279         float distance = sqrtf(distanceSqr);
280         float overlap = radiusSum - distance;
281         // move the enemies apart, but softly; if we have a clog of enemies,
282         // moving them perfectly apart can cause them to jitter
283         float positionCorrection = overlap / 5.0f;
284         Vector2 direction = (Vector2){
285             (enemyB->simPosition.x - enemyA->simPosition.x) / distance * positionCorrection,
286             (enemyB->simPosition.y - enemyA->simPosition.y) / distance * positionCorrection};
287         enemyA->simPosition = Vector2Subtract(enemyA->simPosition, direction);
288         enemyB->simPosition = Vector2Add(enemyB->simPosition, direction);
289       }
290     }
291   }
292
293   // handle collisions between enemies and towers
294   for (int i = 0; i < enemyCount; i++)
295   {
296     Enemy *enemy = &enemies[i];
297     if (enemy->enemyType == ENEMY_TYPE_NONE)
298     {
299       continue;
300     }
301     enemy->contactTime -= gameTime.deltaTime;
302     if (enemy->contactTime < 0.0f)
303     {
304       enemy->contactTime = 0.0f;
305     }
306
307     float enemyRadius = enemyClassConfigs[enemy->enemyType].radius;
308     // linear search over towers; could be optimized by using path finding tower map,
309     // but for now, we keep it simple
310     for (int j = 0; j < towerCount; j++)
311     {
312       Tower *tower = &towers[j];
313       if (tower->towerType == TOWER_TYPE_NONE)
314       {
315         continue;
316       }
317       float distanceSqr = Vector2DistanceSqr(enemy->simPosition, (Vector2){tower->x, tower->y});
318       float combinedRadius = enemyRadius + 0.708; // sqrt(0.5^2 + 0.5^2), corner-center distance of square with side length 1
319       if (distanceSqr > combinedRadius * combinedRadius)
320       {
321         continue;
322       }
323       // potential collision; square / circle intersection
324       float dx = tower->x - enemy->simPosition.x;
325       float dy = tower->y - enemy->simPosition.y;
326       float absDx = fabsf(dx);
327       float absDy = fabsf(dy);
328       Vector3 contactPoint = {0};
329       if (absDx <= 0.5f && absDx <= absDy) {
330         // vertical collision; push the enemy out horizontally
331         float overlap = enemyRadius + 0.5f - absDy;
332         if (overlap < 0.0f)
333         {
334           continue;
335         }
336         float direction = dy > 0.0f ? -1.0f : 1.0f;
337         enemy->simPosition.y += direction * overlap;
338         contactPoint = (Vector3){enemy->simPosition.x, 0.2f, tower->y + direction * 0.5f};
339       }
340       else if (absDy <= 0.5f && absDy <= absDx)
341       {
342         // horizontal collision; push the enemy out vertically
343         float overlap = enemyRadius + 0.5f - absDx;
344         if (overlap < 0.0f)
345         {
346           continue;
347         }
348         float direction = dx > 0.0f ? -1.0f : 1.0f;
349         enemy->simPosition.x += direction * overlap;
350         contactPoint = (Vector3){tower->x + direction * 0.5f, 0.2f, enemy->simPosition.y};
351       }
352       else
353       {
354         // possible collision with a corner
355         float cornerDX = dx > 0.0f ? -0.5f : 0.5f;
356         float cornerDY = dy > 0.0f ? -0.5f : 0.5f;
357         float cornerX = tower->x + cornerDX;
358         float cornerY = tower->y + cornerDY;
359         float cornerDistanceSqr = Vector2DistanceSqr(enemy->simPosition, (Vector2){cornerX, cornerY});
360         if (cornerDistanceSqr > enemyRadius * enemyRadius)
361         {
362           continue;
363         }
364         // push the enemy out along the diagonal
365         float cornerDistance = sqrtf(cornerDistanceSqr);
366         float overlap = enemyRadius - cornerDistance;
367         float directionX = cornerDistance > 0.0f ? (cornerX - enemy->simPosition.x) / cornerDistance : -cornerDX;
368         float directionY = cornerDistance > 0.0f ? (cornerY - enemy->simPosition.y) / cornerDistance : -cornerDY;
369         enemy->simPosition.x -= directionX * overlap;
370         enemy->simPosition.y -= directionY * overlap;
371         contactPoint = (Vector3){cornerX, 0.2f, cornerY};
372       }
373
374       if (enemyClassConfigs[enemy->enemyType].explosionDamage > 0.0f)
375       {
376         enemy->contactTime += gameTime.deltaTime * 2.0f; // * 2 to undo the subtraction above
377         if (enemy->contactTime >= enemyClassConfigs[enemy->enemyType].requiredContactTime)
378         {
379           EnemyTriggerExplode(enemy, tower, contactPoint);
380         }
381       }
382     }
383   }
384 }
385
386 EnemyId EnemyGetId(Enemy *enemy)
387 {
388   return (EnemyId){enemy - enemies, enemy->generation};
389 }
390
391 Enemy *EnemyTryResolve(EnemyId enemyId)
392 {
393   if (enemyId.index >= ENEMY_MAX_COUNT)
394   {
395     return 0;
396   }
397   Enemy *enemy = &enemies[enemyId.index];
398   if (enemy->generation != enemyId.generation || enemy->enemyType == ENEMY_TYPE_NONE)
399   {
400     return 0;
401   }
402   return enemy;
403 }
404
405 Enemy *EnemyTryAdd(uint8_t enemyType, int16_t currentX, int16_t currentY)
406 {
407   Enemy *spawn = 0;
408   for (int i = 0; i < enemyCount; i++)
409   {
410     Enemy *enemy = &enemies[i];
411     if (enemy->enemyType == ENEMY_TYPE_NONE)
412     {
413       spawn = enemy;
414       break;
415     }
416   }
417
418   if (enemyCount < ENEMY_MAX_COUNT && !spawn)
419   {
420     spawn = &enemies[enemyCount++];
421   }
422
423   if (spawn)
424   {
425     spawn->currentX = currentX;
426     spawn->currentY = currentY;
427     spawn->nextX = currentX;
428     spawn->nextY = currentY;
429     spawn->simPosition = (Vector2){currentX, currentY};
430     spawn->simVelocity = (Vector2){0, 0};
431     spawn->enemyType = enemyType;
432     spawn->startMovingTime = gameTime.time;
433     spawn->damage = 0.0f;
434     spawn->futureDamage = 0.0f;
435     spawn->generation++;
436     spawn->movePathCount = 0;
437     spawn->walkedDistance = 0.0f;
438   }
439
440   return spawn;
441 }
442
443 int EnemyAddDamage(Enemy *enemy, float damage)
444 {
445   enemy->damage += damage;
446   if (enemy->damage >= EnemyGetMaxHealth(enemy))
447   {
448     currentLevel->playerGold += enemyClassConfigs[enemy->enemyType].goldValue;
449     enemy->enemyType = ENEMY_TYPE_NONE;
450     return 1;
451   }
452
453   return 0;
454 }
455
456 Enemy* EnemyGetClosestToCastle(int16_t towerX, int16_t towerY, float range)
457 {
458   int16_t castleX = 0;
459   int16_t castleY = 0;
460   Enemy* closest = 0;
461   int16_t closestDistance = 0;
462   float range2 = range * range;
463   for (int i = 0; i < enemyCount; i++)
464   {
465     Enemy* enemy = &enemies[i];
466     if (enemy->enemyType == ENEMY_TYPE_NONE)
467     {
468       continue;
469     }
470     float maxHealth = EnemyGetMaxHealth(enemy);
471     if (enemy->futureDamage >= maxHealth)
472     {
473       // ignore enemies that will die soon
474       continue;
475     }
476     int16_t dx = castleX - enemy->currentX;
477     int16_t dy = castleY - enemy->currentY;
478     int16_t distance = abs(dx) + abs(dy);
479     if (!closest || distance < closestDistance)
480     {
481       float tdx = towerX - enemy->currentX;
482       float tdy = towerY - enemy->currentY;
483       float tdistance2 = tdx * tdx + tdy * tdy;
484       if (tdistance2 <= range2)
485       {
486         closest = enemy;
487         closestDistance = distance;
488       }
489     }
490   }
491   return closest;
492 }
493
494 int EnemyCount()
495 {
496   int count = 0;
497   for (int i = 0; i < enemyCount; i++)
498   {
499     if (enemies[i].enemyType != ENEMY_TYPE_NONE)
500     {
501       count++;
502     }
503   }
504   return count;
505 }
506
507 void EnemyDrawHealthbars(Camera3D camera)
508 {
509   for (int i = 0; i < enemyCount; i++)
510   {
511     Enemy *enemy = &enemies[i];
512     if (enemy->enemyType == ENEMY_TYPE_NONE || enemy->damage == 0.0f)
513     {
514       continue;
515     }
516     Vector3 position = (Vector3){enemy->simPosition.x, 0.5f, enemy->simPosition.y};
517     float maxHealth = EnemyGetMaxHealth(enemy);
518     float health = maxHealth - enemy->damage;
519     float healthRatio = health / maxHealth;
520
521     DrawHealthBar(camera, position, healthRatio, GREEN, 15.0f);
522   }
523 }
  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 // The queue is a simple array of nodes, we add nodes to the end and remove
  5 // nodes from the front. We keep the array around to avoid unnecessary allocations
  6 static PathfindingNode *pathfindingNodeQueue = 0;
  7 static int pathfindingNodeQueueCount = 0;
  8 static int pathfindingNodeQueueCapacity = 0;
  9
 10 // The pathfinding map stores the distances from the castle to each cell in the map.
 11 static PathfindingMap pathfindingMap = {0};
 12
 13 void PathfindingMapInit(int width, int height, Vector3 translate, float scale)
 14 {
 15   // transforming between map space and world space allows us to adapt
 16   // position and scale of the map without changing the pathfinding data
 17   pathfindingMap.toWorldSpace = MatrixTranslate(translate.x, translate.y, translate.z);
 18   pathfindingMap.toWorldSpace = MatrixMultiply(pathfindingMap.toWorldSpace, MatrixScale(scale, scale, scale));
 19   pathfindingMap.toMapSpace = MatrixInvert(pathfindingMap.toWorldSpace);
 20   pathfindingMap.width = width;
 21   pathfindingMap.height = height;
 22   pathfindingMap.scale = scale;
 23   pathfindingMap.distances = (float *)MemAlloc(width * height * sizeof(float));
 24   for (int i = 0; i < width * height; i++)
 25   {
 26     pathfindingMap.distances[i] = -1.0f;
 27   }
 28
 29   pathfindingMap.towerIndex = (long *)MemAlloc(width * height * sizeof(long));
 30   pathfindingMap.deltaSrc = (DeltaSrc *)MemAlloc(width * height * sizeof(DeltaSrc));
 31 }
 32
 33 static void PathFindingNodePush(int16_t x, int16_t y, int16_t fromX, int16_t fromY, float distance)
 34 {
 35   if (pathfindingNodeQueueCount >= pathfindingNodeQueueCapacity)
 36   {
 37     pathfindingNodeQueueCapacity = pathfindingNodeQueueCapacity == 0 ? 256 : pathfindingNodeQueueCapacity * 2;
 38     // we use MemAlloc/MemRealloc to allocate memory for the queue
 39     // I am not entirely sure if MemRealloc allows passing a null pointer
 40     // so we check if the pointer is null and use MemAlloc in that case
 41     if (pathfindingNodeQueue == 0)
 42     {
 43       pathfindingNodeQueue = (PathfindingNode *)MemAlloc(pathfindingNodeQueueCapacity * sizeof(PathfindingNode));
 44     }
 45     else
 46     {
 47       pathfindingNodeQueue = (PathfindingNode *)MemRealloc(pathfindingNodeQueue, pathfindingNodeQueueCapacity * sizeof(PathfindingNode));
 48     }
 49   }
 50
 51   PathfindingNode *node = &pathfindingNodeQueue[pathfindingNodeQueueCount++];
 52   node->x = x;
 53   node->y = y;
 54   node->fromX = fromX;
 55   node->fromY = fromY;
 56   node->distance = distance;
 57 }
 58
 59 static PathfindingNode *PathFindingNodePop()
 60 {
 61   if (pathfindingNodeQueueCount == 0)
 62   {
 63     return 0;
 64   }
 65   // we return the first node in the queue; we want to return a pointer to the node
 66   // so we can return 0 if the queue is empty.
 67   // We should _not_ return a pointer to the element in the list, because the list
 68   // may be reallocated and the pointer would become invalid. Or the
 69   // popped element is overwritten by the next push operation.
 70   // Using static here means that the variable is permanently allocated.
 71   static PathfindingNode node;
 72   node = pathfindingNodeQueue[0];
 73   // we shift all nodes one position to the front
 74   for (int i = 1; i < pathfindingNodeQueueCount; i++)
 75   {
 76     pathfindingNodeQueue[i - 1] = pathfindingNodeQueue[i];
 77   }
 78   --pathfindingNodeQueueCount;
 79   return &node;
 80 }
 81
 82 float PathFindingGetDistance(int mapX, int mapY)
 83 {
 84   if (mapX < 0 || mapX >= pathfindingMap.width || mapY < 0 || mapY >= pathfindingMap.height)
 85   {
 86     // when outside the map, we return the manhattan distance to the castle (0,0)
 87     return fabsf((float)mapX) + fabsf((float)mapY);
 88   }
 89
 90   return pathfindingMap.distances[mapY * pathfindingMap.width + mapX];
 91 }
 92
 93 // transform a world position to a map position in the array;
 94 // returns true if the position is inside the map
 95 int PathFindingFromWorldToMapPosition(Vector3 worldPosition, int16_t *mapX, int16_t *mapY)
 96 {
 97   Vector3 mapPosition = Vector3Transform(worldPosition, pathfindingMap.toMapSpace);
 98   *mapX = (int16_t)mapPosition.x;
 99   *mapY = (int16_t)mapPosition.z;
100   return *mapX >= 0 && *mapX < pathfindingMap.width && *mapY >= 0 && *mapY < pathfindingMap.height;
101 }
102
103 void PathFindingMapUpdate()
104 {
105   const int castleX = 0, castleY = 0;
106   int16_t castleMapX, castleMapY;
107   if (!PathFindingFromWorldToMapPosition((Vector3){castleX, 0.0f, castleY}, &castleMapX, &castleMapY))
108   {
109     return;
110   }
111   int width = pathfindingMap.width, height = pathfindingMap.height;
112
113   // reset the distances to -1
114   for (int i = 0; i < width * height; i++)
115   {
116     pathfindingMap.distances[i] = -1.0f;
117   }
118   // reset the tower indices
119   for (int i = 0; i < width * height; i++)
120   {
121     pathfindingMap.towerIndex[i] = -1;
122   }
123   // reset the delta src
124   for (int i = 0; i < width * height; i++)
125   {
126     pathfindingMap.deltaSrc[i].x = 0;
127     pathfindingMap.deltaSrc[i].y = 0;
128   }
129
130   for (int i = 0; i < towerCount; i++)
131   {
132     Tower *tower = &towers[i];
133     if (tower->towerType == TOWER_TYPE_NONE || tower->towerType == TOWER_TYPE_BASE)
134     {
135       continue;
136     }
137     int16_t mapX, mapY;
138     // technically, if the tower cell scale is not in sync with the pathfinding map scale,
139     // this would not work correctly and needs to be refined to allow towers covering multiple cells
140     // or having multiple towers in one cell; for simplicity, we assume that the tower covers exactly
141     // one cell. For now.
142     if (!PathFindingFromWorldToMapPosition((Vector3){tower->x, 0.0f, tower->y}, &mapX, &mapY))
143     {
144       continue;
145     }
146     int index = mapY * width + mapX;
147     pathfindingMap.towerIndex[index] = i;
148   }
149
150   // we start at the castle and add the castle to the queue
151   pathfindingMap.maxDistance = 0.0f;
152   pathfindingNodeQueueCount = 0;
153   PathFindingNodePush(castleMapX, castleMapY, castleMapX, castleMapY, 0.0f);
154   PathfindingNode *node = 0;
155   while ((node = PathFindingNodePop()))
156   {
157     if (node->x < 0 || node->x >= width || node->y < 0 || node->y >= height)
158     {
159       continue;
160     }
161     int index = node->y * width + node->x;
162     if (pathfindingMap.distances[index] >= 0 && pathfindingMap.distances[index] <= node->distance)
163     {
164       continue;
165     }
166
167     int deltaX = node->x - node->fromX;
168     int deltaY = node->y - node->fromY;
169     // even if the cell is blocked by a tower, we still may want to store the direction
170     // (though this might not be needed, IDK right now)
171     pathfindingMap.deltaSrc[index].x = (char) deltaX;
172     pathfindingMap.deltaSrc[index].y = (char) deltaY;
173
174     // we skip nodes that are blocked by towers
175     if (pathfindingMap.towerIndex[index] >= 0)
176     {
177       node->distance += 8.0f;
178     }
179     pathfindingMap.distances[index] = node->distance;
180     pathfindingMap.maxDistance = fmaxf(pathfindingMap.maxDistance, node->distance);
181     PathFindingNodePush(node->x, node->y + 1, node->x, node->y, node->distance + 1.0f);
182     PathFindingNodePush(node->x, node->y - 1, node->x, node->y, node->distance + 1.0f);
183     PathFindingNodePush(node->x + 1, node->y, node->x, node->y, node->distance + 1.0f);
184     PathFindingNodePush(node->x - 1, node->y, node->x, node->y, node->distance + 1.0f);
185   }
186 }
187
188 void PathFindingMapDraw()
189 {
190   float cellSize = pathfindingMap.scale * 0.9f;
191   float highlightDistance = fmodf(GetTime() * 4.0f, pathfindingMap.maxDistance);
192   for (int x = 0; x < pathfindingMap.width; x++)
193   {
194     for (int y = 0; y < pathfindingMap.height; y++)
195     {
196       float distance = pathfindingMap.distances[y * pathfindingMap.width + x];
197       float colorV = distance < 0 ? 0 : fminf(distance / pathfindingMap.maxDistance, 1.0f);
198       Color color = distance < 0 ? BLUE : (Color){fminf(colorV, 1.0f) * 255, 0, 0, 255};
199       Vector3 position = Vector3Transform((Vector3){x, -0.25f, y}, pathfindingMap.toWorldSpace);
200       // animate the distance "wave" to show how the pathfinding algorithm expands
201       // from the castle
202       if (distance + 0.5f > highlightDistance && distance - 0.5f < highlightDistance)
203       {
204         color = BLACK;
205       }
206       DrawCube(position, cellSize, 0.1f, cellSize, color);
207     }
208   }
209 }
210
211 Vector2 PathFindingGetGradient(Vector3 world)
212 {
213   int16_t mapX, mapY;
214   if (PathFindingFromWorldToMapPosition(world, &mapX, &mapY))
215   {
216     DeltaSrc delta = pathfindingMap.deltaSrc[mapY * pathfindingMap.width + mapX];
217     return (Vector2){(float)-delta.x, (float)-delta.y};
218   }
219   // fallback to a simple gradient calculation
220   float n = PathFindingGetDistance(mapX, mapY - 1);
221   float s = PathFindingGetDistance(mapX, mapY + 1);
222   float w = PathFindingGetDistance(mapX - 1, mapY);
223   float e = PathFindingGetDistance(mapX + 1, mapY);
224   return (Vector2){w - e + 0.25f, n - s + 0.125f};
225 }
  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 static Projectile projectiles[PROJECTILE_MAX_COUNT];
  5 static int projectileCount = 0;
  6
  7 void ProjectileInit()
  8 {
  9   for (int i = 0; i < PROJECTILE_MAX_COUNT; i++)
 10   {
 11     projectiles[i] = (Projectile){0};
 12   }
 13 }
 14
 15 void ProjectileDraw()
 16 {
 17   for (int i = 0; i < projectileCount; i++)
 18   {
 19     Projectile projectile = projectiles[i];
 20     if (projectile.projectileType == PROJECTILE_TYPE_NONE)
 21     {
 22       continue;
 23     }
 24     float transition = (gameTime.time - projectile.shootTime) / (projectile.arrivalTime - projectile.shootTime);
 25     if (transition >= 1.0f)
 26     {
 27       continue;
 28     }
 29     for (float transitionOffset = 0.0f; transitionOffset < 1.0f; transitionOffset += 0.1f)
 30     {
 31       float t = transition + transitionOffset * 0.3f;
 32       if (t > 1.0f)
 33       {
 34         break;
 35       }
 36       Vector3 position = Vector3Lerp(projectile.position, projectile.target, t);
 37       Color color = RED;
 38       if (projectile.projectileType == PROJECTILE_TYPE_ARROW)
 39       {
 40         // make tip red but quickly fade to brown
 41         color = ColorLerp(BROWN, RED, transitionOffset * transitionOffset);
 42         // fake a ballista flight path using parabola equation
 43         float parabolaT = t - 0.5f;
 44         parabolaT = 1.0f - 4.0f * parabolaT * parabolaT;
 45         position.y += 0.15f * parabolaT * projectile.distance;
 46       }
 47
 48       float size = 0.06f * (transitionOffset + 0.25f);
 49       DrawCube(position, size, size, size, color);
 50     }
 51   }
 52 }
 53
 54 void ProjectileUpdate()
 55 {
 56   for (int i = 0; i < projectileCount; i++)
 57   {
 58     Projectile *projectile = &projectiles[i];
 59     if (projectile->projectileType == PROJECTILE_TYPE_NONE)
 60     {
 61       continue;
 62     }
 63     float transition = (gameTime.time - projectile->shootTime) / (projectile->arrivalTime - projectile->shootTime);
 64     if (transition >= 1.0f)
 65     {
 66       projectile->projectileType = PROJECTILE_TYPE_NONE;
 67       Enemy *enemy = EnemyTryResolve(projectile->targetEnemy);
 68       if (enemy)
 69       {
 70         EnemyAddDamage(enemy, projectile->damage);
 71       }
 72       continue;
 73     }
 74   }
 75 }
 76
 77 Projectile *ProjectileTryAdd(uint8_t projectileType, Enemy *enemy, Vector3 position, Vector3 target, float speed, float damage)
 78 {
 79   for (int i = 0; i < PROJECTILE_MAX_COUNT; i++)
 80   {
 81     Projectile *projectile = &projectiles[i];
 82     if (projectile->projectileType == PROJECTILE_TYPE_NONE)
 83     {
 84       projectile->projectileType = projectileType;
 85       projectile->shootTime = gameTime.time;
 86       float distance = Vector3Distance(position, target);
 87       projectile->arrivalTime = gameTime.time + distance / speed;
 88       projectile->damage = damage;
 89       projectile->position = position;
 90       projectile->target = target;
 91       projectile->directionNormal = Vector3Scale(Vector3Subtract(target, position), 1.0f / distance);
 92       projectile->distance = distance;
 93       projectile->targetEnemy = EnemyGetId(enemy);
 94       projectileCount = projectileCount <= i ? i + 1 : projectileCount;
 95       return projectile;
 96     }
 97   }
 98   return 0;
 99 }
  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 static Particle particles[PARTICLE_MAX_COUNT];
  5 static int particleCount = 0;
  6
  7 void ParticleInit()
  8 {
  9   for (int i = 0; i < PARTICLE_MAX_COUNT; i++)
 10   {
 11     particles[i] = (Particle){0};
 12   }
 13   particleCount = 0;
 14 }
 15
 16 static void DrawExplosionParticle(Particle *particle, float transition)
 17 {
 18   float size = 1.2f * (1.0f - transition);
 19   Color startColor = WHITE;
 20   Color endColor = RED;
 21   Color color = ColorLerp(startColor, endColor, transition);
 22   DrawCube(particle->position, size, size, size, color);
 23 }
 24
 25 void ParticleAdd(uint8_t particleType, Vector3 position, Vector3 velocity, float lifetime)
 26 {
 27   if (particleCount >= PARTICLE_MAX_COUNT)
 28   {
 29     return;
 30   }
 31
 32   int index = -1;
 33   for (int i = 0; i < particleCount; i++)
 34   {
 35     if (particles[i].particleType == PARTICLE_TYPE_NONE)
 36     {
 37       index = i;
 38       break;
 39     }
 40   }
 41
 42   if (index == -1)
 43   {
 44     index = particleCount++;
 45   }
 46
 47   Particle *particle = &particles[index];
 48   particle->particleType = particleType;
 49   particle->spawnTime = gameTime.time;
 50   particle->lifetime = lifetime;
 51   particle->position = position;
 52   particle->velocity = velocity;
 53 }
 54
 55 void ParticleUpdate()
 56 {
 57   for (int i = 0; i < particleCount; i++)
 58   {
 59     Particle *particle = &particles[i];
 60     if (particle->particleType == PARTICLE_TYPE_NONE)
 61     {
 62       continue;
 63     }
 64
 65     float age = gameTime.time - particle->spawnTime;
 66
 67     if (particle->lifetime > age)
 68     {
 69       particle->position = Vector3Add(particle->position, Vector3Scale(particle->velocity, gameTime.deltaTime));
 70     }
 71     else {
 72       particle->particleType = PARTICLE_TYPE_NONE;
 73     }
 74   }
 75 }
 76
 77 void ParticleDraw()
 78 {
 79   for (int i = 0; i < particleCount; i++)
 80   {
 81     Particle particle = particles[i];
 82     if (particle.particleType == PARTICLE_TYPE_NONE)
 83     {
 84       continue;
 85     }
 86
 87     float age = gameTime.time - particle.spawnTime;
 88     float transition = age / particle.lifetime;
 89     switch (particle.particleType)
 90     {
 91     case PARTICLE_TYPE_EXPLOSION:
 92       DrawExplosionParticle(&particle, transition);
 93       break;
 94     default:
 95       DrawCube(particle.position, 0.3f, 0.5f, 0.3f, RED);
 96       break;
 97     }
 98   }
 99 }
  1 #include "td_main.h"
  2 #include <raymath.h>
  3
  4 Tower towers[TOWER_MAX_COUNT];
  5 int towerCount = 0;
  6
  7 Model towerModels[TOWER_TYPE_COUNT];
  8
  9 // definition of our archer unit
 10 SpriteUnit archerUnit = {
 11     .srcRect = {0, 0, 16, 16},
 12     .offset = {7, 1},
 13     .frameCount = 1,
 14     .frameDuration = 0.0f,
 15     .srcWeaponIdleRect = {16, 0, 6, 16},
 16     .srcWeaponIdleOffset = {8, 0},
 17     .srcWeaponCooldownRect = {22, 0, 11, 16},
 18     .srcWeaponCooldownOffset = {10, 0},
 19 };
 20
 21 void DrawSpriteUnit(SpriteUnit unit, Vector3 position, float t, int flip, int phase)
 22 {
 23   float xScale = flip ? -1.0f : 1.0f;
 24   Camera3D camera = currentLevel->camera;
 25   float size = 0.5f;
 26   Vector2 offset = (Vector2){ unit.offset.x / 16.0f * size, unit.offset.y / 16.0f * size * xScale };
 27   Vector2 scale = (Vector2){ unit.srcRect.width / 16.0f * size, unit.srcRect.height / 16.0f * size };
 28   // we want the sprite to face the camera, so we need to calculate the up vector
 29   Vector3 forward = Vector3Subtract(camera.target, camera.position);
 30   Vector3 up = {0, 1, 0};
 31   Vector3 right = Vector3CrossProduct(forward, up);
 32   up = Vector3Normalize(Vector3CrossProduct(right, forward));
 33
 34   Rectangle srcRect = unit.srcRect;
 35   if (unit.frameCount > 1)
 36   {
 37     srcRect.x += (int)(t / unit.frameDuration) % unit.frameCount * srcRect.width;
 38   }
 39   if (flip)
 40   {
 41     srcRect.x += srcRect.width;
 42     srcRect.width = -srcRect.width;
 43   }
 44   DrawBillboardPro(camera, spriteSheet, srcRect, position, up, scale, offset, 0, WHITE);
 45
 46   if (phase == SPRITE_UNIT_PHASE_WEAPON_COOLDOWN && unit.srcWeaponCooldownRect.width > 0)
 47   {
 48     offset = (Vector2){ unit.srcWeaponCooldownOffset.x / 16.0f * size, unit.srcWeaponCooldownOffset.y / 16.0f * size };
 49     scale = (Vector2){ unit.srcWeaponCooldownRect.width / 16.0f * size, unit.srcWeaponCooldownRect.height / 16.0f * size };
 50     srcRect = unit.srcWeaponCooldownRect;
 51     if (flip)
 52     {
 53       // position.x = flip * scale.x * 0.5f;
 54       srcRect.x += srcRect.width;
 55       srcRect.width = -srcRect.width;
 56       offset.x = scale.x - offset.x;
 57     }
 58     DrawBillboardPro(camera, spriteSheet, srcRect, position, up, scale, offset, 0, WHITE);
 59   }
 60   else if (phase == SPRITE_UNIT_PHASE_WEAPON_IDLE && unit.srcWeaponIdleRect.width > 0)
 61   {
 62     offset = (Vector2){ unit.srcWeaponIdleOffset.x / 16.0f * size, unit.srcWeaponIdleOffset.y / 16.0f * size };
 63     scale = (Vector2){ unit.srcWeaponIdleRect.width / 16.0f * size, unit.srcWeaponIdleRect.height / 16.0f * size };
 64     srcRect = unit.srcWeaponIdleRect;
 65     if (flip)
 66     {
 67       // position.x = flip * scale.x * 0.5f;
 68       srcRect.x += srcRect.width;
 69       srcRect.width = -srcRect.width;
 70       offset.x = scale.x - offset.x;
 71     }
 72     DrawBillboardPro(camera, spriteSheet, srcRect, position, up, scale, offset, 0, WHITE);
 73   }
 74 }
 75
 76 void TowerInit()
 77 {
 78   for (int i = 0; i < TOWER_MAX_COUNT; i++)
 79   {
 80     towers[i] = (Tower){0};
 81   }
 82   towerCount = 0;
 83
 84   towerModels[TOWER_TYPE_BASE] = LoadModel("data/keep.glb");
 85   towerModels[TOWER_TYPE_WALL] = LoadModel("data/wall-0000.glb");
 86
 87   for (int i = 0; i < TOWER_TYPE_COUNT; i++)
 88   {
 89     if (towerModels[i].materials)
 90     {
 91       // assign the palette texture to the material of the model (0 is not used afaik)
 92       towerModels[i].materials[1].maps[MATERIAL_MAP_DIFFUSE].texture = palette;
 93     }
 94   }
 95 }
 96
 97 static void TowerGunUpdate(Tower *tower)
 98 {
 99   if (tower->cooldown <= 0)
100   {
101     Enemy *enemy = EnemyGetClosestToCastle(tower->x, tower->y, 3.0f);
102     if (enemy)
103     {
104       tower->cooldown = 0.5f;
105       // shoot the enemy; determine future position of the enemy
106       float bulletSpeed = 4.0f;
107       float bulletDamage = 3.0f;
108       Vector2 velocity = enemy->simVelocity;
109       Vector2 futurePosition = EnemyGetPosition(enemy, gameTime.time - enemy->startMovingTime, &velocity, 0);
110       Vector2 towerPosition = {tower->x, tower->y};
111       float eta = Vector2Distance(towerPosition, futurePosition) / bulletSpeed;
112       for (int i = 0; i < 8; i++) {
113         velocity = enemy->simVelocity;
114         futurePosition = EnemyGetPosition(enemy, gameTime.time - enemy->startMovingTime + eta, &velocity, 0);
115         float distance = Vector2Distance(towerPosition, futurePosition);
116         float eta2 = distance / bulletSpeed;
117         if (fabs(eta - eta2) < 0.01f) {
118           break;
119         }
120         eta = (eta2 + eta) * 0.5f;
121       }
122       ProjectileTryAdd(PROJECTILE_TYPE_ARROW, enemy,
123         (Vector3){towerPosition.x, 1.33f, towerPosition.y},
124         (Vector3){futurePosition.x, 0.25f, futurePosition.y},
125         bulletSpeed, bulletDamage);
126       enemy->futureDamage += bulletDamage;
127       tower->lastTargetPosition = futurePosition;
128     }
129   }
130   else
131   {
132     tower->cooldown -= gameTime.deltaTime;
133   }
134 }
135
136 Tower *TowerGetAt(int16_t x, int16_t y)
137 {
138   for (int i = 0; i < towerCount; i++)
139   {
140     if (towers[i].x == x && towers[i].y == y && towers[i].towerType != TOWER_TYPE_NONE)
141     {
142       return &towers[i];
143     }
144   }
145   return 0;
146 }
147
148 Tower *TowerTryAdd(uint8_t towerType, int16_t x, int16_t y)
149 {
150   if (towerCount >= TOWER_MAX_COUNT)
151   {
152     return 0;
153   }
154
155   Tower *tower = TowerGetAt(x, y);
156   if (tower)
157   {
158     return 0;
159   }
160
161   tower = &towers[towerCount++];
162   tower->x = x;
163   tower->y = y;
164   tower->towerType = towerType;
165   tower->cooldown = 0.0f;
166   tower->damage = 0.0f;
167   return tower;
168 }
169
170 Tower *GetTowerByType(uint8_t towerType)
171 {
172   for (int i = 0; i < towerCount; i++)
173   {
174     if (towers[i].towerType == towerType)
175     {
176       return &towers[i];
177     }
178   }
179   return 0;
180 }
181
182 int GetTowerCosts(uint8_t towerType)
183 {
184   switch (towerType)
185   {
186   case TOWER_TYPE_BASE:
187     return 0;
188   case TOWER_TYPE_GUN:
189     return 6;
190   case TOWER_TYPE_WALL:
191     return 2;
192   }
193   return 0;
194 }
195
196 float TowerGetMaxHealth(Tower *tower)
197 {
198   switch (tower->towerType)
199   {
200   case TOWER_TYPE_BASE:
201     return 10.0f;
202   case TOWER_TYPE_GUN:
203     return 3.0f;
204   case TOWER_TYPE_WALL:
205     return 5.0f;
206   }
207   return 0.0f;
208 }
209
210 void TowerDraw()
211 {
212   for (int i = 0; i < towerCount; i++)
213   {
214     Tower tower = towers[i];
215     if (tower.towerType == TOWER_TYPE_NONE)
216     {
217       continue;
218     }
219
220     switch (tower.towerType)
221     {
222     case TOWER_TYPE_GUN:
223       {
224         Vector2 screenPosTower = GetWorldToScreen((Vector3){tower.x, 0.0f, tower.y}, currentLevel->camera);
225         Vector2 screenPosTarget = GetWorldToScreen((Vector3){tower.lastTargetPosition.x, 0.0f, tower.lastTargetPosition.y}, currentLevel->camera);
226         DrawModel(towerModels[TOWER_TYPE_WALL], (Vector3){tower.x, 0.0f, tower.y}, 1.0f, WHITE);
227         DrawSpriteUnit(archerUnit, (Vector3){tower.x, 1.0f, tower.y}, 0, screenPosTarget.x > screenPosTower.x,
228           tower.cooldown > 0.2f ? SPRITE_UNIT_PHASE_WEAPON_COOLDOWN : SPRITE_UNIT_PHASE_WEAPON_IDLE);
229       }
230       break;
231     default:
232       if (towerModels[tower.towerType].materials)
233       {
234         DrawModel(towerModels[tower.towerType], (Vector3){tower.x, 0.0f, tower.y}, 1.0f, WHITE);
235       } else {
236         DrawCube((Vector3){tower.x, 0.5f, tower.y}, 1.0f, 1.0f, 1.0f, LIGHTGRAY);
237       }
238       break;
239     }
240   }
241 }
242
243 void TowerUpdate()
244 {
245   for (int i = 0; i < towerCount; i++)
246   {
247     Tower *tower = &towers[i];
248     switch (tower->towerType)
249     {
250     case TOWER_TYPE_GUN:
251       TowerGunUpdate(tower);
252       break;
253     }
254   }
255 }
256
257 void TowerDrawHealthBars(Camera3D camera)
258 {
259   for (int i = 0; i < towerCount; i++)
260   {
261     Tower *tower = &towers[i];
262     if (tower->towerType == TOWER_TYPE_NONE || tower->damage <= 0.0f)
263     {
264       continue;
265     }
266
267     Vector3 position = (Vector3){tower->x, 0.5f, tower->y};
268     float maxHealth = TowerGetMaxHealth(tower);
269     float health = maxHealth - tower->damage;
270     float healthRatio = health / maxHealth;
271
272     DrawHealthBar(camera, position, healthRatio, GREEN, 35.0f);
273   }
274 }
  1 #include "raylib.h"
  2 #include "preferred_size.h"
  3
  4 // Since the canvas size is not known at compile time, we need to query it at runtime;
  5 // the following platform specific code obtains the canvas size and we will use this
  6 // size as the preferred size for the window at init time. We're ignoring here the
  7 // possibility of the canvas size changing during runtime - this would require to
  8 // poll the canvas size in the game loop or establishing a callback to be notified
  9
 10 #ifdef PLATFORM_WEB
 11 #include <emscripten.h>
 12 EMSCRIPTEN_RESULT emscripten_get_element_css_size(const char *target, double *width, double *height);
 13
 14 void GetPreferredSize(int *screenWidth, int *screenHeight)
 15 {
 16   double canvasWidth, canvasHeight;
 17   emscripten_get_element_css_size("#" CANVAS_NAME, &canvasWidth, &canvasHeight);
 18   *screenWidth = (int)canvasWidth;
 19   *screenHeight = (int)canvasHeight;
 20   TraceLog(LOG_INFO, "preferred size for %s: %d %d", CANVAS_NAME, *screenWidth, *screenHeight);
 21 }
 22
 23 int IsPaused()
 24 {
 25   const char *js = "(function(){\n"
 26   "  var canvas = document.getElementById(\"" CANVAS_NAME "\");\n"
 27   "  var rect = canvas.getBoundingClientRect();\n"
 28   "  var isVisible = (\n"
 29   "    rect.top >= 0 &&\n"
 30   "    rect.left >= 0 &&\n"
 31   "    rect.bottom <= (window.innerHeight || document.documentElement.clientHeight) &&\n"
 32   "    rect.right <= (window.innerWidth || document.documentElement.clientWidth)\n"
 33   "  );\n"
 34   "  return isVisible ? 0 : 1;\n"
 35   "})()";
 36   return emscripten_run_script_int(js);
 37 }
 38
 39 #else
 40 void GetPreferredSize(int *screenWidth, int *screenHeight)
 41 {
 42   *screenWidth = 600;
 43   *screenHeight = 240;
 44 }
 45 int IsPaused()
 46 {
 47   return 0;
 48 }
 49 #endif
  1 #ifndef PREFERRED_SIZE_H
  2 #define PREFERRED_SIZE_H
  3
  4 void GetPreferredSize(int *screenWidth, int *screenHeight);
  5 int IsPaused();
  6
  7 #endif
Ooops. The wiggling is out of control 😱! What's going on?!

Random object placement

The objects are now offsetted by a random value:

  1 (float)GetRandomValue(-25,25) / 100.0f

But the graphics are jumping all over the place! This is not what we want here.

The problem is, that we draw the objects every frame and the random value is ... well, random. Every time. That is why they jump each frame and it looks just like noise. We need to make sure that the random value is the same every frame:

  • 💾
  1 #include "td_main.h"
  2 #include <raymath.h>
  3 #include <stdlib.h>
  4 #include <math.h>
  5
  6 //# Variables
  7 GUIState guiState = {0};
  8 GameTime gameTime = {0};
  9
 10 Model floorTileAModel = {0};
 11 Model floorTileBModel = {0};
 12 Model grassPatchModel[1] = {0};
 13
 14 Texture2D palette, spriteSheet;
 15
 16 Level levels[] = {
 17   [0] = {
 18     .state = LEVEL_STATE_BUILDING,
 19     .initialGold = 20,
 20     .waves[0] = {
 21       .enemyType = ENEMY_TYPE_MINION,
 22       .wave = 0,
 23       .count = 10,
 24       .interval = 2.5f,
 25       .delay = 1.0f,
 26       .spawnPosition = {0, 6},
 27     },
 28     .waves[1] = {
 29       .enemyType = ENEMY_TYPE_MINION,
 30       .wave = 1,
 31       .count = 20,
 32       .interval = 1.5f,
 33       .delay = 1.0f,
 34       .spawnPosition = {0, 6},
 35     },
 36     .waves[2] = {
 37       .enemyType = ENEMY_TYPE_MINION,
 38       .wave = 2,
 39       .count = 30,
 40       .interval = 1.2f,
 41       .delay = 1.0f,
 42       .spawnPosition = {0, 6},
 43     }
 44   },
 45 };
 46
 47 Level *currentLevel = levels;
 48
 49 //# Game
 50
 51 static Model LoadGLBModel(char *filename)
 52 {
 53   Model model = LoadModel(TextFormat("data/%s.glb",filename));
 54   if (model.materialCount > 1)
 55   {
 56     model.materials[1].maps[MATERIAL_MAP_DIFFUSE].texture = palette;
 57   }
 58   return model;
 59 }
 60
 61 void LoadAssets()
 62 {
 63   // load a sprite sheet that contains all units
 64   spriteSheet = LoadTexture("data/spritesheet.png");
 65   SetTextureFilter(spriteSheet, TEXTURE_FILTER_BILINEAR);
 66
 67   // we'll use a palette texture to colorize the all buildings and environment art
 68   palette = LoadTexture("data/palette.png");
 69   // The texture uses gradients on very small space, so we'll enable bilinear filtering
 70   SetTextureFilter(palette, TEXTURE_FILTER_BILINEAR);
 71
 72   floorTileAModel = LoadGLBModel("floor-tile-a");
 73   floorTileBModel = LoadGLBModel("floor-tile-b");
 74   grassPatchModel[0] = LoadGLBModel("grass-patch-1");
 75 }
 76
 77 void InitLevel(Level *level)
 78 {
 79   TowerInit();
 80   EnemyInit();
 81   ProjectileInit();
 82   ParticleInit();
 83   TowerTryAdd(TOWER_TYPE_BASE, 0, 0);
 84
 85   level->placementMode = 0;
 86   level->state = LEVEL_STATE_BUILDING;
 87   level->nextState = LEVEL_STATE_NONE;
 88   level->playerGold = level->initialGold;
 89   level->currentWave = 0;
 90
 91   Camera *camera = &level->camera;
 92   camera->position = (Vector3){4.0f, 8.0f, 8.0f};
 93   camera->target = (Vector3){0.0f, 0.0f, 0.0f};
 94   camera->up = (Vector3){0.0f, 1.0f, 0.0f};
 95   camera->fovy = 10.0f;
 96   camera->projection = CAMERA_ORTHOGRAPHIC;
 97 }
 98
 99 void DrawLevelHud(Level *level)
100 {
101   const char *text = TextFormat("Gold: %d", level->playerGold);
102   Font font = GetFontDefault();
103   DrawTextEx(font, text, (Vector2){GetScreenWidth() - 120, 10}, font.baseSize * 2.0f, 2.0f, BLACK);
104   DrawTextEx(font, text, (Vector2){GetScreenWidth() - 122, 8}, font.baseSize * 2.0f, 2.0f, YELLOW);
105 }
106
107 void DrawLevelReportLostWave(Level *level)
108 {
109   BeginMode3D(level->camera);
110   DrawLevelGround(level);
111   TowerDraw();
112   EnemyDraw();
113   ProjectileDraw();
114   ParticleDraw();
115   guiState.isBlocked = 0;
116   EndMode3D();
117
118   TowerDrawHealthBars(level->camera);
119
120   const char *text = "Wave lost";
121   int textWidth = MeasureText(text, 20);
122   DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE);
123
124   if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0))
125   {
126     level->nextState = LEVEL_STATE_RESET;
127   }
128 }
129
130 int HasLevelNextWave(Level *level)
131 {
132   for (int i = 0; i < 10; i++)
133   {
134     EnemyWave *wave = &level->waves[i];
135     if (wave->wave == level->currentWave)
136     {
137       return 1;
138     }
139   }
140   return 0;
141 }
142
143 void DrawLevelReportWonWave(Level *level)
144 {
145   BeginMode3D(level->camera);
146   DrawLevelGround(level);
147   TowerDraw();
148   EnemyDraw();
149   ProjectileDraw();
150   ParticleDraw();
151   guiState.isBlocked = 0;
152   EndMode3D();
153
154   TowerDrawHealthBars(level->camera);
155
156   const char *text = "Wave won";
157   int textWidth = MeasureText(text, 20);
158   DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE);
159
160
161   if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0))
162   {
163     level->nextState = LEVEL_STATE_RESET;
164   }
165
166   if (HasLevelNextWave(level))
167   {
168     if (Button("Prepare for next wave", GetScreenWidth() - 300, GetScreenHeight() - 40, 300, 30, 0))
169     {
170       level->nextState = LEVEL_STATE_BUILDING;
171     }
172   }
173   else {
174     if (Button("Level won", GetScreenWidth() - 300, GetScreenHeight() - 40, 300, 30, 0))
175     {
176       level->nextState = LEVEL_STATE_WON_LEVEL;
177     }
178   }
179 }
180
181 void DrawBuildingBuildButton(Level *level, int x, int y, int width, int height, uint8_t towerType, const char *name)
182 {
183   static ButtonState buttonStates[8] = {0};
184   int cost = GetTowerCosts(towerType);
185   const char *text = TextFormat("%s: %d", name, cost);
186   buttonStates[towerType].isSelected = level->placementMode == towerType;
187   buttonStates[towerType].isDisabled = level->playerGold < cost;
188   if (Button(text, x, y, width, height, &buttonStates[towerType]))
189   {
190     level->placementMode = buttonStates[towerType].isSelected ? 0 : towerType;
191   }
192 }
193
194 void DrawLevelGround(Level *level)
195 {
196   // draw checkerboard ground pattern
197   for (int x = -5; x <= 5; x += 1)
198   {
199     for (int y = -5; y <= 5; y += 1)
200     {
201       Model *model = (x + y) % 2 == 0 ? &floorTileAModel : &floorTileBModel;
202       DrawModel(*model, (Vector3){x, 0.0f, y}, 1.0f, WHITE);
203     }
204   }
205
206   // draw grass patches around the edges
207   const int layerCount = 2;
208 SetRandomSeed(123);
209 for (int layer = 0; layer < layerCount; layer++) 210 { 211 int layerPos = 6 + layer; 212 for (int x = -6 + layer; x <= 6 + layer; x += 1) 213 { 214 DrawModel(grassPatchModel[0], 215 (Vector3){x + (float)GetRandomValue(-25,25) / 100.0f, 0.0f, -layerPos + (float)GetRandomValue(-25,25) / 100.0f}, 216 1.0f, WHITE); 217 DrawModel(grassPatchModel[0], 218 (Vector3){x + (float)GetRandomValue(-25,25) / 100.0f, 0.0f, layerPos + (float)GetRandomValue(-25,25) / 100.0f}, 219 1.0f, WHITE); 220 } 221 222 for (int z = -5 + layer; z <= 5 + layer; z += 1) 223 { 224 DrawModel(grassPatchModel[0], 225 (Vector3){-layerPos + (float)GetRandomValue(-25,25) / 100.0f, 0.0f, z + (float)GetRandomValue(-25,25) / 100.0f}, 226 1.0f, WHITE); 227 DrawModel(grassPatchModel[0], 228 (Vector3){layerPos + (float)GetRandomValue(-25,25) / 100.0f, 0.0f, z + (float)GetRandomValue(-25,25) / 100.0f}, 229 1.0f, WHITE); 230 } 231 } 232 } 233 234 void DrawLevelBuildingState(Level *level) 235 { 236 BeginMode3D(level->camera); 237 DrawLevelGround(level); 238 TowerDraw(); 239 EnemyDraw(); 240 ProjectileDraw(); 241 ParticleDraw(); 242 243 Ray ray = GetScreenToWorldRay(GetMousePosition(), level->camera); 244 float planeDistance = ray.position.y / -ray.direction.y; 245 float planeX = ray.direction.x * planeDistance + ray.position.x; 246 float planeY = ray.direction.z * planeDistance + ray.position.z; 247 int16_t mapX = (int16_t)floorf(planeX + 0.5f); 248 int16_t mapY = (int16_t)floorf(planeY + 0.5f); 249 if (level->placementMode && !guiState.isBlocked && mapX >= -5 && mapX <= 5 && mapY >= -5 && mapY <= 5) 250 { 251 DrawCubeWires((Vector3){mapX, 0.2f, mapY}, 1.0f, 0.4f, 1.0f, RED); 252 if (IsMouseButtonPressed(MOUSE_LEFT_BUTTON)) 253 { 254 if (TowerTryAdd(level->placementMode, mapX, mapY)) 255 { 256 level->playerGold -= GetTowerCosts(level->placementMode); 257 level->placementMode = TOWER_TYPE_NONE; 258 } 259 } 260 } 261 262 guiState.isBlocked = 0; 263 264 EndMode3D(); 265 266 TowerDrawHealthBars(level->camera); 267 268 static ButtonState buildWallButtonState = {0}; 269 static ButtonState buildGunButtonState = {0}; 270 buildWallButtonState.isSelected = level->placementMode == TOWER_TYPE_WALL; 271 buildGunButtonState.isSelected = level->placementMode == TOWER_TYPE_GUN; 272 273 DrawBuildingBuildButton(level, 10, 10, 110, 30, TOWER_TYPE_WALL, "Wall"); 274 DrawBuildingBuildButton(level, 10, 50, 110, 30, TOWER_TYPE_GUN, "Archer"); 275 276 if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0)) 277 { 278 level->nextState = LEVEL_STATE_RESET; 279 } 280 281 if (Button("Begin waves", GetScreenWidth() - 160, GetScreenHeight() - 40, 160, 30, 0)) 282 { 283 level->nextState = LEVEL_STATE_BATTLE; 284 } 285 286 const char *text = "Building phase"; 287 int textWidth = MeasureText(text, 20); 288 DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE); 289 } 290 291 void InitBattleStateConditions(Level *level) 292 { 293 level->state = LEVEL_STATE_BATTLE; 294 level->nextState = LEVEL_STATE_NONE; 295 level->waveEndTimer = 0.0f; 296 for (int i = 0; i < 10; i++) 297 { 298 EnemyWave *wave = &level->waves[i]; 299 wave->spawned = 0; 300 wave->timeToSpawnNext = wave->delay; 301 } 302 } 303 304 void DrawLevelBattleState(Level *level) 305 { 306 BeginMode3D(level->camera); 307 DrawLevelGround(level); 308 TowerDraw(); 309 EnemyDraw(); 310 ProjectileDraw(); 311 ParticleDraw(); 312 guiState.isBlocked = 0; 313 EndMode3D(); 314 315 EnemyDrawHealthbars(level->camera); 316 TowerDrawHealthBars(level->camera); 317 318 if (Button("Reset level", 20, GetScreenHeight() - 40, 160, 30, 0)) 319 { 320 level->nextState = LEVEL_STATE_RESET; 321 } 322 323 int maxCount = 0; 324 int remainingCount = 0; 325 for (int i = 0; i < 10; i++) 326 { 327 EnemyWave *wave = &level->waves[i]; 328 if (wave->wave != level->currentWave) 329 { 330 continue; 331 } 332 maxCount += wave->count; 333 remainingCount += wave->count - wave->spawned; 334 } 335 int aliveCount = EnemyCount(); 336 remainingCount += aliveCount; 337 338 const char *text = TextFormat("Battle phase: %03d%%", 100 - remainingCount * 100 / maxCount); 339 int textWidth = MeasureText(text, 20); 340 DrawText(text, (GetScreenWidth() - textWidth) * 0.5f, 20, 20, WHITE); 341 } 342 343 void DrawLevel(Level *level) 344 { 345 switch (level->state) 346 { 347 case LEVEL_STATE_BUILDING: DrawLevelBuildingState(level); break; 348 case LEVEL_STATE_BATTLE: DrawLevelBattleState(level); break; 349 case LEVEL_STATE_WON_WAVE: DrawLevelReportWonWave(level); break; 350 case LEVEL_STATE_LOST_WAVE: DrawLevelReportLostWave(level); break; 351 default: break; 352 } 353 354 DrawLevelHud(level); 355 } 356 357 void UpdateLevel(Level *level) 358 { 359 if (level->state == LEVEL_STATE_BATTLE) 360 { 361 int activeWaves = 0; 362 for (int i = 0; i < 10; i++) 363 { 364 EnemyWave *wave = &level->waves[i]; 365 if (wave->spawned >= wave->count || wave->wave != level->currentWave) 366 { 367 continue; 368 } 369 activeWaves++; 370 wave->timeToSpawnNext -= gameTime.deltaTime; 371 if (wave->timeToSpawnNext <= 0.0f) 372 { 373 Enemy *enemy = EnemyTryAdd(wave->enemyType, wave->spawnPosition.x, wave->spawnPosition.y); 374 if (enemy) 375 { 376 wave->timeToSpawnNext = wave->interval; 377 wave->spawned++; 378 } 379 } 380 } 381 if (GetTowerByType(TOWER_TYPE_BASE) == 0) { 382 level->waveEndTimer += gameTime.deltaTime; 383 if (level->waveEndTimer >= 2.0f) 384 { 385 level->nextState = LEVEL_STATE_LOST_WAVE; 386 } 387 } 388 else if (activeWaves == 0 && EnemyCount() == 0) 389 { 390 level->waveEndTimer += gameTime.deltaTime; 391 if (level->waveEndTimer >= 2.0f) 392 { 393 level->nextState = LEVEL_STATE_WON_WAVE; 394 } 395 } 396 } 397 398 PathFindingMapUpdate(); 399 EnemyUpdate(); 400 TowerUpdate(); 401 ProjectileUpdate(); 402 ParticleUpdate(); 403 404 if (level->nextState == LEVEL_STATE_RESET) 405 { 406 InitLevel(level); 407 } 408 409 if (level->nextState == LEVEL_STATE_BATTLE) 410 { 411 InitBattleStateConditions(level); 412 } 413 414 if (level->nextState == LEVEL_STATE_WON_WAVE) 415 { 416 level->currentWave++; 417 level->state = LEVEL_STATE_WON_WAVE; 418 } 419 420 if (level->nextState == LEVEL_STATE_LOST_WAVE) 421 { 422 level->state = LEVEL_STATE_LOST_WAVE; 423 } 424 425 if (level->nextState == LEVEL_STATE_BUILDING) 426 { 427 level->state = LEVEL_STATE_BUILDING; 428 } 429 430 if (level->nextState == LEVEL_STATE_WON_LEVEL) 431 { 432 // make something of this later 433 InitLevel(level); 434 } 435 436 level->nextState = LEVEL_STATE_NONE; 437 } 438 439 float nextSpawnTime = 0.0f; 440 441 void ResetGame() 442 { 443 InitLevel(currentLevel); 444 } 445 446 void InitGame() 447 { 448 TowerInit(); 449 EnemyInit(); 450 ProjectileInit(); 451 ParticleInit(); 452 PathfindingMapInit(20, 20, (Vector3){-10.0f, 0.0f, -10.0f}, 1.0f); 453 454 currentLevel = levels; 455 InitLevel(currentLevel); 456 } 457 458 //# Immediate GUI functions 459 460 void DrawHealthBar(Camera3D camera, Vector3 position, float healthRatio, Color barColor, float healthBarWidth) 461 { 462 const float healthBarHeight = 6.0f; 463 const float healthBarOffset = 15.0f; 464 const float inset = 2.0f; 465 const float innerWidth = healthBarWidth - inset * 2; 466 const float innerHeight = healthBarHeight - inset * 2; 467 468 Vector2 screenPos = GetWorldToScreen(position, camera); 469 float centerX = screenPos.x - healthBarWidth * 0.5f; 470 float topY = screenPos.y - healthBarOffset; 471 DrawRectangle(centerX, topY, healthBarWidth, healthBarHeight, BLACK); 472 float healthWidth = innerWidth * healthRatio; 473 DrawRectangle(centerX + inset, topY + inset, healthWidth, innerHeight, barColor); 474 } 475 476 int Button(const char *text, int x, int y, int width, int height, ButtonState *state) 477 { 478 Rectangle bounds = {x, y, width, height}; 479 int isPressed = 0; 480 int isSelected = state && state->isSelected; 481 int isDisabled = state && state->isDisabled; 482 if (CheckCollisionPointRec(GetMousePosition(), bounds) && !guiState.isBlocked && !isDisabled) 483 { 484 Color color = isSelected ? DARKGRAY : GRAY; 485 DrawRectangle(x, y, width, height, color); 486 if (IsMouseButtonPressed(MOUSE_LEFT_BUTTON)) 487 { 488 isPressed = 1; 489 } 490 guiState.isBlocked = 1; 491 } 492 else 493 { 494 Color color = isSelected ? WHITE : LIGHTGRAY; 495 DrawRectangle(x, y, width, height, color); 496 } 497 Font font = GetFontDefault(); 498 Vector2 textSize = MeasureTextEx(font, text, font.baseSize * 2.0f, 1); 499 Color textColor = isDisabled ? GRAY : BLACK; 500 DrawTextEx(font, text, (Vector2){x + width / 2 - textSize.x / 2, y + height / 2 - textSize.y / 2}, font.baseSize * 2.0f, 1, textColor); 501 return isPressed; 502 } 503 504 //# Main game loop 505 506 void GameUpdate() 507 { 508 float dt = GetFrameTime(); 509 // cap maximum delta time to 0.1 seconds to prevent large time steps 510 if (dt > 0.1f) dt = 0.1f; 511 gameTime.time += dt; 512 gameTime.deltaTime = dt; 513 514 UpdateLevel(currentLevel); 515 } 516 517 int main(void) 518 { 519 int screenWidth, screenHeight; 520 GetPreferredSize(&screenWidth, &screenHeight); 521 InitWindow(screenWidth, screenHeight, "Tower defense"); 522 SetTargetFPS(30); 523 524 LoadAssets(); 525 InitGame(); 526 527 while (!WindowShouldClose()) 528 { 529 if (IsPaused()) { 530 // canvas is not visible in browser - do nothing 531 continue; 532 } 533 534 BeginDrawing(); 535 ClearBackground((Color){0x4E, 0x63, 0x26, 0xFF}); 536 537 GameUpdate(); 538 DrawLevel(currentLevel); 539 540 EndDrawing(); 541 } 542 543 CloseWindow(); 544 545 return 0; 546 }
  1 #ifndef TD_TUT_2_MAIN_H
  2 #define TD_TUT_2_MAIN_H
  3
  4 #include <inttypes.h>
  5
  6 #include "raylib.h"
  7 #include "preferred_size.h"
  8
  9 //# Declarations
 10
 11 #define ENEMY_MAX_PATH_COUNT 8
 12 #define ENEMY_MAX_COUNT 400
 13 #define ENEMY_TYPE_NONE 0
 14 #define ENEMY_TYPE_MINION 1
 15
 16 #define PARTICLE_MAX_COUNT 400
 17 #define PARTICLE_TYPE_NONE 0
 18 #define PARTICLE_TYPE_EXPLOSION 1
 19
 20 typedef struct Particle
 21 {
 22   uint8_t particleType;
 23   float spawnTime;
 24   float lifetime;
 25   Vector3 position;
 26   Vector3 velocity;
 27 } Particle;
 28
 29 #define TOWER_MAX_COUNT 400
 30 #define TOWER_TYPE_NONE 0
 31 #define TOWER_TYPE_BASE 1
 32 #define TOWER_TYPE_GUN 2
 33 #define TOWER_TYPE_WALL 3
 34 #define TOWER_TYPE_COUNT 4
 35
 36 typedef struct Tower
 37 {
 38   int16_t x, y;
 39   uint8_t towerType;
 40   Vector2 lastTargetPosition;
 41   float cooldown;
 42   float damage;
 43 } Tower;
 44
 45 typedef struct GameTime
 46 {
 47   float time;
 48   float deltaTime;
 49 } GameTime;
 50
 51 typedef struct ButtonState {
 52   char isSelected;
 53   char isDisabled;
 54 } ButtonState;
 55
 56 typedef struct GUIState {
 57   int isBlocked;
 58 } GUIState;
 59
 60 typedef enum LevelState
 61 {
 62   LEVEL_STATE_NONE,
 63   LEVEL_STATE_BUILDING,
 64   LEVEL_STATE_BATTLE,
 65   LEVEL_STATE_WON_WAVE,
 66   LEVEL_STATE_LOST_WAVE,
 67   LEVEL_STATE_WON_LEVEL,
 68   LEVEL_STATE_RESET,
 69 } LevelState;
 70
 71 typedef struct EnemyWave {
 72   uint8_t enemyType;
 73   uint8_t wave;
 74   uint16_t count;
 75   float interval;
 76   float delay;
 77   Vector2 spawnPosition;
 78
 79   uint16_t spawned;
 80   float timeToSpawnNext;
 81 } EnemyWave;
 82
 83 typedef struct Level
 84 {
 85   LevelState state;
 86   LevelState nextState;
 87   Camera3D camera;
 88   int placementMode;
 89
 90   int initialGold;
 91   int playerGold;
 92
 93   EnemyWave waves[10];
 94   int currentWave;
 95   float waveEndTimer;
 96 } Level;
 97
 98 typedef struct DeltaSrc
 99 {
100   char x, y;
101 } DeltaSrc;
102
103 typedef struct PathfindingMap
104 {
105   int width, height;
106   float scale;
107   float *distances;
108   long *towerIndex;
109   DeltaSrc *deltaSrc;
110   float maxDistance;
111   Matrix toMapSpace;
112   Matrix toWorldSpace;
113 } PathfindingMap;
114
115 // when we execute the pathfinding algorithm, we need to store the active nodes
116 // in a queue. Each node has a position, a distance from the start, and the
117 // position of the node that we came from.
118 typedef struct PathfindingNode
119 {
120   int16_t x, y, fromX, fromY;
121   float distance;
122 } PathfindingNode;
123
124 typedef struct EnemyId
125 {
126   uint16_t index;
127   uint16_t generation;
128 } EnemyId;
129
130 typedef struct EnemyClassConfig
131 {
132   float speed;
133   float health;
134   float radius;
135   float maxAcceleration;
136   float requiredContactTime;
137   float explosionDamage;
138   float explosionRange;
139   float explosionPushbackPower;
140   int goldValue;
141 } EnemyClassConfig;
142
143 typedef struct Enemy
144 {
145   int16_t currentX, currentY;
146   int16_t nextX, nextY;
147   Vector2 simPosition;
148   Vector2 simVelocity;
149   uint16_t generation;
150   float walkedDistance;
151   float startMovingTime;
152   float damage, futureDamage;
153   float contactTime;
154   uint8_t enemyType;
155   uint8_t movePathCount;
156   Vector2 movePath[ENEMY_MAX_PATH_COUNT];
157 } Enemy;
158
159 // a unit that uses sprites to be drawn
160 #define SPRITE_UNIT_PHASE_WEAPON_IDLE 0
161 #define SPRITE_UNIT_PHASE_WEAPON_COOLDOWN 1
162 typedef struct SpriteUnit
163 {
164   Rectangle srcRect;
165   Vector2 offset;
166   int frameCount;
167   float frameDuration;
168   Rectangle srcWeaponIdleRect;
169   Vector2 srcWeaponIdleOffset;
170   Rectangle srcWeaponCooldownRect;
171   Vector2 srcWeaponCooldownOffset;
172 } SpriteUnit;
173
174 #define PROJECTILE_MAX_COUNT 1200
175 #define PROJECTILE_TYPE_NONE 0
176 #define PROJECTILE_TYPE_ARROW 1
177
178 typedef struct Projectile
179 {
180   uint8_t projectileType;
181   float shootTime;
182   float arrivalTime;
183   float distance;
184   float damage;
185   Vector3 position;
186   Vector3 target;
187   Vector3 directionNormal;
188   EnemyId targetEnemy;
189 } Projectile;
190
191 //# Function declarations
192 float TowerGetMaxHealth(Tower *tower);
193 int Button(const char *text, int x, int y, int width, int height, ButtonState *state);
194 int EnemyAddDamage(Enemy *enemy, float damage);
195
196 //# Enemy functions
197 void EnemyInit();
198 void EnemyDraw();
199 void EnemyTriggerExplode(Enemy *enemy, Tower *tower, Vector3 explosionSource);
200 void EnemyUpdate();
201 float EnemyGetCurrentMaxSpeed(Enemy *enemy);
202 float EnemyGetMaxHealth(Enemy *enemy);
203 int EnemyGetNextPosition(int16_t currentX, int16_t currentY, int16_t *nextX, int16_t *nextY);
204 Vector2 EnemyGetPosition(Enemy *enemy, float deltaT, Vector2 *velocity, int *waypointPassedCount);
205 EnemyId EnemyGetId(Enemy *enemy);
206 Enemy *EnemyTryResolve(EnemyId enemyId);
207 Enemy *EnemyTryAdd(uint8_t enemyType, int16_t currentX, int16_t currentY);
208 int EnemyAddDamage(Enemy *enemy, float damage);
209 Enemy* EnemyGetClosestToCastle(int16_t towerX, int16_t towerY, float range);
210 int EnemyCount();
211 void EnemyDrawHealthbars(Camera3D camera);
212
213 //# Tower functions
214 void TowerInit();
215 Tower *TowerGetAt(int16_t x, int16_t y);
216 Tower *TowerTryAdd(uint8_t towerType, int16_t x, int16_t y);
217 Tower *GetTowerByType(uint8_t towerType);
218 int GetTowerCosts(uint8_t towerType);
219 float TowerGetMaxHealth(Tower *tower);
220 void TowerDraw();
221 void TowerUpdate();
222 void TowerDrawHealthBars(Camera3D camera);
223 void DrawSpriteUnit(SpriteUnit unit, Vector3 position, float t, int flip, int phase);
224
225 //# Particles
226 void ParticleInit();
227 void ParticleAdd(uint8_t particleType, Vector3 position, Vector3 velocity, float lifetime);
228 void ParticleUpdate();
229 void ParticleDraw();
230
231 //# Projectiles
232 void ProjectileInit();
233 void ProjectileDraw();
234 void ProjectileUpdate();
235 Projectile *ProjectileTryAdd(uint8_t projectileType, Enemy *enemy, Vector3 position, Vector3 target, float speed, float damage);
236
237 //# Pathfinding map
238 void PathfindingMapInit(int width, int height, Vector3 translate, float scale);
239 float PathFindingGetDistance(int mapX, int mapY);
240 Vector2 PathFindingGetGradient(Vector3 world);
241 int PathFindingFromWorldToMapPosition(Vector3 worldPosition, int16_t *mapX, int16_t *mapY);
242 void PathFindingMapUpdate();
243 void PathFindingMapDraw();
244
245 //# UI
246 void DrawHealthBar(Camera3D camera, Vector3 position, float healthRatio, Color barColor, float healthBarWidth);
247
248 //# Level
249 void DrawLevelGround(Level *level);
250
251 //# variables
252 extern Level *currentLevel;
253 extern Enemy enemies[ENEMY_MAX_COUNT];
254 extern int enemyCount;
255 extern EnemyClassConfig enemyClassConfigs[];
256
257 extern GUIState guiState;
258 extern GameTime gameTime;
259 extern Tower towers[TOWER_MAX_COUNT];
260 extern int towerCount;
261
262 extern Texture2D palette, spriteSheet;
263
264 #endif
  1 #include "td_main.h"
  2 #include <raymath.h>
  3 #include <stdlib.h>
  4 #include <math.h>
  5
  6 EnemyClassConfig enemyClassConfigs[] = {
  7     [ENEMY_TYPE_MINION] = {
  8       .health = 10.0f,
  9       .speed = 0.6f,
 10       .radius = 0.25f,
 11       .maxAcceleration = 1.0f,
 12       .explosionDamage = 1.0f,
 13       .requiredContactTime = 0.5f,
 14       .explosionRange = 1.0f,
 15       .explosionPushbackPower = 0.25f,
 16       .goldValue = 1,
 17     },
 18 };
 19
 20 Enemy enemies[ENEMY_MAX_COUNT];
 21 int enemyCount = 0;
 22
 23 SpriteUnit enemySprites[] = {
 24     [ENEMY_TYPE_MINION] = {
 25       .srcRect = {0, 16, 16, 16},
 26       .offset = {8.0f, 0.0f},
 27       .frameCount = 6,
 28       .frameDuration = 0.1f,
 29     },
 30 };
 31
 32 void EnemyInit()
 33 {
 34   for (int i = 0; i < ENEMY_MAX_COUNT; i++)
 35   {
 36     enemies[i] = (Enemy){0};
 37   }
 38   enemyCount = 0;
 39 }
 40
 41 float EnemyGetCurrentMaxSpeed(Enemy *enemy)
 42 {
 43   return enemyClassConfigs[enemy->enemyType].speed;
 44 }
 45
 46 float EnemyGetMaxHealth(Enemy *enemy)
 47 {
 48   return enemyClassConfigs[enemy->enemyType].health;
 49 }
 50
 51 int EnemyGetNextPosition(int16_t currentX, int16_t currentY, int16_t *nextX, int16_t *nextY)
 52 {
 53   int16_t castleX = 0;
 54   int16_t castleY = 0;
 55   int16_t dx = castleX - currentX;
 56   int16_t dy = castleY - currentY;
 57   if (dx == 0 && dy == 0)
 58   {
 59     *nextX = currentX;
 60     *nextY = currentY;
 61     return 1;
 62   }
 63   Vector2 gradient = PathFindingGetGradient((Vector3){currentX, 0, currentY});
 64
 65   if (gradient.x == 0 && gradient.y == 0)
 66   {
 67     *nextX = currentX;
 68     *nextY = currentY;
 69     return 1;
 70   }
 71
 72   if (fabsf(gradient.x) > fabsf(gradient.y))
 73   {
 74     *nextX = currentX + (int16_t)(gradient.x > 0.0f ? 1 : -1);
 75     *nextY = currentY;
 76     return 0;
 77   }
 78   *nextX = currentX;
 79   *nextY = currentY + (int16_t)(gradient.y > 0.0f ? 1 : -1);
 80   return 0;
 81 }
 82
 83
 84 // this function predicts the movement of the unit for the next deltaT seconds
 85 Vector2 EnemyGetPosition(Enemy *enemy, float deltaT, Vector2 *velocity, int *waypointPassedCount)
 86 {
 87   const float pointReachedDistance = 0.25f;
 88   const float pointReachedDistance2 = pointReachedDistance * pointReachedDistance;
 89   const float maxSimStepTime = 0.015625f;
 90
 91   float maxAcceleration = enemyClassConfigs[enemy->enemyType].maxAcceleration;
 92   float maxSpeed = EnemyGetCurrentMaxSpeed(enemy);
 93   int16_t nextX = enemy->nextX;
 94   int16_t nextY = enemy->nextY;
 95   Vector2 position = enemy->simPosition;
 96   int passedCount = 0;
 97   for (float t = 0.0f; t < deltaT; t += maxSimStepTime)
 98   {
 99     float stepTime = fminf(deltaT - t, maxSimStepTime);
100     Vector2 target = (Vector2){nextX, nextY};
101     float speed = Vector2Length(*velocity);
102     // draw the target position for debugging
103     DrawCubeWires((Vector3){target.x, 0.2f, target.y}, 0.1f, 0.4f, 0.1f, RED);
104     Vector2 lookForwardPos = Vector2Add(position, Vector2Scale(*velocity, speed));
105     if (Vector2DistanceSqr(target, lookForwardPos) <= pointReachedDistance2)
106     {
107       // we reached the target position, let's move to the next waypoint
108       EnemyGetNextPosition(nextX, nextY, &nextX, &nextY);
109       target = (Vector2){nextX, nextY};
110       // track how many waypoints we passed
111       passedCount++;
112     }
113
114     // acceleration towards the target
115     Vector2 unitDirection = Vector2Normalize(Vector2Subtract(target, lookForwardPos));
116     Vector2 acceleration = Vector2Scale(unitDirection, maxAcceleration * stepTime);
117     *velocity = Vector2Add(*velocity, acceleration);
118
119     // limit the speed to the maximum speed
120     if (speed > maxSpeed)
121     {
122       *velocity = Vector2Scale(*velocity, maxSpeed / speed);
123     }
124
125     // move the enemy
126     position = Vector2Add(position, Vector2Scale(*velocity, stepTime));
127   }
128
129   if (waypointPassedCount)
130   {
131     (*waypointPassedCount) = passedCount;
132   }
133
134   return position;
135 }
136
137 void EnemyDraw()
138 {
139   for (int i = 0; i < enemyCount; i++)
140   {
141     Enemy enemy = enemies[i];
142     if (enemy.enemyType == ENEMY_TYPE_NONE)
143     {
144       continue;
145     }
146
147     Vector2 position = EnemyGetPosition(&enemy, gameTime.time - enemy.startMovingTime, &enemy.simVelocity, 0);
148
149     // don't draw any trails for now; might replace this with footprints later
150     // if (enemy.movePathCount > 0)
151     // {
152     //   Vector3 p = {enemy.movePath[0].x, 0.2f, enemy.movePath[0].y};
153     //   DrawLine3D(p, (Vector3){position.x, 0.2f, position.y}, GREEN);
154     // }
155     // for (int j = 1; j < enemy.movePathCount; j++)
156     // {
157     //   Vector3 p = {enemy.movePath[j - 1].x, 0.2f, enemy.movePath[j - 1].y};
158     //   Vector3 q = {enemy.movePath[j].x, 0.2f, enemy.movePath[j].y};
159     //   DrawLine3D(p, q, GREEN);
160     // }
161
162     switch (enemy.enemyType)
163     {
164     case ENEMY_TYPE_MINION:
165       DrawSpriteUnit(enemySprites[ENEMY_TYPE_MINION], (Vector3){position.x, 0.0f, position.y},
166         enemy.walkedDistance, 0, 0);
167       break;
168     }
169   }
170 }
171
172 void EnemyTriggerExplode(Enemy *enemy, Tower *tower, Vector3 explosionSource)
173 {
174   // damage the tower
175   float explosionDamge = enemyClassConfigs[enemy->enemyType].explosionDamage;
176   float explosionRange = enemyClassConfigs[enemy->enemyType].explosionRange;
177   float explosionPushbackPower = enemyClassConfigs[enemy->enemyType].explosionPushbackPower;
178   float explosionRange2 = explosionRange * explosionRange;
179   tower->damage += enemyClassConfigs[enemy->enemyType].explosionDamage;
180   // explode the enemy
181   if (tower->damage >= TowerGetMaxHealth(tower))
182   {
183     tower->towerType = TOWER_TYPE_NONE;
184   }
185
186   ParticleAdd(PARTICLE_TYPE_EXPLOSION,
187     explosionSource,
188     (Vector3){0, 0.1f, 0}, 1.0f);
189
190   enemy->enemyType = ENEMY_TYPE_NONE;
191
192   // push back enemies & dealing damage
193   for (int i = 0; i < enemyCount; i++)
194   {
